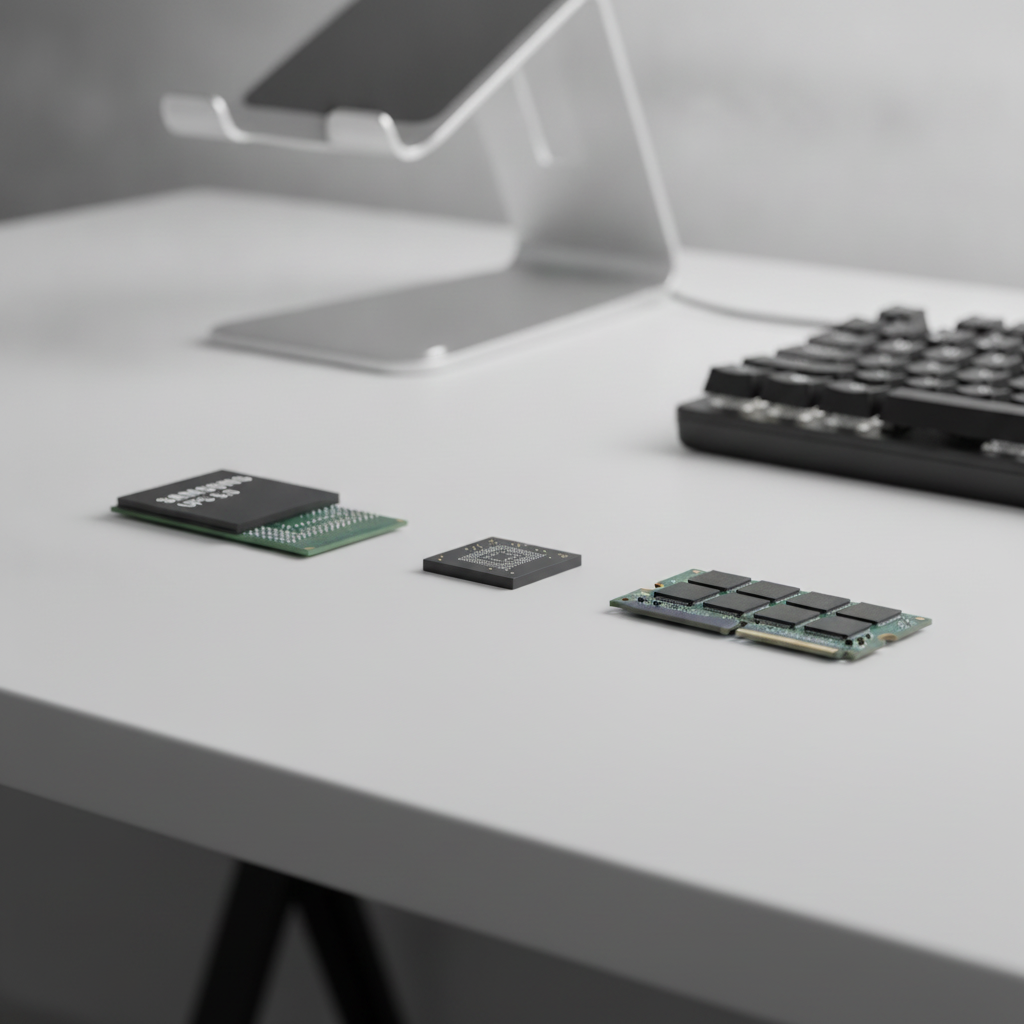

eMMC vs UFS vs SSD: Choosing the Right Storage for Embedded Systems

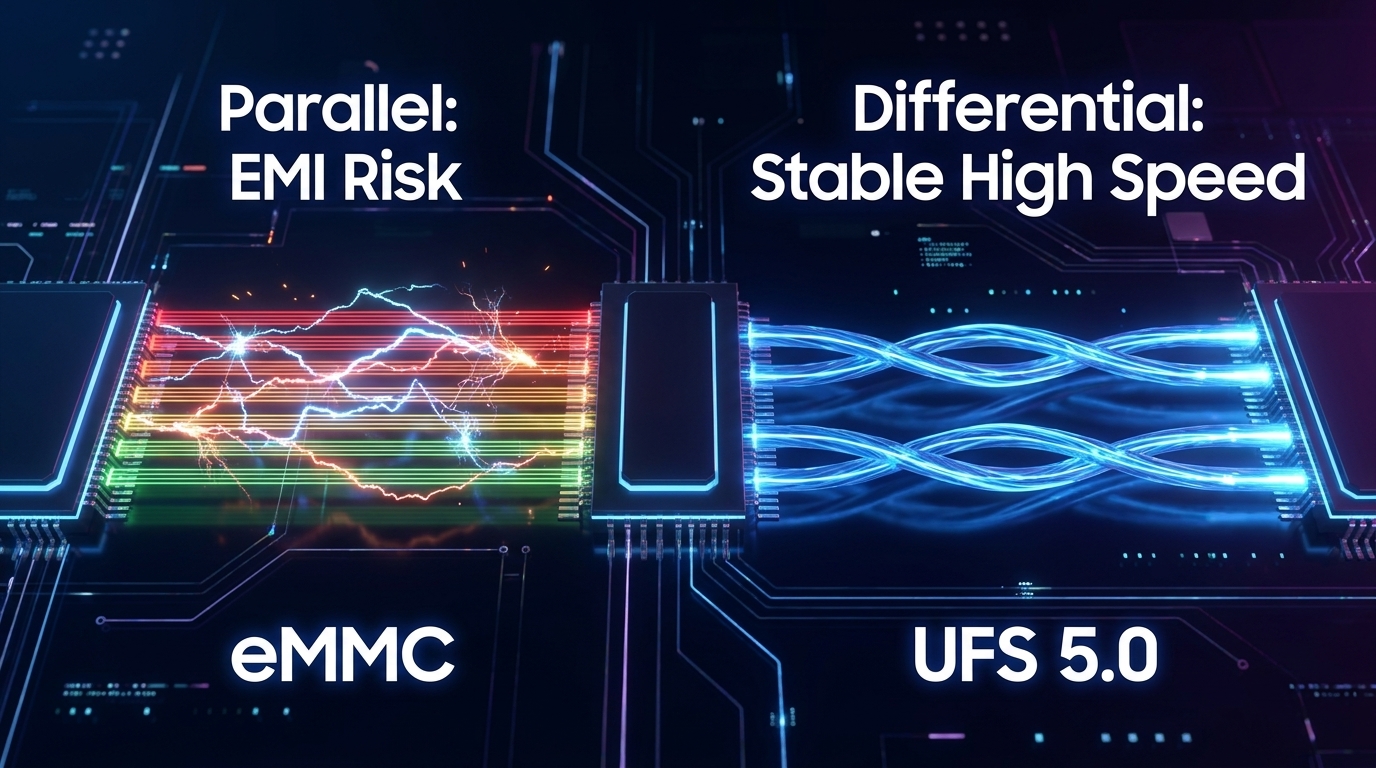

Architectural Guide: This technical guide covers eMMC vs UFS vs SSD embedded for hardware engineers and IoT architects designing 2026 edge devices.Consumer benchmarks fail in embedded design. In 2026, UFS 5.0 achieves 10.8 GB/s in microscopic footprints, cannibalizing the Gen 4 SSD market for Edge AI. Meanwhile, Automotive ADAS demands PCIe Gen 5 BGA SSDs with industrial PLP, and eMMC remains the champion solely for low-bandwidth IoT. We break down signaling architectures, thermal throttling, debugging hurdles, and write-endurance metrics required to spec your next PCB and avoid wear-out panic.eMMC vs UFS vs SSD embedded: The 2026 ConvergenceeMMC vs UFS vs SSD embedded is an architectural convergence because UFS 5.0 now matches desktop SSD speeds in mobile footprints, while BGA SSDs dominate extreme-temperature automotive environments.BGA SSDs vs. M.2 IllusionsCurrent top-ranking articles heavily bias toward the consumer perspective, treating embedded SSDs like standard laptop M.2 drives. For a deeper look at basic technology, see ssds vs hdds the storage choice. Hardware engineers face a different reality: Ball Grid Array (BGA) SSDs. These are fully integrated, soldered-down storage modules containing the NAND flash, controller, and DRAM in a single package. They eliminate the mechanical vulnerability of M.2 slots, which fail under high-vibration industrial conditions. Read more in A Complete Guide to Solid State Drive SSD.The UFS 5.0 TakeoverThe traditional hierarchy of embedded storage is obsolete. According to Samsung's June 2026 global announcement, their UFS 5.0 embedded storage solution delivers sustained read speeds of 10.8 GB/s and write speeds of 9.5 GB/s. This allows UFS 5.0 to outright beat standard PCIe Gen 4 SSDs in speed. Furthermore, it features a 40% power efficiency gain over UFS 4.1 and fits into a microscopic 7.5mm x 13mm x 0.9mm package. UFS is actively cannibalizing the lower-end SSD market for handhelds and Edge AI devices. This evolution started with innovations like the World s First UFS removable memory card line up.The Marketing DeceptionUsers on community forums often report intense frustration with deceptive marketing. Budget device manufacturers legally classify eMMC chips as "Solid State Drives" on spec sheets. This creates a severe disconnect when developers attempt to run heavy workloads on these devices, only to experience catastrophic I/O bottlenecks.Pro Tip: While many guides suggest PCIe NVMe is mandatory for high-performance edge computing, professional workflows actually require UFS 5.0 for handheld Edge AI because it delivers Gen 4 speeds at a fraction of the thermal output and physical footprint.Architectural Breakdown: Bus Structures and I/O BottlenecksBus architecture is the primary bottleneck because parallel eMMC lines suffer electromagnetic interference at high speeds, whereas UFS utilizes differential signaling for simultaneous read/write operations.Comparison of Parallel vs. Differential SignalingVisualizing the Bus: Parallel vs. Twisted PairIn visual stress tests and protocol analyses provided by Prodigy Technovations, the fundamental shift in signaling architecture is obvious. Comparing signaling diagrams (0:03 vs. 0:15), eMMC relies on a parallel bus structure with multiple data lines. As clock speeds increase, this parallel structure generates severe electromagnetic interference (EMI). UFS solves this by utilizing Low Voltage Differential Signaling (LVDS) over twisted pairs, allowing massive bandwidth scaling without proportional power drain.The eMMC Half-Duplex StutterLinux users running Crostini containers frequently complain about system lockups on budget hardware. The root cause is architectural. As experts point out in the Prodigy Technovations analysis [0:48]: "eMMC is half-duplex, hence either read or write into the memory... UFS is a full-duplex interface and allows simultaneous read and write."The UFS Command Queue & Full-Duplex AdvantageUnlike standard flash, UFS uses a Command Queue. The storage controller prioritizes and reorders tasks to maximize efficiency. Because UFS is full-duplex, an embedded system can write background telemetry logs while simultaneously reading a local AI model into RAM.Counter-Intuitive Fact: While most people think higher clock speed dictates storage performance, for containerized Linux applications, full-duplex architecture matters more than raw megahertz to prevent I/O stutter.Thermals, Power, and Footprint: Speccing for Edge AI and Smart CockpitsThermal management is critical because passive-cooled edge devices crash under sustained loads unless the storage controller actively communicates throttling states to the host processor.Active Thermal ManagementDumb storage simply overheats and fails. Modern embedded storage actively manages its thermal envelope. As noted in the Prodigy Technovations breakdown [1:01]: "UFS supports advanced features like Deep Sleep, Write Booster, and Throttling Notifications to the host." Throttling notifications allow the storage device to actively communicate its thermal status to the host CPU. The CPU can then throttle its request rate, preventing a hard system crash in passive-cooled edge devices.The Automotive ADAS ShiftThe automotive storage market for smart cockpits and autonomous driving (ADAS) has officially pivoted. Older systems relied heavily on eMMC. However, 2026 vehicle architectures require sub-60ms boot times and massive Over-The-Air (OTA) bandwidth. Industrial PCIe Gen 4 BGA SSDs deliver up to 3,500 MB/s read speeds in ultra-compact, soldered packages (as small as 11x13mm or 16x20mm). Crucially, these BGA SSDs are rated for extreme automotive temperature ranges of -40°C to 105°C (Grade 2).Pro Tip: If you prioritize data sovereignty and local processing without thermal throttling in a 15W power envelope, UFS 5.0 is the strategic winner over traditional DRAM-equipped NVMe drives.Surviving "Wear-Out Panic": TBW, PLP, and Device LifespansDevice lifespan is dictated by write endurance because soldered embedded storage cannot be replaced, making Terabytes Written and Power-Loss Protection the most critical engineering metrics.Terabytes Written (TBW) as the Ultimate MetricEngineers and power users share a collective anxiety over planned obsolescence—the fear that soldered, non-upgradable embedded storage will hit its write limit and permanently brick the board. TBW (Terabytes Written) is the ultimate metric for endurance. A 64GB drive with a low TBW rating will physically destroy its NAND cells within months if subjected to continuous 4K video loop recording.Power-Loss Protection (PLP)Industrial environments suffer from dirty power and sudden shutdowns. True industrial embedded SSDs utilize hardware-based Power-Loss Protection (PLP). They use onboard capacitors to flush cache data to the NAND during sudden power failures. Furthermore, they offer extreme endurance ratings up to 4,280 TBW when configured in pSLC (pseudo-Single Level Cell) mode. If you prioritize data integrity during dirty power shutdowns, the Micron 2100AI BGA SSD is the clearest example of industrial PLP implementation.Can Embedded Storage Be Replaced?A common consensus among enthusiasts is that BGA rework is possible. Real-world manufacturing dictates otherwise. Replacing a dead BGA chip requires specialized hot-air rework stations, reballing stencils, and risks delaminating the PCB. When the storage dies, the board is effectively bricked.Counter-Intuitive Fact: Running a high-capacity drive half-empty actually doubles its lifespan, as the controller has more free blocks to execute wear-leveling and Garbage Collection algorithms.The Hardware Engineer's Debugging RealityDebugging UFS is complex because its high-speed differential signaling and command queueing require advanced protocol analyzers to capture intermittent timing errors on the PCB.Hardware Debugging of UFS 5.0 StorageProtocol Analyzers on the PCBDesigning with UFS over eMMC introduces severe complexity. It is not plug-and-play. Visual evidence from hardware testing [1:20] shows engineers using advanced protocol analyzers directly on the physical PCB. Because of the high data rates and complex LVDS protocol, engineers require "very long captures" to catch intermittent bugs. Standard logic analyzers lack the bandwidth to decode UFS 5.0 traffic, forcing hardware teams to invest heavily in specialized debugging tools.At What Point Does eMMC Bottleneck a Modern Embedded System?eMMC bottlenecks modern systems because its 400 MB/s half-duplex limit cannot process concurrent read/write requests required by local AI models or multi-camera streams.The Threshold and Breaking PointThe eMMC 5.1 standard is strictly half-duplex and physically caps out at a maximum theoretical bandwidth of 400 MB/s (using the HS400 dual data-rate mode at 200 MHz).If you design a basic smart home temperature sensor or a single-thread IoT gateway, eMMC 5.1 remains the undisputed, cost-effective champion. The breaking point occurs the moment the system attempts to run local AI models, concurrent read/write containerized applications, or high-definition multi-camera streams. At 400 MB/s half-duplex, the storage controller physically blocks the CPU from accessing data, resulting in dropped frames and system latency.Embedded Storage Comparison TableEmbedded storage comparison is essential because engineers must balance physical footprint, thermal limits, and maximum throughput against strict bill-of-materials budgets.Feature / SpecificationeMMC 5.1UFS 5.0 (2026 Standard)PCIe Gen 4 BGA SSDSignaling ArchitectureParallel BusDifferential (LVDS)PCIe Lanes (NVMe)Duplex ModeHalf-DuplexFull-DuplexFull-DuplexMax Read Speed400 MB/s10.8 GB/s3,500 MB/sMax Write Speed~250 MB/s9.5 GB/s~3,000 MB/sCommand QueueingNoYesYesTypical Footprint11.5 x 13mm7.5 x 13 x 0.9mm16 x 20mmPrimary Use CaseBasic IoT, Smart AppliancesEdge AI, Handhelds, MobileAutomotive ADAS, ServersHardware PLP SupportRareRareCommon (Industrial Grade)ConclusionSelecting embedded storage is a strict architectural matching process because over-speccing wastes power budgets while under-speccing guarantees premature device failure and I/O bottlenecks.The 2026 hardware landscape proves that the old "Good, Better, Best" tier list is dead. eMMC 5.1 survives as the highly efficient choice for static, single-thread IoT sensors. UFS 5.0 has completely rewritten the rules for power-constrained Edge AI and handhelds, delivering 10.8 GB/s without the thermal penalty of PCIe lanes. Conversely, hyper-performance Automotive ADAS and industrial servers require the extreme temperature tolerance (-40°C to 105°C) and hardware PLP found only in true BGA SSDs. Match the protocol to your thermal envelope, calculate your required TBW, and spec the board accordingly.FAQFrequently asked questions clarify embedded storage because consumer marketing terminology often obscures the physical and architectural realities of soldered BGA components.Why do consumer spec sheets refer to eMMC as an SSD?Marketing departments exploit the literal definition of "Solid State Drive" (a drive with no moving parts) to classify eMMC as an SSD. However, architecturally, eMMC lacks the multi-channel controllers, DRAM cache, and full-duplex NVMe protocols that define true SSD performance.Does UFS use PCIe lanes?No. UFS utilizes the MIPI M-PHY physical layer and SCSI architectural model. It achieves high speeds through Low Voltage Differential Signaling (LVDS) rather than consuming the host processor's PCIe lanes, making it highly power-efficient for mobile architectures.What is a BGA SSD and how does it differ from M.2?A BGA (Ball Grid Array) SSD solders the NAND, controller, and DRAM directly onto the host motherboard as a single integrated chip. M.2 is a physical slot and connector standard. BGA SSDs eliminate the mechanical connector, making them immune to the vibration and shock failures common with M.2 drives in industrial environments.How do I calculate the lifespan (TBW) of a soldered embedded chip?Calculate your device's daily write load (e.g., 50GB of log files per day). Multiply this by the expected lifespan in days (e.g., 5 years = 1,825 days). The total is 91.25 Terabytes. You must select an embedded chip with a TBW rating significantly higher than 91.25 to account for write amplification and ensure the board outlives its deployment cycle.
