SRAM vs DRAM: Core Differences and Use Case Guide

Author: Kynix

Published: 2026-06-26 | Last Updated: 2026-06-26

Contents

SRAM vs DRAM: Core Differences and Use Case Guide

Guide: This technical guide covers SRAM vs DRAM for hardware engineers and system architects navigating the 2026 memory scaling crisis.

Hardware enthusiasts are increasingly frustrated by a glaring bottleneck: while DRAM throughput (like DDR5 and GDDR7) scales to massive numbers, absolute wall-time latency remains stagnant. The traditional "cache vs. main memory" textbook definitions are obsolete. Today, SRAM is hitting a physical scaling wall at the 2nm node, forcing chipmakers to dedicate over half their silicon die area to memory. Meanwhile, DRAM is morphing into massive 3D stacks to keep trillion-parameter AI models fed. This guide breaks down the physical architecture, busted power myths, and how advanced packaging is bridging the gap.

SRAM vs DRAM: The Structural Physics of Speed and Density

SRAM is faster but less dense because it utilizes a complex six-transistor architecture, whereas DRAM relies on a single leaky capacitor.

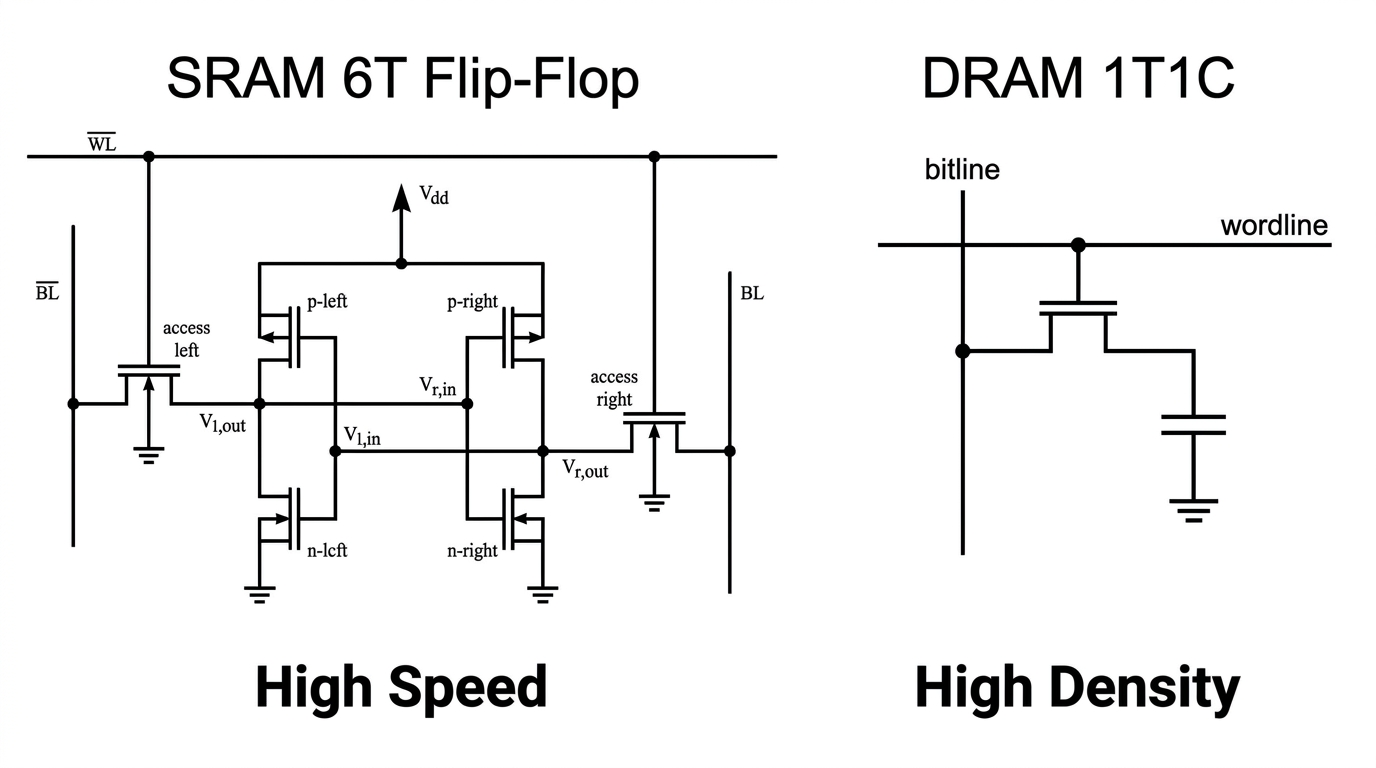

A side-by-side technical diagram showing the architecture of SRAM and DRAM. Left side: a 6-transistor (6T) SRAM cell circuit diagram labeled 'SRAM 6T Flip-Flop'. Right side: a 1-transistor 1-capacitor (1T1C) DRAM cell circuit diagram labeled 'DRAM 1T1C'. The text 'High Density' is positioned under the DRAM cell and 'High Speed' under the SRAM cell. High contrast professional engineering schematic style. — Comparison of 6T SRAM and 1T1C DRAM Cell Architectures

To understand the performance delta, you must look at the physical data path. In visual stress tests and architectural breakdowns, experts point out a "winding path" diagram that dictates form factor. SRAM is depicted as a small, square integrated circuit soldered directly onto the CPU die. Conversely, DRAM appears as the familiar long DIMM stick slotted further away on the motherboard.

This physical distance is dictated by the underlying circuitry. SRAM (Static Random Access Memory) stores each bit using a bistable flip-flop circuit, typically composed of six transistors (6T). This 6T architecture holds data indefinitely as long as power is supplied. DRAM (Dynamic Random Access Memory) uses a 1T1C architecture—one transistor and one capacitor. Capacitors leak charge. Consequently, DRAM requires structural refresh cycles every 32 to 64 milliseconds to keep data intact.

Pro Tip: While many guides suggest DRAM is inherently "slow," professional workflows actually experience latency due to queueing delays caused by the ACTIVATE/PRECHARGE refresh cycles, not the data transfer itself. When the memory controller is forced to wait for a refresh cycle to complete, it creates a traffic jam of memory requests.

The Power and Density Paradox: Busted Myths

SRAM is more power-hungry under active load because its complex circuitry draws higher wattage, while DRAM is more efficient actively but loses efficiency statically due to refresh cycles.

A pervasive myth in hardware communities is that SRAM is universally more power-efficient. Real-world testing suggests the exact opposite under heavy load. According to heterogeneous memory systems research from Boston University and the Stanford VLSI Research Group, SRAM consumes significantly more active power—approximately 4.5 W/GB. Standard DRAM's active power draw sits at roughly 1.0 to 1.5 W/GB.

Furthermore, visual component analysis reveals distinct operating voltages: typical DDR4 DRAM operates at 1.2V, whereas SRAM operates higher at approximately 1.8V. SRAM only wins the efficiency battle in its static state (when data is resting) because it avoids DRAM's constant 32-64ms refresh penalty.

Technical Specifications Comparison

Specification	SRAM (Static RAM)	DRAM (Dynamic RAM)
Architecture	6 Transistors (6T Flip-Flop)	1 Transistor, 1 Capacitor (1T1C)
Active Power Draw	~4.5 W/GB	~1.0 - 1.5 W/GB
Operating Voltage (Typical)	~1.8V	~1.2V (DDR4) / 1.1V (DDR5)
Refresh Requirement	None	Every 32 to 64 milliseconds
Density Ceiling (Per Chip)	1 to 4 Gb	Up to 32 Gb
Primary Use Case	L1/L2/L3 CPU Cache	Main System Memory (DIMMs)

Counter-Intuitive Fact: Because of the 6T cell structure, SRAM is severely limited in density. Modern DRAM chips easily hit 32 Gb capacities, while SRAM chips structurally max out between 1 to 4 Gb.

The 2026 SRAM Scaling Wall

The SRAM Scaling Wall is a critical bottleneck because traditional bitcells refuse to shrink at the same rate as logic gates on modern sub-5nm nodes.

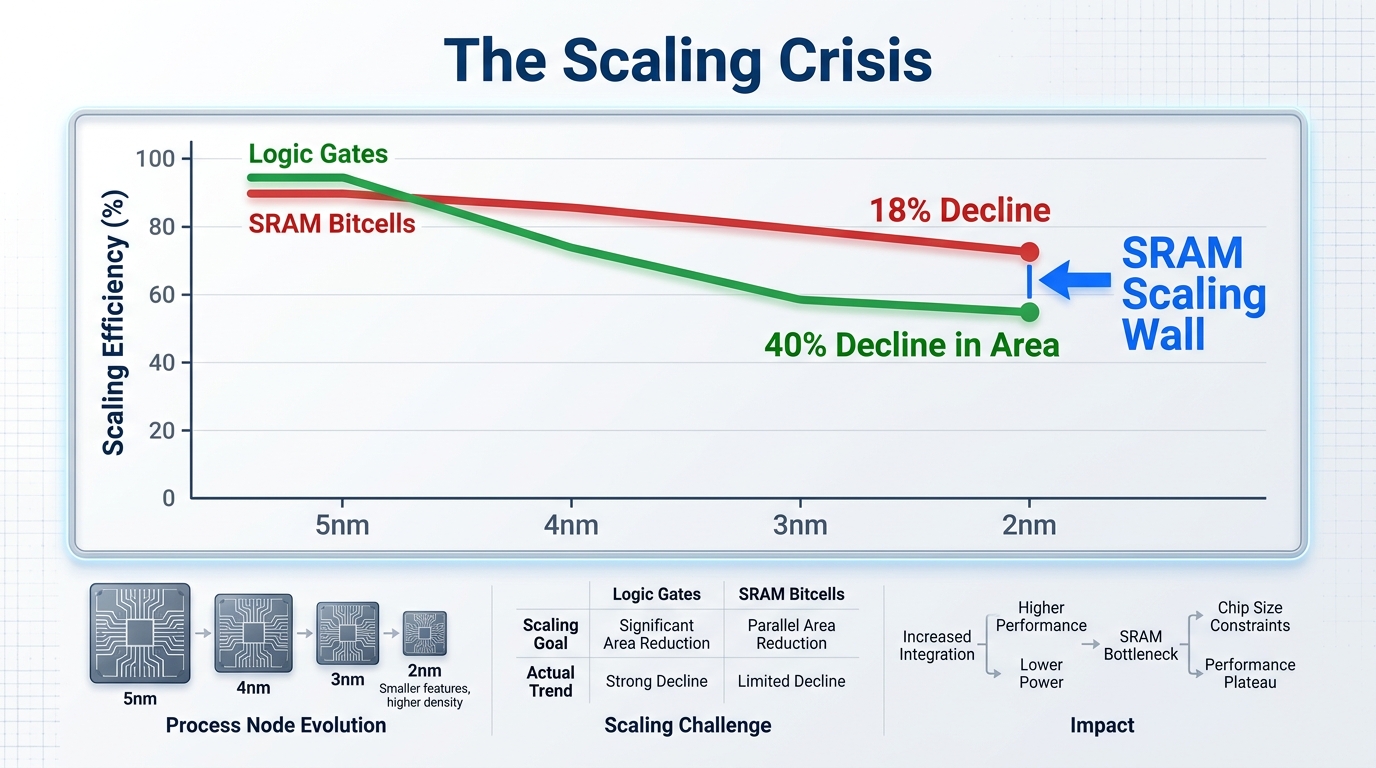

A data chart visualization titled 'The Scaling Crisis'. On the Y-axis: 'Scaling Efficiency (%)'. On the X-axis: '5nm' to '2nm' nodes. Two lines: a green line labeled 'Logic Gates' shows a steep 40% decline in area, and a red line labeled 'SRAM Bitcells' shows a shallow 18% decline. Annotations point to the gap labeled 'SRAM Scaling Wall'. — The divergence between logic scaling and SRAM bitcell scaling

The industry is currently facing a mathematical crisis. If you prioritize maximum cache capacity on a monolithic die, you will hit a physical limit.

Diminishing Returns at 5nm to 2nm Nodes

At the 2026 ISSCC (International Solid-State Circuits Conference), data presented by MediaTek demonstrated the severity of this issue. While logic area successfully decreased by 40% transitioning from the 5nm to 2nm nodes, 8-transistor high-current SRAM bitcells shrank by a mere 18%. SemiAnalysis confirmed this discrepancy, proving that memory scaling has decoupled from logic scaling.

Silicon Area Devoured

Consequently, modern AI chip designers are forced to dedicate massive amounts of silicon die area just to fit stagnant SRAM bitcells. In many 2026 enterprise architectures, over 50% of the total silicon die is consumed by SRAM. This leaves less room for actual compute cores, capping potential performance gains.

Wall Time vs. CL (CAS Latency)

Hardware engineers on forums like r/computerarchitecture frequently debate "Wall time vs. CL." While DRAM manufacturers push CAS Latency throughput higher (moving more data per second), the absolute wall-time latency (the physical time it takes for a single request to travel and return) remains flat. As dram modules impact technology 2025 developments show, because SRAM cannot scale up to hold larger datasets, processors are forced to fetch from DRAM more often, exposing this stagnant wall-time latency.

How HBM4 and V-Cache are Rewriting the Rules

HBM4 is a necessary evolution because 2D memory cannot provide the bandwidth required for modern AI accelerators without causing severe physical bottlenecks.

Because SRAM can no longer scale to meet the memory demands of trillion-parameter AI models, the industry is shifting to next-generation 3D-stacked DRAM. In February 2026, Samsung officially commenced mass production of HBM4 (High Bandwidth Memory 4). According to Samsung's official press release and Wccftech, HBM4 achieves up to 3.3 TB/s bandwidth per stack, 13 Gbps pin speeds, and up to 48 GB capacities using 16-Hi stacks.

{{

?? DRAM vs. SRAM: Which One Should You Choose?

}}

This shift is monumental. In 2026, Micron noted a 3-to-1 conversion ratio between HBM and standard DDR5 wafer capacity. DRAM is morphing into massive, logic-die-based 3D stacks to overcome traditional latency bottlenecks.

To bridge the gap between stagnant SRAM and high-capacity DRAM, engineers utilize advanced packaging. AMD's 3D V-Cache physically stacks SRAM on top of the compute die, bypassing the 2D area limits. Simultaneously, memory controllers use software tricks like "hedged reads" (sending duplicate memory requests to hide DRAM refresh latency) and hybrid eDRAM/PSRAM (Pseudo-SRAM) solutions to mask physical shortcomings.

Furthermore, with specialized Industrial memory DRAMs join distributor linecard options expanding, experts point out that matching the memory type to your specific requirement will help you achieve the best performance and value from your computing setup.

If SRAM is so fast, why haven't we made entire RAM sticks out of it?

A pure SRAM DIMM is physically impossible for main memory because its low density and high active power draw would create massive, overheated hardware.

This is the most common question among PC builders. If cost were not an issue, could you build a 64GB SRAM memory stick? The physics say no.

Because SRAM requires six transistors per bit, it takes up significantly more physical space than DRAM. To build a 32GB stick of SRAM, the physical footprint would be massive. Furthermore, at 4.5 W/GB of active power, a 64GB SRAM DIMM would draw nearly 300 watts of power just for memory, requiring dedicated liquid cooling and melting standard motherboard traces.

In visual architectural breakdowns, experts note: "SRAM resides at the top of the memory hierarchy for speed, while DRAM sits lower for capacity. This layered approach ensures high-speed access for frequently used data and sufficient capacity for larger workloads."

Conclusion

The layered memory approach is mandatory because no single memory type can simultaneously satisfy the demands for zero-latency execution and massive data capacity.

The SRAM vs DRAM debate is no longer a simple textbook comparison of speed versus price. It is a complex engineering battle of architecture versus scaling. SRAM provides the zero-latency execution required by modern compute cores but is currently trapped behind a physical scaling wall at the 2nm node. Conversely, DRAM provides the massive density required by AI workloads but suffers from structural refresh penalties. By leveraging 3D packaging, HBM4, and V-Cache, chipmakers are successfully bridging this gap, proving that the future of hardware relies on heterogeneous memory systems.

Frequently Asked Questions (FAQ)

Modern memory architecture is highly specialized because different workloads require distinct balances of throughput, latency, and physical footprint.

Will massive L3/V-cache sizes on modern CPUs eventually make traditional DRAM redundant?
No. While massive L3 caches (like AMD's 3D V-Cache) significantly reduce the number of times a CPU must fetch data from main memory, they cannot replace DRAM. The physical density limits of SRAM mean you cannot fit 32GB or 64GB of cache on a CPU die. DRAM will always be required for bulk system capacity.

Why does an NVMe SSD need a "DRAM cache"—why not just use SRAM?
SSDs use a DRAM cache to store the Flash Translation Layer (FTL), which maps logical block addresses to physical NAND cells. The FTL requires gigabytes of capacity (typically 1GB of DRAM per 1TB of storage). Using SRAM for this would be physically too large and prohibitively expensive, while using no cache at all forces the drive to read the FTL directly from slow NAND flash.

What are "1b / 1c nodes" in modern memory manufacturing?
Hardware engineers use these terms to describe modern DRAM manufacturing processes. According to the SK Hynix Newsroom and SemiWiki, the "1c" node is the 6th generation of 10nm-class DRAM manufacturing (measuring roughly 11-12nm). It succeeds the 5th generation "1b" node (12-13nm) and is being heavily ramped up in 2026 by SK Hynix and Samsung, specifically since Samsung starts mass producing industrys first 10 nanometer class DRAM for DDR5 and HBM4 base dies.

What is the difference between eDRAM and PSRAM?
eDRAM (Embedded DRAM) is DRAM integrated directly onto the same silicon die as the processor, offering higher bandwidth than external DRAM but requiring complex manufacturing. PSRAM (Pseudo-SRAM) is traditional DRAM packaged with a built-in controller that handles the refresh cycles internally, making it behave exactly like SRAM to the host system while maintaining DRAM's higher density.
