The Best Tutorial for P-Channel MOSFET

1. Introduction to MOSFETs In the world of modern electronics, few components have revolutionized circuit design as profoundly as the Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET). These tiny yet powerful semiconductor devices have become the backbone of contemporary electronic systems, from smartphones and laptops to industrial equipment and automotive electronics. Figure 1: Various types of MOSFET packages used in modern electronics Did you know that a single advanced microprocessor can contain billions of MOSFETs on a chip smaller than your fingernail? This incredible density has enabled the computing revolution we take for granted today. MOSFETs have become fundamental building blocks for both analog and digital circuits due to their unique electrical properties and outstanding performance. The MOSFET differs significantly from its predecessor, the bipolar junction transistor (BJT), by operating as a voltage-controlled device rather than a current-controlled one. This fundamental difference makes MOSFETs exceptionally energy-efficient and ideal for applications where power consumption is a critical concern. "MOSFETs represent one of the most significant technological breakthroughs in semiconductor history, enabling the dramatic miniaturization and increased efficiency of electronic devices over the past five decades." In this comprehensive guide, we'll explore the working principles, types, applications, and selection criteria for MOSFETs. Whether you're an electronics enthusiast, engineering student, or professional designer, understanding these versatile components will enhance your ability to create efficient and innovative electronic systems. 2. MOSFET Working Principles 2.1 Basic Structure and Components At its core, a MOSFET consists of several key components working together to control electrical current flow. Understanding the physical structure of a MOSFET is essential to grasp its operating principles and capabilities. Figure 2: Basic structure of a MOSFET showing key components The fundamental components of a MOSFET include: Gate Terminal: The control electrode that regulates current flow through the device. It's separated from the semiconductor material by an insulating oxide layer.Source Terminal: The terminal where charge carriers enter the device.Drain Terminal: The terminal where charge carriers exit the device.Substrate (Body): The semiconductor material that forms the foundation of the device, typically made of silicon.Oxide Layer: A thin insulating layer (usually silicon dioxide) that separates the gate from the channel, preventing direct electrical contact.Channel: The region between source and drain where current flows when the device is turned on. The name MOSFET itself describes its construction: Metal (gate electrode), Oxide (insulating layer), and Semiconductor (substrate), combined with Field-Effect Transistor (operating principle). Pro Tip: MOSFETs are sometimes called IGFETs (Insulated Gate Field-Effect Transistors) because the gate is electrically insulated from the channel, which is a key feature distinguishing them from other transistor types. 2.2 Operation Modes MOSFETs operate in different modes depending on the voltage applied to their terminals. The two primary modes are enhancement mode and depletion mode. Enhancement Mode Figure 3: Enhancement Mode MOSFET operation In enhancement mode operation: The MOSFET acts like an open switch when no voltage is applied to the gate (normally OFF).A conductive channel forms between source and drain only when sufficient voltage is applied to the gate.For N-channel enhancement MOSFETs, a positive gate voltage is required to create an electron-rich channel.For P-channel enhancement MOSFETs, a negative gate voltage is required to create a hole-rich channel. Depletion Mode Figure 4: Depletion Mode MOSFET operation In depletion mode operation: The MOSFET has a conductive channel even with no gate voltage (normally ON).Applying a voltage of appropriate polarity to the gate reduces or "depletes" the channel, decreasing current flow.For N-channel depletion MOSFETs, a negative gate voltage depletes the channel.For P-channel depletion MOSFETs, a positive gate voltage depletes the channel. MOSFETs also operate in three distinct regions based on the relationship between gate-source voltage (VGS) and drain-source voltage (VDS): Cut-off Region: The MOSFET is turned off, and no significant current flows between drain and source.Ohmic (Linear) Region: The MOSFET acts like a voltage-controlled resistor, with current proportional to voltage.Saturation Region: The MOSFET delivers a relatively constant current regardless of increases in drain-source voltage. 2.3 Electrical Characteristics MOSFETs exhibit several important electrical characteristics that determine their performance in circuits: Threshold Voltage (Vth) The threshold voltage is the minimum gate-source voltage required to create a conductive channel between source and drain. Typical threshold values range from 1-4V, with lower voltages (1-2V) for logic-level MOSFETs designed to work with digital circuits, and higher voltages for power applications. On-Resistance (RDS(on)) On-resistance is the resistance between drain and source when the MOSFET is fully turned on. Lower RDS(on) values result in less power dissipation and higher efficiency. Modern power MOSFETs can achieve RDS(on) values below 1 milliohm for high-current applications. Transconductance (gm) Transconductance measures how efficiently the gate voltage controls the drain current. Higher transconductance values indicate better control and amplification capabilities. Gate Charge (Qg) Gate charge represents the amount of electrical charge required to turn the MOSFET on. Lower gate charge values enable faster switching speeds and lower switching losses, which is critical in high-frequency applications. Breakdown Voltage (VDSS or BVDSS) This is the maximum voltage the MOSFET can withstand between drain and source before breakdown occurs. Power MOSFETs are available with breakdown voltages ranging from tens to thousands of volts. Important Note: The relationship between on-resistance and breakdown voltage involves a fundamental tradeoff in MOSFET design. Higher breakdown voltage ratings generally result in higher on-resistance, which means increased power losses during conduction. This tradeoff must be carefully considered when selecting MOSFETs for specific applications. 3. Types of MOSFETs 3.1 N-Channel vs P-Channel Figure 5: Comparison of N-Channel and P-Channel MOSFETs MOSFETs are primarily classified by the type of charge carriers that form their conductive channel: N-Channel MOSFETs In N-channel MOSFETs, electrons serve as the primary charge carriers. These MOSFETs: Turn on with a positive gate voltage relative to the sourceOffer higher electron mobility, resulting in lower on-resistance and better efficiencyAre more commonly used due to superior performance characteristicsTypically serve as "low-side switches" where the load is connected between the positive supply and the drain P-Channel MOSFETs In P-channel MOSFETs, holes (absence of electrons) serve as the primary charge carriers. These MOSFETs: Turn on with a negative gate voltage relative to the sourceHave higher on-resistance than equivalent N-channel devices (typically 2-3 times higher)Are often used as "high-side switches" where the load is connected between the drain and groundSimplify circuit design in certain applications despite lower efficiencyCharacteristicN-Channel MOSFETP-Channel MOSFETCharge CarriersElectronsHolesGate Voltage to Turn OnPositive relative to sourceNegative relative to sourceTypical ApplicationLow-side switchingHigh-side switchingEfficiencyHigher (lower RDS(on))Lower (higher RDS(on))Circuit Symbol DirectionArrow pointing outwardArrow pointing inward 3.2 Enhancement vs Depletion Mode Figure 6: Enhancement and Depletion Mode MOSFETs Beyond the channel type, MOSFETs are further classified based on their default state without applied gate voltage: Enhancement Mode MOSFETs Enhancement mode MOSFETs are normally OFF when no voltage is applied to the gate. They require an appropriate gate voltage to enhance (create) a conductive channel. Enhancement mode devices are the most common MOSFETs in modern electronics because: They consume no power when off (ideal for battery-powered devices)They offer simplified circuit protection in failure scenariosThey provide more predictable operation in most digital and power circuits Depletion Mode MOSFETs Depletion mode MOSFETs are normally ON when no voltage is applied to the gate. They require an appropriate gate voltage to deplete (remove) the existing conductive channel. Although less common, they offer advantages in: Certain analog circuits where a normally-on condition is desirableApplications requiring fail-safe operation when gate drive is lostSpecific circuit topologies like cascode configurationsPro Tip: Enhancement mode MOSFETs are often symbolized with a broken channel line in circuit diagrams, while depletion mode MOSFETs are shown with a solid channel line. This visual difference helps engineers quickly identify the device type in schematics. 3.3 Power MOSFETs Power MOSFETs are specialized versions designed to handle higher voltages and currents. They feature several important design variations: Figure 7: Various power MOSFET package types Vertical MOSFETs Most power MOSFETs use a vertical structure where current flows from the drain at the bottom of the chip to the source at the top. This design maximizes current handling capability and voltage blocking ability. Planar vs. Trench Technology Power MOSFETs are manufactured using either planar or trench technology: Planar MOSFETs: The older technology with the gate and channel formed on the surface of the siliconTrench MOSFETs: A newer design where the gate structure extends into trenches etched into the silicon, providing higher cell density and lower on-resistance Packaging Options Power MOSFETs come in various package types based on thermal and current requirements: Through-hole packages (TO-220, TO-247): Offer excellent thermal performance and easy mountingSurface-mount packages (DPAK, D2PAK, SO-8): Provide space efficiency for automated assemblyPQFN packages: Offer ultra-low profile and excellent thermal performanceDirectFET packages: Provide optimized thermal and electrical performance for high-efficiency applications"The development of power MOSFETs has been one of the key enablers for the miniaturization of power electronics, allowing engineers to create smaller, more efficient power supplies and motor drives than ever before possible." 4. Applications of MOSFETs Figure 8: Common applications of MOSFETs in modern electronics MOSFETs are among the most versatile semiconductor devices, finding applications across virtually every sector of electronics. Their unique properties make them ideal for a wide range of functions, from simple switching to complex signal processing. 4.1 Switching Applications One of the most common uses of MOSFETs is as electronic switches. Their ability to transition quickly between high-resistance (off) and low-resistance (on) states makes them ideal for controlling power to various loads. Low-Side and High-Side Switching MOSFETs can be configured as: Low-side switches: N-channel MOSFETs placed between the load and groundHigh-side switches: P-channel MOSFETs or specially driven N-channel MOSFETs placed between the power supply and the load Pulse Width Modulation (PWM) MOSFETs excel in PWM applications where rapid switching is required to control: 4.2 Amplification Applications MOSFETs serve as excellent amplifiers due to their high input impedance and good frequency response. They are used in: The extremely high input impedance of MOSFETs (typically 1010 to 1015 ohms) allows them to amplify signals without loading down the source, making them ideal for applications where minimal signal distortion is critical. 4.3 Integrated Circuits MOSFETs form the foundation of modern integrated circuit technology: Digital Logic CMOS (Complementary MOS) technology, which combines N-channel and P-channel MOSFETs, dominates digital logic implementation due to its: Low power consumption during static operationHigh noise immunityWide operating voltage rangeHigh integration density Memory MOSFETs are essential in various memory technologies: DRAM (Dynamic RAM): Uses MOSFETs as access transistors for storage capacitorsSRAM (Static RAM): Uses multiple MOSFETs to form bistable latchesFlash memory: Uses specially designed floating-gate MOSFETs to store charge Microprocessors Modern CPUs and microcontrollers contain billions of MOSFETs, with each one serving as a fundamental switching element in the processor's logic circuits. Pro Tip: The miniaturization of MOSFETs following Moore's Law has been the driving force behind the exponential increase in computing power over the past several decades. Today's most advanced processes can create MOSFETs with features as small as 5 nanometers. 4.4 Power Electronics Applications Power MOSFETs handle substantial current and voltage levels in various applications: Power Supplies MOSFETs are critical components in modern switching power supplies: DC-DC converters: Buck, boost, and buck-boost topologiesAC-DC power supplies: Power factor correction stages and synchronous rectificationUninterruptible power supplies (UPS): Inverter stages and battery management Motor Control MOSFETs provide precise control in various motor drive applications: Brushless DC motor controllers in drones and electric vehiclesVariable frequency drives for industrial motorsStepper motor drivers in 3D printers and CNC machinesServo controllers in robotics and automation Automotive Electronics Modern vehicles use MOSFETs extensively in: Electronic control units (ECUs)LED lighting systemsBattery management systemsElectric power steeringElectric and hybrid vehicle powertrains The automotive industry has driven significant advancements in MOSFET technology, demanding devices that can operate reliably in harsh environments with extreme temperature variations and strict reliability requirements. 5. How to Select the Right MOSFET Choosing the appropriate MOSFET for a specific application requires careful consideration of various parameters and requirements. This section provides a structured approach to MOSFET selection based on application needs. 5.1 Key Parameters to Consider Voltage Ratings When selecting a MOSFET, voltage ratings are among the most critical specifications to consider: VDSS (Drain-Source Breakdown Voltage): Should be at least 20-50% higher than the maximum voltage the MOSFET will experience in the circuitVGS(max) (Maximum Gate-Source Voltage): Defines the maximum allowable gate drive voltageVGS(th) (Gate Threshold Voltage): Must be compatible with your gate driver capability Current Ratings Current handling capability determines whether the MOSFET can safely operate in your application: ID (Continuous Drain Current): Should exceed the maximum continuous current required by your application with a safety margin of at least 50%IDM (Pulsed Drain Current): Important for applications with periodic current surgesSafe Operating Area (SOA): Defines the safe combinations of voltage, current, and time duration Resistance and Power Dissipation These parameters affect efficiency and thermal management: RDS(on) (Drain-Source On-Resistance): Lower values mean less power dissipation and higher efficiencyPD (Maximum Power Dissipation): Must exceed the calculated power dissipation in your applicationRθJC (Thermal Resistance, Junction-to-Case): Lower values indicate better heat transfer capability Switching Parameters For applications involving frequent switching, these parameters are crucial: Qg (Total Gate Charge): Lower values enable faster switching and reduce drive requirementstr and tf (Rise and Fall Times): Determine how quickly the MOSFET can transition between on and off statesCiss, Coss, Crss (Input, Output, and Reverse Transfer Capacitances): Affect switching behavior and frequency responseParameterSymbolImportanceTypical RangeDrain-Source Breakdown VoltageVDSSCritical for preventing breakdown20V to 1500V+Continuous Drain CurrentIDDetermines current handling capability1A to 300A+On-ResistanceRDS(on)Critical for efficiency0.5mΩ to 100ΩGate Threshold VoltageVGS(th)Must match drive capability1V to 4VTotal Gate ChargeQgImportant for switching speed1nC to 300nC 5.2 Application Requirements Analysis Different applications place different demands on MOSFETs. Here's how to match MOSFET characteristics to application requirements: Switching Applications For applications where the MOSFET primarily functions as a switch: Prioritize low RDS(on) to minimize conduction lossesConsider gate charge (Qg) for high-frequency switchingEnsure adequate voltage margin (VDSS) to prevent breakdownChoose logic-level gate threshold if driving from microcontrollers or low-voltage logic Amplifier Applications For linear operation in amplifiers: Focus on transconductance (gm) for better gainConsider noise characteristics, especially in audio applicationsLook for devices with good linearity in their transfer characteristicsSelect devices with appropriate frequency response for the signal bandwidth Power Management Applications For power conversion and management: 5.3 Thermal Considerations Thermal management is critical for MOSFET reliability and performance: Power Dissipation Calculation Calculate power dissipation considering both conduction and switching losses: Conduction losses: Pcond = ID2 × RDS(on)Switching losses: Psw = f × Esw (where f is frequency and Esw is energy loss per switching cycle)Total losses: Ptotal = Pcond + Psw Thermal Resistance Understand the thermal path from junction to ambient: RθJC (Junction to Case): Inherent to the MOSFET packageRθCS (Case to Heatsink): Depends on mounting method and thermal interface materialRθSA (Heatsink to Ambient): Depends on heatsink design and airflow Temperature Rise Calculation Calculate junction temperature using: Tj = Ta + Ptotal × (RθJC + RθCS + RθSA) Where Tj is junction temperature and Ta is ambient temperature. Important Note: Always ensure that the calculated junction temperature remains well below the maximum rated junction temperature (typically 150°C to 175°C) with adequate margin for reliability. A good practice is to design for maximum junction temperatures no higher than 110-120°C for long-term reliability. 6. Advantages and Disadvantages 6.1 Benefits of MOSFETs Advantages of MOSFETs High Input Impedance: Virtually no gate current required for operation, minimizing power requirements for control circuitsFast Switching Speed: Capable of operating at frequencies from kilohertz to gigahertz, making them suitable for high-frequency applicationsLow Power Consumption: Minimal power required in the OFF state and low power losses in modern designsPositive Temperature Coefficient: Resistance increases with temperature, allowing easy parallel connection without thermal runawayNo Second Breakdown: More robust against thermal overload compared to bipolar transistorsVoltage-Controlled Device: Simple drive requirements with minimal control powerThermal Stability: Better performance at high temperatures compared to BJTsEasy Paralleling: Multiple devices can be connected in parallel to increase current handling These advantages have made MOSFETs the dominant technology in many applications, especially those requiring high efficiency, fast switching, or minimal control power. 6.2 Limitations of MOSFETs Disadvantages of MOSFETs ESD Sensitivity: The thin gate oxide makes MOSFETs susceptible to damage from electrostatic dischargeGate Drive Requirements: Some MOSFETs require specific voltage levels for proper operationHigher Cost: Can be more expensive than BJTs in certain applicationsOn-Resistance Increases with Voltage Rating: Higher voltage MOSFETs have higher RDS(on), leading to lower efficiencyBody Diode Limitations: The intrinsic body diode may have poor reverse recovery characteristicsMiller Effect: Capacitive feedback can cause unwanted oscillations and switching issuesThermal Runaway in Linear Applications: When operating in the linear region, MOSFETs can suffer from thermal instability Understanding these limitations is crucial for designing reliable circuits. Proper MOSFET selection and circuit design can mitigate many of these disadvantages. 6.3 MOSFETs vs BJTs Bipolar Junction Transistors (BJTs) and MOSFETs are both transistors, but they operate on different principles and have distinct characteristics: CharacteristicMOSFETBJTControl ParameterVoltage-controlled (gate voltage)Current-controlled (base current)Input ImpedanceVery high (1010-1015 Ω)Moderate (1-10 kΩ)Switching SpeedVery fastModerateThermal StabilityGood (positive temperature coefficient)Poor (negative temperature coefficient)Ease of ParallelingExcellentPoorOn-State Voltage DropHigher at high voltages (>200V)Lower at high voltagesESD SensitivityHighLow The choice between MOSFETs and BJTs depends on application requirements: MOSFETs excel in: High-frequency switching, low power applications, parallel operation, digital circuitsBJTs excel in: High-voltage linear amplifiers, cost-sensitive applications with moderate switching speeds, circuits needing low on-state voltage drop 6.4 MOSFETs vs IGBTs Insulated Gate Bipolar Transistors (IGBTs) combine features of both MOSFETs and BJTs: CharacteristicMOSFETIGBTVoltage RangeBetter for <250V applicationsBetter for >600V applicationsSwitching SpeedFaster (nanoseconds to microseconds)Slower (microseconds)On-State Voltage DropResistive (I×RDS(on))Fixed voltage drop + small resistive componentCurrent DensityLowerHigherConduction Losses at High VoltageHigherLowerSwitching LossesLowerHigherParallelingEasyMore difficult Application guidelines for choosing between MOSFETs and IGBTs: Choose MOSFETs for: Lower voltage applications (<600V), high-frequency switching (>20kHz), lower current requirementsChoose IGBTs for: Higher voltage applications (>1000V), lower frequency operation (<20kHz), higher current requirementsConsider both in: The 600-1000V range, where the choice depends on specific requirements for switching speed versus conduction lossesPro Tip: In the midrange (600-1000V) at moderate currents, the latest generations of wide bandgap semiconductors like Silicon Carbide (SiC) MOSFETs are challenging IGBTs by offering both low conduction losses and fast switching speeds, though at a premium price. 7. Latest Advancements in MOSFET Technology The field of MOSFET technology continues to evolve rapidly, with several significant innovations expanding their capabilities and applications: Wide Bandgap Semiconductors Silicon Carbide (SiC) MOSFETs and Gallium Nitride (GaN) MOSFETs represent major advancements over traditional silicon devices: Higher breakdown voltage capabilities (up to 1700V for commercial SiC devices)Lower on-resistance for a given voltage ratingFaster switching speeds with reduced lossesBetter thermal conductivity allowing operation at higher temperaturesSmaller die size for the same power handling capability These wide bandgap devices are enabling more efficient power conversion in electric vehicles, solar inverters, and industrial motor drives, with efficiency improvements of 2-5% compared to silicon-based solutions. Superjunction Technology Superjunction MOSFETs use a unique charge-balanced structure to overcome the traditional silicon MOSFET limitations: Dramatically reduced RDS(on) for a given breakdown voltageBetter figure of merit (RDS(on) × gate charge) for improved efficiencyEnhanced switching performance in the 500-900V rangeImproved ruggedness and reliability in hard-switching applications Advanced Packaging Technologies Innovations in MOSFET packaging are addressing thermal and parasitic challenges: Clip-bond technology: Replaces traditional wire bonds with metal clips for lower resistance and inductanceDouble-sided cooling: Allows heat extraction from both sides of the dieCopper clip technology: Improves current handling and thermal performanceIntegrated packages: Combining multiple MOSFETs or drivers with MOSFETs in a single package Specialized MOSFET Types New MOSFET designs address specific application challenges: Radiation-hardened MOSFETs: For space and nuclear applicationsUltra-low RDS(on) MOSFETs: For battery-powered and automotive applicationsFast-recovery body diode MOSFETs: For synchronous rectification applicationsIntegrated protection features: MOSFETs with built-in temperature, current, and voltage protection"The development of wide bandgap semiconductors represents the most significant advancement in power MOSFET technology in the past two decades, enabling power conversion efficiency levels that were previously unattainable with silicon devices." 8. Frequently Asked Questions Q1: How can I test if a MOSFET is working properly? To test a MOSFET's functionality, you can use a digital multimeter with diode test mode. For N-channel MOSFETs: For P-channel MOSFETs, reverse the probe polarities in the above procedure. Q2: What's the difference between a logic-level and standard MOSFET? Logic-level MOSFETs are designed to be fully turned on at lower gate voltages (typically 3.3-5V) compatible with digital logic outputs. Standard MOSFETs generally require higher gate voltages (8-10V or more) to achieve their rated performance. The key differences include: Logic-level MOSFETs have a lower threshold voltage (VGS(th)), usually below 2VThey achieve their specified RDS(on) at gate voltages of 4.5-5VThey're ideal for microcontroller-driven applicationsHowever, they typically have higher RDS(on) than standard MOSFETs of the same size when both are fully enhancedQ3: Why do MOSFETs get hot, and how can I prevent this? MOSFETs generate heat primarily due to three factors: Conduction losses: I2R losses from current flowing through RDS(on)Switching losses: Energy lost during transitions between on and off statesLinear operation losses: High power dissipation when operating in the linear region To prevent overheating: Select MOSFETs with lower RDS(on) for high-current applicationsUse appropriate heatsinking and thermal designAvoid operating MOSFETs in the linear region for extended periodsOptimize gate drive for faster switching transitionsUse snubber circuits to minimize switching lossesConsider parallel MOSFETs to distribute current and heatQ4: Can I use N-channel and P-channel MOSFETs interchangeably? N-channel and P-channel MOSFETs cannot be used interchangeably without circuit modifications, as they: Respond to opposite gate voltage polaritiesHave current flowing in different directionsTypically have different performance characteristics (N-channel usually has lower RDS(on)) When replacing one with the other, you'll need to: Invert the gate drive signalReconfigure the circuit topologyAdjust component values to accommodate different characteristicsConsider that N-channel devices are typically more efficient for low-side switching, while P-channel devices simplify high-side switching in some applicationsQ5: What causes MOSFET failure, and how can I protect against it? Common causes of MOSFET failure include: Overvoltage: Exceeding the maximum drain-source or gate-source voltage ratingsOvercurrent: Exceeding safe current limits or operating outside the Safe Operating Area (SOA)Overtemperature: Operating beyond the maximum junction temperaturedv/dt failure: Excessive voltage change rates triggering parasitic structuresESD damage: Electrostatic discharge damaging the gate oxideGate oxide breakdown: Excessive gate voltage stressing the thin oxide layer Protection strategies include: 9. Conclusion and Future Outlook MOSFETs have transformed electronics since their introduction, enabling the miniaturization, efficiency improvements, and performance enhancements that define modern electronic systems. From tiny signal-level applications to high-power industrial drives, these versatile components continue to evolve and expand their capabilities. The key strengths of MOSFETs include: Exceptional switching performance and efficiencyHigh input impedance and minimal drive requirementsWide range of available specifications to suit diverse applicationsContinuing technological advances expanding their capabilitiesExcellent integration capability in both discrete and IC forms Looking ahead, several trends will shape the future of MOSFET technology: Wide Bandgap Adoption: SiC and GaN MOSFETs will continue to penetrate high-performance power applications, offering unprecedented efficiency in electric vehicles, renewable energy systems, and industrial drives.Integration: More integrated solutions combining MOSFETs with drivers, protection, and control circuitry will simplify design and improve reliability.Miniaturization: Continued advancements in manufacturing will enable smaller MOSFETs with improved performance, supporting the trend toward more compact electronic devices.Specialization: Application-specific MOSFETs tailored for particular use cases will proliferate, with optimizations for automotive, renewable energy, data centers, and consumer electronics.Intelligent Power Devices: MOSFETs with embedded sensing and protection features will enable smarter power systems with enhanced reliability and diagnostic capabilities. Understanding MOSFET technology is increasingly valuable for anyone working in electronics, from hobbyists and students to professional engineers. By mastering the principles, types, and selection criteria presented in this guide, you'll be well-equipped to harness the full potential of these remarkable devices in your own projects and designs. Final Recommendation: When working with MOSFETs, always refer to manufacturer datasheets for specific parameters and recommended operating conditions. Begin your design process by clearly defining your application requirements, then select MOSFETs that provide adequate performance margins for voltage, current, and thermal considerations to ensure reliability under all operating conditions. Further Reading Difference and Relation Between IGBTs and MOSFETsThe Best Tutorial for P-Channel MOSFET External Resources MOSFET - WikipediaList of MOSFET Applications - WikipediaMOSFET Types, Working, Structure, and Applications - ElectronicsForuPower MOSFET Basics - Infineon TechnologiesLast Updated: May 2025 body { font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif; line-height: 1.6; color: #333; background-color: #f9fafb; } .container { max-width: 1200px; margin: 0 auto; padding: 20px; } h1, h2, h3, h4, h5 { font-weight: 700; margin-top: 1.5em; margin-bottom: 0.75em; color: #2563eb; } h1 { font-size: 2.5rem; margin-top: 0.5em; color: #1e40af; } h2 { font-size: 2rem; border-bottom: 2px solid #ddd; padding-bottom: 0.3em; } h3 { font-size: 1.5rem; color: #3b82f6; } p { margin-bottom: 1.2em; font-size: 1.1rem; } .quote-block { background-color: #e0f2fe; border-left: 4px solid #3b82f6; padding: 15px; margin: 20px 0; font-style: italic; } .pro-tip { background-color: #d1fae5; border-left: 4px solid #059669; padding: 15px; margin: 20px 0; } .important-note { background-color: #fee2e2; border-left: 4px solid #ef4444; padding: 15px; margin: 20px 0; } .image-container { margin: 20px 0; text-align: center; } .image-container img { max-width: 100%; height: auto; border-radius: 5px; box-shadow: 0 4px 6px -1px rgba(0, 0, 0, 0.1), 0 2px 4px -1px rgba(0, 0, 0, 0.06); } .image-caption { text-align: center; font-style: italic; color: #6b7280; margin-top: 8px; } table { width: 100%; border-collapse: collapse; margin: 20px 0; } th, td { border: 1px solid #ddd; padding: 12px; text-align: left; } th { background-color: #2563eb; color: white; } tr:nth-child(even) { background-color: #f2f2f2; } .table-container { overflow-x: auto; margin: 20px 0; } .toc { background-color: #f1f5f9; border-radius: 5px; padding: 20px; margin: 20px 0; } .toc-title { font-size: 1.5rem; margin-bottom: 15px; color: #1e40af; } .toc ol { list-style-type: decimal; margin-left: 20px; } .toc ol ol { list-style-type: lower-alpha; margin-left: 25px; } .toc li { margin-bottom: 8px; } .toc a { color: #2563eb; text-decoration: none; } .toc a:hover { text-decoration: underline; } .external-link { color: #2563eb; text-decoration: none; font-weight: bold; border-bottom: 1px dotted #2563eb; } .external-link:hover { color: #1e40af; } .internal-link { color: #059669; text-decoration: none; font-weight: bold; border-bottom: 1px dotted #059669; } .internal-link:hover { color: #047857; } .rating { display: flex; align-items: center; margin: 20px 0; } .star { color: #fbbf24; font-size: 1.5rem; margin-right: 3px; } .author-info { display: flex; align-items: center; margin-top: 30px; margin-bottom: 30px; background-color: #f1f5f9; padding: 15px; border-radius: 5px; } .author-avatar { width: 60px; height: 60px; border-radius: 50%; margin-right: 15px; } .last-updated { font-style: italic; color: #6b7280; margin-top: 40px; } .faq-item { margin-bottom: 20px; } .faq-question { font-weight: 700; color: #1e40af; margin-bottom: 10px; } .highlight { background-color: #fef3c7; padding: 0 3px; border-radius: 3px; } .pros-cons-container { display: flex; flex-wrap: wrap; gap: 20px; margin: 20px 0; } .pros-container, .cons-container { flex: 1; min-width: 300px; border-radius: 5px; padding: 20px; } .pros-container { background-color: #f0fdf4; border: 1px solid #86efac; } .cons-container { background-color: #fef2f2; border: 1px solid #fecaca; } .pros-cons-title { font-weight: 700; margin-bottom: 15px; color: #333; font-size: 1.2rem; } .pros-cons-list { list-style-type: none; padding-left: 10px; } .pros-cons-list li { margin-bottom: 8px; position: relative; padding-left: 25px; } .pros-cons-list li:before { position: absolute; left: 0; font-family: "Font Awesome 5 Free"; font-weight: 900; } .pros-list li:before { content: "\f00c"; color: #059669; } .cons-list li:before { content: "\f00d"; color: #dc2626; }

Introduction IGBT and MOSFET are fully controlled devices and are voltage-driven, that is, the device is turned on or off by controlling the gate voltage. In fact, the structure of the IGBT is an NPN-type MOSFET plus a P-junction, that is, an NPNP structure, which is a P-type BJT driven by MOS in principle. So what is the difference between them? What is the specific connection of them? MOSFET BJT or IGBT - Brief Comparison Catalog Introduction Ⅰ MOSFET & IGBT Review Ⅱ Si IGBT vs SiC MOSFET Ⅲ Different Requirements for Si IGBT and SiC MOSFET 3.1 ON & OFF State 3.2 Short-Circuit Protection 3.3 Interference and Delay Ⅳ IGBT Working Principle by Analogy with MOSFET Ⅴ FAQ Ⅰ MOSFET & IGBT Review MOSFET is a metal-oxide-semiconductor field effect transistor, or metal-insulator-semiconductor. The source and drain of it can be swapped, and they are both N-type regions formed in the P-type backgate. In most cases, these two regions are the same, even if the two ends are reversed, it will not affect the performance of the device. Such devices are considered symmetrical. According to the polarity of its "channel" (working carrier), MOSFET can be divided into two types: N-type and P-type, usually also called NMOSFET and PMOSFET, abbreviations including NMOS, PMOS, etc.IGBT (insulated gate bipolar transistor), is a composite fully controlled voltage-driven power semiconductor device composed of BJT (bipolar transistor) and MOS. Have the advantages of high input impedance of MOSFET and the low on-voltage drop of the GTR. When the GTR saturation voltage is reduced, the current carrying density is large, but the driving current is large; the MOSFET driving power is small, the switching speed is fast, but the on-state voltage drop is large, and the current carrying density is small. The IGBT combines the advantages of the above two devices, and the driving power is small and the saturation voltage is reduced. In simple terms, an IGBT is equivalent to a thick base PNP transistor driven by a MOS. Figure 1. N-MOSFET Architecture Ⅱ Si IGBT vs SiC MOSFET Since the differences between IGBT and MOSFET in structure, working principle and application range are quite detailed, it is impossible to express clearly in one sentence. Next, we will compare the differences between silicon (Si) IGBTs and silicon carbide (SiC) MOSFETs in detail.The electrical parameters and characteristics of Si IGBT and SiC MOS drivers are quite different. The requirements for driving of SiC MOS are also different from those of traditional silicon devices. They have the characteristics of low on-resistance and small switching loss, which can reduce device loss and improve system efficiency, and more suitable for high frequency circuits. It is widely used in new energy vehicle motor controller, vehicle power supply, solar inverter, charging pile, UPS, PFC power supply and other fields.The difference between the two is mainly reflected in the GS turn-on voltage, GS turn-off voltage, short-circuit protection, signal delay and anti-interference, as follows: Characteristic Si IGBT SiC MOSFET Drive Requirements Switching Frequency Low, >30kHz High, 50~500kHz 1) Use high power gate resistors. 2) Optimize the cooling environment. 3) Improve the efficiency of the DC-DC conversion circuit and reduce the overall loss of driving power. Threshold Voltage 5V-6V 1.6V-4.5V Negative pressure shutdown/Miller clamp to prevent false turn-on Switching Time 300ns 50ns 1) Use digital isolation driver chip, the signal transmission delay can reach 50ns, and it has relatively high consistency, and the transmission jitter is less than 5ns. 2) the low transmission delay push-pull chip is selected. Switching-On Time 15V 15V~22V 1) Priority is given to stabilizing the negative voltage to ensure that the shutdown voltage is stable. 2) A negative voltage clamping circuit is added to ensure that it does not exceed the standard during shutdown. Switching-Off voltage -15V~-5V -5V~0V Short-Circuit Withstand Time <10μs 2~5μs A diode or a resistor string is used to detect short circuits, and the shortest short-circuit protection time is limited to about 1.5μs. CMTI 15kV/μs 100kV/μs 1) The common mode anti-interference ability reaches 100kV/μs to transmit the isolation chip for signal transmission. 2) The optimized isolation transformer design is adopted, and its primary side and the secondary side are shielded to reduce mutual crosstalk. 3) The Miller clamp is used to prevent the influence of the switch of the same bridge arm.   Ⅲ Different Requirements for Si IGBT and SiC MOSFET For a fully-controlled switching device, configuring an appropriate on-off voltage is of great significance for the safety and reliability of the device. Due to the difference between IGBT and MOSFET, the requirements for the two are also different.IGBT is a field-controlled device whose turn-on and turn-off are determined by the voltage between the gate(G) and the emitter(E). The working principle of MOS tube (enhancement mode NMOSFET) is to use VGS to control the amount of "induced charges" to change the condition of the conductive channel, and then to control the drain current. 3.1 ON & OFF State 1) Silicon IGBT: Silicon IGBTs of various manufacturers have the same turn-on and turn-off voltage requirements.· The typical turn-on voltage is required to be 15V.· The shutdown voltage value range is -5V~-15V, and customers can choose the appropriate value according to their needs. The common values are -8V, -10V, -15V.· Prioritize stable positive voltage to ensure stable turn-on.2) Silicon carbide MOSFET: Different manufacturers have different switching voltage requirements:· The turn-on voltage is required to be higher than 22V~15V.· The shutdown voltage is required to be higher -5V~-3V.· Prioritize negative voltage stabilization to ensure stable turn-off voltage.· Increase the negative voltage clamping circuit to ensure that it does not exceed the standard when it is turned off. 3.2 Short-Circuit Protection The switching device has the risk of short circuit during operation, and configuring a suitable short circuit protection circuit can effectively reduce the damage caused by the short circuit during the use of the switching device. Compared to Si IGBTs, SiC MOSFETs have shorter short-circuit withstand times.1) Silicon IGBTThe time of surrender and short-circuit of Si IGBT is generally less than 10μs. When designing the short-circuit protection circuit of it, set the detection delay and corresponding time of short-circuit protection to 5-8μs.2) SiC MOSFETGenerally, the short-circuit withstand capability of SiC MOSFET modules is less than 5μs, and short-circuit protection is required to work within 3μs. A diode or a resistor string is used to detect short circuits, and the protection time is limited to about 1.5μs. 3.3 Interference and Delay 1) The impact of high dv/dt and di/dt on the system.When the switching action is performed under the condition of high voltage and high current, the switching of the silicon carbide MOSFET device will generate high dv/dt and di/dt, which will affect the driver circuit. It is very important to improve the anti-interference ability of the driver circuit for the reliable operation of the system. the following way to achieve.· Add common mode choke coil and filter inductor to the input power supply, which reduce the interference of driver EMI to low voltage power supply.· A low-pass filter is added to the rectification part of the secondary side power supply, which reduce the interference of the driver to the high-voltage side.· Use an isolation chip with a common mode immunity of 100kV/μs for signal transmission.· Optimize the isolation transformer design, and use shielding layer on primary side and secondary side to reduce crosstalk between each other.· Use Miller clamp to prevent the influence of the switch of the same bridge arm. 2) Low transmission delayUsually, the application switching frequency of silicon IGBT is less than 40kHZ, and the recommended application switching frequency of SiC MOSFET is greater than 100kHz. The increase of application frequency makes MOS require the driver to provide lower signal delay time. The transmission delay of the SiC MOSFET drive signal should be less than 200ns, and the transmission delay jitter should be less than 20ns, which can be achieved by the following methods.· Using digital isolation driver chip, the signal transmission delay can reach 50ns, and it has relatively high consistency, and the transmission jitter is less than 5ns.· Select push-pull chips with low transmission delay and short rise & fall time. Due to the conductance modulation effect, the on-state specific resistance of high voltage SiC IGBTs is much lower than that of power SiC MOSs, and does not change much as the blocking voltage rating increases. When the conductance modulation effect is fully exerted, the on-state voltage drop of the IGBT drift region is only related to the bipolar diffusion coefficient and bipolar lifetime of the carriers, and will not change with the increase of the on-current. When the operating temperature changes, the on-state voltage drop of the SiC high voltage IGBT decreases with the increase of the junction temperature. This is mainly because the bipolar lifetime of the extra carriers in the SiC epitaxial layer will increase with the increase of temperature. Although the diffusion coefficient will shrink to some extent with the increase of temperature, the greater prolongation of lifetime will eventually make the the bipolar diffusion length increased, thereby reducing the on-state voltage drop. It is especially true in n-channel devices.This is in sharp contrast to the larger increase in the forward voltage drop of the power MOS at high temperature. Silicon carbide p-channel IGBTs have higher on-state voltage drop than n-channel IGBTs at the same current density due to their larger channel resistance, but their volt-ampere characteristics do not change much with temperature. As for the applications, this is undoubtedly an advantage. Figure 2. Comparison of characteristics between SiC IGBT and power MOS under the Same Condition of Withstand Voltage of 20kV. It is not difficult to calculate from the intersection of the equal power consumption curve in the figure and the on-state characteristic curves of these devices: corresponding to the same power consumption of 300W/cm2, the ratio of the on-state current of the silicon carbide IGBT to the silicon carbide power MOS versus p-channel devices and n-channel devices are different, they are 1.5 and 1.8 at room temperature, respectively, and increase to 2.7 and 3.5 at 225°C, indicating that high-voltage and high-current SiC IGBTs are more suitable for high-temperature applications.In a word, compared with Si IGBT, SiC MOSFET not only improves system efficiency, power density and operating temperature, but also puts forward higher requirements for the driver. In order to make silicon carbide MOSFET better in the system, it is necessary to give SiC MOSFET a appropriate driver.   Ⅳ IGBT Working Principle by Analogy with MOSFET IGBT is a Darlington pair composed of GTR and MOSFET: part of which is MOSFET driver, and the other part is thick-base PNP transistor. Figure 3. IGBT Architecture Its simplified equivalent circuit is shown in the figure below, and RN in the figure is the modulation resistance in the base area of the PNP transistor. It can be clearly seen from this circuit that the IGBT is a composite device of Darlington configuration composed of transistors and MOSFET, where the transistor in the figure is a PNP transistor, and the MOSFET is an N-channel field effect transistor, so the IGBT of this structure is called an N-channel IGBT, and its symbol is N-IGBT. Similarly there are P-channel IGBTs, namely P-IGBTs. Figure 4. Simplified Equivalent Circuit The electrical graphic symbols of the IGBT are shown in the figure. IGBT is a field-controlled device, and its turn-on and turn-off are determined by the voltage UGE between the gate and the emitter. When the gate-emitter voltage UCE is positive and greater than the turn-on voltage UCE (th), a channel is formed in the MOSFET and is a PNP. The N-type transistor provides the base current to turn on the IGBT. At this time, the holes (minority carriers) injected into the N- region from the P+ region modulate the conductance of the N- region, reduce the resistance RN of the N- region, and make the IGBT also has a small on-state voltage drop. When no signal or reverse voltage is applied between the gate and emitter, the channel in the MOSFET disappears, the base current of the PNP transistor is cut off, and the IGBT is turned off. It can be seen that the driving principle of IGBT is basically the same as that of MOSFET.① When UCE is negative: J3 junction is in reverse bias state, and the device is in reverse blocking state.② When UCE is positive: UC< UTH, the channel cannot be formed, and the device is in a forward blocking state; UG> UTH, an N-channel is formed under the insulating gate, and conductance is generated in the N- region due to the interaction of carriers modulation so that the device is conducting forward. Figure 5. Hybrid Switch Using Si IGBT and SiC MOSFET 1) ONThe structure of IGBT silicon is very similar to that of power MOSFET, and the main difference is that JGBT adds a P+ substrate and an N+ buffer layer, in terms of it, one MOS drives two bipolar devices (devices with two polarities). The application of the substrate creates a J junction between the P, and N+ regions of the tube. When the positive gate bias causes the inversion of the P base region under the gate, an N-channel is formed, and an electron flow occurs at the same time, and a current is generated exactly in the manner of a power MOSFET. If the voltage produced by this electron flow is in the range of 0.7V, J1 will be forward biased, some holes will be injected into the N- region, and the resistivity between N- and N+ will be adjusted, which reduces the power conduction the total loss of the pass and initiates a second charge flow. The end result is the temporary emergence of two different current topologies within the semiconductor layer: an electron flow (MOSFET current), and a hole current (bipolar). When UCE is greater than the turn-on voltage UCE(th), a channel is formed in the MOSFET to provide base current for the transistor, and the IGBT is turned on. 2) On-State Voltage DropThe conductance modulation effect reduces the resistance RN and reduces the on-state voltage drop. The so-called on-state voltage drop refers to the tube voltage drop UDS when the IGBT enters the on-state, and this voltage decreases with the rise of UCS. 3) Shut DownWhen a negative bias is applied to the gate or the gate voltage is lower than the threshold value, the channel is disabled and no holes are injected into the N-region. In any case, if the current of the MOSFET decreases rapidly during the switching phase, the collector current decreases gradually. This is because there are still minority carriers in the N layer after the commutation starts. This reduction in residual current value (wake) is entirely dependent on the charge density at turn-off, which in turn is related to several factors, such as the number and topology of dopants, layer thickness and temperature. The decay of minority carriers makes the collector current have a wake waveform. Collector current will cause increased power dissipation and cross-conduction problems, especially on devices that use freewheeling diodes.Considering that the wake is related to the recombination of minority carriers, the current value of the wake should be closely related to the Tc, IC of the chip, and has a close relationship with the mobility of holes. Therefore, depending on the temperature reached, it is feasible to reduce the undesirable effects of this current on the end equipment design. When a back pressure or no signal is applied between the gate and the emitter, the channel in the MOS disappears, the base current of the transistor is cut off, and the IGBT is turned off. 4) Reverse BlockingWhen a reverse voltage is applied to the collector, the junction is reverse biased and the depletion layer expands to the N-region. Because the thickness of this layer is reduced too much, an effective blocking ability will not be obtained, so this mechanism is very important. In addition, if the size of this region is increased too much, the voltage drop will continuously increase. 5) Forward BlockingWhen the gate and emitter are shorted and a positive voltage is applied at the collector terminal, the junction is controlled by the reverse voltage. At this time, the depletion layer of the N drift region is still subjected to the externally applied voltage. 6) LatchICBT has a parasitic PNPN thyristor between the collector and the emitter. Under special conditions, this parasitic device will turn on. This phenomenon increases the amount of current between the collector and the emitter, reduces the controllability of the equivalent MOSFET, and often causes device breakdown problems. The thyristor turn-on phenomenon is known as IGBT latch-up. Specifically, the causes of such defects vary, but are closely related to the state of the devices.   Ⅴ FAQ 1. Are there SiC IGBT?Along with the increasing maturity for the material and process of the wide bandgap semiconductor silicon carbide (SiC), the insulated gate bipolar transistor (IGBT) representing the top level of power devices could be fabricated by SiC successfully. 2. Where are SiC MOSFETs used?The primary automotive applications for SiC power MOSFETs, diodes, and modules are onboard electric vehicle (EV) chargers, DC/DC converters, and drivetrain inverters. Plug-in hybrid EVs and battery EVs (BEVs) use onboard chargers to “refuel” the vehicle battery either at home or at a public charging station. 3. What is SiC MOSFET?Silicon Carbide (SiC) MOSFETs exhibit higher blocking voltage, lower on state resistance and higher thermal conductivity than their silicon counterparts. SiC MOSFETs are designed and essentially processed the same way as silicon MOSFETs. 4. Can MOSFET replace IGBT?Due to the higher usable current density of IGBTs, it can usually handle two to three times more current than a typical MOSFET it replaces. This means that a single IGBT device can replace multiple MOSFETs in parallel operation or any of the super-large single power MOSFETs that are available today. 5. What are the advantages of silicon carbide?Silicon carbide MOSFETs have a critical breakdown strength that is 10x of silicon, and silicon carbide MOSFETs can operate at much higher temperatures, provide higher current density, experience reduced switching losses, and support higher switching frequencies. 6. What are the advantages of silicon carbide (SiC) over silicon (Si)?The advantage of SiC starts in the material itself having a 10x higher dielectric breakdown field strength, 2x higher electron saturation velocity, 3x higher energy bad gap and 3x higher thermal conductivity than Silicon. 7. What is the difference between silicon and silicon carbide?Silicon has a breakdown voltage of around 600V, while silicon carbide can withstand voltages 5-10 times higher. ... Silicon carbide can switch at nearly ten times the rate of silicon, which results in smaller control circuitry. 8. What is SiC in semiconductor?SiC (silicon carbide) is a compound semiconductor composed of silicon and carbide. SiC provides a number of advantages over silicon, including 10x the breakdown electric field strength, 3x the band gap, and enabling a wider range of p- and n-type control required for device construction. 9. Which is better MOSFET or IGBT?When compared to the IGBT, a power MOSFET has the advantages of higher commutation speed and greater efficiency during operation at low voltages. What's more, it can sustain a high blocking voltage and maintain a high current. ... The IGBT is also a three terminal (gate, collector, and emitter) full-controlled switch. 10. Why use an IGBT instead of a MOSFET?The main advantages of IGBT over a Power MOSFET and a BJT are: 1. It has a very low on-state voltage drop due to conductivity modulation and has superior on-state current density. ... It canbe easily controlled as compared to current controlled devices (thyristor, BJT) in high voltage and high current applications. 11. Why is MOSFET preferred?Mosfet provides a very good isolation between the gate and the other two terminals compared to bjt. Mosfet can handle more power compared to BJT. The mosfet has a very low power loss and a high speed. Voltage signals can easily operate a mosfet, so it is used in many digital circuits. 12. Where are MOSFETs used?Power MOSFETs are commonly used in automotive electronics, particularly as switching devices in electronic control units, and as power converters in modern electric vehicles. The insulated-gate bipolar transistor (IGBT), a hybrid MOS-bipolar transistor, is also used for a wide variety of applications. 13. Why IGBT is very popular nowadays?With its lower on-state resistance and conduction losses as well as its ability to switch high voltages at high frequencies without damage makes the Insulated Gate Bipolar Transistor ideal for driving inductive loads such as coil windings, electromagnets and DC motors. 14. How many terminals are in a MOSFET?four terminalsThe MOSFET has four terminals: drain, source, gate, and body or substrate. 15. Why is IGBT bipolar?IGBTs is a bipolar device that utilizes two types of carriers, electrons and holes, resulting from the complex configuration that features a MOSFET structure at the input block and bipolar output, making it a transistor that can achieve low saturation voltage (similar to low ON resistance MOSFETs) with relatively fast. 16. How many types of IGBT are there?two typesInsulated Gate Bipolar Junction Transistor (IGBTs) are normally classified into two types. (ii) Punch Through [PT-IGBT]. These IGBTs are also referred to as symmetrical and asymmetrical IGBTs. These varieties of IGBT differ widely with regard to their fabrication technology, structural details etc. 17. What is full MOSFET?MOSFET stands for metal-oxide-semiconductor field-effect transistor. It is a field-effect transistor with a MOS structure. Typically, the MOSFET is a three-terminal device with gate (G), drain (D) and source (S) terminals. 18. How does an IGBT work as a switch?As defined by being a transistor, an IGBT is a semiconductor with three terminals which work as a switch for moving electrical current. Just as the word “gate” suggests, when voltage is applied to the gate, it opens or “turns on” and creates a path for current to flow between the layers. 19. Can I use transistor instead of MOSFET?It very much depends on the application. BJTs can be cheaper than FETs. This is especially true for high voltage switching where the much larger die area of FETs make them much more expensive. 20. Can IGBT conduct in reverse direction?No. The IGBT cannot conduct current in the reverse direction (from emitter to collector) even with a positive Vge applied to it, because it has a bipolar-type structure. ... However, the gate has no control over this reverse current flow; it is simply the forward biasing of the diode that allows it.

ⅠIntroduction Channel MOSFETs are a type of Metal Oxide Semiconductor Device. It consists of the n-substrate in the center with a high concentration of light doping. This is a list of the three-terminal devices. It has unipolar characteristics because the majority of the charge carriers are essential for its operation. Because of the two p materials used in the circuitry, the majority of the carriers are holes. It is further subdivided based on the presence of channels.   Catalog ⅠIntroduction Ⅱ What is P-Channel  MOSFET? Ⅲ P Channel MOSFET Characteristics Ⅳ How P-Channel MOSFETs Are Constructed Internally? Ⅴ Types of P-Channel MOSFET 5.1 P Channel with Enhancement MOSFET 5.1.1  How a P-Channel Enhancement-type MOSFET Works? 5.1.2 How to Turn on a P-Channel Enhancement Type MOSFET? 5.1.3 How to Turn Off a P-Channel Enhancement Type MOSFET? 5.2 P Channel Depletion MOSFET 5.2.1 How a P-Channel Depletion-type MOSFET Works? 5.2.2 How to Turn on a P-Channel Depletion Type MOSFET? 5.2.3 How to Turn Off a P-Channel Depletion Type MOSFET? Ⅵ How to use only positive voltage in this p-channel MOSFET tutorial? 6.1 VGS Threshold 6.2 P-Channel MOSFET Tutorial and Explanation Ⅶ FAQ     Ⅱ What is P-Channel  MOSFET?   A MOSFET is formed when a lightly doped N-type substrate is connected to two highly doped P-type materials. Doping refers to the concentration of impurities added to the atom. The p-channel formed between the two P-type substrates could be the consequence of induced voltages or it could have existed previously.    MOSFET Symbol    Ⅲ P Channel MOSFET Characteristics   The voltage controlled devices are represented by MOSFETs.These devices have high input impedance values.The conductivity of the channel in a P-channel is caused by the application of negative polarity at the gate terminal.     Ⅳ How P-Channel MOSFETs Are Constructed Internally?    P-Channel MOSFET   A P-Channel MOSFET is consists of a P channel, which is a channel that is mostly made up of hole current carriers. N-type material is used for the gate terminals.  How the transistor operates and whether it turns on or off  is determined by the amount and type of voltage (negative or positive)     P-Channel MOSFET as a Switch. Turn ON a 12V Motor with Arduino. (Step-By-Step Guide)     Ⅴ Types of P-Channel MOSFET   The p-channel MOSFET’s are classified as:   (1)P-channel with the Enhancement MOSFET (2) P-channel with the Depletion MOSFET     5.1 P Channel with Enhancement MOSFET   This MOSFET is constructed with a lightly doped n-substrate. The length separates the two heavily doped p-type materials (L). This L is referred to as the channel length.   Above the substrate, a thin layer of type silicon dioxide is deposited. This layer is commonly referred to as the dielectric layer. The source and drain are formed by the two P types. The gate terminal is formed by the aluminum plating used above the dielectric. The ground is connected to the source and the body of the MOSFET.   The gate terminal has been subjected to a negative voltage. Because of the effect of capacitance, the positive concentration of charges settles below at the dielectric layer. Because of repulsive forces, the electrons present at the n substrate are shifted, and the uncovered value of the positive ions layer can be found there. In an n-type substrate, the holes, which are minority carriers, combine with a few electrons to form a bond.   However, further application of the negative voltage cracks the covalent bonds, thereby breaking the pairs formed between electrons and holes. It results in the formation of holes and an increase in the carrier concentration of holes in the channel. When a negative voltage is applied to the drain terminal, the channel becomes conductive, allowing current to flow through the transistor.     5.1.1  How a P-Channel Enhancement-type MOSFET Works? circuit example     5.1.2 How to Turn on a P-Channel Enhancement Type MOSFET?     To turn on a P-Channel Enhancement-type MOSFET, apply a positive voltage VS to the MOSFET's source and a negative voltage to the MOSFET's gate terminal (the gate must be sufficiently more negative than the threshold voltage across the drain-source region) (VGDS). A current will be allowed to flow through the source-drain channel as a result of this.   With a sufficient positive voltage, VS, applied to the source and load, and a sufficient negative voltage applied to the gate, the P-Channel Enhancement-type MOSFET is fully functional and operating in the active 'ON' mode.     5.1.3 How to Turn Off a P-Channel Enhancement Type MOSFET?   There are two ways to turn off a P-channel enhancement type MOSFET. You can either disconnect the bias positive voltage, VS, which powers the source. Alternatively, you can disable the negative voltage applied to the transistor's gate.     5.2 P Channel Depletion MOSFET When compared to n channel depletion MOSFETs, the formation of p channel depletion is simply in reverse. Because of the presence of p-type impurities in the channel, it is pre-built. When a negative voltage is applied to the terminal gate, the free holes that represent the minority carriers at the n-type are attracted to the channel of the positive type impurity ions. When a drain terminal is reverse biased in this condition, the device begins to conduct, but as the negative voltage in the drain terminal increases, the depletion layer forms.   This region is affected by the concentration of the layer formed by positive ions. The width of the depletion region influences the conductivity of the channel. The current at the terminal is controlled by varying the voltage value of the region. Finally, the gate and drain retain their negative polarity, while the source maintains its zero value.     5.2.1 How a P-Channel Depletion-type MOSFET Works?   circuit  P-Channel Depletion-type MOSFET   5.2.2 How to Turn on a P-Channel Depletion Type MOSFET? The gate voltage feeding the gate terminal should be 0V for maximum operation if you switch on a P-Channel Depletion-Type MOSFET. The drain current is at its maximum when the gate voltage is 0V, and the transistor is in the active 'ON' region of conduction.     5.2.3 How to Turn Off a P-Channel Depletion Type MOSFET?   There are two methods for turning off a P-channel MOSFET. You can either switch off the bias positive voltage, VDD, which powers the drain, or you can turn it back on. Alternatively, you can apply a negative voltage to the gate. The current is cut down when a negative voltage is used to the gate. As the gate voltage, VG, becomes more negative, the current decreases until it reaches cutoff, at which point the MOSFET is in the 'OFF' state. It prevents a great source-drain current from flowing.   MOSFET transistors are applied for switching as well as amplifying. MOSFETs are among the most widely used transistors today. Because of their high input impedance, they draw very little input current, which is simple to manufacture, can be made very small, and consume very little power.       Ⅵ How to use only positive voltage in this p-channel MOSFET tutorial?   6.1 VGS Threshold   VGSth: an abbreviation for Voltage Threshold from Gate to Source is one of their critical properties we need to know about using MOSFETs. The resistance between the DRAIN and SOURCE pins changes as the voltage difference between those two pins changes. This is the threshold at which a MOSFET turns on and off.   The resistance changes depending on whether the MOSFET is N-Channel or P-Channel.     6.2 P-Channel MOSFET Tutorial and Explanation   For a P-Channel MOSFET, look at the VGSth. VGSth is a negative value, as you may have noticed. As an example, consider the datasheet for an IRF5305.     specification   The specification of VGSth is -2.0V to -4.0V. So, how could this MOSFET work with an Arduino, LaunchPad, Raspberry Pi, or any other microcontroller? Is it really necessary to generate negative voltages?     It’s about the difference:   This is where the "negative voltage" myth comes into play: Because the datasheet says negative, you need negative voltage to work. Datasheets, on the other hand, never lie (except when they do...).   Let's take a literal look at what the specification says. "A negative four-volt voltage from gate to source." You could read it as "GATE voltage value minus SOURCE voltage value" in other words.   Consider the following voltages in this "high-side switch" configuration:     negative voltage     The GATE now has a voltage of 5 volts. The SOURCE is 5 volts as well. It means that the Vgs is 5V – 5V = 0V. In this case, the Vgs is 0 volts. This voltage indicates that the MOSFET is off, or that it is open.   This is the same circuit as before, but the GATE is now connected to ground rather than 5 volts.       circuit  example in 5 volts     Let's take another look at the SOURCE and GATE. The SOURCE remains at 5 volts. However, the GATE is now at the ground, indicating that it is 0V. If you subtract the GATE voltage from the SOURCE voltage, you get 0V – 5V = -5V. This will activate the MOSFET.   Have you noticed what just happened? Using only positive voltage supplies, we obtained a "negative" voltage...     Why use N-Channel over P-Channel?   A tutorial on when to use an n-channel and p-channel MOSFET would be required. A great application for P-Channel is in a circuit where the voltage levels of your load and logic are the same. For example, suppose you're attempting to activate a 5-volt relay with an Arduino. The current required by the relay coil is too high for an I/O pin, but the coil requires 5V to function. Use a P-Channel MOSFET to turn on the relay from the Arduino's I/O pin in this case.   If your load voltage is higher, such as 12 or 24V, you should consider using an N-Channel MOSFET in a "low side" configuration.   Ⅶ FAQ   1. How do you test P MOSFET? Hold the MosFet by the case or the tab but don't touch the metal parts of the test probes with any of the other MosFet's terminals until needed. 2) First, touch the meter positive lead onto the MosFet's 'Gate'. 3) Now move the positive probe to the 'Drain'. You should get a 'low' reading.   2. When would you use a MOSFET? Power MOSFETs are commonly used in automotive electronics, particularly as switching devices in electronic control units, and as power converters in modern electric vehicles. The insulated-gate bipolar transistor (IGBT), a hybrid MOS-bipolar transistor, is also used for a wide variety of applications.   3. What is MOSFET? MOSFET stands for metal-oxide-semiconductor field-effect transistor. It is a field-effect transistor with a MOS structure. Typically, the MOSFET is a three-terminal device with gate (G), drain (D) and source (S) terminals.   4. What are the types of MOSFET? Different Types of MOSFET Transistors PMOS Logic. As previously mentioned, the integration of a MOSFET allows for high levels of circuit efficiency when compared with BJTs. ... NMOS Logic. ... CMOS Logic. ... Depletion Mode MOSFET Devices. ... MISFETs. ... Floating-Gate MOSFETs (FGMOS) ... Power MOSFETs. ... DMOS.

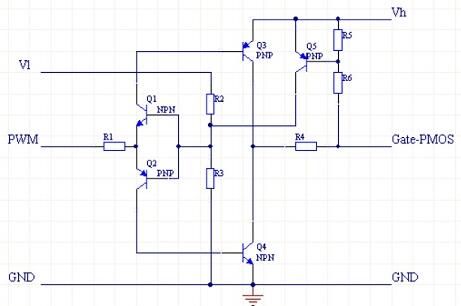

The larger the resistance of the drive, the longer the turn-on time of MOSFET, and the longer the voltage and current overlap time in the switching time, the greater the switching loss. Therefore, the smaller the resistance, the better the drive resistance should be, provided that the drive resistance can provide enough damping to prevent the drive-current oscillation. When designing switch power supply or motor drive circuit with MOSFET, the factors such as on resistance, maximum voltage and maximum current of MOSFET should be considered. In general, the MOSFET tube can be divided into the enhanced and depleted, P-channel or N-channel is a total of 4 types, but the enhanced NMOS tube and PMOS tube are mainly used, in these two commonly mentioned enhanced type, the more commonly used is NMOS, The reason is its small on-resistance and easy to manufacture. However, it is not enough to consider these, because the current will have different losses in various devices, so we must ensure that sufficient current to drive the MOSFET.  Figure 1. MOS schematic diagram In this paper, we will discuss the calculation of the MOS gate drive resistor. The range of the MOSFET drive resistance is between 5~100ohms, so how to further optimize the selection of the resistance value in this range?  Equivalent Drive Circuit Figure 2. Equivalent drive circuit L is the PCB line inductor, according to the professional experience its straight line value is 1nH/ mm, considering other line factors, take L=Length +10 (nH), where Length unit is mm. Rg is the gate drive resistance, and the driving signal is a square wave with a peak value of 12 V. Cgs is the gate and source capacitance of MOSFET, with different tubes and driving voltage its value will be different, here is 1nF. VL+VRg+VCgs=12V Taking drive circuit: Getting differential equation of driving voltage of Cgs: Obtaining Transformation function by method of Laplace transform: This is a third-order system, which is an overdamped vibration when its poles are three different real roots, there are two same solid roots is critical damped vibrations, and there are imaginary roots is underdemped vibrations, which will generate waves of oscillation up and down at the gate of MOFET. This is something we do not want to see, so the choice of gate resistance Rg should make it work in the critical damping and over damping states, but the parameter error is actually working in the overdamped state. Based on the above, therefore, the minimum range of Rg values can be obtained according to the length of the line. Making the length of running line of 20mm and 70mm respectively: L20= 30nH , L70= 80nH, then Rg20=8.94Ω, Rg70=17.89Ω, Here are the voltage and current waveforms   Figure 3. Driving current ripple curve According to the diagram when the Rg is small, the driving voltage surge will be higher, more and more oscillation will exist when the L becomes large, and the performance of MOSFET and other devices will be affected obviously. However, when the resistance value is too large, the driving waveform will rise slowly, while it will have a negative effect when the MOSFET has a large current passing through. In addition, we should note that when L is small, the peak value of driving current is larger, and the output capacity of general IC is limited. When the actual driving current reaches the maximum value of IC output, the output of IC is equivalent to a constant current source. When Cgs is charged linearly, the rising of driving voltage waveform will slow down. The current curve may be shown on the follow (the inductance does not work because the current is constant), this may have an impact on the reliability of the IC, and a small step or burr may occur in the rise of the voltage waveform. Figure 4. Current curve The PWM OUT output of the general IC is shown in the left figure. The internal integration includes the current-limiting resistor Rsource and Rsink, usually Rsource > Rsink, but the actual values are related to the peak driving output ability of the IC. It can be approximately considered that R=Vcc/Ipeak. The drive output capacity of IC is about 0.5A, and meanwhile Rsource is about 20Ω. From the previous voltage and current curves, we can see that the IC driver can drive MOSFET,  but the drive line is usually not a straight line, the inductance may be greater, and in order to prevent external interference, it is necessary to use the Rg drive resistor to suppress. This resistance should be as close as possible to the gate of the MOSFET when considering the effect of the line distribution capacitance. Figure 6. PWM OUT The effect of Rg and L on rising time: (Cgs=1nF, VCgs=0.9*Vdrive) TR(nS)19492302045229Rg(ohm)10221001022100L(nH)303030808080 It can be seen that L has little effect on TR, but Rg has great influence on TR. TR can be estimated approximately by 2*Rg*Cgs. Usually, the rise time is less than 20 percent of the conduction time, and the loss of the MOSFET switch when it is switched on will not cause a heat problem. So when the minimum conduction time of MOSFET is determined, the maximum value of Rg is determined . Generally, the smaller the Rg is, the better, but if considering the EMI, its value should be taken as large as possible. The selection of resistor in MOSFET on-state is discussed above. In order to ensure the fast discharge of gate charge in MOSFET off-state, the resistance should be as small as possible, which is the reason of Rsink<Rsource. To ensure rapid discharge, a diode can be connected in parallel on the Rg. When the discharge resistance is too small, it will also cause resonance due to the inductance of the line (so in some applications there will be a small resistance on the diode.). But the reverse current of the diode is not conductive, at the same time, the Rg is involved in the reverse resonant circuit. Therefore, the peak of reverse resonance can be suppressed. This Diodes usually use a high frequency and small signal tube 1N4148. In practice, we should also consider the influence of the gate and drain of MOSFET and a capacitor Cgd. When MOSFET is on, Rg has to charge Cgd, which will change the voltage rise slope. When off, VCC will charge Cgs through Cgd. In this case, the charge on Cgs must be removed quickly, otherwise, it will lead to abnormal conduction of MOSFET. Figure 7. MOSFET schematic diagram FAQ   1. Why do MOSFETs need resistor? MOSFET gates are exceptionally high impedance. Just like a GPIO pin set to be an input, a pull-down or pull-up resistor helps keep the transistor on or off during power-on. ... When used with a switch or cable that could be disconnected, it is obvious to use a pull-down or pull-up resistor.   2. Do MOSFETs need pull down resistors? You either need a resistor to pull it down to ground or you need the input signal to drive it low. ... You only have to drain the inherent capacitance on the MOSFET gate when you're pulling it low so even at a high resistance to ground the RC time constant is usually relatively short.   3. Does Mosfet have resistance? The MOSFET behaves like a resistor when switched ON (i.e. when Vgs is large enough; check the data sheet). Look in the data sheet for the value of this resistor. It's called Rds(on). It may be a very small resistance, much less than an Ohm.   4. What is the purpose of gate resistor? A gate resistor is used is to slow down the turn-on and turn-off of the MOSFET. (This is more relevant to power circuits that switch a fair amount of current.)   5. What is Mosfet used for? The MOSFET (Metal Oxide Semiconductor Field Effect Transistor) transistor is a semiconductor device which is widely used for switching and amplifying electronic signals in the electronic devices. The MOSFET is a three terminal device such as source, gate, and drain.   6. What is Mosfet and how it works? In general, the MOSFET works as a switch, the MOSFET controls the voltage and current flow between the source and drain. The working of the MOSFET depends on the MOS capacitor, which is the semiconductor surface below the oxide layers between the source and drain terminal.   7. How Mosfet can be used as a resistor? When you slowly increase the gate voltage the MOSFET slowly starts conducting by entering the linear region where it starts developing voltage across it which we call as VDS . In this region, the MOSFET acts as a resistance of finite value.   8. Can Mosfet switch AC? Yes, but you need to connect two back to back to deal with the body diode. Connect the source terminals and gate terminals and connect a floating voltage supply between sources and gates. This circuit is typically called a solid state relay.   9. How much current can a Mosfet handle? Modern MOSFETs can have on resistances of less than 10 milliohms. A little math shows that this device can handle 10 amps with one watt converted into waste heat (power = current2 x resistance). Since many MOSFETs come in TO-220 packages, no heatsink is needed in this instance.   10. How many types of Mosfet are there? four types. There are two classes of MOSFETs. There is depletion mode and there is enhancement mode. Each class is available as n- or a p-channel, giving a total of four types of MOSFETs. Depletion mode comes in an N or a P and an enhancement mode comes in an N or a P.
