Let LEDs be More Efficient and Powerful

564

Author: Kynix

Published: 2018-01-30 | Last Updated: 2018-01-30

Contents

Summary

As we all known,better knowledge of the absorption and scattering of light inside the LED,the performance of white LEDs can be improved.Yeah,LEDs can be made even more efficient and powerful.When in May,2017,researchers who from the University of Twente and Philips Lighting have developed a new method which can lead to efficiency improvement and powerful design tools. They found a detailed way to describe the light that stays inside the LED by absorption and scattering. This is very valuable information for the design process.

Let LEDs be More Efficient and Powerful

The Theory about Light Sources

From relatively weak light sources to strong lights at home and in cars, for example: since the blue and white LED were invented, we've seen a rapid development in possible applications. Low energy consumption and long lifetime are major advantages over existing lighting solutions. White LEDs consist of a semiconductor emitting blue light, with on top of that phosphor plates that turn the blue light into yellow. What we see then, is white light. The light will be scattered by the phosphor particles, but it is absorbed as well. What part of the light will exit the LED, is not easy to predict. Unless you look at absorption and scattering in another way, according to Maryna Meretska and her colleages. Theory from astronomy helps.

Good Prediction is Difficult

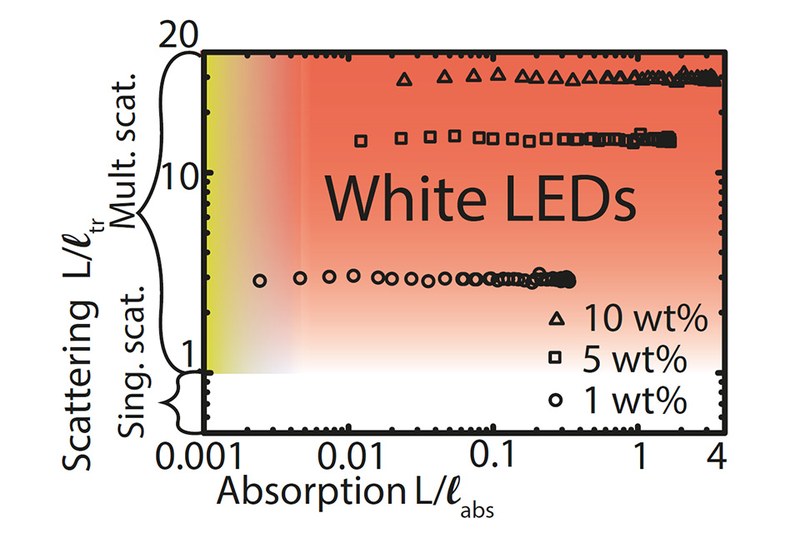

What makes good prediction particularly difficult: some of the light is absorbed, but re-emitted in another colour. One way is trying to define all possible light rays, and use a lot of computing time to get a result. This doesn't give much insight in what is actually happening. A theory that is often used for light propagation in a LED, is diffusion theory. In strongly absorbing media, however, this approach isn't valid anymore. Meretska therefore has built a setup to collect all the light around the phosphor plates, in the whole visual spectrum. Based on this, absorption and scattering can be deduced using the radiative transfer equation, well known in astronomy.

This results in a full description of light propagation inside and outside the phosphor plates. Compared to a description using diffusion theory, the absorption level is up to 30 percent higher. At the same time, the method is about 17 times faster than the numerical approach.

Conclusion

This new insights leaded to powerful and predictive tools for LED designers.They help in further improving the efficiency and overall performance.The research has been done in the Complex Photonic System group of UT's MESA+Institute for Nanotechnology,together with Philips Lighting in Eindhoven. The University of Twente has a strong concentration of research groups and facilities within the rapidly growing field of photonics.

Article provided by University of Twente

Article edited by kynix
