Understanding Power Integrity: Why It Matters for Your PCB

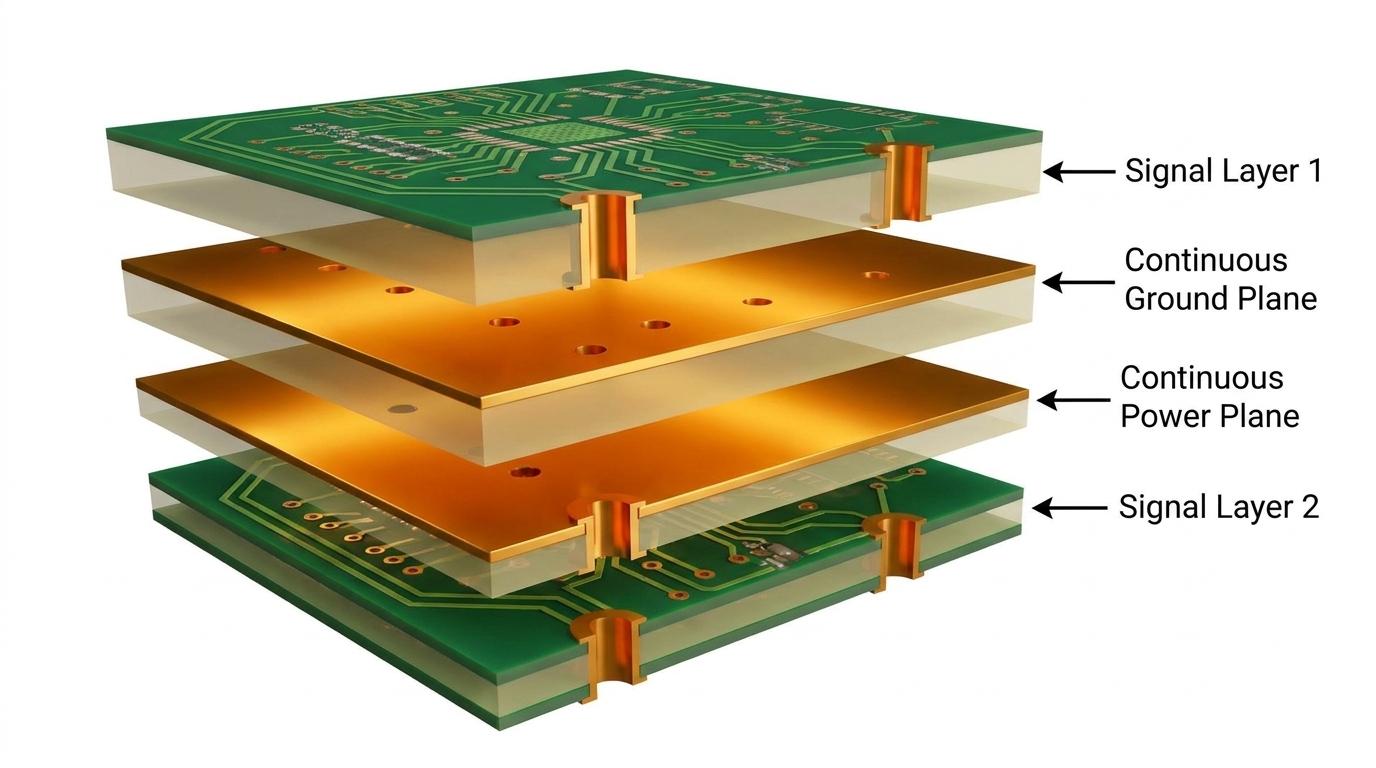

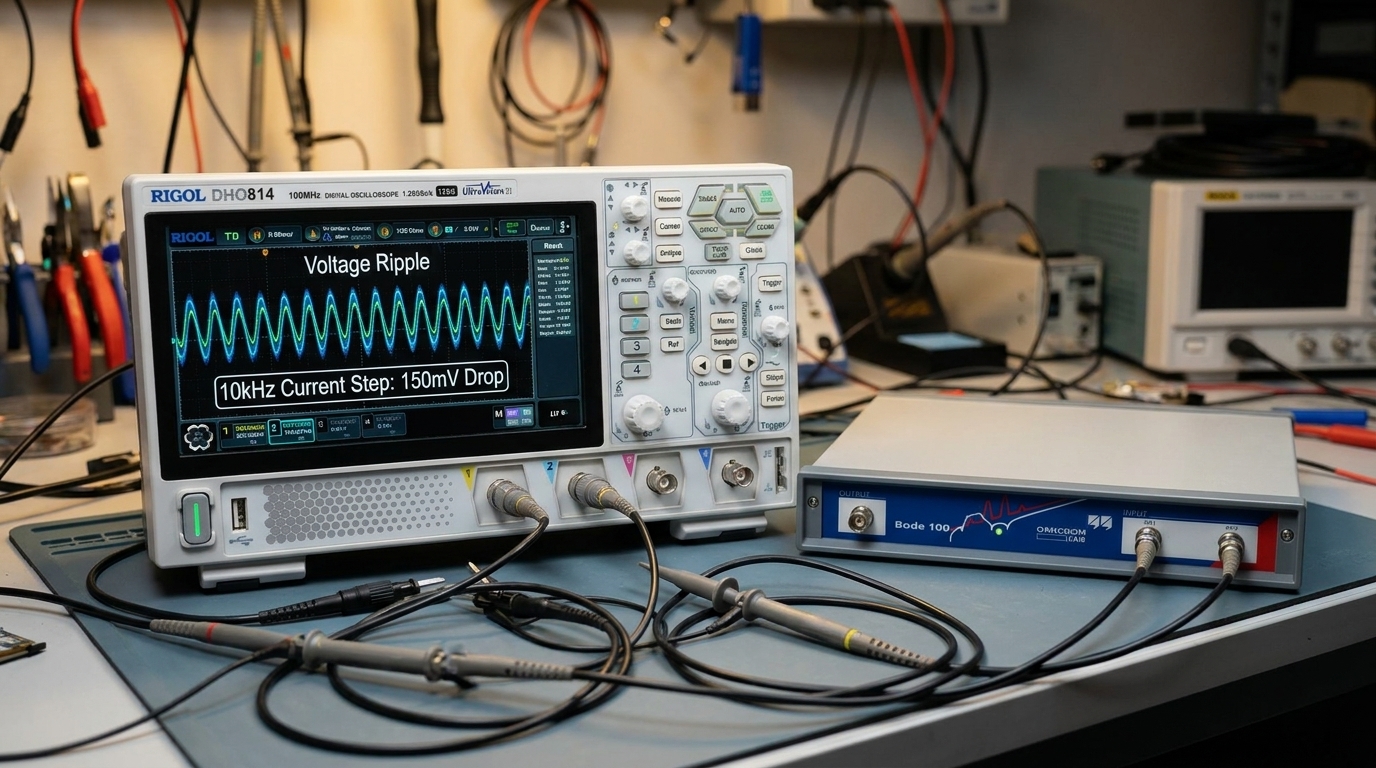

Guide: This analytical guide covers power integrity PCB for hardware engineers building mixed-signal boards. basic knowledge of pcb is recommended to fully grasp these layout concepts.Good Power Integrity (PI) is structural geometry, not a dark art requiring expensive simulation tools. By upgrading to a continuous-plane 4-layer board and discarding outdated capacitor placement rules, designers achieve a flat Power Distribution Network (PDN) impedance profile. This approach eliminates the majority of EMI and brownout failures without relying on enterprise software licenses. Consequently, engineers can validate their designs using practical bench-testing methods and modern fabrication economics.Why Power Integrity is Just Structural Geometry (Not Dark Art)What Is PCB Printed Circuit Board PCB Basics explains that power integrity PCB is structural geometry because physical trace dimensions and continuous planes dictate the parasitic inductance that causes high-frequency voltage drops.Visualizing the 4-layer stackup for optimized power integrity.Schematics lie. On a physical board, every millimeter of copper trace is not a perfect wire, but a component. Visual stress tests of equivalent circuits demonstrate that traces act as parasitic inductors and resistors whose behavior shifts drastically with frequency. Experts point out that, "From the IC power pin's point of view... we are looking back and we are seeing an impedance that depends on frequency."Historically, engineers relied on 2-layer boards to save money, resulting in unlocalized, messy trace routing. Furthermore, modern fast-turn fabrication economics have shifted the baseline. According to 2025/2026 pricing data from fabs like JLCPCB, fast-turn fabrication for 4-layer prototype PCBs has dropped to as low as $2 to $7 for small batches. The marginal cost difference is practically negligible. Upgrading to a 4-layer stackup provides dedicated, continuous power and ground planes that structurally minimize loop area and solve baseline PI issues before a single capacitor is placed.2-Layer vs. 4-Layer PDN Metrics ComparisonMetric2-Layer "Spaghetti" Design4-Layer Continuous PlaneReturn Path Loop AreaLarge / UnpredictableMinimized / Tightly CoupledInter-plane CapacitanceNegligibleHigh (Natural High-Freq Filtering)Baseline EMI RiskHighLowPrototype Cost (Small Batch)~$2$2 - $7How to Calculate Target Impedance ($Z_{target}$) for Your PDNTarget impedance is the maximum allowable PDN resistance because exceeding it causes voltage drops that trigger IC brownouts. For those just starting, this Beginners Guide for Creating Printed Circuit Board PCB provides context on overall board constraints.Before placing a single Multi-Layer Ceramic Capacitor (MLCC), you must define a target. This calculation provides a literal ceiling that your impedance curve must stay below across all operating frequencies. The core formula is straightforward:$Z_{target} = \frac{Voltage \times \text{allowed tolerance}}{\text{Max current swing}}$Conversely, failing to calculate this ceiling leads to catastrophic physical failures. As observed in real-world testing, "If you have a particularly high impedance at a frequency that the IC is drawing current at, you're going to get a large voltage drop, brownouts, and EMI issues."Pro Tip: Always calculate $Z_{target}$ based on the worst-case transient current step of your most power-hungry IC, not the steady-state average current.The "Three Capacitor Value" Myth: Why Legacy Decoupling FailsLegacy decoupling is detrimental because mixing multiple capacitor values creates destructive anti-resonance peaks in the PDN impedance curve.Legacy application notes often dictate placing three different capacitor values in parallel (e.g., 0.1μF, 0.01μF, 100pF) to filter low, medium, and high-frequency noise. In the 2026 era of advanced MLCCs, this is objectively incorrect. Mixing values creates destructive anti-resonance oscillations in your PDN. In visual stress tests using a Bode 100 Analyzer, real-time shifts in the impedance curve reveal a counter-intuitive reality: when a bulk decoupling capacitor is physically removed, the visual "trough" in the graph disappears, which actually eliminates a peak (anti-resonance) rather than causing one. These artifacts degrade power delivery.{{PCB Power Distribution Networks (PDN) Basics & Measurements - Phil's Lab #161The modern rule of thumb is to select the highest capacitance available in the smallest physical package you can reliably assemble (such as an 0402). Equivalent Series Inductance (ESL) is primarily a function of the physical package size. By standardizing on a single small package, you minimize ESL, achieve a flat PDN, and rely on the PCB's natural inter-plane capacitance for the highest frequencies.Active VRMs vs. Passive Decaps: The Power-On RealityActive VRM control is critical because its internal loop determines low-frequency PDN performance, rendering passive-only capacitor simulations inaccurate.A major warning for hardware engineers is the fallacy of relying solely on passive simulations. A Voltage Regulator Module (VRM) typically looks inductive at low frequencies. Its internal active control loop dictates the PDN performance in the kHz range. Time-domain ripple mapping using a split-screen oscilloscope setup shows how a 10kHz current draw corresponds exactly to the peak in the active impedance curve, resulting in massive voltage dips that remain invisible at other frequencies.Real-world measurement of VRM active control loop response.The DC Bias De-rating SecretCounter-Intuitive Fact: Class II MLCCs (such as X5R and X7R dielectrics) experience a severe "DC Bias" effect, losing 80% to 90% of their nominal capacitance when operated at or near their rated DC voltage.This means a carefully calculated 10μF capacitor might only provide 1μF to 2μF of actual capacitance when the board is powered on. Visually, this causes the impedance to rise when the board is turned on. Furthermore, beginners often set the measurement reference level too high. If the AC signal injected by the analyzer is too strong, it further de-rates the capacitors, leading to false impedance readings.Is it Better to Use Split Planes or Routed Power Rails on Mixed-Signal PCBs?Continuous ground planes are superior because split planes inadvertently create massive return-path loop areas for high-speed signals crossing the gap.When managing mixed-signal power integrity on an 8-layer board, engineers often default to splitting planes to isolate analog and digital noise. However, split planes force return currents to take long, inductive detours. The modern approach utilizes continuous ground pours with strict component spacing to manage noise without fracturing the main ground plane.Consequently, AI-driven PCB design tools and automated DFM/AOI systems are now capable of addressing these Power Integrity and Signal Integrity issues early. According to 2026 industry benchmarks, leveraging these co-design systems leads to a 40% reduction in rework time and catches early design flaws that traditionally account for 30% of project rework costs. Utilizing an accessible AI-assisted routing platform serves as a clear example of how automated co-design minimizes these loop areas without requiring manual plane fracturing.Measuring Power Integrity Without Enterprise SoftwareBench measurement is cost-effective because compression-fit SMA connectors allow precise 2-port shunt-thru testing without parasitic probe inductance.Enterprise-grade Power Integrity and Electromagnetic simulation software (such as Ansys SIwave) typically costs between $12,000 and $40,000+ per commercial seat. For mid-level engineers and startups, this paywall is insurmountable.Instead, engineers can validate their boards using physical bench hacks. Utilizing compression-fit SMA connectors instead of soldering allows for precise 2-port shunt-thru measurements. This bypasses the parasitic inductance introduced by traditional oscilloscope probe ground leads. However, DIYers building switchable current sinks to test noise must be aware of hardware limitations. Tests often fail at high frequencies because the switching speed is bottlenecked by the gate capacitance of the MOSFETs themselves.Conclusion & Next StepsAchieving a flat PDN impedance profile does not require a $20,000 software license. It relies on understanding the physical realities of your components and layout. By minimizing ESL through small MLCC packages, leveraging the negligible cost of 4-layer continuous planes, accounting for the 80% to 90% DC bias de-rating of Class II capacitors, and targeting a specific $Z_{target}$, engineers can eliminate the vast majority of power-related failures. Stop relying on outdated legacy rules, and start treating your power distribution network as the high-frequency structural geometry it truly is.Frequently Asked QuestionsAt what high-frequency range does on-package capacitance take over from PCB MLCC decaps?Typically, PCB-level MLCCs become inductive and lose effectiveness above 50-100 MHz due to mounting inductance. Beyond this point, on-package and on-die capacitance handle the transient current demands.Can you simulate PDN impedance without Altium or Hyperlynx?Yes. Open-source tools and spreadsheet-based target impedance calculators can model basic PDN behavior, while physical 2-port shunt-thru bench testing provides accurate real-world validation without enterprise software.What is Equivalent Series Inductance (ESL) in a capacitor?ESL is the unavoidable parasitic inductance inherent in the physical structure of a capacitor and its mounting pads. It is primarily dictated by the physical package size (e.g., 0402 vs. 1206), not the capacitance value.Why does MLCC capacitance drop when a board is powered on?Class II dielectrics (like X7R) suffer from DC bias de-rating. When a DC voltage is applied across the capacitor, the internal crystalline structure restricts polarization, causing the effective capacitance to drop significantly compared to its unpowered state.

Technical Guide: This analytical guide covers GaN vs silicon power supply for hardware enthusiasts and prosumers seeking system-level performance unlocks.Gallium Nitride (GaN) power supplies replace legacy silicon by operating at significantly higher switching frequencies, which shrinks physical component size and halves thermal loss. For prosumers, upgrading to GaN eliminates the electrical noise floor in audio equipment, prevents thermal throttling in home lab servers, and eradicates the 1.2W vampire draw typical of silicon wall warts. Consequently, GaN is not merely a travel convenience; it is a mandatory infrastructure upgrade for clean, transient-ready power delivery.The Efficiency Fallacy: Stop Looking at Your Electric BillGaN efficiency is misunderstood because manufacturers prioritize physical size reduction over absolute grid power savings.The Truth About Residential Power SavingsThe GaN vs silicon power supply debate often centers on electricity bills. This is a fundamental misdirection. Upgrading to a GaN charger will not noticeably lower a residential power bill. Manufacturers deliberately sacrifice absolute power-to-grid efficiency gains to shrink the physical footprint of the device. The actual residential electricity savings for a consumer charging a laptop amounts to pennies annually. The true value of GaN lies in power conditioning and thermal management, not grid efficiency. If you are looking for more foundational knowledge, check out the best guide to dc power supply.GaN vs Silicon Internal Efficiency ComparisonThe Power of Idle: Eradicating Vampire DrawGaN power delivery fundamentally alters idle power consumption. In visual stress tests and engineering teardowns, we observed that a standard 50W silicon power supply draws 1.2W at idle. Conversely, an equivalent GaN power supply draws just 110mW. According to 2026 teardown data from ElectrArc240, this represents a greater than 10x reduction in wasted vampire energy. When multiplying this across a desk full of power bricks, the reduction in ambient heat and wasted baseline wattage becomes significant."Halving the Loss" - What 85% vs. 92% Actually MeansSilicon power supplies typically hover around 85% efficiency under load, while premium GaN units hit 92%. While a 7% difference appears marginal on a spec sheet, experts point out the physical reality: "The change from 85% to 92% efficiency may not sound like a huge difference... but that has almost halved the loss" [05:30]. Less power wasted as heat means engineers can entirely remove bulky metal heatsinks from the PCB.Counter-Intuitive Fact: Diodes are actually more efficient at higher temperatures. Because their forward voltage drops as they heat up, GaN designers intentionally use smaller rectifiers that run hotter [09:30]. This "hot diode" hack saves space without sacrificing efficiency, provided the thermal ceiling is strictly managed.Under the Hood: The Engineering Showdown (Tear-Down Data)GaN architecture is superior because it eliminates bulky heatsinks and wire-wound transformers, drastically reducing thermal heat-soak. Understanding Feedback in Switching Power Supply Circuit Design is key to appreciating how these compact units maintain stability. Everything is Better: GaN vs Silicon Power SuppliesVolume, Weight, and The "Heat Soak" EffectGaN vs silicon power supply physical comparisons reveal stark engineering contrasts. In visual stress tests, a GaN 50W power supply measures 45ml and weighs 44.7g, exactly one-third the volume and weight of its 145ml, 134g silicon counterpart. Furthermore, thermal imaging at [10:13] shows the silicon PSU requires two massive metal heatsinks. At [10:20], thermal footage reveals a critical silicon design flaw: the mains rectifier hits 62°C not from its own electrical load, but because it suffers "heat soak" from the adjacent heatsink. The GaN PSU utilizes a tiny surface-mount rectifier that stays cool simply because there are no bulky heat sources nearby.Planar Transformers & Managing Fringing FluxPlanar transformers represent the most significant spatial innovation in GaN design. GaN's high-frequency operation allows engineers to replace bulky 22mm-high wire-wound bobbin transformers with ultra-thin 8mm planar transformers. According to 2026 Navitas Semiconductor specifications, these transformers etch windings directly onto the PCB, resulting in a 60% to 75% size reduction. In video teardowns [17:01], we observed that designers manage "fringing flux"—a phenomenon that causes massive efficiency losses—by moving the air gap to one end of the core [19:20], keeping the PCB windings safely away from magnetic interference.Active Rectification & The "Hot Diode" HackActive rectification accounts for the hidden performance delta in premium power supplies. Replacing the traditional output diode with a Synchronous MOSFET accounts for 4% of the total 7% efficiency gain observed between GaN and silicon units. This active switching requires precise timing controllers but drastically lowers the thermal output at the final delivery stage.Pro Tip: If a GaN charger feels unusually hot to the touch, it is often functioning exactly as designed. The chassis itself acts as the heat dissipator for the surface-mounted components, replacing internal aluminum fins.The Dangers of Cheap GaN: Why All "GaN" Labels Aren't EqualCheap GaN is dangerous because high switching frequencies amplify stray inductance, requiring strict PCB layouts to prevent failure. For those interested in the fundamentals, the Switch Mode Power Supply Circuit Design Tutorial provides excellent context on these challenges.Stray Inductance & 170kHz Switching SpeedsStray inductance destroys poorly engineered GaN boards. According to 2026 Stanford University benchmarks, GaN devices enable converter switching frequencies up to 500 kHz, whereas traditional Silicon MOSFETs are limited to below 20kHz-100kHz. In video analysis, a tested GaN unit switched at 170kHz compared to silicon's 62.5kHz. Because GaN switches so rapidly, even microscopic amounts of stray inductance cause massive voltage overshoots. High-end boards mitigate this by placing MLCC (ceramic) capacitors physically against the transistor [13:48]. Cheap, off-the-shelf GaN adapters fail to implement these tight PCB layouts, resulting in high Electromagnetic Interference (EMI).The Voltage Ripple Trade-OffVoltage ripple is the primary trade-off for physical miniaturization. To save space, GaN PSUs often utilize significantly smaller input capacitors (e.g., 56μF vs 100μF in silicon). This creates much higher voltage ripple. Consequently, the GaN PSU must feature an ultra-fast controller capable of varying the duty cycle rapidly to compensate. Without this controller, the output power becomes highly unstable, introducing noise into connected devices.Load Regulation & Dedicated Sense TracesLoad regulation dictates how well a power supply maintains voltage under heavy demand. Poor voltage regulation is a design choice, not a material limitation. Premium GaN units achieve 8x better load regulation (a 10mV drop versus an 87mV drop) by utilizing dedicated voltage sense traces. As observed at [08:30] in visual teardowns, these traces route directly to the output connector, bypassing the internal voltage drops of the main board entirely.System-Level Performance Unlocking (Is it Snake Oil?)GaN power delivery is transformative because it provides the rapid transient response necessary to eliminate audio noise floors.Oscilloscope Comparison of Noise FloorsChi-fi Upgrades, Transients, and Erasing the Noise FloorChi-fi (Chinese Hi-Fi) audio amplifiers and DACs are highly sensitive to power delivery. A cheap silicon power supply creates an invisible bottleneck—an electrical noise floor—that degrades audio fidelity. GaN capacitance handles "bus pumping" (the back-EMF generated by speaker cones returning to resting position) far better than silicon. Furthermore, GaN delivers the rapid transient response required for punchy bass and sudden dynamic shifts in audio tracks, effectively raising the performance ceiling of budget audio gear.Home Labs, PD 3.1, and Programmable Power Supply (PPS)Home lab enthusiasts running micro-PC server clusters require absolute thermal stability. In 2026, Programmable Power Supply (PPS) integrated with PD 3.1 is an essential feature. Modern GaN multi-port chargers utilize controllers like the Infineon EZ-PD? PAG1P or JADARD JD6610C. According to Texas Instruments and Infineon, these controllers support USB PD 3.1 Extended Power Range (EPR) up to 240W (48V, 5A). This dynamic power routing prevents the battery degradation and thermal throttling traditionally associated with fast-charging silicon systems under heavy server loads.Beyond 200 GHz: The 2026 GaN-on-Silicon FutureGaN-on-silicon infrastructure is scaling rapidly beyond consumer adapters. According to Intel Foundry Technology Research (IEDM) 2026, Intel successfully demonstrated the world's thinnest GaN chiplet, measuring just 19 micrometers (μm) thick on a 300mm wafer. This allows operations at extreme frequencies beyond 200 GHz. Consequently, the GaN Data Center Power Supply market is projected to grow at a 27.8% CAGR through 2032, as 5G and AI private-cloud infrastructures demand power density that legacy silicon cannot physically provide.Will a GaN Multi-Port Hub Throttle Secondary Ports to 5W?Modern GaN hubs are reliable because Programmable Power Supply (PPS) protocols dynamically route power without resetting primary connections.Users on community forums frequently express frustration over "smart" multi-port silicon chargers that abruptly reset or drop power output to an abysmal 5W when a second device is plugged in. This occurs because legacy silicon controllers force a hard reset to renegotiate the power handshake.Modern GaN hubs solve this via advanced PPS controllers. When you plug a secondary device into a premium GaN hub, the internal IC dynamically reallocates wattage based on real-time thermal and battery data without dropping the primary connection. For prosumers looking for a flawless implementation of this dynamic routing, nan serves as a prime example of a hub that maintains high-wattage output across multiple ports without triggering the dreaded 5W throttle state.What Users Say: The Community ConsensusEnthusiast consensus is clear because real-world testing validates GaN's superiority in thermal management and transient response.On Audio Fidelity: "Swapping the stock silicon brick on my Class-D amp for a 48V GaN supply completely removed the static hiss at high volumes. The transient response makes it sound like a different amplifier."On Desk Clutter: "Replacing four massive wall warts with a single GaN hub cleaned up my cable management, but more importantly, it stopped my micro-PCs from thermal throttling during heavy database queries."On Multi-Port Frustration: "Finally found a GaN charger that doesn't disconnect my laptop every time I plug in my phone. PPS is mandatory for multi-device setups."Conclusion & FAQGaN adoption is essential because it fundamentally resolves the thermal and spatial bottlenecks inherent to legacy silicon power delivery.The transition from silicon to GaN is not about saving money on your monthly electric bill. It is a necessary architectural upgrade to achieve clean power. By halving thermal loss, eradicating vampire draw, and utilizing planar transformers, GaN power supplies deliver the transient response and load regulation required by modern, sensitive hardware. Whether you are powering a Chi-fi audio setup or a home lab cluster, eliminating the silicon bottleneck is the first step to unlocking your system's true performance.Entity Comparison TableAttributeLegacy Silicon Power SupplyModern GaN Power SupplySwitching Frequency<20kHz - 100kHzUp to 500kHz (Tested at 170kHz)Idle Power Draw1.2W110mWTransformer TypeWire-wound bobbin (22mm)PCB-integrated Planar (8mm)Thermal ManagementMassive aluminum heatsinksSurface-mount chassis dissipationLoad Regulation Drop~87mV~10mV (via dedicated sense traces)FAQIs a GaN upgrade actually worth the money for my audio/minilab setup?Yes. GaN provides superior transient response and handles bus pumping efficiently, which eliminates the electrical noise floor in audio gear and prevents thermal throttling in micro-PC servers.Will buying a GaN charger actually save me money on my monthly electricity bill?No. While GaN is more efficient (halving thermal loss), manufacturers use this efficiency to shrink the physical size of the charger rather than maximize grid power savings. The residential cost difference is negligible.Why are GaN chargers so much smaller than silicon?GaN operates at much higher switching frequencies (up to 500kHz). This allows engineers to replace bulky wire-wound transformers with ultra-thin planar transformers and completely remove internal metal heatsinks.What happens if my GaN charger lacks Active Rectification?It will generate more heat. Active rectification replaces the standard output diode with a Synchronous MOSFET, which accounts for roughly 4% of the total efficiency gain in premium GaN units.Why do multiple devices disconnect briefly when plugged into a GaN charger?If a charger lacks advanced Programmable Power Supply (PPS) controllers, it must perform a hard reset to renegotiate the power delivery "handshake" when a new device is introduced. Premium devices like nan utilize dynamic routing to prevent this drop.

Selecting the correct 100 amp wire size requires calculating ampacity limits, terminal temperature ratings, and voltage drop across specific distances. The standard baseline wire size for a 100-amp circuit is 3 AWG copper or 1 AWG aluminum when using 75°C-rated terminations. However, this baseline changes immediately if the circuit supplies an entire dwelling, utilizes NM-B cable, or extends beyond 100 feet. Guessing the wrong gauge based on generic charts often leads to failed electrical inspections, melted breaker terminals, or severe fire hazards. This guide establishes a code-compliant framework for sizing 100-amp conductors across residential and subpanel applications.The Baseline: What Size Wire for a 100 Amp Circuit?For a standard 100-amp circuit, the National Electrical Code requires 3 AWG copper or 1 AWG aluminum conductors. This assumes the use of 75°C-rated wire, such as THHN or THWN-2, installed within a conduit system.NEC Table 310.16 and the 75°C ColumnThe foundation of wire sizing begins with the National Electrical Code (NEC). According to NEC Table 310.16, the standard ampacity for a 100-amp circuit using 75°C-rated terminations requires 3 AWG Copper (rated for 100A) or 1 AWG Aluminum (rated for 100A) conductors. As noted in the EleCalculator 2026 Ampacity Reference, these sizes represent the absolute baseline for standard subpanels and general circuits before any distance or temperature derating factors are applied.The 60°C Rule for NM-B CableWhile THHN wire in conduit uses the 75°C column, non-metallic sheathed cable operates under stricter thermal limits. Experts point out that a common "cable assembly trap" forces installers into lower ampacity tiers regardless of the internal wire's individual rating. Specifically, NEC 334.80 mandates that NM-B (Romex) cable must be sized using the 60°C ampacity column, which limits 3 AWG Copper to only 85 amps. Therefore, a 100-amp circuit using NM-B requires upsizing to 2 AWG Copper (rated for 95A, acceptable under the next-size-up rule) or 1/0 AWG Aluminum, according to the ExpertCE Conductor Sizing Guide.Baseline Conductors: Copper vs. AluminumCircuit Breaker Terminal RatingsA wire's insulation rating does not override the hardware it connects to. NEC 110.14(C) dictates that standard 100A circuit breaker terminals are rated for 75°C. Consequently, even if you pull THHN wire rated for 90°C, the heat generated at the breaker lugs dictates that the 75°C ampacity column must be used for sizing. Understanding a Circuit Breaker: Working Principle, Types and Structure clarifies why this matters; the thermal-magnetic mechanism relies on predictable heat dissipation, and exceeding the 75°C terminal limit risks melting the lug or causing nuisance tripping.Residential vs. Industrial 100A BreakersThe 75°C terminal limitation applies primarily to standard residential and light commercial load centers. Conversely, industrial environments utilizing a Vacuum Circuit Breaker for high-voltage 100A applications operate under different termination and arc-quenching standards, often allowing for different conductor engineering based on specialized equipment ratings.The 83% Rule: Main Service vs. Subpanel WiringThe NEC allows downsizing main service conductors to 83 percent of the service rating. For a 100-amp main service, this permits the use of 4 AWG copper or 2 AWG aluminum, provided the feeder supplies the entire dwelling.NEC 310.12: When You Can Downsize to 4 AWG CopperThe most frequently misunderstood exception in electrical sizing is the residential service rule. NEC 310.12 (the 83% rule) allows service conductors supplying the entire load of a dwelling to be sized at 83% of the service rating. For a 100-amp service, the required ampacity is 83 amps, permitting the use of 4 AWG Copper (rated for 85A at 75°C) or 2 AWG Aluminum (rated for 90A at 75°C), as verified by the LearnMetrics NEC Guide.Why the 83% Rule Fails Detached Garage SubpanelsUsers on community forums often report failing electrical inspections because they attempt to apply the 83% rule to secondary structures. A detached garage or workshop subpanel does not carry the entire load of the primary dwelling. Therefore, using 4 AWG copper for a 100-amp garage subpanel is a direct code violation and a fire hazard. Subpanels must strictly adhere to the baseline 3 AWG copper or 1 AWG aluminum sizing.Copper vs. Aluminum for 100 Amp ServiceCopper offers higher conductivity and requires smaller conduit, while aluminum provides significant cost savings for long feeder runs. Aluminum conductors must be sized larger than copper to carry the identical 100-amp electrical load safely.Cost vs. Conductivity Trade-offsAluminum (specifically AA-8000 series SER/SEU cable) remains the industry standard for long residential feeder runs, and is an excellent choice for users who need to manage material costs on runs exceeding 50 feet. However, for electricians who prioritize conduit space and flexibility in tight enclosures, copper offers a more compact path. Experts point out that you cannot simply swap copper for aluminum at the same gauge. Because aluminum has a higher resistance, if a #2 wire works for copper, you must jump to a thicker #1/0 wire for aluminum to carry the identical 100-amp load safely.Preventing Oxidation and Terminal MeltingHistorically, aluminum wiring earned a poor reputation due to thermal expansion and oxidation at connection points. Modern installations mitigate this entirely by requiring AA-8000 series aluminum alloy. Furthermore, installers must apply a specialized anti-oxidant compound to the stripped wire ends and secure the lugs to the exact torque specifications printed on the breaker or panel label.Calculating Voltage Drop for Long RunsWhen a 100-amp circuit exceeds 100 feet, voltage drop reduces efficiency and can damage equipment. To maintain the recommended maximum 3% voltage drop, conductors must frequently be upsized to 2 AWG or 1 AWG copper.When Distance Requires Upsizing ConductorsWire possesses inherent electrical resistance. Over long distances, this resistance causes the voltage to drop before it reaches the load. Industry standards recommend a maximum voltage drop of 3% for branch circuits and feeders. For example, running a 100-amp subpanel 150 feet to a detached workshop using 3 AWG copper will result in a voltage drop exceeding 3% at full load. This means a compressor motor will draw more amperage to compensate for the lower voltage, generating excess heat. To solve this, the run requires upsizing to 2 AWG or 1 AWG copper.Voltage Drop Limits over Long RunsUnderground Trenching: THHN vs. UF-B vs. USE-2When routing 100-amp service underground, the insulation type dictates the installation method. Standard NM-B cannot be used underground, even inside conduit. For direct burial, USE-2 or heavy-gauge UF-B is required. For conduit installations in a trench, THWN-2 (the water-resistant variant of THHN) is the standard choice, as underground conduits are legally defined as wet locations.Ground Wire, Conduit Sizing, and SplicingA 100-amp circuit requires a minimum equipment grounding conductor of 8 AWG copper or 6 AWG aluminum. If the ungrounded conductors are upsized for voltage drop, the ground wire must be proportionally upsized.Sizing the Equipment Grounding Conductor (EGC)The ground wire does not carry current during normal operation, but it must be large enough to safely carry fault current back to the panel to trip the breaker. NEC Table 250.122 dictates that a circuit protected by a 100-amp overcurrent device requires a minimum Equipment Grounding Conductor (EGC) of 8 AWG Copper or 6 AWG Aluminum, according to the Electrical Technology EGC Sizing Guide.The Proportional Upsizing Rule for Ground WiresA critical, often-missed code requirement involves voltage drop compensation. Under NEC 250.122(B), if you upsize your ungrounded (hot) conductors to account for voltage drop, you must proportionally upsize your EGC based on the circular mil area increase. You cannot use a standard 8 AWG ground if you have upsized your hot wires from 3 AWG to 1 AWG.Conduit Fill Limits and Derating FactorsPulling heavy-gauge wire through conduit requires calculating physical fill limits and thermal derating. In visual stress tests and code breakdowns, experts warn that you must derate the wire's ampacity under two specific conditions: if the ambient temperature of the routing area exceeds 30°C (86°F), or if there are more than three current-carrying conductors in a single raceway.How to Splice Heavy-Gauge 100 Amp WiresStandard twist-on wire nuts are not rated for 3 AWG or 1 AWG conductors. Splicing 100-amp wire inside a junction box requires heavy-duty mechanical lugs. Evaluating How Top Wire Splice Connector Brands Stack Up This Year reveals that insulated tap connectors (often referred to generically as Polaris blocks) are the preferred method. These blocks allow the installer to insert the stripped heavy-gauge wire and tighten a set screw to the required torque, providing a secure, fully insulated splice without the need for manual taping.Using Insulated Connectors for 100-Amp SplicingThe Parallel Conductor Hack (NEC 310.10.4)Because pulling massive 1 AWG or 1/0 AWG wire through conduit is physically demanding, some online tutorials suggest an "insider hack" of running parallel 50-amp cables (e.g., two 4 AWG copper wires per phase) to achieve a 100-amp total. This is a severe code violation. NEC 310.10(G) strictly prohibits running conductors in parallel if they are smaller than 1/0 AWG for power applications. The "video intel" suggesting the use of two 4 AWG wires in parallel for a 100-amp circuit poses a severe fire hazard due to unequal impedance and will result in an immediate failed inspection, as confirmed by IAEI Magazine & ExpertCE.📺 Wire Size for 100 Amp Garage Feed ExplainedStructured Decision Aid: 100 Amp Wire Sizing MatrixUse the following matrix to determine the correct baseline wire size based on the specific application and material.Application TypeCopper Size (AWG)Aluminum Size (AWG)NEC Code ReferenceWhole-Home Main Service4 AWG2 AWGNEC 310.12 (83% Rule)Standard Subpanel (THHN in Conduit)3 AWG1 AWGNEC Table 310.16 (75°C)Standard Subpanel (NM-B Cable)2 AWG1/0 AWGNEC 334.80 (60°C Limit)Long Run Subpanel (>100ft, 3% Drop)2 AWG or 1 AWG1/0 AWG or 2/0 AWGVoltage Drop CalculationNext Steps and Code ComplianceThe baseline requirement for a 100-amp circuit is 3 AWG copper or 1 AWG aluminum. However, practical application requires adjusting these sizes based on the environment. NM-B cable forces an upsize to 2 AWG copper, while whole-home main services allow downsizing to 4 AWG copper. Furthermore, runs exceeding 100 feet require custom voltage drop calculations to prevent equipment damage.Before purchasing wire or pulling permits, consult a licensed electrical contractor to perform official load calculations. Local municipalities frequently adopt specific amendments to the National Electrical Code that supersede general guidelines.Frequently Asked QuestionsDo I need 2 AWG or 4 AWG copper for a 100 amp subpanel?Neither is the standard baseline. A standard 100-amp subpanel using THHN wire in conduit requires 3 AWG copper. You only use 2 AWG copper if you are using NM-B (Romex) cable. You only use 4 AWG copper if the feeder supplies the entire load of a dwelling (not a subpanel).Does a 100 amp detached garage subpanel require ground rods?Yes. A detached structure supplied by a feeder requires its own grounding electrode system (typically two ground rods) in addition to the 4-wire feeder (two hots, one neutral, one equipment grounding conductor) coming from the main panel.Can I mix copper and aluminum wire on a 100 amp splice?Directly twisting copper and aluminum together causes galvanic corrosion, which leads to high resistance and fires. They can only be spliced together using specialized, dual-rated (AL9CU) mechanical connectors or insulated tap blocks designed specifically to keep the metals physically separated while maintaining electrical continuity.Why can't I use the 90°C ampacity column for my 100 amp breaker?Even if your wire insulation (like THHN) is rated to withstand 90°C, the physical metal terminals on standard residential 100-amp circuit breakers are only rated and tested for 75°C. The NEC requires you to size the circuit based on the weakest thermal link in the system.

A dual inline package, often called DIP, is a type of housing for an integrated circuit or other electronic components. You will see two parallel rows of pins on each side of the rectangular body, making it easy to plug into a circuit board. Dual inline packages help you build reliable circuits because their design supports strong connections and easy replacement of parts. When you choose a DIP for your IC, you get benefits such as simple assembly, mechanical stability, and good heat management. The table below shows how dual inline packages contribute to the reliability and performance of your projects:Feature/AspectContribution to Reliability and PerformanceSimple and Cost-Effective DesignDIP's straightforward design reduces production costs and simplifies assembly, supporting reliable large-scale manufacturing.Through-Hole MountingProvides strong, durable mechanical connections that maintain circuit reliability over time.Heat ManagementThrough-hole leads allow effective heat dissipation into the PCB, enhancing circuit longevity and stable operation.Ease of ReplacementComponents can be replaced without damaging nearby parts, aiding prototyping and testing.Electrical CharacteristicsLow contact resistance, high insulation resistance, and low capacitance support stable and reliable electrical performance.Mechanical StabilityLarger size and through-hole mounting provide robustness against physical stress and vibration.Cost-EffectivenessCheaper to produce than SMT packages, beneficial in educational, prototyping, and certain industrial contexts.LimitationsLarger size and bulkiness make DIP less suitable for high-density or space-constrained applications compared to SMT packages.Dual Inline Package StructureDIP Pin LayoutYou can easily recognize a dual inline package by its rectangular shape and two parallel rows of pins. These pins stick out from both sides of the package, making it simple to place the component on a printed circuit board. Each row has an even number of pins, and the total pin count usually ranges from 8 to 64. The pins are spaced 0.1 inches (2.54 mm) apart, which matches the standard layout for most circuit boards. This spacing helps you line up dip components quickly and reduces mistakes during assembly.Here is a table showing the typical dimensions and pin counts for dip packages:ParameterTypical Values / RangePin spacing (pitch)0.1 inches (2.54 mm)Row spacing0.3 inches (7.62 mm), 0.6 inches (15.24 mm)Number of pinsEven numbers, usually 8 to 64Pin numberingPin 1 at top left with notch facing up; counterclockwiseTip: The notch or dot on one end of the dual inline package shows you where pin 1 is located. Always check this before placing dip components on your board.The dual row pin layout gives you more connection points than single row packages. This design makes it easier to create complex circuits and supports strong, reliable connections. You can also replace dip components without damaging other parts, which is helpful during testing and repairs.Materials and HousingDip packages use different materials for their housing and pins. Most dip components have plastic housings, which are cost-effective and durable. You will also find ceramic housings in some dip packages. Ceramic offers better heat resistance and mechanical strength, so you often see it in high-reliability uses like aerospace or military electronics.The pins and leadframes inside a dual inline package are usually made from copper or copper alloys. These metals provide excellent electrical conductivity and mechanical strength. Inside the package, gold wirebonds connect the silicon chip to the pins. Gold is chosen because it resists corrosion and keeps the electrical connection stable over time.Here is a table that summarizes the common materials used in dip format:Material TypeUsage in DIP PackageAdvantagesPlastic HousingMost dip componentsDurable, low cost, good for mass productionCeramic HousingHigh-reliability dip packagesStrong, heat-resistant, long-lastingCopper/Copper AlloyPins and leadframeHigh conductivity, strongGold WirebondsInternal connectionsExcellent conductivity, resists corrosionMounting MethodsYou will usually mount dip components on a board using through-hole technology. This means you insert the pins into holes drilled in the printed circuit board and then solder them on the other side. Through-hole mounting gives your circuit strong mechanical stability and makes it easy to handle dip packages during assembly.Here are some key points about mounting methods for dual inline packaging:Through-hole mounting supports both manual and automated assembly.The process is simple: insert the pins, check the orientation using the notch, and solder the pins on the back of the board.Dip format allows you to use sockets, so you can swap out dip components without soldering and desoldering each time.The larger size of dip packages makes them easy to handle, but they take up more space on the board compared to surface-mount devices.Note: The structure of a dual inline package, with its clear pin layout and orientation notch, helps you quickly identify and replace components on your printed circuit board. This feature is especially useful when you need to test or repair your circuit.Types of Dual Inline PackagesStandard DIP PackageYou will find the standard dual inline package in many electronic devices. This type of package holds an integrated circuit or other dip components inside a rectangular body with two rows of pins. You can choose from several standard types, each with unique features. The table below helps you compare the most common dip packages used in consumer electronics:DIP TypeMaterialSize/WidthPin SpacingKey Distinguishing Features and ApplicationsPlastic DIP (PDIP)PlasticStandard widthStandard (2.54mm)Cost-effective, good insulation, widely used in consumer electronicsCeramic DIP (CDIP)CeramicStandard widthStandard (2.54mm)Superior electrical performance, durable, resistant to heat, moisture, shockShrink Plastic DIP (SPDIP)PlasticSmaller lead pitch (1.778mm)Smaller pitch (0.07 inches)Saves space, suitable for compact devices, maintains electrical connection strengthSkinny DIP (SDIP)PlasticNarrower width (7.62mm)Standard (2.54mm)Fits tight spaces, compatible with standard through-hole mountingYou can select a dip chip based on your needs for durability, space, or electrical performance. Plastic DIP works well for most projects, while ceramic DIP gives you extra protection in harsh environments.DIP SwitchesDIP switches look similar to other dual inline packages, but they serve a different purpose. Instead of holding an ic, these dip components let you set hardware options directly on your circuit board. Each switch contains several small mechanical switches, such as slide or rocker types, inside a single package. You can flip these switches to change device settings, set addresses, or select modes without using software.You will see DIP switches in embedded systems, industrial equipment, and consumer electronics. Their construction includes a protective cover, striker pins, rocker contacts, and a molded base. This design makes them easy to use for manual configuration. Unlike standard dip packages, DIP switches give you a simple way to control your device’s behavior.Tip: Use DIP switches when you want to change settings without reprogramming your device.Other DIP VariantsYou can also find specialized dual inline packages for unique applications. Some dip components use multi-layer ceramic construction for extra durability and better heat management. These appear in aerospace and military systems where reliability matters most. Single-layer ceramic DIP offers a balance between cost and performance, making it popular in educational kits and consumer products.Other variants include leadframe DIP with glass-ceramic seals for moisture resistance, often used in medical devices and industrial controls. Shrink dual in-line packages (SDIP) increase pin density, which helps you design compact and advanced electronic systems. These dip packages remain important in fields that need strong mechanical stability and easy manual handling.DIP Advantages and LimitationsBenefits of DIP PackagesYou will find that dual inline packages offer several important benefits for electronics projects. Their design makes them easy to handle, especially when you work with breadboards or through-hole printed circuit boards. You can quickly insert or remove these components, which helps you during prototyping and testing.Here are some key benefits:You can easily identify pin 1 and the orientation, reducing mistakes during assembly.The larger size of dual inline packages makes them simple to solder by hand, even if you are new to electronics.Through-hole mounting gives strong mechanical support, so your components stay in place even if the board moves or vibrates.You can use sockets with these packages, which lets you swap out chips without soldering each time.Dual inline packages help with heat management because their leads allow heat to move away from the chip.Tip: If you want to learn electronics or build prototypes, dual inline packages are a great choice because they are reliable and easy to use.Drawbacks of DIP PackagesWhile dual inline packages have many strengths, you should also know their limitations. These drawbacks become more important in modern, high-density, or high-speed electronics.Limitation/ChallengeExplanationLarger Physical SizeThese packages take up more space on your circuit board, making it hard to fit many parts.Limited Pin CountYou cannot use them for very complex circuits that need many connections.Longer Lead LengthsThe long leads slow down signals and can cause problems in high-frequency circuits.Soldering DifficultiesIf you have a DIP with many pins, soldering can become tricky, especially for beginners.Unsuitability for High-FrequencyThe lead length and extra inductance make them less effective for fast or sensitive circuits.You may also notice that dual inline packages do not use space as efficiently as surface-mount devices. The standard pin spacing limits how many connections you can make, which is a problem for advanced designs. Over time, the pins can bend or break if you handle the board roughly. In some cases, changes in temperature can cause the solder joints to fail.Note: For high-speed, high-density, or very compact designs, you may want to choose a different package type.DIP ApplicationsCommon Uses in ElectronicsYou will find dual inline packages in many types of electronic devices. DIP components appear in both everyday products and specialized equipment. Their strong design and easy handling make them a favorite for many engineers.Outdoor signage and large display screens often use DIP components for bright, reliable lighting.Architectural lighting for buildings and monuments depends on DIP packages for durability.Traffic signals and decorative lighting, such as holiday lights, use DIP components for long-lasting performance.Indoor displays, including scoreboards and electronic message boards, rely on DIP packages for clear visuals.Automotive lighting, like taillights and brake lights, uses DIP components for safety and reliability.Channel letter signs in retail settings and backlighting for devices such as LCD screens and keypads also use DIP packages.You will see DIP packages in automotive electronics, consumer electronics, healthcare electronics, telecommunications, and industrial electronics.DIP components help you build circuits that last. Their sturdy pins and easy-to-identify layout make them a smart choice for many applications.Prototyping and DevelopmentYou can use DIP packages to speed up your prototyping and development process. The standard 2.54mm pin spacing fits perfectly into breadboards and perfboards. This feature lets you assemble a circuit quickly without soldering. You can swap out DIP components easily, which helps you test different ideas without damaging your board.Note: DIP sockets let you insert and remove ICs without soldering. This reduces the risk of heat damage and makes testing safer.Many popular ICs, such as the ATmega328, 555 timer, and LM358, come in DIP format. You can use these in robotics, IoT, and home automation projects. DIP packages are beginner-friendly and appear in many educational kits. In electronics training programs, you will often use DIP packages to learn about logic gates, timers, and microcontrollers. DIP switches also help you set up circuit configurations by hand, making them useful for teaching digital logic.DIP packages give you flexibility, speed, and reliability during development. You can experiment, repair, and learn with ease.DIP vs. Other PackagesDIP vs. SMTWhen you compare DIP and surface mount technology (SMT), you notice some big differences in how you use and assemble them.DIP packages use through-hole mounting. You insert the pins into holes on the circuit board and solder them. This gives you strong mechanical connections and makes manual assembly easy.SMT packages sit directly on the surface of the board. You do not need to drill holes. This method saves space and lets you fit more parts on a smaller board.DIP technology works well for prototyping, testing, and projects that need strong parts you can swap out. You can handle these parts by hand without special tools.SMT is best for high-speed, automated production. It supports smaller, lighter, and more compact designs. The short leads in SMT packages help with high-frequency signals and reduce electrical problems.DIP packages take up more space and have fewer pins per area. SMT packages allow for higher density and better performance in modern electronics.Tip: If you want to build a prototype or need to replace parts often, DIP is a good choice. For small, high-tech devices, SMT works better.DIP vs. SOPSmall Outline Packages (SOP) are another type of surface-mount package. Here is a table to help you see the main differences:FeatureDIP (Dual Inline Package)SOP (Small Outline Package)SizeLarger, bulkierSmaller, compactPin ConfigurationTwo rows, through-holePins on sides, surface-mountPin Pitch2.54 mm0.65 mm to 1.27 mmMounting TypeThrough-holeSurface-mountMechanical StabilityHigh, strong against stressLower, less robustApplicationPrototyping, education, simple circuitsAdvanced, compact electronicsHandlingEasy manual assemblyNeeds automated assemblyElectrical PerformanceGoodBetter due to shorter leadsYou can see that SOP packages save space and work well in high-density designs. DIP packages are easier to handle and better for learning or testing.Choosing the Right PackageYou should think about your project’s needs before you pick a package. Here are some things to consider:If you need to build a prototype, teach electronics, or replace parts by hand, DIP packages make your job easier.For projects that face physical stress or need strong mechanical support, DIP works well.If you want a compact, high-speed, or high-frequency device, SMT or SOP packages are better.Cost matters too. DIP is often cheaper for small runs or simple circuits. SMT and SOP save money in large-scale, automated production.Note: Always match your package choice to your project’s size, speed, and assembly needs. DIP technology gives you flexibility for hands-on work, while SMT and SOP help you build modern, compact devices.You have seen how dual inline packages give you strong, reliable connections for your circuits. DIPs make assembly and repairs simple. Many teachers and engineers use DIPs because they help you learn and test ideas quickly.Physical prototyping with DIPs helps you understand design concepts.Hands-on models like DIPs improve learning and idea generation.DIPs support clear communication during design and training.You can trust DIPs for both classroom projects and real-world electronics. Their versatility and ease of use keep them important in electronics today.FAQWhat is the main purpose of a dual inline package?You use a dual inline package to hold an integrated circuit or other dip components. The two rows of pins make it easy to place the ic on a printed circuit board. This design helps you build and repair circuits quickly.Can you use dip packages for prototyping?Yes, you can use dip packages for prototyping. The standard pin spacing fits breadboards and perfboards. You can insert or remove a dip chip easily. This makes dip technology perfect for testing circuit ideas before final assembly.How do you identify pin 1 on a dip package?You find pin 1 by looking for a notch or dot on the dual inline package. Place the notch facing up. Pin 1 sits at the top left. This helps you avoid mistakes when placing dip components on your board.Are dual inline packages still used in modern electronics?You still see dual inline packages in education, prototyping, and some industrial uses. Many modern devices use surface-mount technology, but dip format remains popular for learning and simple circuit repairs.What are the advantages of using dip sockets?Dip sockets let you insert or remove an ic without soldering. You protect your dip chip from heat damage. You can swap out dip components quickly. This feature helps you test and repair circuits on your printed circuit board.

USB-C has become the new era of connectivity in 2025. Devices now use this universal serial bus connector for faster data transfers, higher power delivery, and improved compatibility. Many people ask about type c vs usb c, but both terms often describe the same connector shape. The usb-c standard makes connecting devices simple, reliable, and efficient. Users now enjoy seamless compatibility across laptops, phones, and accessories. This new era of connectivity sets a clear path for better data and charging experiences with every usb device.Type C vs USB CConnector vs StandardMany people wonder about the difference in the type c vs usb c debate. The answer starts with understanding the connector and the standard. The USB Type-C connector describes the physical shape and design. This connector is small, oval, and reversible. Users can plug it in either way, which makes it easier to use than older usb connectors. The usb-c connector also lasts longer because of its sturdy build.The usb-c standard, on the other hand, refers to the rules and features that work with the usb-c connector. These rules include how fast data can transfer, how much power the connector can deliver, and what types of signals it can carry. For example, the usb-c standard allows for high-speed data transfer, fast charging, and even video or audio signals. The usb type c connector acts as the doorway, while the usb-c standard decides what can pass through.Tip: Not every usb-c connector supports the same features. Always check the device or cable for its usb standard and data transfer speed.The usb-c connector has changed how people connect devices. It replaced many older usb connectors, such as USB-A and USB-B, by offering one universal connector for many uses. The usb-c standard keeps improving, so users get faster data transfer and more power with each new version.Common MisconceptionsConfusion often surrounds the type c vs usb c topic. Many users think all usb-c connectors and cables work the same way. This is not true. The usb-c connector only describes the shape. The usb standard, like USB 3.2 or USB 2.0, tells how fast data can transfer and how much power the connector can handle.Some people believe that every usb-c cable supports fast charging or high-speed data transfer. In reality, different cables have different abilities. For example, a cable for a laptop may handle more power than one for a smartphone. Using the wrong cable can lead to slow charging or even damage. The usb-c standard helps prevent problems, but users must still choose the right cable for their needs.Another common myth is that fast charging with usb-c can harm batteries. Modern usb-c connectors and devices include safety features that protect against overcharging and overheating. The usb standard ensures safe data transfer and power delivery.MythFactAll usb-c connectors are the sameDifferent cables support different usb standards and data transfer speedsFast charging is unsafeThe usb-c standard includes safety features for chargingAny usb-c cable works for every deviceDevices need cables that match their power and data needsThe type c vs usb c confusion often comes from mixing up the connector with the standard. The usb-c connector is just the shape. The usb standard decides what the connector can do. Knowing this difference helps users pick the right usb connectors and cables for their devices.USB EvolutionUSB-A OriginsThe evolution of usb connectors began in the late 1990s. USB-A first appeared in 1996 with the launch of USB 1.0. This connector changed how people connected devices to computers. Before usb-a, users relied on bulky ports like PS/2, serial, and parallel. USB type a made it easier to connect mice, keyboards, and printers. By 1998, computers started to include usb ports as a standard feature. Apple’s iMac helped speed up the adoption of usb connectors by using only usb ports. The usb-a connector offered a simple, rectangular shape, but it only fit one way. This design sometimes made plugging in cables frustrating.YearMilestoneDescription1996USB 1.0 LaunchIntroduced Type-A and Type-B connectors with speeds of 1.5 Mbps (low speed) and 12 Mbps (full speed). Not widely adopted initially.1998USB 1.1 UpgradeImproved adoption, maintained speeds, standardized Type-A and Type-B connectors.2000USB 2.0 ReleaseIncreased speed to 480 Mbps, introduced Mini-A and Mini-B connectors, supported battery charging.2007Micro ConnectorsReplaced Mini connectors with Micro-A, Micro-AB, and Micro-B connectors; introduced USB On-The-Go for device-to-device communication.2008USB 3.0 LaunchIntroduced SuperSpeed USB with 5 Gbps transfer rate, backward compatible plugs and cables.2013USB 3.1 LaunchTwo variants: Gen 1 (5 Gbps) and Gen 2 (10 Gbps), improved data rates.2014USB-C IntroductionNew reversible, smaller connector supporting higher data and power transfer rates.2017USB 3.2 ReleaseAdded new modes with USB-C, doubling speeds up to 20 Gbps using dual-lane data transfer.2019USB4 ReleaseBased on Thunderbolt 3 protocol, speeds up to 40 Gbps, uses USB-C connectors, supports power delivery up to 240W.2022USB4 2.0Increased speeds up to 80 Gbps over USB-C.USB-B, Mini, and MicroAs usb technology advanced, new connectors appeared to solve problems. USB-B was created for larger devices like printers and scanners. However, usb-b connectors were too big for small gadgets. The evolution continued with mini and micro usb connectors. Mini usb arrived in 2000 for cameras and early phones. It was smaller than usb-a and usb-b, but still too thick for slim devices. Micro usb launched in 2007, offering a thinner shape and better durability. Micro usb connectors doubled the insertion lifetime compared to mini usb. Both mini and micro usb connectors kept the one-way plug design, which sometimes caused confusion. Micro usb also introduced new features like USB On-The-Go, letting devices connect directly without a computer.USB-A was too large for small devices, leading to the creation of usb-b, mini, and micro connectors.Mini usb worked for cameras but not for thin phones.Micro usb improved size and durability, but still required correct orientation.Rise of USB-CThe next step in the evolution of usb connectors came with usb-c in 2014. This connector solved many old problems. USB-C features a small, oval shape and works in any direction. Users no longer struggle with plug orientation. USB-C supports high-speed data transfer, fast charging, and advanced protocols like Thunderbolt and DisplayPort. The usb-c connector can deliver up to 240 watts of power, making it strong enough for laptops and monitors. USB 4.0 uses usb-c connectors to reach speeds up to 40 Gbps. The usb-c connector replaced many older types, making cables and ports simpler for everyone. In 2024, new rules in the EU made usb-c the standard for mobile devices, showing its global importance.Image Source: statics.mylandingpages.coNote: USB-C unifies usb connectors for all devices, supports usb 4.0, and makes data transfer and charging faster and easier.Why USB-CSpeed and PowerUSB-C stands out because it offers much faster data transfer and higher power delivery than older connectors. Devices can now move large files, stream high-quality video, and charge quickly. The usb standard has improved with each version, making usb-c the top choice for speed and power.USB TypeMaximum Data Transfer SpeedMaximum Power DeliveryAdditional FeaturesUSB-A (Standard USB)Up to 10 Gbps (USB 3.1)Up to 4.5W (USB 3.0)Limited power delivery, non-reversible connectorUSB-BSimilar to USB-A in speed and powerSimilar to USB-ATypically used for peripherals, non-reversibleUSB-CUp to 40 Gbps (Thunderbolt 3 / USB4)Up to 100W (USB PD), up to 240W (USB PD 3.1)Reversible connector, supports simultaneous data, power, and video outputImage Source: statics.mylandingpages.coThe usb-c connector supports data transfer rates up to 40 Gbps with USB4 and Thunderbolt 3. This speed is much higher than usb-a or usb-b. The usb-c standard also allows power delivery up to 240W, which means users can charge laptops, monitors, and even some gaming devices. The usb standard uses dynamic power negotiation, so each device gets the right amount of power. This feature keeps charging safe and efficient.Note: USB-C power delivery is an open standard. It works with many brands and devices, unlike older proprietary chargers that only fit one type of device.The usb-c standard supports fast data transfer for large files, high-resolution video, and quick charging. This makes it the best choice for modern technology.Reversible DesignThe reversible design of usb-c solves a problem that frustrated many users. Older usb connectors like usb-a and usb-b only fit one way. People often tried to plug them in upside down, which wasted time and caused wear.USB-C has a symmetrical, oval shape. Users can insert the connector in either direction. The usb-c standard uses 24 contacts in two rows, so the cable works no matter how it is plugged in. This design reduces mistakes and makes connecting devices easier for everyone.The usb-c connector also uses spring latches and grounding fingers. These features keep the connection secure and reliable. The reversible design supports high data transfer speed and power delivery, while keeping the connector small and easy to use.Tip: The reversible usb-c connector helps people of all ages connect devices quickly, with less frustration and fewer errors.VersatilityUSB-C is more than just a connector for charging phones. The usb-c standard supports many types of data transfer and power delivery. It works with a wide range of devices, from smartphones and tablets to laptops, monitors, and even virtual reality headsets.USB-C supports all usb device speeds, from low-speed to SuperSpeed and beyond.The usb-c standard allows alternate modes, such as DisplayPort and MHL, to send video and audio over the same cable.Power delivery can reach up to 240W, so users can charge large devices like laptops.Devices can switch roles, acting as a host or a function, which was not possible with older usb connectors.USB-C FeatureTechnical CapabilityRelevance to Emerging Technologies (VR, High-Resolution Displays)High Data Transfer SpeedsUp to 80 Gbps with USB4Enables fast streaming and data transfer required for immersive VR and 4K/8K videoPower Delivery (USB PD)Negotiates and delivers higher wattageSupports charging and powering VR headsets and high-res monitorsDisplayPort Alt Mode (DP Alt Mode)Video output over USB-C cable using DisplayPort protocolAllows connection to high-resolution external displays through a single cableMulti-protocol SupportSupports USB, Thunderbolt, DisplayPortProvides versatile connectivity essential for AR/VR devices and advanced displaysIndustry AdoptionMajor tech companies updating devices to USB-CEnsures broad compatibility and future-proofing for emerging techThe usb-c standard also helps the environment. The EU now requires usb-c for most devices. This rule reduces electronic waste by letting people reuse cables and chargers. Fewer chargers end up in landfills, which helps protect the planet.Note: USB-C adapters and dongles help connect new devices to older equipment. This keeps older technology useful and reduces waste.USB-C’s versatility makes it the best choice for today’s technology. It supports fast data transfer, high power delivery, and many device types. The usb-c standard brings simplicity, speed, and sustainability to the world of usb.Adoption TrendsIndustry ShiftMany industries have moved quickly to embrace USB-C. Consumer electronics companies lead this change. They use USB-C in smartphones, laptops, tablets, and audio or video devices. Industrial automation also benefits from USB-C, especially in factories and production lines. These industries choose USB-C for several reasons:Universal compatibility across many devicesReversible connector design that makes plugging in easierFaster data transfer rates, reaching up to 10 Gbps and beyondHigher power delivery, supporting fast charging and even powering larger devicesAbility to send audio and video signals, reducing the need for extra cablesSimpler device design and better user experienceLess setup time and complexity in industrial settingsDevice makers also see USB-C as a way to stay ahead in technology. Standardizing on USB-C lowers development costs and helps companies meet rising consumer demand for efficient and sustainable products. The adoption of USB-C also helps reduce electronic waste by replacing many older connectors.Market research shows strong growth for USB-C:AspectDetailsMarket Size (2024)USD 5.2 BillionProjected Market Size (2033)USD 12.8 BillionCAGR (2026-2033)10.5%Key Growth DriversTechnology advances, changing consumer needs, competitive strategiesFastest Growing RegionAsia-PacificOther Regional TrendsNorth America and Europe show steady growth, helped by research and regulationsConsumer ImpactConsumers now enjoy a simpler and more reliable experience with USB-C. The reversible design and slim shape make devices easier to use and carry. People can use one charger for many devices, which saves money and reduces clutter. Fast charging and high-speed data transfer also improve daily life.Regulations, especially in the European Union, push companies to use USB-C. The EU requires USB-C for phones, tablets, and earbuds by the end of 2024, and for laptops by 2026. This rule encourages companies worldwide to follow the same standard, making USB-C more common everywhere. These changes help reduce electronic waste and support sustainability.Companies work together to make sure their products are compatible. They use digital marketing and social media to teach people about the benefits of USB-C. Schools and families save money by using multi-port USB-C charging stations instead of buying many different adapters. Over time, the adoption of USB-C helps everyone by making technology easier, faster, and more eco-friendly.USB-C stands as the universal standard because it offers a reversible design, fast data transfer, and high power delivery. Users benefit from one connector for many devices, making technology easier for everyone.Educational guides help people understand that not all USB-C cables work the same way.Knowing the difference between Type C and USB-C lets users choose the right cable for their needs.Embracing USB-C means a simpler, faster, and more connected future. This connector supports the future of technology, helps reduce waste, and prepares everyone for the future of smart devices. The future looks bright with USB-C leading the way.FAQWhat is the main difference between USB-C and older USB connectors?USB-C uses a small, reversible design. It supports faster data transfer and higher power delivery. Older connectors, like USB-A and USB-B, only fit one way and have lower speed and power limits.Can every USB-C cable charge all devices?Not every USB-C cable supports the same power or speed. Some cables only charge phones, while others power laptops. Always check the cable’s label or packaging for its charging and data capabilities.Does USB-C work with older USB devices?USB-C can connect to older devices with adapters or special cables. The speed and power depend on the oldest device in the connection. Users should check compatibility before connecting.Why do some USB-C ports support video output and others do not?Some USB-C ports support "Alternate Modes" like DisplayPort or HDMI. These ports send video signals. Not all devices include this feature. Users should check device specifications for video support.

You rely on technology every day, both at work and at home. UPS systems protect your valuable devices from sudden outages and voltage changes. Many businesses use a UPS to keep computers, servers, and other equipment running when the main power fails. These systems watch the power supply and fix problems like surges or sags before they damage your electronics. In data centers, companies trust UPS systems to prevent data loss and keep operations going smoothly. A modern uninterruptible power supply can even help you safely shut down equipment during long outages, protecting your information and hardware.Why UPS Systems MatterPower Outage ProtectionPower outages can happen at any time. You may lose electricity because of storms, accidents, or problems with the power grid. When this happens, your devices and equipment stop working right away. UPS systems give you backup power during these outages. This means your computers, servers, and other important devices keep running for a short time. You get a chance to save your work and shut down equipment safely.Did you know? Power outages can cause big problems for businesses. Studies show that each outage can cost between $36 million and $232 million. Businesses may lose jobs, face lower sales, and see their supply chains break down. Even homes can suffer when power interruptions damage electronics or stop remote work.UPS systems help you avoid these problems. They keep your devices running during sudden power failure. You can trust UPS to give you emergency power when you need it most.Data Loss PreventionLosing power can mean losing important data. If your computer or server shuts off suddenly, you might lose files or damage software. UPS systems protect you from this risk. They give you enough time to save your work and close programs safely. This is very important for businesses that handle customer information, financial records, or sensitive projects.Many industries rely on UPS for data protection. For example, banks use UPS systems to keep transactions safe. Hospitals use them to protect patient records. Even at home, a UPS can stop you from losing schoolwork or family photos during power outages.Tip: Always connect your most important devices to a UPS. This helps you avoid data loss and keeps your information safe.Equipment SafetyVoltage fluctuations can harm your electronics. Sometimes the power supply is not steady. You might see lights flicker or screens flash. These changes can damage computers, printers, and other devices. Over time, this leads to costly repairs or replacements.UPS systems protect your equipment from these problems. They keep the power steady and filter out surges or drops. This means your devices last longer and work better. In businesses, this helps avoid downtime and keeps operations smooth.Voltage fluctuations can:Cause overheating and fire hazards.Shorten the life of motors and transformers.Lead to data loss and equipment breakdowns.Increase the risk of total power failure.By using a UPS, you protect your investment in technology. You also lower the risk of fire and other safety hazards.Business ContinuityBusiness continuity means keeping your business running, even when problems happen. UPS systems play a key role in this. They make sure your operations do not stop during power outages or voltage problems. This is important for all types of businesses, from banks to factories to hospitals.Sector/ApplicationImportance of UPS SystemsSupporting DetailsIndustrialCritical for heavy machinery and large-scale operations requiring uninterrupted powerHigh-capacity UPS needed for automation and smart manufacturing to minimize downtimeBFSI (Banking, Finance)Ensures continuity of financial transactions and protects sensitive dataUPS systems prevent data loss during outages; demand driven by digitization and cybersecurity focusIT & TelecommunicationsSupports continuous operation of data centers and digital infrastructureEssential for data centers, cloud computing, and telecom networks; demand grows with digital economy expansionHealthcarePowers life-saving medical equipment and critical systemsEnsures patient safety during outages; demand grows with healthcare infrastructure expansionResidentialProtects home electronics and supports remote workGrowing demand due to increased reliance on home digital devicesUPS systems help you avoid costly disruptions. They support uninterrupted operations and protect your reputation. Many companies, like Amazon Web Services and Delta Airlines, use UPS to prevent downtime and data loss. Hospitals rely on UPS to keep life-saving equipment running. Even in homes, UPS systems protect your electronics and help you work from home without worry.Note: The global UPS market is growing fast. Experts expect it to reach $18 billion by 2032. This shows how important UPS systems are for reliability and continuity in today’s digital world.How UPS WorksUninterruptible Power Supply BasicsYou depend on a steady flow of electricity to keep your devices running. An uninterruptible power supply, or UPS, steps in when the main power fails. It acts as a backup power source, giving you time to save your work and shut down equipment safely. According to a 2024 technical report by Eric Roland Stromberg, a double conversion UPS works by changing AC power to DC, storing it in batteries, and then converting it back to AC for your devices. This process keeps your equipment protected from power problems. The inverter matches the output to the incoming power, so you get a smooth switch between power sources.Types of UPSYou can choose from three main types of UPS systems. Each type offers different levels of protection and performance. The table below shows how they compare:Power Quality IssueStandby (Offline) UPSLine-Interactive UPSOnline Double Conversion UPSOutage / BlackoutBrief delay, basic backupShort transfer, moderate backupZero delay, continuous powerVoltage Sag / DipHandles short sagsHandles brownouts, overvoltagesFull protectionVoltage Surges / SpikesBasic surge suppressionModerate regulationFull conditioningFrequency VariationsNo regulationNo regulationFull regulationHarmonics and NoiseNo protectionNo protectionFull protectionStandby UPS systems give you basic battery backup with a short interruption. Line-interactive UPS systems add voltage regulation, which helps with frequent voltage changes. Online double conversion UPS systems provide the highest level of protection. They keep your devices safe from all power problems, making them ideal for sensitive equipment.Key ComponentsEvery UPS system uses several important parts to keep your power steady:Batteries: These store energy and supply emergency power during outages. You may see different types, such as VRLA, flooded wet cell, or lithium-ion batteries.Rectifier: This part changes AC power from the wall into DC power to charge the batteries and supply the inverter.Inverter: The inverter turns DC power back into AC power for your devices. In double conversion UPS, this keeps your equipment safe from power issues.Automatic Transfer Switch (ATS): The ATS switches between power sources to keep your devices running without interruption.Static Bypass Switch: This switch lets power bypass the UPS if there is a problem, so your devices still get electricity.Other Parts: Capacitors and fans help the UPS system work smoothly and need regular care.You can trust uninterrupted power supplies to protect your electronics and keep your work safe. A good UPS system gives you peace of mind and keeps your devices running when you need them most.Choosing a UPSAssessing Needs for BusinessesWhen you select a UPS for your business, you need to look at several important factors. Start by checking how much energy your equipment uses. Use watt-meters to measure the exact power needs of your computers, servers, and other devices. Identify which systems must stay on during an outage, such as data centers or medical equipment. Think about how long your business can handle downtime. Some businesses need only a few minutes to save work, while others require hours of backup.You should also plan for growth. Add about 25% more capacity to your UPS to cover future needs. Choose the right UPS type based on your protection goals. The table below can help you compare options:UPS TypeEfficiencyPower Protection LevelStandby UPSHighBasicLine-Interactive UPSMediumModerateDouble-Conversion UPSLow to MediumHighCheck the environment where you will install the UPS. Make sure there is enough space and good airflow. Review warranty terms and plan for regular maintenance. Many businesses work with experts to match UPS systems to their unique needs.Home UPS ConsiderationsAt home, you want to protect your most valuable electronics. Start by listing the devices you need to keep running during an outage, such as your computer, Wi-Fi router, or medical equipment. Add up their power needs to find the right UPS size. If you work from home, choose a UPS that gives you enough time to save your work and shut down safely.Look for a UPS with features like automatic voltage regulation. This helps protect against small power changes without using the battery. Think about where you will place the UPS. Keep it in a cool, dry spot with enough space for air to move around it. Check the battery type and lifespan. Some batteries last longer and need less care.Tip: Test your UPS every few months. This helps you make sure it works when you need it most.Features to Look ForWhen you shop for a UPS, focus on features that boost reliability and safety. Proper sizing is key. Pick a UPS that matches your total power load and gives enough backup time. Modular designs let you add more capacity as your needs grow. Automatic voltage regulation keeps your devices safe from small power swings.Smart UPS systems give you real-time updates and alerts. These features help you spot problems early and keep your UPS in top shape. Remote management lets you control your UPS from anywhere, which is helpful for businesses with many locations. Intelligent battery charging and advanced power conditioning also help your UPS last longer and protect your equipment.Note: Regular maintenance and battery checks keep your UPS ready for emergencies. Always follow the manufacturer’s care tips.UPS and Operational ValueImage Source: pexelsReducing DowntimeYou want your devices and systems to work without interruption. Power outages and voltage problems can stop your work and cause delays. When you use backup power, you keep your equipment running during these events. Modern backup power systems work with generators and use smart features to switch power smoothly. This means your most important devices stay on, even if the main power fails. In places like hospitals and data centers, this smooth transition keeps critical services running. Studies show that over half of data center outages come from power issues, and many of these are linked to problems with backup power systems. By choosing a reliable system, you protect your business or home from costly downtime.Enhancing ProductivityYou can boost your productivity when you avoid interruptions. Backup power helps you keep working, learning, or serving customers, even during power problems. Companies that use advanced backup power solutions see big improvements. For example:AI-powered route planning saves millions of miles each year, making deliveries faster.Smart sorting systems reduce mistakes and speed up package handling.Predictive maintenance tools lower the number of breakdowns, so vehicles and machines stay in service longer.Mobile technology lets workers track and manage tasks in real time, cutting delivery times by 10%.These tools show how backup power and smart technology work together to improve efficiency and keep your operations moving.Extending Equipment LifeYou invest a lot in your electronics and machines. Backup power systems help you protect that investment. Newer batteries, like lithium-ion, last up to 20 years. They need fewer replacements and keep your backup power system working longer. Regular care and smart maintenance plans also keep your system in top shape. This care protects your devices from power surges and outages, which can shorten their life. Built-in surge protection adds another layer of safety. When you use a reliable backup power system, you help your equipment last longer and avoid extra costs.You can protect your data, equipment, and productivity by choosing the right backup power solution. Many sectors rely on these systems to keep operations safe and steady.Sector / FactorBenefits and Value of UPS SystemsHealthcareKeeps life-support and medical records safe during outages.Data CentersPrevents data loss and service interruptions.TelecommunicationsMaintains network and customer service.Industrial Automation & Smart ManufacturingStops production halts and protects machines.Remote AreasSupports critical infrastructure in off-grid locations.Power outages can cause costly downtime and damage.Backup power acts as insurance for your electronics.Energy-efficient designs help you save money and support sustainability.Take time to review your needs and invest in a reliable system. This step helps you stay prepared and keeps your valuable devices safe.FAQWhat devices should I connect to my UPS?You should connect your most important devices. These include computers, Wi-Fi routers, and medical equipment. Avoid plugging in high-power items like heaters or refrigerators. This helps your UPS last longer and protects your key electronics.How often should I test my UPS system?Test your UPS every three months. Press the test button or unplug the UPS to see if it works. This simple step helps you catch problems early and keeps your backup power ready.Can a UPS save energy costs?A UPS does not lower your energy bill. Its main job is to protect your devices from power problems. Some modern UPS systems use energy-saving features, but the savings are small.How long does a UPS battery last?Most UPS batteries last three to five years. Battery life depends on use, temperature, and care. Replace the battery when you notice shorter backup times.Do I need a UPS if I already have a surge protector?A surge protector only guards against voltage spikes. A UPS gives you backup power and protects against outages, sags, and surges. You get more complete protection with a UPS.

I Introduction: The Unsung Hero of ElectronicsHave you ever wondered what makes your electronic devices tick? From your smartphone to your smart home gadgets, countless components work in harmony to bring technology to life. Among these, one unassuming yet critical component often goes unnoticed: the resistor. It’s the unsung hero, quietly ensuring that everything functions as it should. In this comprehensive guide, we’ll dive deep into the world of resistors, exploring their fundamental principles and advanced applications. By the end, you’ll have a profound understanding of why these tiny components are so indispensable.A. What is a Resistor?At its core, a resistor is a passive electrical component that creates resistance in the flow of electric current. Think of it like a water flow regulator in a pipe system. Just as a valve controls the amount of water flowing through a pipe, a resistor controls the amount of electrical current flowing through a circuit. Without resistors, sensitive components could be overwhelmed by excessive current, leading to damage or malfunction. Their ability to limit current and divide voltage makes them fundamental to nearly all electronic circuits, from the simplest LED circuit to the most complex microprocessors. Understanding the basics of what a resistor is and how it functions is the first step in mastering electronics.B. Why Understanding Resistors is CrucialUnderstanding resistors isn’t just for electrical engineers; it’s crucial for anyone looking to delve into electronics, whether as a hobbyist or a professional. Resistors are essential for a multitude of reasons, including protecting components from overcurrent, controlling signal levels in audio circuits, and precisely dividing voltages in sensor applications. Imagine trying to power a delicate LED directly from a battery; without a resistor, the LED would likely burn out instantly due to excessive current. This article will guide you through everything from the basic theory of electrical resistance to practical applications, ensuring you gain a holistic understanding of these vital components. Get ready to unlock the power of resistance!II The Fundamental Function of a ResistorResistors are far more than just simple components; they are the silent workhorses that enable circuits to operate safely and efficiently. Their primary role is to manage the flow of electricity, ensuring that each part of an electronic system receives the precise amount of current and voltage it needs. Without this careful regulation, circuits would be prone to damage, and complex electronic devices simply wouldn’t function. Let’s explore the core functions and the underlying physics that make resistors so indispensable.A. What Does a Resistor Do in a Circuit?The most fundamental function of a resistor is to limit or regulate the flow of current. This is crucial for protecting sensitive components from being overloaded. For instance, an LED requires a specific amount of current to light up without burning out; a resistor ensures it gets just that. Beyond current limiting, resistors perform several other key functions:Voltage Division: Resistors can be arranged to create specific voltage levels within a circuit. This is incredibly useful for providing the correct operating voltage to different parts of a system from a single power source.Adjusting Signal Levels: In audio equipment or sensor interfaces, resistors are used to attenuate or control the strength of signals, ensuring they are at appropriate levels for processing.Heat Generation: While often an undesirable byproduct, in some specialized applications, resistors are intentionally used to convert electrical energy into heat, such as in heating elements or fuses.Protecting Components: Perhaps one of the most vital roles, resistors act as guardians, shielding delicate components like integrated circuits and transistors from excessive current that could otherwise destroy them. This protective function is a cornerstone of reliable circuit design.B. How a Resistor Achieves This: The Physics ExplainedThe working principle of a resistor is rooted in the concept of electrical resistance, which is the opposition to the flow of electrons. When electrons move through a material, they collide with atoms, converting some of their kinetic energy into heat. Materials used in resistors are specifically chosen for their ability to impede electron flow in a controlled manner. The amount of resistance depends on three main factors:Material: Some materials, like nichrome (an alloy of nickel and chromium), are inherently less conductive than others, making them excellent for creating resistance.Length: A longer conductive path means electrons encounter more atoms, leading to greater resistance. Imagine a long, narrow hallway compared to a short, wide one – it’s harder to move quickly through the longer, narrower space.Cross-sectional Area: A thinner conductive path offers more opposition to electron flow, increasing resistance. Think of water flowing through a narrow pipe versus a wide one; the narrow pipe restricts flow more significantly.By manipulating these physical properties, manufacturers can create resistors with precise resistance values. This process involves converting electrical energy into heat, a phenomenon described by Joule heating. This conversion is fundamental to how a resistor dissipates power, a concept we will explore further. Understanding this physical mechanism helps demystify how these small components exert such significant control over electrical currents.Various types of resistors, showcasing their diverse forms and applications.III Ohm’s Law: The Resistor’s Governing PrincipleIf resistors are the unsung heroes of electronics, then Ohm’s Law is their guiding scripture. This fundamental principle, discovered by German physicist Georg Simon Ohm, provides the mathematical relationship between voltage, current, and resistance in an electrical circuit. It’s the cornerstone of circuit analysis and design, allowing engineers and hobbyists alike to predict and control the behavior of electricity. Understanding Ohm’s Law is not just about memorizing a formula; it’s about grasping the very essence of how electricity flows and how resistors influence that flow.A. Defining Ohm’s LawOhm’s Law states that the voltage across a conductor is directly proportional to the current flowing through it, provided the temperature and physical conditions remain unchanged. In simpler terms, if you increase the voltage across a resistor, the current through it will increase proportionally, assuming the resistance stays constant. Conversely, if you increase the resistance, the current will decrease for a given voltage. This relationship is elegantly expressed by the core formula:Voltage (V) = Current (I) x Resistance (R)This formula, often remembered as V = I x R, is incredibly powerful because it allows you to calculate any one of these three quantities if you know the other two. It’s the bedrock upon which all circuit calculations are built, making it indispensable for anyone working with electronics. For a deeper dive into the history and implications of Ohm’s Law, you might find the Wikipedia article on Ohm’s Law to be an excellent resource.B. The Relationship Between Voltage, Current, and ResistanceTo truly appreciate Ohm’s Law, let’s break down each component:Voltage (V): Often referred to as electrical potential difference, voltage is the force that pushes the electric charge. It’s measured in Volts (V). Think of it as the pressure in our water pipe analogy; higher pressure means more force to push the water.Current (I): This is the rate of flow of electric charge, measured in Amperes (A). In our analogy, this would be the volume of water flowing through the pipe per unit of time.Resistance (R): As we’ve discussed, resistance is the opposition to the flow of current, measured in Ohms (Ω). This is analogous to the narrowness or roughness of the pipe, which restricts water flow.The beauty of Ohm’s Law lies in its direct and inverse relationships. For a given voltage, higher resistance leads to lower current. This is why resistors are used to limit current. Conversely, for a given resistance, higher voltage leads to higher current. This fundamental understanding is crucial for designing circuits that function correctly and safely. You can visualize this relationship using the Ohm’s Law triangle, a popular mnemonic aid: The Ohm’s Law triangle, a visual aid for remembering the formulas.C. Practical Application and Calculation ExamplesLet’s put Ohm’s Law into practice with some simple examples. These calculations are fundamental to understanding how resistors behave in real-world circuits.Example 1: Calculating CurrentSuppose you have a 12V battery connected to a 100Ω resistor. What is the current flowing through the resistor?Using Ohm’s Law: I = V / RI = 12V / 100Ω = 0.12 Amperes (A) or 120 milliamperes (mA)Example 2: Calculating ResistanceIf you want to limit the current through an LED to 20mA (0.02A) from a 5V power supply, and the LED has a forward voltage drop of 2V, what resistance do you need?First, calculate the voltage across the resistor: V_resistor = V_supply - V_LED = 5V - 2V = 3VNow, use Ohm’s Law: R = V / IR = 3V / 0.02A = 150 Ohms (Ω)Example 3: Calculating VoltageA circuit has a 0.5A current flowing through a 47Ω resistor. What is the voltage drop across the resistor?Using Ohm’s Law: V = I x RV = 0.5A x 47Ω = 23.5 Volts (V)These examples illustrate the versatility of Ohm’s Law in circuit design and troubleshooting. For more interactive learning, you can explore online Ohm’s Law calculators that allow you to input values and see the results instantly. Mastering these calculations is a crucial step in becoming proficient in electronics.Video: A clear explanation of Ohm’s Law with practical examples.IV Resistor Power Dissipation: Understanding the HeatWhile resistors are designed to limit current and divide voltage, an unavoidable consequence of their operation is the conversion of electrical energy into heat. This process is known as power dissipation, and it’s a critical factor to consider in circuit design. Ignoring power dissipation can lead to overheating, component failure, and even fire hazards. Understanding how to calculate and manage this heat is essential for building reliable and safe electronic circuits.A. What is Power Dissipation in a Resistor?Power dissipation in a resistor refers to the rate at which electrical energy is converted into thermal energy (heat). This occurs because as electrons flow through the resistive material, they collide with atoms, losing energy in the form of heat. It’s an inherent characteristic of resistance; any component that impedes current flow will dissipate power. While sometimes utilized, such as in heating elements, in most electronic applications, this heat is an undesirable byproduct that needs to be managed. The amount of heat generated is directly proportional to the current flowing through the resistor and the resistance value itself. This phenomenon is a direct consequence of Joule heating, where the energy lost by charge carriers is transformed into heat within the material.B. The Importance of Power RatingEvery resistor has a maximum power rating, typically specified in watts (W). This rating indicates the maximum amount of power the resistor can safely dissipate continuously without being damaged or significantly changing its resistance value. Exceeding this rating can lead to several problems:Overheating: The resistor can become excessively hot, potentially damaging itself or nearby components.Resistance Drift: High temperatures can permanently alter the resistor’s material properties, causing its resistance value to drift outside its specified tolerance.Complete Failure: In extreme cases, the resistor can burn out, open-circuit, or even catch fire, leading to circuit malfunction or safety risks.Choosing a resistor with an adequate power rating is paramount for circuit longevity and safety. It’s a common mistake for beginners to focus solely on the resistance value and overlook the power rating, which can lead to frustrating failures. Always consider the power dissipation requirements of your circuit.C. How to Calculate Power DissipationCalculating power dissipation is straightforward using variations of Ohm’s Law. The fundamental formula for power (P) is:P = V x I (Power = Voltage x Current)However, by substituting Ohm’s Law (V = I x R or I = V / R), we can derive two other useful formulas for calculating power dissipation in a resistor:P = I² x R (Power = Current squared x Resistance)P = V² / R (Power = Voltage squared / Resistance)Let’s look at a worked example:Worked Example: Power Dissipation CalculationSuppose you have a 10Ω resistor with 0.5A of current flowing through it. What is the power dissipated by the resistor?Using the formula P = I² x R:P = (0.5A)² x 10ΩP = 0.25 x 10P = 2.5 Watts (W)Important Note: It’s a good practice to select a resistor with a power rating that is at least double the calculated maximum power dissipation. This provides a crucial safety margin, ensuring the resistor operates well within its limits and prolongs its lifespan. For instance, if your calculation shows 2.5W, you should ideally choose a 5W resistor. This practice is often referred to asderating.Video: Explaining power dissipation in resistors.V A Comprehensive Guide to Resistor Types and ApplicationsJust as there are many different tasks in electronics, there are many different types of resistors, each designed for specific applications and performance characteristics. Understanding these variations is key to selecting the right component for your circuit. From the common resistors found in everyday gadgets to specialized ones used in high-precision equipment, let’s explore the diverse world of resistor types.A. Fixed Resistors: The Constant CompanionsFixed resistors are the most common type, providing a constant, unchanging resistance value. They are ubiquitous in almost every electronic circuit. Here are some of the most prevalent types:Carbon Composition Resistors: These are among the oldest types, made from a mixture of carbon powder and a phenolic resin. They are inexpensive and suitable for general-purpose applications where high precision isn’t critical. However, their resistance value can change with temperature and age.Carbon Film Resistors: Offering better tolerance and stability than carbon composition resistors, carbon film resistors are made by depositing a thin carbon film onto a ceramic substrate. They are widely used due to their good performance and relatively low cost.Metal Film Resistors: Known for their high precision, stability, and low noise, metal film resistors are created by depositing a thin metal film (like nickel-chromium) onto a ceramic rod. They are ideal for precision circuits, audio equipment, and measurement instruments where accurate resistance values are crucial. You’ll often find them with 1% or even 0.1% tolerance.Wire-Wound Resistors: These are made by winding a metal wire (usually nichrome) around a non-conductive core. Wire-wound resistors are primarily used for high-power applications (e.g., power supplies, motor controls) and precision applications where high accuracy and stability are required. They can dissipate significant amounts of heat due to their robust construction.Surface Mount (SMD) Resistors: These tiny, rectangular resistors are designed for direct mounting onto Printed Circuit Boards (PCBs). They are the workhorses of modern electronics, enabling miniaturization and automated assembly. You’ll find them in almost every contemporary electronic device, from smartphones to laptops. Their small size and excellent high-frequency performance make them indispensable in today’s compact designs. For more information on SMD components, you can refer to this article on SMD technology.B. Variable Resistors: Adjustable ResistanceUnlike fixed resistors, variable resistors allow their resistance value to be changed, either manually or by external factors. This makes them incredibly versatile for applications requiring adjustment or sensing.Potentiometers: These are three-terminal resistors with a sliding or rotating contact that forms an adjustable voltage divider. They are commonly used as volume controls in audio equipment, dimmers for lights, and position sensors. When you turn a knob on your stereo to adjust the volume, you’re likely interacting with a potentiometer.Rheostats: Similar to potentiometers but typically used as two-terminal devices to adjust current in a circuit. They are often found in high-power applications, such as controlling the speed of motors or the brightness of incandescent lights.Trimmers (Trimpots): These are miniature potentiometers designed for fine-tuning circuits during manufacturing or calibration. They are usually set once and then left untouched, unlike potentiometers which are meant for frequent user adjustment.C. Non-Linear Resistors: The Smart ResistorsNon-linear resistors are special types whose resistance changes significantly with environmental factors like temperature, light, or voltage. This property makes them ideal for sensing and protection applications.Thermistors: Their resistance changes predictably with temperature. There are two main types: NTC (Negative Temperature Coefficient), where resistance decreases as temperature increases, and PTC (Positive Temperature Coefficient), where resistance increases with temperature. Thermistors are widely used in temperature sensing (e.g., digital thermometers, automotive sensors) and temperature compensation circuits.Photoresistors (LDRs - Light Dependent Resistors): The resistance of an LDR decreases as the intensity of light falling on it increases. They are commonly used in light-sensing circuits, such as automatic street lights, camera light meters, and simple alarm systems. Their simplicity and low cost make them popular for basic light detection.Varistors (VDRs - Voltage Dependent Resistors): The resistance of a varistor changes with the applied voltage. Specifically, their resistance is very high at low voltages but drops sharply when the voltage exceeds a certain threshold. This characteristic makes them excellent for surge protection, diverting excessive voltage spikes away from sensitive electronic components. You’ll find them protecting power supplies and communication lines.Each type of resistor plays a unique role in the vast landscape of electronics, enabling everything from simple circuits to complex, intelligent systems. Choosing the right type depends heavily on the specific requirements of your application, including precision, power handling, cost, and environmental conditions. For a visual overview of various resistor types, consider checking out this helpful guide on different resistor types.VI Practical Skills: Reading, Testing, and Using ResistorsNow that you understand the theory behind resistors and their various types, it’s time to get practical. Being able to identify, test, and correctly connect resistors is fundamental to any electronics project. These skills will empower you to confidently work with circuits and troubleshoot issues. Let’s dive into the hands-on aspects of working with these essential components.A. How to Read Resistor Color CodesMost through-hole resistors use a system of colored bands to indicate their resistance value, tolerance, and sometimes their temperature coefficient. This resistor color code is an international standard, making it easy to identify resistor values at a glance. It might seem daunting at first, but with a little practice and a simple mnemonic, you’ll master it quickly.Here’s a step-by-step guide for decoding the color bands:Identify the first significant digit: The first band (closest to one end) represents the first digit of the resistance value.Identify the second significant digit: The second band represents the second digit.Identify the third significant digit (for 5-band resistors) or multiplier: For 4-band resistors, the third band is the multiplier. For 5-band resistors, the third band is the third significant digit, and the fourth band is the multiplier.Identify the multiplier: This band indicates how many zeros to add after the significant digits, or by what power of ten to multiply the significant digits.Identify the tolerance: The last band (often gold or silver, and usually spaced further apart) indicates the percentage deviation from the stated resistance value. Common tolerances are ±5% (gold) and ±10% (silver).Identify the temperature coefficient (for 6-band resistors): The sixth band, if present, indicates the temperature coefficient of resistance (TCR), which describes how much the resistance changes per degree Celsius.Mnemonic to remember the color sequence: “BB ROY of Great Britain had a Very Good Wife” (Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Grey, White). A standard resistor color code chart for quick reference.Pro Tip: If you’re ever unsure, or dealing with complex 5 or 6-band resistors, there are many excellent online resistor color code calculators that can instantly decode the value for you. Just input the colors, and it will tell you the resistance and tolerance.B. How to Test if a Resistor is WorkingEven with color codes, sometimes you need to verify a resistor’s value or check if it’s still functional. This is where a Digital Multimeter (DMM) comes in handy. Testing a resistor is a simple process:Visual Inspection: Before anything else, visually inspect the resistor for any signs of damage, such as charring, blackening, cracks, or swollen areas. These are clear indicators of failure.Turn off Power and Isolate: Crucially, always ensure the circuit is powered off and the resistor is isolated from the circuit (ideally, desolder one lead) before testing. Testing a resistor in-circuit can lead to inaccurate readings due to parallel paths.Set the DMM: Turn your DMM’s dial to the resistance (Ω) range. Start with a higher range if you don’t know the approximate value, and then adjust downwards for a more precise reading.Connect the Probes: Touch the red and black probes of the DMM to the two leads of the resistor. The polarity doesn’t matter for a resistor.Read the Value: The DMM display will show the resistance value. Compare this measured value to the resistor’s rated value (from its color code or datasheet), keeping its tolerance in mind. A reading within the tolerance range indicates a healthy resistor. If the reading is significantly off, or if it shows an “OL” (Over Limit) or “1” (Open Loop), the resistor is likely faulty.C. Resistors in Series and ParallelResistors are rarely used in isolation; they are often combined in series or parallel configurations to achieve a desired total resistance or to distribute power. Understanding how to calculate the equivalent resistance in these configurations is fundamental to circuit design.Series CircuitsWhen resistors are connected in series, they are placed end-to-end, forming a single path for the current to flow. The total resistance in a series circuit is simply the sum of the individual resistances. This means that adding more resistors in series will always increase the total resistance.Formula for Series Resistors:R_total = R1 + R2 + R3 + … + RnPractical Example: If you have three resistors with values of 10Ω, 20Ω, and 30Ω connected in series, the total resistance would be 10 + 20 + 30 = 60Ω. This configuration is often used to limit current more effectively or to drop a specific amount of voltage across different parts of a circuit.Parallel CircuitsWhen resistors are connected in parallel, both ends of the resistors are connected to common points, providing multiple paths for the current to flow. This configuration effectively decreases the total resistance, as current has more ways to bypass individual resistors. Adding more resistors in parallel will always decrease the total resistance.Formula for Parallel Resistors:1/R_total = 1/R1 + 1/R2 + 1/R3 + … + 1/RnFor two resistors in parallel, a simplified formula can be used:R_total = (R1 * R2) / (R1 + R2)Practical Example: If you have two resistors with values of 10Ω and 20Ω connected in parallel, the total resistance would be:1/R_total = 1/10 + 1/20 = 2/20 + 1/20 = 3/20R_total = 20/3 = 6.67Ω (approximately)Parallel configurations are commonly used to provide multiple current paths, to reduce the overall resistance, or to increase the power handling capability of a resistive network. For a more detailed explanation and visual examples of series and parallel circuits, you can refer to this comprehensive guide on series and parallel circuits.VII Advanced Concepts for the Enthusiast and ProfessionalAs you delve deeper into electronics, you’ll encounter more nuanced aspects of resistor behavior that are crucial for designing high-performance and reliable circuits. These advanced concepts move beyond the basics of Ohm’s Law and power dissipation, focusing on the subtle characteristics that can significantly impact circuit performance, especially in sensitive applications. Let’s explore some of these critical considerations.A. Resistor Tolerance and Temperature Coefficient (TCR)When you buy a resistor, its stated value (e.g., 100Ω) is an ideal. In reality, every resistor has a slight deviation from this ideal, known as its tolerance. Tolerance is the permissible variation from the specified resistance value, expressed as a percentage. Common tolerances include ±5%, ±1%, and for precision applications, even ±0.1% or lower. A 100Ω resistor with a ±5% tolerance means its actual resistance can be anywhere between 95Ω and 105Ω. For many general-purpose circuits, a 5% or 10% tolerance is perfectly acceptable. However, in applications like precision measurement equipment, medical devices, or high-fidelity audio, even a small deviation can lead to significant errors, making low-tolerance resistors essential.Another critical factor is the Temperature Coefficient of Resistance (TCR). This parameter describes how much the resistance value changes with temperature, measured in parts per million per degree Celsius (ppm/°C). For example, a TCR of 100 ppm/°C means that for every 1°C change in temperature, the resistance will change by 0.01%. While this might seem small, over a wide temperature range or in highly sensitive circuits, these changes can accumulate and cause performance issues. For instance, a metal film resistor typically has a much lower TCR than a carbon composition resistor, making it more stable across varying temperatures. Understanding TCR is vital for designing circuits that perform consistently in different thermal environments, ensuring stability and accuracy.B. Resistors in Voltage Divider CircuitsOne of the most common and powerful applications of resistors is in voltage divider circuits. A voltage divider is a simple series circuit that produces a fixed fraction of its input voltage. It’s essentially two resistors connected in series across a voltage source, with the output voltage taken across one of the resistors. This configuration allows you to step down a higher voltage to a lower, usable voltage for other components.The voltage divider formula is straightforward:Vout = Vin * (R2 / (R1 + R2))Where: * Vout is the output voltage across R2 * Vin is the input voltage across both resistors * R1 is the resistor connected to the positive supply * R2 is the resistor connected to ground (or the lower potential)Common applications of voltage dividers include providing a reference voltage to a sensor, biasing transistors, or creating specific voltage levels for integrated circuits. For example, if you have a 9V battery and need 3V for a small sensor, you can use a voltage divider. If R1 is 6kΩ and R2 is 3kΩ, then Vout = 9V * (3kΩ / (6kΩ + 3kΩ)) = 9V * (3kΩ / 9kΩ) = 9V * (1/3) = 3V. It’s important to note that voltage dividers are generally not suitable for powering loads that draw significant current, as this will affect the output voltage. For such cases, a voltage regulator is a more appropriate solution. You can learn more about voltage dividers and their applications on Electronics Tutorials.C. Resistor Failure Modes and AnalysisEven the most robust resistors can fail, and understanding their common failure modes is crucial for troubleshooting and improving circuit reliability. While resistors are generally very reliable, various factors can lead to their demise. Recognizing these failure patterns can help you diagnose issues and design more resilient systems.Common Failure Modes:Open Circuit: This is perhaps the most common failure mode, where the resistive element breaks, leading to an infinite resistance. The current path is completely interrupted. This can be caused by excessive heat (burning out the element), mechanical stress, or internal manufacturing defects. When a resistor goes open, the circuit it’s part of will often stop functioning entirely.Resistance Drift: The resistance value changes beyond its specified tolerance. This is a more subtle failure, often caused by aging, prolonged exposure to high temperatures, or chemical degradation (e.g., sulfur contamination in some types of resistors). A drifted resistor might cause a circuit to operate incorrectly or inefficiently, even if it hasn’t completely failed.Lead Breakage: Physical damage to the resistor leads, often due to excessive bending, vibration, or poor soldering, can cause an intermittent or complete open circuit. This is more of a mechanical failure than an electrical one.Short Circuit: This is a very rare failure mode for resistors. It implies the resistive element has somehow become a perfect conductor, offering zero resistance. This usually happens only under extreme conditions, such as a direct short across the resistor due to external factors, rather than an internal failure of the resistor itself.Causes of Failure:Overheating: The most frequent culprit. Exceeding the resistor’s power rating causes it to overheat, leading to thermal runaway and eventual burnout. This is why proper power dissipation calculation and derating are so important.Corrosion: Environmental factors, particularly humidity and chemical contaminants (like sulfur in the atmosphere), can corrode the resistive element or its connections, leading to resistance drift or open circuits.Mechanical Stress: Physical impacts, excessive vibration, or improper handling during assembly can cause internal damage or lead breakage.Electrostatic Discharge (ESD): While less common for robust power resistors, sensitive film resistors can be damaged by high voltage ESD events, leading to subtle changes in resistance or complete failure.Understanding these failure modes allows engineers to select appropriate resistor types for specific environments and to implement protective measures, enhancing the overall reliability and longevity of electronic systems. For more in-depth analysis of component failures, you might find resources from reputable engineering sites like EE Times useful.VIII How to Choose the Right Resistor: A Selection GuideSelecting the appropriate resistor for your circuit is a critical step in ensuring its proper function, reliability, and longevity. It’s not just about picking a value; it involves considering several factors that can significantly impact performance. This guide will walk you through the essential steps to make an informed decision, helping you avoid common pitfalls and optimize your designs.A. Step 1: Determine the Required Resistance ValueThe first and most obvious step is to determine the precise resistance value your circuit requires. This is typically derived from your circuit calculations, primarily using Ohm’s Law (V=IR). For instance, if you need to limit current to an LED or set up a voltage divider, your calculations will yield a specific resistance. Always double-check your math to ensure accuracy. Remember that standard resistor values (E-series) are available, so you might need to choose the closest standard value if your calculated value isn’t exact. Sometimes, a combination of series or parallel resistors can be used to achieve a non-standard value.B. Step 2: Calculate the Necessary Power RatingOnce you have the resistance value, the next crucial step is to calculate the maximum power dissipation the resistor will experience in your circuit. As discussed in Section IV, this is calculated using formulas like P = I²R or P = V²/R. After calculating the maximum expected power, always select a resistor with a power rating significantly higher than this calculated value. A common rule of thumb is to choose a resistor with a power rating at least double the calculated maximum. This derating practice provides a safety margin, preventing overheating and extending the resistor’s lifespan. For example, if your circuit dissipates 0.2W, a 0.5W or 1W resistor would be a safer choice than a 0.25W one.C. Step 3: Select the Appropriate ToleranceResistor tolerance dictates how close the actual resistance value is to its nominal value. The choice of tolerance depends entirely on the application’s precision requirements:General-purpose circuits (e.g., LED current limiting, simple pull-up/pull-down resistors) can often use 5% or 10% tolerance resistors. These are typically less expensive and widely available.Precision applications (e.g., analog signal processing, measurement equipment, sensitive sensor interfaces) will require 1% or lower tolerance resistors (e.g., 0.5%, 0.1%). While more costly, they ensure the circuit operates within tighter specifications. Always consider the impact of resistance variation on your circuit’s overall performance.D. Step 4: Consider the Resistor Type and MaterialThe type of resistor you choose will depend on the specific demands of your application beyond just resistance and power. Refer back to Section V for a detailed overview. Here are some considerations:Cost and Availability: Carbon film and metal film resistors are generally cost-effective and widely available for most common applications.High Power: For applications requiring significant power dissipation (e.g., power supplies, motor control), wire-wound resistors are often the best choice due to their robust construction and ability to handle high wattage.High Frequency: In high-frequency circuits (e.g., RF applications), metal film or SMD resistors are preferred due to their lower parasitic inductance and capacitance compared to wire-wound types.Space Constraints: For compact designs, Surface Mount Device (SMD) resistors are indispensable due to their small footprint.Adjustability/Sensing: If you need to adjust resistance (e.g., volume control) or sense environmental changes (e.g., temperature, light), then variable resistors (potentiometers, thermistors, photoresistors) are necessary.E. Step 5: Evaluate Environmental and Thermal PerformanceFinally, consider the operating environment of your circuit. Factors like temperature, humidity, and potential exposure to corrosive elements can affect a resistor’s long-term stability and reliability. Pay attention to the Temperature Coefficient of Resistance (TCR), especially for precision applications that will operate over a wide temperature range. Resistors with lower TCR values will maintain their resistance more consistently despite temperature fluctuations. Also, consider the physical size and mounting options, especially for high-power resistors that might require heat sinks or specific ventilation to manage their heat dissipation effectively. This holistic approach ensures that your chosen resistor not only meets the electrical requirements but also performs reliably under real-world conditions.Common Pitfalls When Buying ResistorsEven experienced engineers can sometimes fall into traps when selecting resistors. Here are some common pitfalls to avoid:Ignoring Power Rating: This is the most frequent and dangerous mistake. Underestimating the power dissipation can lead to resistor burnout, circuit failure, and even fire. Always calculate and derate!Overlooking Tolerance: Using a 5% tolerance resistor in a circuit that requires 0.1% precision will lead to inaccurate or unstable performance. Match the tolerance to the application’s needs.Assuming All Resistors Are Equal: Different resistor types have different characteristics (e.g., noise, frequency response, stability). A carbon composition resistor might be fine for a simple LED, but disastrous in a sensitive audio amplifier.Not Considering Temperature: Resistance values can drift with temperature. If your circuit operates in varying thermal environments, a resistor with a poor TCR can lead to performance issues.Buying Counterfeit Components: Especially when sourcing from non-reputable suppliers, counterfeit resistors with incorrect values or poor quality are a risk. Always buy from trusted distributors.Ignoring Physical Size: While often an afterthought, the physical size of the resistor needs to fit within your PCB layout and enclosure. High-power resistors are physically larger.Product Selection Checklist: How to Choose the Best Resistor for Your ProjectTo simplify your resistor selection process, use this checklist:Resistance Value (Ω): What is the calculated or required resistance? (e.g., 220Ω, 10kΩ)Power Rating (W): What is the maximum power dissipated? (e.g., 0.25W, 1W, 5W) Remember to derate!Tolerance (%): How precise does the resistance need to be? (e.g., ±5%, ±1%, ±0.1%)Type of Resistor: What are the specific application needs? (e.g., Metal Film for precision, Wire-Wound for high power, SMD for compact, Thermistor for temperature sensing)Temperature Coefficient (ppm/°C): Is temperature stability critical? (e.g., low TCR for precision)Physical Size/Package: Does it fit your PCB layout? (e.g., 0805 SMD, through-hole)Cost & Availability: Does it fit your budget and supply chain? (e.g., common values are cheaper)Environmental Factors: Will it be exposed to extreme temperatures, humidity, or chemicals?By systematically going through these steps, you can confidently select the right resistor for any electronic project, ensuring optimal performance and reliability. Remember, the right resistor is not just about the correct resistance value, but also about its ability to withstand the operational conditions and meet the circuit’s overall demands. Your thoughtful selection will be rewarded with a robust and well-functioning electronic design. I genuinely believe that taking the time to consider these factors will save you headaches down the line, and you’ll feel a real sense of accomplishment when your circuit performs exactly as intended!IX Conclusion: The Power of ResistanceWe’ve journeyed through the fascinating world of resistors, from their fundamental role as current regulators to their diverse types and advanced applications. It’s clear that these seemingly simple components are, in fact, the unsung heroes of electronics, quietly enabling the complex functionalities of nearly every device we interact with daily. You’ve learned about the critical importance of Ohm’s Law as the governing principle, how to calculate and manage power dissipation to ensure circuit longevity, and the vast array of resistor types available for every conceivable application.We’ve also covered essential practical skills, such as decoding resistor color codes and testing their functionality with a multimeter, along with understanding how they behave in series and parallel circuits. For the more enthusiastic, we delved into advanced concepts like tolerance, temperature coefficient, and common failure modes, all of which are vital for designing robust and reliable electronic systems. Finally, we equipped you with a comprehensive selection guide, ensuring you can confidently choose the right resistor for any project, avoiding common pitfalls.I truly hope this guide has demystified the resistor for you and ignited a deeper appreciation for its indispensable role. The power of resistance, both literally and figuratively, is immense in the world of electronics. Now, armed with this knowledge, I encourage you to apply what you’ve learned in your own electronics projects. Experiment, build, and explore! The more you work with these components, the more intuitive their behavior will become. Remember, every great electronic innovation stands on the shoulders of fundamental components like the resistor. Keep learning, keep building, and let your creativity flow!Fixed Resistor Types ComparisonTo help you quickly compare the characteristics of common fixed resistor types, here’s a summary table: Resistor TypeKey CharacteristicsTypical TolerancePower HandlingCostCarbon CompositionInexpensive, general-purpose, less stable±5% to ±20%Low to MediumLowCarbon FilmGood general-purpose, better stability than carbon comp±1% to ±5%Low to MediumLowMetal FilmHigh precision, high stability, low noise±0.1% to ±1%Low to MediumMediumWire-WoundHigh power, high precision, low noise±0.1% to ±5%Medium to HighMedium to HighSurface Mount (SMD)Compact, modern, good high-frequency performance±0.1% to ±5%Low to MediumLow“The art of electronics is not in the complexity of the circuits, but in the elegant simplicity of how fundamental components like resistors, capacitors, and inductors are used to achieve complex functions.” - Unknown Engineer“In the realm of circuit design, understanding the subtle nuances of component behavior, such as a resistor’s temperature coefficient or its failure modes, often separates a functional prototype from a truly robust and reliable product.” - Dr. Eleanor Vance, Senior Electronics Architect

Let's talk about DC switching regulators - what they are, how they work, and how to choose them. Want to make your gadgets more powerful? Power efficiency is super important!Why Do We Need These "DC Switching Regulators" So Much?Hey, look at today's world - phones, computers, electric cars - which one can live without electricity? And they all need stable DC power. But here's the problem: battery voltage changes, and adapters don't output universal solutions. Using them directly will likely cause problems. That's when we need a "translator" to sort out the voltage properly - this "translator" is the voltage regulator.The old linear type was simple, but the efficiency was just terrible! Think about it - all that extra power just turned into heat and disappeared. What a waste! If phones used them, they'd probably be dead in half a day and burn your hands. So, DC switching regulators (DC-DC Switching Regulators) stepped up! These guys are famous for their high efficiency! They're practically the energy-saving champions of modern electronic devices.Have you ever encountered these annoying problems:Phone battery anxiety - charging several times a day?Laptop so hot you could fry an egg on it?Want to build something small, but the power section takes up more space than the core circuit?If so, you really need to read this article carefully. Today we're going to figure out these DC switching regulators once and for all!Figure 1: Look at this complex circuit board - power management is serious business!What's the Deal with This "Switching" Thing?DC switching regulators - you can tell from the name that "switching" is the key. Unlike the old-school linear regulators that stupidly "waste" excess voltage through resistance, these play the "switching" game.Simply put, they use a switching transistor (usually a MOSFET - pretty amazing stuff) to rapidly turn on and off, "chopping" the incoming power into pieces, then use inductors and capacitors as "storage warehouses" to store and smooth out these "power fragments," finally turning them into the stable DC power we want. It's kind of like a chef chopping vegetables and then plating them up!I tell you, when I first understood this principle, I was amazed! Just this simple and crude "on-off-on-off" could so efficiently convert energy - so clever! It's like using minimal effort to achieve maximum results.So its advantages are quite obvious:High! Efficiency! High! Important things said three times. The switching transistor is either fully on or fully off, doesn't consume much power itself, and energy whooshes right through. Good switching regulators can achieve efficiencies of over ninety percent!Flexible and adaptable - whether input voltage is high or low, it can handle it, and output stays stable.Many tricks - not only can it step voltage down (Buck), but also step it up (Boost), or even step up then down, or reverse the output polarity.Because of high efficiency, it doesn't generate much heat, so the whole power supply can be made very small, saving space!Of course, nothing's perfect. It also has some headaches:A bit more complex to design: External components like inductors and capacitors need to be chosen well, and the control part needs proper tuning.A bit "noisy": All that switching inevitably creates some voltage ripple and electromagnetic interference (EMI) that need to be "calmed down."Might cost a bit more: A few more components than linear regulators, and design takes more effort, so cost naturally goes up. But for high performance, this investment is worth it!"Honestly, efficiency is the lifeblood of DC switching regulators - it directly affects your precious gadget's battery life and heat generation."Common "Transformers": Main Topology StructuresThese switching regulators, depending on how they transfer energy and change voltage, are divided into several "schools," technically called "topology structures." The most common are these three:Step-Down Expert – Buck Converter (Buck, not Starbucks!)Buck means step-down. This one's used the most - powering CPUs on computer motherboards, powering various modules in phones - many use this. Its job is to convert high voltage (like 12V) into low, stable voltage (like 3.3V or 5V).Simply put, it first "stores" some power in an inductor, then slowly releases it to the load. Amazing when you think about it.Figure 2: Buck step-down circuit looks roughly like this (image from Wikipedia). Want to learn more? Check out Texas Instruments (TI)'s website - they have tons of material on this.Step-Up Champion – Boost ConverterBoost, as the name suggests, steps up voltage. For example, if you want to use one lithium battery (around 3.7V) to light up a string of LEDs that need 12V, you'd need this. It can "boost" low voltage up a level.I personally think Boost circuits are a bit more clever than Buck, because they first "hold" energy in the inductor, then in an instant "series-connect" the input voltage with the inductor voltage to boost the output. Pretty interesting!Figure 3: Boost step-up circuit schematic (image from Wikipedia). Analog Devices (ADI) also has good stuff in this area.Jack-of-All-Trades – Buck-Boost ConverterThis one's even more flexible - output voltage can be higher or lower than input. Especially suitable for situations where input voltage varies widely, like when a battery goes from full charge to nearly dead, but you still want stable output. However, the simplest Buck-Boost has inverted output voltage - meaning negative, which you need to watch out for.Now there are more advanced four-switch Buck-Boost converters that can achieve non-inverting step-up/step-down conversion. These are often used in USB PD fast charging - super convenient!Quick comparison of these three:FeatureStep-Down (Buck)Step-Up (Boost)Inverting Buck-BoostOutput VoltageLower than inputHigher than inputCan be higher or lower (but output is negative)Common ApplicationsCPU power, main system powerLED drivers, high voltage for displaysNegative voltage for displays, or where input varies but output must be stableOf course, there are more complex ones like SEPIC, Cuk, Flyback, but let's get these basics clear first!Overwhelmed by Choices? Picking the Right Switching Regulator - Look at These Points!Faced with all the different DC switching regulators on the market, picking a satisfactory one does take some thought. But don't panic - just focus on a few key points:Input voltage range VIN: This is super important! You need to ensure your power supply voltage, no matter how it fluctuates, stays within its acceptable range.Output voltage (VOUT​) and current (IOUT,max​): How many volts do you need? What's the maximum current it can handle? This depends on your "appliances," and you should leave some margin - don't cut it too close.Switching frequency (fSW): This parameter is quite tricky. High frequency means you can use smaller inductors and capacitors, saving space; but switching losses are also higher, and EMI problems might be more annoying. It's all about trade-offs!Efficiency (η): Especially for battery-powered devices, efficiency is the lifeline! Be sure to look at efficiency curves under different loads, not just the peak value.Quiescent current (IQ): This is the current the regulator "secretly consumes" when it's not working or working very lightly. For devices that need long standby times, the smaller this current, the better - otherwise the battery drains unknowingly.Package and thermal management: Is there enough space? How much heat does it generate? Choose the right package and consider thermal management well, or it'll burn out and that's no fun.Protection features: Things like overcurrent protection, overvoltage protection, thermal protection - like putting on "body armor," they can save the day when needed.Sometimes, for ultimate performance, you might use a switching regulator to roughly step down the voltage first, then use an LDO (a type of linear regulator) to provide cleaner, lower-noise voltage. Want to know what an LDO is? I remember reading an article about the physics behind Low Dropout Regulators (LDOs) that explained it pretty well - you can check it out.Selection is really a matter of experience. At first, you might feel overwhelmed by all the parameters and not know where to start. My advice is to focus on the most important ones first, like input/output voltage and current, then gradually refine. Read more datasheets, compare more options, and you'll get the feel for it with practice.Good Performance Depends on These "Behind-the-Scenes" DetailsBesides those basic parameters, some "invisible" performance and design details have huge impacts on DC switching regulator performance.Output ripple and noise: This is like ripples on water - switching regulators naturally create some. Our goal is to make these "ripples" as small as possible. Choosing good capacitors and inductors, and careful PCB layout can all help.Transient response: When load current suddenly increases or decreases, can the output voltage stay stable? It's like driving - when you suddenly accelerate or brake, the car shouldn't shake too much.Electromagnetic interference (EMI): Ugh, EMI is such a troublesome little devil! Switching regulators are major noise sources on circuit boards. PCB layout is especially important - that switching loop area must be small! Small! Small! Otherwise, radiation will mess up other circuits.Thermal management: No matter how high the efficiency, high power still generates heat. You need to let it dissipate heat comfortably, or thermal damage will be trouble.Component selection: How big should the inductor be? What material? Is saturation current enough? What about capacitors? What's the ESR (equivalent series resistance)? These all need careful consideration. MOSFET on-resistance, diode recovery time - these small details all affect efficiency.By the way, no matter how accurate a regulator's output voltage is, it can't work without a good "reference" - the reference voltage. For some particularly demanding applications, you need to think carefully about why precision reference ICs are so important - they have a big impact on the accuracy of the entire power system.Where Are These Used? They're Everywhere!Speaking of where DC switching regulators are used, there are just too many - they're truly the "cure-all" of the electronic world:Daily consumer electronics: Your phone, tablet, laptop, camera, gaming console... which one doesn't have several switching regulators working silently inside?Computers and servers: CPUs, graphics cards, memory modules - the power they consume is all "made" by switching regulators working hard.Inside cars: From navigation entertainment systems to control units, to cool LED headlights - they all need them.Industrial equipment: PLCs, sensors, motor drives... these industrial control devices have high requirements for power stability and efficiency.Communication networks: Base stations, routers, switches - these 24/7 non-stop devices especially need power efficiency.Plus medical devices, new energy vehicles, solar panels... really countless! See how important they are?Video 1: Find a DC-DC converter educational video to watch for a more intuitive understanding. (A real video link can go here)My Friend Mike's "Lifesaver" StoryI have a friend Mike who loves electronic DIY projects. Once he made a portable weather station powered by two dry batteries, wanting to power an ESP32 (which needs 3.3V). At first, he took the easy route and used an LDO, but what happened? When battery voltage dropped, the LDO gave up, and battery drain was super fast! He was so frustrated...Later I recommended he try a boost-type switching regulator to stably boost that pitiful battery voltage to 3.3V. Guess what? Hey, it worked! Not only did it solve the low voltage problem, but battery life tripled! Although the board had an extra small inductor and a few capacitors, it was worth it! He called that tiny switching regulator IC his "lifesaver"!After All This Talk, What Do You Think?We've talked so much about DC switching regulators - are you getting itchy hands too? Or do you have your own insights?Do you have any projects on hand that you think could be transformed with switching regulators?Besides the Buck, Boost, Buck-Boost we discussed today, do you know any more "advanced" techniques? Like Flyback or Forward? How are they different?When choosing switching regulators, which parameter do you value most? If several parameters "conflict" (like high frequency saves space but might consume more power), what do you do?For dealing with EMI, that little devil, besides PCB layout, do you have any secret weapons?Feel free to leave comments - let's exchange ideas!FAQ: Some Frequently Asked QuestionsQ1: What's the real difference between switching regulators and linear regulators (like LDOs)?A: Simply put, switching regulators are "tech-savvy" - they work through switching and energy storage elements, with high efficiency (usually 80%+), but circuits are a bit complex with some output ripple. Linear regulators are "honest workers" - they regulate through internal resistance, with simple circuits and clean output, but low efficiency. Especially when input-output voltage difference is large, they get hot enough to burn your hands!Q2: Can the "small ripple" (ripple) from switching regulator output be reduced?A: Absolutely! Methods include: 1. Use larger output capacitors; 2. Choose capacitors with low ESR (equivalent series resistance); 3. Add another stage of LC or RC filtering; 4. Be careful with PCB routing - keep high-frequency loops short and tight; 5. Some advanced techniques use multi-phase outputs. In short, there are always more solutions than problems!Q3: What is "synchronous rectification"? What are its benefits?A: Oh, "synchronous rectification" is mainly used in switching regulators (especially step-down types). It's using a MOSFET with very low on-resistance to replace the original freewheeling diode. The benefit is that when the MOSFET conducts, its voltage drop is much smaller than a diode's, so efficiency can improve significantly! This is especially noticeable with low output voltage and high current.Q4: Is higher switching frequency always better?A: Not necessarily! High frequency does allow smaller inductors and capacitors, making boards more compact. But! When frequency goes up, switching losses also rise proportionally (switching losses are proportional to frequency), efficiency might drop, and EMI problems might be more troublesome. So choosing frequency depends on what you prioritize - small size, high efficiency, or easy EMI compliance. You need to consider comprehensively, not be single-minded.Q5: Does PCB layout really affect switching regulators that much?A: It's huge! So huge you can't imagine! Poor layout makes even the best IC useless! Output ripple becomes frighteningly large, system instability, EMI failures that make you question life, even direct IC burnout is possible! The key is that high-current, fast-switching loop area - it must be small! Input/output capacitors must be placed right next to the IC pins! Ground planes need proper handling too! I strongly recommend: when you get a switching regulator IC, the first thing to do is carefully read the layout guidelines in its datasheet! That's blood and tears experience! Want to learn more? Search for EE Times articles about switching power supply layout - lots of good stuff there.So, About These Switching Regulators...After all this talk, do you have a new understanding of these little DC switching regulators? They might look insignificant, but they're really the pacemakers of modern electronic devices - high efficiency, versatile, absolutely essential!Understanding how they work, knowing how to choose the right one, and paying attention to design details (PCB layout! PCB layout! PCB layout! Important things said three times!), your circuits can reach the next level.And this technology is still developing - it'll definitely get better in the future: higher frequency, smaller size, more intelligent! Don't you think it's pretty interesting? Anyway, I think power management is a huge field of study, worth our careful exploration. When you have time, check out websites of major manufacturers like STMicroelectronics (ST) or Monolithic Power Systems (MPS) - they have lots of new stuff. h2, h3 { color: #1a73e8; } h2 { font-size: 24px; border-bottom: 2px solid #eee; padding-bottom: 10px; margin-top: 40px; margin-bottom: 20px;} h3 { font-size: 20px; margin-top: 30px; margin-bottom: 15px; color: #4a4a4a; } p { margin-bottom: 18px; text-align: left; } ul, ol { margin-bottom: 18px; padding-left: 25px; } li { margin-bottom: 10px; } strong { color: #e67e22; } em { color: #3498db; font-style: normal; font-weight: bold; } a { color: #1a73e8; text-decoration: none; } a:hover { text-decoration: underline; } .alt-text { text-align: center; font-size: 0.9em; color: #777; margin-top: -15px; margin-bottom: 25px; } blockquote { border-left: 4px solid #1a73e8; padding: 15px 25px; margin: 25px 0; background-color: #f0f8ff; font-style: italic; font-size: 1.05em; } table { width: 100%; border-collapse: collapse; margin: 25px 0; } th, td { border: 1px solid #ddd; padding: 12px; text-align: left; } th { background-color: #f2f2f2; color: #333; font-weight: bold;} .faq-question { font-weight: bold; color: #1a73e8; margin-top:15px;} .user-story { background-color: #eef7f2; padding: 20px; border-radius: 5px; margin-bottom: 25px; border-left: 5px solid #2ecc71; } .user-story h3 { color: #27ae60; margin-top: 0; } .conclusion { background-color: #f0f4f8; padding: 25px; border-radius: 5px; margin-top: 40px; } .conclusion h2 { border: none; } .highlight { background-color: #fff3cd; padding: 2px 5px; border-radius: 3px; } .my-thoughts { background-color: #fdf2e9; border: 1px dashed #e85d04; padding: 15px; margin: 20px 0; border-radius: 5px;} .my-thoughts p { margin-bottom: 10px;}

Summary: This comprehensive guide explores the critical differences between FPGAs and CPLDs, detailing their unique architectures, performance metrics, and ideal application scenarios. By comparing logic capacity, power consumption, and timing characteristics, it provides engineers with a practical framework for selecting the right programmable logic device for 2026 hardware designs.What is the Difference Between FPGA and CPLD?The primary difference between an FPGA (Field-Programmable Gate Array) and a CPLD (Complex Programmable Logic Device) lies in their architecture: FPGAs use a complex, look-up table (LUT) based structure ideal for high-capacity, parallel processing, while CPLDs rely on a simpler, macrocell-based architecture that provides deterministic timing and instant-on capabilities. In the field of digital electronic design, PLDs (Programmable Logic Devices) are becoming increasingly important due to their flexibility and rapid development capabilities. Among other things, the FPGAs and CPLDs are the two most prominent high-capacity programmable logic devices.While both devices provide programmable digital logic capabilities, they have significant differences in architecture, performance characteristics and application scenarios. It is critical for engineers and designers to understand these differences, as selecting the right device can significantly impact the cost, performance and development time of a project.In today's electronic designs, many functions that were traditionally implemented using multiple SPLD (Simple Programmable Logic Device) chips can now be integrated into a single CPLD; and complex functions that used to require custom ASICs (Application Specific Integrated Circuits) can now be realised through FPGAs. With the growth of the Internet of Things (IoT), artificial intelligence, and high-performance computing, the demand for these programmable devices is surging. In fact, the global FPGA market is projected to reach USD 15.2 billion in 2026, while the CPLD market is expected to grow to USD 0.68 billion in the same year.🔍 ‘Choosing an FPGA or a CPLD is not just a matter of capacity, it's a strategic decision for specific application needs.’This article will comprehensively analyse the technical differences between FPGAs and CPLDs, application scenarios, and provide a detailed selection guide to help you choose the most appropriate programmable logic solution for your project. Whether you are an experienced engineer, a student just entering the field, or a project manager seeking to optimise your product design, this guide will provide you with a valuable reference.How Do FPGA and CPLD Architectures Differ?FPGA and CPLD architectures differ fundamentally in their logic blocks, interconnects, and storage mechanisms. Although both FPGAs and CPLDs are programmable logic devices, their internal architectures and operating principles are fundamentally different. Understanding these differences is critical to the proper selection and application of these devices.Figure 1: Comparison of FPGA and CPLD architectures and functionsWhat is the Internal Architecture of an FPGA?The internal architecture of an FPGA consists of a vast array of Configurable Logic Blocks (CLBs), programmable interconnects, and Input/Output Blocks (IOBs).Logical block structure：Logic blocks in FPGAs are usually implemented based on look-up tables (LUTs), each of which is essentially a small memory cell that can implement arbitrary combinatorial logic functions.Interconnection resource：FPGAs use distributed, hierarchical interconnection networks that allow flexible routing but also increase cabling complexity.Storage Technology：Mainstream FPGAs use SRAM technology to store configuration data, the configuration is lost after power down, and external memory is needed to save the configuration; there are also FPGAs based on Antifuse (Antifuse) technology, which is programmed once and cannot be changed.Special resources：Modern FPGAs integrate a wealth of hardcore resources such as DSP blocks, embedded RAM, high-speed transceivers, and even complete processor cores.Figure 2: Schematic of FPGA internal architecture and componentsWhat is the Internal Architecture of a CPLD?A CPLD architecture is built around multiple macrocells connected by a central, predictable interconnect matrix.Macrocellular structure：Each macro cell contains a programmable AND-OR Array, optional registers, and output logic, enabling relatively complex combinational and timing logic.Interconnection method：CPLDs use a centralised fully-connected or nearly fully-connected interconnection matrix to make signal delays more deterministic and predictable.Storage Technology：CPLDs usually use non-volatile storage technology (e.g. EEPROM, Flash), where the configuration is maintained after power down and is ready for use on power up.Pin Assignment：CPLDs have more fixed pin assignments, usually each macrocell corresponds to a specific output pin.Figure 3: Basic CPLD architecture and organisationWhat Are the Key Technological Differences?FPGAs and CPLDs are fundamentally different in several key technology areas, particularly regarding logic implementation and configuration storage:CharacterisationFPGACPLDBasic building blocksLook-up table (LUT)-basedMacrocells (PAL-like structures)Logical implementation approachFine granularity, spreading resourcesWide with or array, centralised resourcesInterconnection ArchitectureDistributed, Multi-Level InterconnectionCentralised interconnection matrixConfiguration storageMainly SRAM (volatile)Mainly EEPROM/Flash (non-volatile)Timing CharacteristicsDelay is highly influenced by cabling and is highly variableDelays are fixed and predictableResource utilisationRelatively low due to wiring complexityHigher, almost all logic availableLogic DensityVery high (up to millions of gates)Medium (typically no more than 10,000 gates)Power consumption characteristicsRelatively high, with significant static power consumptionLow, especially static power consumptionThese architectural differences directly contribute to the differences in performance, application scenarios, and types of applicable projects between FPGAs and CPLDs. Next, we will analyse the performance characteristics, advantages and disadvantages of these two devices in detail.How Do FPGA and CPLD Performances Compare?Selecting the right programmable logic device requires a thorough understanding of the respective strengths and limitations of FPGAs and CPLDs. This section provides an in-depth analysis of the performance characteristics of both devices to help you make an informed choice in your project.What Are the Main Advantages of FPGAs?FPGAs offer unparalleled advantages in logic capacity and hardware-level parallel processing, making them ideal for complex digital systems.Key Advantages of FPGAsUltra-high logic capacity - Modern FPGAs can integrate millions of logic gates to support extremely complex designsParallel processing capability - Thanks to their array structure, FPGAs can enable true hardware parallel computingFlexible resource allocation - Flexible allocation of logic, storage and DSP resources on demandIntegration of special functions - Contains dedicated hard cores: DSP block, memory block, high-speed interface and processor coreHighly customisable - Can implement almost any digital circuit function, similar to a custom ASICThe FPGA architecture is particularly well suited for applications that require a lot of parallel processing, such as image/video processing, high performance computing and network packet processing. Its flexibility makes it ideal for prototyping and low-volume production applications as an alternative to expensive ASIC development. Modern FPGAs often integrate a variety of hard-core resources, such as ARM processor cores, Ethernet MACs, PCIe interfaces, etc., greatly simplifying system design.What Are the Limitations of FPGAs?Despite their power, FPGAs are limited by higher power consumption, complex timing convergence, and the need for external configuration memory.The main limitations of FPGAsRelatively high power consumption - Particularly static power consumption, not suitable for applications with strict power constraintsHigher costs - Higher cost per unit logic capacity than CPLDs and microcontrollersLonger start-up time - SRAM-based FPGAs require configuration time and do not work immediatelyHigh development complexity - Steep learning curve, requiring specialised HDL programming and complex toolchainDifficulty in timing analysis - Signal delay uncertainty is high and timing convergence can be a challengeThe complexity of FPGAs is a double-edged sword. On the one hand, it provides extreme flexibility, but on the other hand, it makes development more difficult. For simple control logic or applications that require instant startup, FPGAs may not be the best choice. In addition, the power consumption of FPGAs can be a serious obstacle in battery-powered applications.What Are the Main Advantages of CPLDs?CPLDs excel in providing deterministic timing, instant-on capabilities, and ultra-low static power consumption.Key Benefits of CPLDsDeterministic time series - Centralised interconnect structure provides stable and predictable signal delayInstant start-up capability - Non-volatile configuration, power-on ready to operate, no loading time requiredLow power consumption - Particularly good static power consumption for battery applicationsHigh I/O ratio - Provides more I/O pins relative to logic resourcesEasy to develop - Simple and clear architecture, easy to use development toolsCPLDs are particularly well suited for interface logic and control applications because of their simplicity and predictability. Their good timing characteristics make them ideal for high-speed interfaces and timing-critical applications. For systems requiring fast start-up, the immediate availability of CPLDs is an irreplaceable advantage.What Are the Limitations of CPLDs?The primary limitations of CPLDs include restricted logic capacity and a lack of dedicated hard-core resources like DSPs or embedded RAM.Major limitations of CPLDsLimited logical capacity - Typically no more than 10,000 equivalent logic gatesLimited memory resources - Lack of significant internal RAM resourcesLack of dedicated functionality - No specialised hardcore such as DSP blocks, high-speed interfaces, etc.Structural rigidity - With or array structure is not efficient enough for some algorithmsPoor scalability - Vulnerable to resource bottlenecks when adding functionalityThe biggest limitation of a CPLD is its capacity. As design complexity increases, it is easy to exceed the resource limitations of CPLDs. In addition, CPLDs are not suitable for applications that require large amounts of storage or complex mathematical operations because they lack the dedicated function blocks commonly found in FPGAs.By comparing the performance characteristics of FPGAs and CPLDs, it can be seen that they are each suitable for different types of application scenarios. In the next section, we will specifically analyse the best application areas for these two devices.What Are the Best Application Scenarios for FPGA vs CPLD?Because of their distinct architectural differences, FPGAs and CPLDs are suited for entirely different application scenarios in modern electronics.When Should You Use an FPGA?You should use an FPGA when your project requires high logic capacity, parallel data processing, or the integration of complex algorithms.High Performance Computing Acceleration - Accelerating computationally intensive tasks such as AI algorithms, scientific computing, and financial analysisImage and video processing - Real-time image filtering, computer vision, video codecs and enhancementData centre and network equipment - High-speed packet processing, network security, software-defined networkingCommunication system - Base station processing, software-defined radio, modemASIC Prototype Validation - Validating complex chip designs before mass productionAerospace and military - Mission-critical systems requiring high reliability and reconfigurabilityIndustrial control and automation - Real-time control and monitoring of complex industrial systemsFPGAs are particularly well suited for applications that require the processing of a large number of parallel data streams, and their hardware-level parallel processing capabilities can significantly improve performance. For example, in image processing, FPGAs can process multiple image regions at the same time, greatly speeding up processing.✨ "In data centres, FPGA accelerators can increase the performance of certain computing workloads by 5-10 times while reducing energy consumption by about 70%, making them ideal for green computing."Figure 4: Typical application scenarios of FPGAs in different industriesWhen Should You Use a CPLD?You should use a CPLD for system boot sequencing, interface bridging, and applications requiring strict deterministic timing.System boot and configuration control - Includes FPGA configuration managementInterface and Protocol Bridging - Connecting system components with different voltage standards or protocolsBus control and arbitration - Manage data flow between multiple devicesAddress decoding - Implement complex memory mapping and address translationState machine control - Implementing deterministic timing control logicLow-power portable devices - Applications with stringent requirements for power consumption and start-up timeOld design replacement and integration - Integration of multiple discrete logic devices into a single CPLDCPLDs excel in applications that require deterministic timing and high reliability. For example, during system startup, the CPLD can provide the necessary control signals before other components are ready, or manage the FPGA configuration process.💡 "CPLDs are often used as the ‘glue logic’ of a system, connecting components of different speeds, voltages or protocols to ensure that the whole system works in harmony. This role, although unassuming, is critical to system functionality."What Are Some Practical Application Case Studies?In real-world designs, FPGAs and CPLDs frequently operate alongside one another to maximize system efficiency and reliability.Case 1: Data Acquisition SystemIn a typical industrial data acquisition system:CPLD：Interface Control, Signal Conditioning, Address Decoding, Bus ManagementFPGA：High-speed data acquisition, real-time signal processing, data compression and pre-processingCase 2: Communications equipmentDivision of labour in modern communication equipment:CPLD：Power Management, Configuration Control, Interface Conversion, Basic Status MonitoringFPGA：Signal processing, complex protocol implementation, encryption/decryption, data flow managementCase 3: Embedded control systemIn Embedded Control Systems:CPLD：Simple timing control, status monitoring, safety shutdown logicFPGA：Complex control algorithms, sensor fusion, high-speed feedback controlIn practice, FPGAs and CPLDs are often not mutually exclusive choices, but rather work together in the same system, each playing to its strengths. For example, CPLDs can handle key control and interface functions of the system, while FPGAs are responsible for data-intensive processing tasks.In the next section, we provide a detailed selection guide to help you choose the most appropriate programmable logic device for your specific project.How to Choose Between an FPGA and a CPLD?Choosing between an FPGA and a CPLD requires a systematic evaluation of your project's logic scale, power constraints, and timing requirements.What Are the Key Decision Factors?The most critical decision factors include logic scale, startup requirements, power consumption, and cost sensitivity.Decision-making factorsPreference for FPGAsPreferences for CPLDsLogical ScaleLarge scale design (>10K gates)Small to medium scale design (<10K gates)Startup RequirementsAllow configuration delayRequires instant power-up to workPower Consumption RequirementsPower consumption is not a major considerationLow power consumption is criticalSignal TimingComplicated timing analysis acceptableDeterministic timing requiredStorage RequirementsLarge internal storage requirementsLow storage requirementsSpecialised FunctionsRequires DSP, high-speed interfaces, etc.Mainly general purpose logicDevelopment CycleLonger development cycle acceptableRapid development requiredCost SensitivityPerformance takes precedence over costCost is the key factorWhat is the Recommended Selection Process?To systematically select the appropriate device, follow this step-by-step evaluation process:Requirements Analysis: Clearly define the functional requirements and performance metrics of the projectResource Estimation: Evaluate the required number of logic gates, storage needs, and I/O quantityPerformance Constraints Definition: Determine timing requirements, power consumption limitations, and startup time requirementsScalability Considerations: Assess possibilities for future functional expansionDevelopment Resource Assessment: Consider the team's expertise and available development toolsCost Analysis: Consider development costs, unit costs, and lifecycle costsRisk Assessment: Evaluate technical risks and supply chain risks of different optionsDecision Making and Validation: Make decisions based on the above analysis, consider small-scale validationDecision Support Tool: FPGA vs CPLD Selection MatrixFor your project, score each factor (1-5 points), then use the formula below for weighted calculation:FPGA Suitability = Logic Scale×0.25 + Specialized Function Requirements×0.2 + Parallel Processing Requirements×0.2 + Memory Requirements×0.15 + Scalability Requirements×0.2CPLD Suitability = Deterministic Timing×0.25 + Quick Startup×0.2 + Low Power Consumption×0.2 + Development Simplicity×0.15 + Cost Sensitivity×0.2Compare the two scores and choose the technology route with the higher score.What Are Common Selection Misconceptions?Designers frequently make selection errors by focusing solely on gate count while ignoring timing, power, and long-term lifecycle costs.Common Misconceptions and CorrectionsMisconception 1: Selecting Based Only on Logic CapacityYou should consider architectural characteristics and application requirements comprehensively, not just the "gate count".Misconception 2: Over-specification DesignChoosing devices far exceeding requirements will increase cost, power consumption, and development complexity.Misconception 3: Ignoring Timing FactorsFPGA and CPLD have significant differences in timing characteristics, which directly affects design reliability.Misconception 4: Underestimating Development ComplexityFPGA projects typically require more expertise and development time; this factor should not be underestimated.Misconception 5: Ignoring Long-term CostsConsider the sum of development costs, unit costs, power consumption costs, and maintenance costs.In actual projects, many situations may require considering hybrid solutions, such as using CPLD for critical control logic and interfaces while using FPGA for complex data processing tasks in the same system.🔍 "Choosing the right programmable logic device is not just a technical decision, but also a strategic decision balancing cost, performance, power consumption, and development resources."What Are the Most Popular FPGA and CPLD Products in 2026?Based on different application scenarios and requirements, several FPGA and CPLD product families remain industry staples for both cutting-edge and legacy designs.Which FPGA Products Are Recommended?For high-performance and cost-optimized designs, the following FPGA families are highly recommended:Xilinx Artix-7: XC7A35T-1CPG236CKey Parameters: 33,208 Logic Cells, 1V Supply Voltage, Surface Mount 236-Pin LFBGA PackageKey Features: Cost-optimised FPGAs for small to medium-sized designs with low power consumption and good price/performance ratioApplicable Scenarios: Embedded vision, industrial control, automotive electronics, consumer electronicsReference price range: Medium-lowView DetailsIntel (Altera) Cyclone V: 5CGXFC7C6F23C7Key Parameters: 149,500 Logic Cells, 1.1V Supply Voltage, 484-BGA PackageKey Features: Highly integrated, built-in hardware floating-point DSP with PCIe Gen2 and high-speed transceiver supportApplicable Scenarios: Industrial Networking, Video Processing, Software Defined Radio, High Performance ComputingReference price range: Medium-highView DetailsLattice iCE40HX8K-BG121Key Parameters: 8,000 Logic Cells, Ultra Low Power, Small BGA PackageKey Features: One of the industry's lowest power FPGAs, instant startup and ease of useApplicable Scenarios: Portable Devices, Wearables, IoT Applications, Sensor HubsReference price range: lowView DetailsWhich CPLD Products Are Recommended?For low-power, instant-on control logic, these CPLD families continue to dominate the market:Xilinx CoolRunner-II: XC2C64A-7VQ44CKey Parameters: 64 Macrocells, 1.8V Supply Voltage, 44-TQFP PackageKey Features: Ultra-low power CPLD with fast start-up and good jitter controlApplicable Scenarios: Portable Device Control, Bus Interface, Protocol ConversionReference price range: lowView DetailsIntel (Altera) MAX II: EPM240T100C5NKey Parameters: 240 Logic Cells, 3.3V Operating Voltage, 100-Pin TQFP PackageKey Features: User flash technology, instant boot, rich I/O optionsApplicable Scenarios: System Control, Interface Bridging, Configuration ManagementReference price range: lowView DetailsLattice MachXO2: LCMXO2-1200HC-4TG100CKey Parameters: 1,200LUT, internal flash memory, 100-pin TQFP packageKey Features: Hybrid FPGA/CPLD Architecture, Instant Start, Flexible I/OApplicable Scenarios: Embedded control, interface management, real-time controlReference price range: mediumView DetailsWhen shopping for a product, it is recommended to consider the following factors:Development tool compatibility：Ensure your team is familiar with the relevant vendor's development environmentSupply chain stability：Assessing the long-term security of supply and life cycle of productsTechnical Support：Consider the quality of support and documentation provided by the manufacturerCommunity Resources：An active user community can provide a valuable development resourceUpgrade Path：Consider compatibility for future upgrades to higher performance productsConclusionIn this paper, we provide an in-depth analysis of the characteristics, strengths and weaknesses, and application scenarios of two important programmable logic devices, FPGAs and CPLDs. While both devices offer programmable logic capabilities, there are significant differences in architecture, performance, and areas of application.Summary of the selection guideSelecting an FPGA：When high logical capacity, complex functional implementations, large amounts of internal storage, dedicated hard-core resources, and scalability are requiredSelecting a CPLD：When deterministic timing, instant startup, low power consumption, simple development process and stable and reliable interface logic are requiredImportantly, FPGAs and CPLDs are not simply competing, but complementary technology solutions. In many complex systems, the two tend to work in tandem: CPLDs handle critical control and interface logic, while FPGAs are responsible for data-intensive processing tasks.With the growth of the Internet of Things, artificial intelligence, and edge computing, the demand for high-performance, low-power programmable logic will continue to grow. Understanding the characteristics of FPGAs and CPLDs and their optimal application scenarios will help engineers and designers make informed technology choices, optimise system performance, and reduce development risk.Ultimately, the choice of FPGA or CPLD should be based on the specific needs and constraints of the project, rather than simply going for the latest or most complex technology. Hopefully, the analysis and guidance provided in this article will help you make the best choice for your future projects.🔍 "In the field of digital design, understanding the differences in programmable logic devices and choosing the right technology path is often one of the key factors in the success of a project."Frequently Asked QuestionsWhich is faster, an FPGA or a CPLD?While FPGAs offer superior overall processing power and high-speed parallel execution for complex algorithms, CPLDs provide faster, more predictable pin-to-pin routing delays. For simple, timing-critical combinational logic, a CPLD often guarantees stricter deterministic timing, whereas an FPGA excels in high-throughput data processing tasks.Can a CPLD completely replace an FPGA?A CPLD cannot replace an FPGA for complex, data-intensive applications requiring thousands of logic gates, embedded memory, or DSP blocks. However, for simple glue logic, voltage translation, or system boot sequencing, a CPLD is often a more cost-effective, power-efficient, and reliable alternative to an over-specified FPGA.Why are FPGAs generally more expensive than CPLDs?FPGAs are more expensive because they feature significantly higher logic density, complex distributed interconnect architectures, and advanced integrated hard cores like DSPs and memory blocks. Manufacturing these high-capacity, SRAM-based chips requires advanced semiconductor nodes, whereas CPLDs use simpler, mature EEPROM or Flash-based macrocell architectures.Do CPLDs require external configuration memory?No, CPLDs do not require external configuration memory. They utilize non-volatile storage technologies, such as EEPROM or Flash memory, to retain their logic configuration even when powered down. This allows CPLDs to function instantly upon power-up, making them ideal for managing system boot sequences.FPGA vs CPLD Knowledge Cardbody {font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;line-height: 1.6;color: #333;background-color: #f8f9fa;}.container {max-width: 1200px;margin: 0 auto;padding: 20px;}h1, h2, h3, h4 {font-weight: 700;margin-top: 1.5em;margin-bottom: 0.8em;color: #2c3e50;}h1 {font-size: 2.5rem;margin-top: 1em;}h2 {font-size: 2rem;border-bottom: 2px solid #eaecef;padding-bottom: 0.3em;}h3 {font-size: 1.5rem;}h4 {font-size: 1.25rem;}p {margin-bottom: 1.2em;font-size: 1.05rem;}ul, ol {margin-left: 1.5em;margin-bottom: 1.2em;}li {margin-bottom: 0.5em;}.quote-box {background-color: #f1f8ff;border-left: 4px solid #2b6cb0;padding: 1em;margin: 1.5em 0;border-radius: 0 4px 4px 0;}.highlight-box {background-color: #fdf2e9;border-radius: 4px;padding: 1.5em;margin: 1.5em 0;box-shadow: 0 2px 5px rgba(0,0,0,0.1);}.comparison-table {width: 100%;border-collapse: collapse;margin: 1.5em 0;}.comparison-table th, .comparison-table td {border: 1px solid #ddd;padding: 12px;text-align: left;}.comparison-table th {background-color: #2b6cb0;color: white;}.comparison-table tr:nth-child(even) {background-color: #f2f2f2;}.image-container {display: flex;justify-content: center;margin: 2em 0;}.image-container img {max-width: 100%;height: auto;border-radius: 4px;box-shadow: 0 3px 6px rgba(0,0,0,0.16);}.caption {text-align: center;color: #666;font-size: 0.9rem;margin-top: 0.5em;}.faq-item {margin-bottom: 1.5em;border-bottom: 1px solid #eaecef;padding-bottom: 1em;}.faq-question {font-weight: 600;color: #2c3e50;font-size: 1.1rem;margin-bottom: 0.5em;}.faq-answer {padding-left: 1em;border-left: 3px solid #e5e7eb;}.product-card {border: 1px solid #e5e7eb;border-radius: 8px;overflow: hidden;margin-bottom: 1.5em;background-color: white;box-shadow: 0 2px 5px rgba(0,0,0,0.05);transition: transform 0.3s, box-shadow 0.3s;}.product-card:hover {transform: translateY(-5px);box-shadow: 0 5px 15px rgba(0,0,0,0.1);}.card-header {padding: 1em;background-color: #2b6cb0;color: white;font-weight: bold;}.card-body {padding: 1em;}.card-footer {padding: 1em;background-color: #f9fafb;border-top: 1px solid #e5e7eb;}.btn {display: inline-block;padding: 0.5em 1em;background-color: #2b6cb0;color: white;text-decoration: none;border-radius: 4px;font-weight: 500;transition: background-color 0.3s;}.btn:hover {background-color: #1e4e8c;}.tip-box {background-color: #e6fffa;border-left: 4px solid #38b2ac;padding: 1em;margin: 1.5em 0;border-radius: 0 4px 4px 0;}.warning-box {background-color: #fff5f5;border-left: 4px solid #e53e3e;padding: 1em;margin: 1.5em 0;border-radius: 0 4px 4px 0;}.video-container {position: relative;overflow: hidden;width: 100%;padding-top: 56.25%; /* 16:9 Aspect Ratio */margin: 2em 0;}.video-container iframe {position: absolute;top: 0;left: 0;bottom: 0;right: 0;width: 100%;height: 100%;border: none;}.toc {background-color: #f8f9fa;border: 1px solid #eaecef;border-radius: 4px;padding: 1.5em;margin: 1.5em 0;}.toc-title {font-weight: 600;margin-bottom: 1em;font-size: 1.2rem;}.toc-list {list-style-type: none;margin-left: 0;}.toc-list li {margin-bottom: 0.5em;}.toc-list a {color: #3182ce;text-decoration: none;}.toc-list a:hover {text-decoration: underline;}.sublist {margin-left: 1.5em;margin-top: 0.5em;}{ "@context": "https://schema.org", "@type": "Article", "headline": "FPGA vs CPLD: Comprehensive Architecture, Performance, and Selection Guide", "datePublished": "2025-05-07", "dateModified": "2026-03-31", "author": { "@type": "Organization", "name": "Kynix" }, "publisher": { "@type": "Organization", "name": "Kynix" }}{ "@context": "https://schema.org", "@type": "FAQPage", "mainEntity":[ { "@type": "Question", "name": "Which is faster, an FPGA or a CPLD?", "acceptedAnswer": { "@type": "Answer", "text": "While FPGAs offer superior overall processing power and high-speed parallel execution for complex algorithms, CPLDs provide faster, more predictable pin-to-pin routing delays. For simple, timing-critical combinational logic, a CPLD often guarantees stricter deterministic timing, whereas an FPGA excels in high-throughput data processing tasks." } }, { "@type": "Question", "name": "Can a CPLD completely replace an FPGA?", "acceptedAnswer": { "@type": "Answer", "text": "A CPLD cannot replace an FPGA for complex, data-intensive applications requiring thousands of logic gates, embedded memory, or DSP blocks. However, for simple glue logic, voltage translation, or system boot sequencing, a CPLD is often a more cost-effective, power-efficient, and reliable alternative to an over-specified FPGA." } }, { "@type": "Question", "name": "Why are FPGAs generally more expensive than CPLDs?", "acceptedAnswer": { "@type": "Answer", "text": "FPGAs are more expensive because they feature significantly higher logic density, complex distributed interconnect architectures, and advanced integrated hard cores like DSPs and memory blocks. Manufacturing these high-capacity, SRAM-based chips requires advanced semiconductor nodes, whereas CPLDs use simpler, mature EEPROM or Flash-based macrocell architectures." } }, { "@type": "Question", "name": "Do CPLDs require external configuration memory?", "acceptedAnswer": { "@type": "Answer", "text": "No, CPLDs do not require external configuration memory. They utilize non-volatile storage technologies, such as EEPROM or Flash memory, to retain their logic configuration even when powered down. This allows CPLDs to function instantly upon power-up, making them ideal for managing system boot sequences." } } ]}{ "@context": "https://schema.org", "@type": "ItemList", "name": "Popular FPGA and CPLD Products in 2026", "itemListElement":[ { "@type": "Product", "position": 1, "name": "Xilinx Artix-7: XC7A35T-1CPG236C", "description": "Cost-optimised FPGAs for small to medium-sized designs with low power consumption and good price/performance ratio." }, { "@type": "Product", "position": 2, "name": "Intel (Altera) Cyclone V: 5CGXFC7C6F23C7", "description": "Highly integrated, built-in hardware floating-point DSP with PCIe Gen2 and high-speed transceiver support." }, { "@type": "Product", "position": 3, "name": "Lattice iCE40HX8K-BG121", "description": "One of the industry's lowest power FPGAs, instant startup and ease of use." }, { "@type": "Product", "position": 4, "name": "Xilinx CoolRunner-II: XC2C64A-7VQ44C", "description": "Ultra-low power CPLD with fast start-up and good jitter control." }, { "@type": "Product", "position": 5, "name": "Intel (Altera) MAX II: EPM240T100C5N", "description": "User flash technology, instant boot, rich I/O options." }, { "@type": "Product", "position": 6, "name": "Lattice MachXO2: LCMXO2-1200HC-4TG100C", "description": "Hybrid FPGA/CPLD Architecture, Instant Start, Flexible I/O." } ]}

1. Introduction to MOSFETs In the world of modern electronics, few components have revolutionized circuit design as profoundly as the Metal-Oxide-Semiconductor Field-Effect Transistor (MOSFET). These tiny yet powerful semiconductor devices have become the backbone of contemporary electronic systems, from smartphones and laptops to industrial equipment and automotive electronics. Figure 1: Various types of MOSFET packages used in modern electronics Did you know that a single advanced microprocessor can contain billions of MOSFETs on a chip smaller than your fingernail? This incredible density has enabled the computing revolution we take for granted today. MOSFETs have become fundamental building blocks for both analog and digital circuits due to their unique electrical properties and outstanding performance. The MOSFET differs significantly from its predecessor, the bipolar junction transistor (BJT), by operating as a voltage-controlled device rather than a current-controlled one. This fundamental difference makes MOSFETs exceptionally energy-efficient and ideal for applications where power consumption is a critical concern. "MOSFETs represent one of the most significant technological breakthroughs in semiconductor history, enabling the dramatic miniaturization and increased efficiency of electronic devices over the past five decades." In this comprehensive guide, we'll explore the working principles, types, applications, and selection criteria for MOSFETs. Whether you're an electronics enthusiast, engineering student, or professional designer, understanding these versatile components will enhance your ability to create efficient and innovative electronic systems. 2. MOSFET Working Principles 2.1 Basic Structure and Components At its core, a MOSFET consists of several key components working together to control electrical current flow. Understanding the physical structure of a MOSFET is essential to grasp its operating principles and capabilities. Figure 2: Basic structure of a MOSFET showing key components The fundamental components of a MOSFET include: Gate Terminal: The control electrode that regulates current flow through the device. It's separated from the semiconductor material by an insulating oxide layer.Source Terminal: The terminal where charge carriers enter the device.Drain Terminal: The terminal where charge carriers exit the device.Substrate (Body): The semiconductor material that forms the foundation of the device, typically made of silicon.Oxide Layer: A thin insulating layer (usually silicon dioxide) that separates the gate from the channel, preventing direct electrical contact.Channel: The region between source and drain where current flows when the device is turned on. The name MOSFET itself describes its construction: Metal (gate electrode), Oxide (insulating layer), and Semiconductor (substrate), combined with Field-Effect Transistor (operating principle). Pro Tip: MOSFETs are sometimes called IGFETs (Insulated Gate Field-Effect Transistors) because the gate is electrically insulated from the channel, which is a key feature distinguishing them from other transistor types. 2.2 Operation Modes MOSFETs operate in different modes depending on the voltage applied to their terminals. The two primary modes are enhancement mode and depletion mode. Enhancement Mode Figure 3: Enhancement Mode MOSFET operation In enhancement mode operation: The MOSFET acts like an open switch when no voltage is applied to the gate (normally OFF).A conductive channel forms between source and drain only when sufficient voltage is applied to the gate.For N-channel enhancement MOSFETs, a positive gate voltage is required to create an electron-rich channel.For P-channel enhancement MOSFETs, a negative gate voltage is required to create a hole-rich channel. Depletion Mode Figure 4: Depletion Mode MOSFET operation In depletion mode operation: The MOSFET has a conductive channel even with no gate voltage (normally ON).Applying a voltage of appropriate polarity to the gate reduces or "depletes" the channel, decreasing current flow.For N-channel depletion MOSFETs, a negative gate voltage depletes the channel.For P-channel depletion MOSFETs, a positive gate voltage depletes the channel. MOSFETs also operate in three distinct regions based on the relationship between gate-source voltage (VGS) and drain-source voltage (VDS): Cut-off Region: The MOSFET is turned off, and no significant current flows between drain and source.Ohmic (Linear) Region: The MOSFET acts like a voltage-controlled resistor, with current proportional to voltage.Saturation Region: The MOSFET delivers a relatively constant current regardless of increases in drain-source voltage. 2.3 Electrical Characteristics MOSFETs exhibit several important electrical characteristics that determine their performance in circuits: Threshold Voltage (Vth) The threshold voltage is the minimum gate-source voltage required to create a conductive channel between source and drain. Typical threshold values range from 1-4V, with lower voltages (1-2V) for logic-level MOSFETs designed to work with digital circuits, and higher voltages for power applications. On-Resistance (RDS(on)) On-resistance is the resistance between drain and source when the MOSFET is fully turned on. Lower RDS(on) values result in less power dissipation and higher efficiency. Modern power MOSFETs can achieve RDS(on) values below 1 milliohm for high-current applications. Transconductance (gm) Transconductance measures how efficiently the gate voltage controls the drain current. Higher transconductance values indicate better control and amplification capabilities. Gate Charge (Qg) Gate charge represents the amount of electrical charge required to turn the MOSFET on. Lower gate charge values enable faster switching speeds and lower switching losses, which is critical in high-frequency applications. Breakdown Voltage (VDSS or BVDSS) This is the maximum voltage the MOSFET can withstand between drain and source before breakdown occurs. Power MOSFETs are available with breakdown voltages ranging from tens to thousands of volts. Important Note: The relationship between on-resistance and breakdown voltage involves a fundamental tradeoff in MOSFET design. Higher breakdown voltage ratings generally result in higher on-resistance, which means increased power losses during conduction. This tradeoff must be carefully considered when selecting MOSFETs for specific applications. 3. Types of MOSFETs 3.1 N-Channel vs P-Channel Figure 5: Comparison of N-Channel and P-Channel MOSFETs MOSFETs are primarily classified by the type of charge carriers that form their conductive channel: N-Channel MOSFETs In N-channel MOSFETs, electrons serve as the primary charge carriers. These MOSFETs: Turn on with a positive gate voltage relative to the sourceOffer higher electron mobility, resulting in lower on-resistance and better efficiencyAre more commonly used due to superior performance characteristicsTypically serve as "low-side switches" where the load is connected between the positive supply and the drain P-Channel MOSFETs In P-channel MOSFETs, holes (absence of electrons) serve as the primary charge carriers. These MOSFETs: Turn on with a negative gate voltage relative to the sourceHave higher on-resistance than equivalent N-channel devices (typically 2-3 times higher)Are often used as "high-side switches" where the load is connected between the drain and groundSimplify circuit design in certain applications despite lower efficiencyCharacteristicN-Channel MOSFETP-Channel MOSFETCharge CarriersElectronsHolesGate Voltage to Turn OnPositive relative to sourceNegative relative to sourceTypical ApplicationLow-side switchingHigh-side switchingEfficiencyHigher (lower RDS(on))Lower (higher RDS(on))Circuit Symbol DirectionArrow pointing outwardArrow pointing inward 3.2 Enhancement vs Depletion Mode Figure 6: Enhancement and Depletion Mode MOSFETs Beyond the channel type, MOSFETs are further classified based on their default state without applied gate voltage: Enhancement Mode MOSFETs Enhancement mode MOSFETs are normally OFF when no voltage is applied to the gate. They require an appropriate gate voltage to enhance (create) a conductive channel. Enhancement mode devices are the most common MOSFETs in modern electronics because: They consume no power when off (ideal for battery-powered devices)They offer simplified circuit protection in failure scenariosThey provide more predictable operation in most digital and power circuits Depletion Mode MOSFETs Depletion mode MOSFETs are normally ON when no voltage is applied to the gate. They require an appropriate gate voltage to deplete (remove) the existing conductive channel. Although less common, they offer advantages in: Certain analog circuits where a normally-on condition is desirableApplications requiring fail-safe operation when gate drive is lostSpecific circuit topologies like cascode configurationsPro Tip: Enhancement mode MOSFETs are often symbolized with a broken channel line in circuit diagrams, while depletion mode MOSFETs are shown with a solid channel line. This visual difference helps engineers quickly identify the device type in schematics. 3.3 Power MOSFETs Power MOSFETs are specialized versions designed to handle higher voltages and currents. They feature several important design variations: Figure 7: Various power MOSFET package types Vertical MOSFETs Most power MOSFETs use a vertical structure where current flows from the drain at the bottom of the chip to the source at the top. This design maximizes current handling capability and voltage blocking ability. Planar vs. Trench Technology Power MOSFETs are manufactured using either planar or trench technology: Planar MOSFETs: The older technology with the gate and channel formed on the surface of the siliconTrench MOSFETs: A newer design where the gate structure extends into trenches etched into the silicon, providing higher cell density and lower on-resistance Packaging Options Power MOSFETs come in various package types based on thermal and current requirements: Through-hole packages (TO-220, TO-247): Offer excellent thermal performance and easy mountingSurface-mount packages (DPAK, D2PAK, SO-8): Provide space efficiency for automated assemblyPQFN packages: Offer ultra-low profile and excellent thermal performanceDirectFET packages: Provide optimized thermal and electrical performance for high-efficiency applications"The development of power MOSFETs has been one of the key enablers for the miniaturization of power electronics, allowing engineers to create smaller, more efficient power supplies and motor drives than ever before possible." 4. Applications of MOSFETs Figure 8: Common applications of MOSFETs in modern electronics MOSFETs are among the most versatile semiconductor devices, finding applications across virtually every sector of electronics. Their unique properties make them ideal for a wide range of functions, from simple switching to complex signal processing. 4.1 Switching Applications One of the most common uses of MOSFETs is as electronic switches. Their ability to transition quickly between high-resistance (off) and low-resistance (on) states makes them ideal for controlling power to various loads. Low-Side and High-Side Switching MOSFETs can be configured as: Low-side switches: N-channel MOSFETs placed between the load and groundHigh-side switches: P-channel MOSFETs or specially driven N-channel MOSFETs placed between the power supply and the load Pulse Width Modulation (PWM) MOSFETs excel in PWM applications where rapid switching is required to control: 4.2 Amplification Applications MOSFETs serve as excellent amplifiers due to their high input impedance and good frequency response. They are used in: The extremely high input impedance of MOSFETs (typically 1010 to 1015 ohms) allows them to amplify signals without loading down the source, making them ideal for applications where minimal signal distortion is critical. 4.3 Integrated Circuits MOSFETs form the foundation of modern integrated circuit technology: Digital Logic CMOS (Complementary MOS) technology, which combines N-channel and P-channel MOSFETs, dominates digital logic implementation due to its: Low power consumption during static operationHigh noise immunityWide operating voltage rangeHigh integration density Memory MOSFETs are essential in various memory technologies: DRAM (Dynamic RAM): Uses MOSFETs as access transistors for storage capacitorsSRAM (Static RAM): Uses multiple MOSFETs to form bistable latchesFlash memory: Uses specially designed floating-gate MOSFETs to store charge Microprocessors Modern CPUs and microcontrollers contain billions of MOSFETs, with each one serving as a fundamental switching element in the processor's logic circuits. Pro Tip: The miniaturization of MOSFETs following Moore's Law has been the driving force behind the exponential increase in computing power over the past several decades. Today's most advanced processes can create MOSFETs with features as small as 5 nanometers. 4.4 Power Electronics Applications Power MOSFETs handle substantial current and voltage levels in various applications: Power Supplies MOSFETs are critical components in modern switching power supplies: DC-DC converters: Buck, boost, and buck-boost topologiesAC-DC power supplies: Power factor correction stages and synchronous rectificationUninterruptible power supplies (UPS): Inverter stages and battery management Motor Control MOSFETs provide precise control in various motor drive applications: Brushless DC motor controllers in drones and electric vehiclesVariable frequency drives for industrial motorsStepper motor drivers in 3D printers and CNC machinesServo controllers in robotics and automation Automotive Electronics Modern vehicles use MOSFETs extensively in: Electronic control units (ECUs)LED lighting systemsBattery management systemsElectric power steeringElectric and hybrid vehicle powertrains The automotive industry has driven significant advancements in MOSFET technology, demanding devices that can operate reliably in harsh environments with extreme temperature variations and strict reliability requirements. 5. How to Select the Right MOSFET Choosing the appropriate MOSFET for a specific application requires careful consideration of various parameters and requirements. This section provides a structured approach to MOSFET selection based on application needs. 5.1 Key Parameters to Consider Voltage Ratings When selecting a MOSFET, voltage ratings are among the most critical specifications to consider: VDSS (Drain-Source Breakdown Voltage): Should be at least 20-50% higher than the maximum voltage the MOSFET will experience in the circuitVGS(max) (Maximum Gate-Source Voltage): Defines the maximum allowable gate drive voltageVGS(th) (Gate Threshold Voltage): Must be compatible with your gate driver capability Current Ratings Current handling capability determines whether the MOSFET can safely operate in your application: ID (Continuous Drain Current): Should exceed the maximum continuous current required by your application with a safety margin of at least 50%IDM (Pulsed Drain Current): Important for applications with periodic current surgesSafe Operating Area (SOA): Defines the safe combinations of voltage, current, and time duration Resistance and Power Dissipation These parameters affect efficiency and thermal management: RDS(on) (Drain-Source On-Resistance): Lower values mean less power dissipation and higher efficiencyPD (Maximum Power Dissipation): Must exceed the calculated power dissipation in your applicationRθJC (Thermal Resistance, Junction-to-Case): Lower values indicate better heat transfer capability Switching Parameters For applications involving frequent switching, these parameters are crucial: Qg (Total Gate Charge): Lower values enable faster switching and reduce drive requirementstr and tf (Rise and Fall Times): Determine how quickly the MOSFET can transition between on and off statesCiss, Coss, Crss (Input, Output, and Reverse Transfer Capacitances): Affect switching behavior and frequency responseParameterSymbolImportanceTypical RangeDrain-Source Breakdown VoltageVDSSCritical for preventing breakdown20V to 1500V+Continuous Drain CurrentIDDetermines current handling capability1A to 300A+On-ResistanceRDS(on)Critical for efficiency0.5mΩ to 100ΩGate Threshold VoltageVGS(th)Must match drive capability1V to 4VTotal Gate ChargeQgImportant for switching speed1nC to 300nC 5.2 Application Requirements Analysis Different applications place different demands on MOSFETs. Here's how to match MOSFET characteristics to application requirements: Switching Applications For applications where the MOSFET primarily functions as a switch: Prioritize low RDS(on) to minimize conduction lossesConsider gate charge (Qg) for high-frequency switchingEnsure adequate voltage margin (VDSS) to prevent breakdownChoose logic-level gate threshold if driving from microcontrollers or low-voltage logic Amplifier Applications For linear operation in amplifiers: Focus on transconductance (gm) for better gainConsider noise characteristics, especially in audio applicationsLook for devices with good linearity in their transfer characteristicsSelect devices with appropriate frequency response for the signal bandwidth Power Management Applications For power conversion and management: 5.3 Thermal Considerations Thermal management is critical for MOSFET reliability and performance: Power Dissipation Calculation Calculate power dissipation considering both conduction and switching losses: Conduction losses: Pcond = ID2 × RDS(on)Switching losses: Psw = f × Esw (where f is frequency and Esw is energy loss per switching cycle)Total losses: Ptotal = Pcond + Psw Thermal Resistance Understand the thermal path from junction to ambient: RθJC (Junction to Case): Inherent to the MOSFET packageRθCS (Case to Heatsink): Depends on mounting method and thermal interface materialRθSA (Heatsink to Ambient): Depends on heatsink design and airflow Temperature Rise Calculation Calculate junction temperature using: Tj = Ta + Ptotal × (RθJC + RθCS + RθSA) Where Tj is junction temperature and Ta is ambient temperature. Important Note: Always ensure that the calculated junction temperature remains well below the maximum rated junction temperature (typically 150°C to 175°C) with adequate margin for reliability. A good practice is to design for maximum junction temperatures no higher than 110-120°C for long-term reliability. 6. Advantages and Disadvantages 6.1 Benefits of MOSFETs Advantages of MOSFETs High Input Impedance: Virtually no gate current required for operation, minimizing power requirements for control circuitsFast Switching Speed: Capable of operating at frequencies from kilohertz to gigahertz, making them suitable for high-frequency applicationsLow Power Consumption: Minimal power required in the OFF state and low power losses in modern designsPositive Temperature Coefficient: Resistance increases with temperature, allowing easy parallel connection without thermal runawayNo Second Breakdown: More robust against thermal overload compared to bipolar transistorsVoltage-Controlled Device: Simple drive requirements with minimal control powerThermal Stability: Better performance at high temperatures compared to BJTsEasy Paralleling: Multiple devices can be connected in parallel to increase current handling These advantages have made MOSFETs the dominant technology in many applications, especially those requiring high efficiency, fast switching, or minimal control power. 6.2 Limitations of MOSFETs Disadvantages of MOSFETs ESD Sensitivity: The thin gate oxide makes MOSFETs susceptible to damage from electrostatic dischargeGate Drive Requirements: Some MOSFETs require specific voltage levels for proper operationHigher Cost: Can be more expensive than BJTs in certain applicationsOn-Resistance Increases with Voltage Rating: Higher voltage MOSFETs have higher RDS(on), leading to lower efficiencyBody Diode Limitations: The intrinsic body diode may have poor reverse recovery characteristicsMiller Effect: Capacitive feedback can cause unwanted oscillations and switching issuesThermal Runaway in Linear Applications: When operating in the linear region, MOSFETs can suffer from thermal instability Understanding these limitations is crucial for designing reliable circuits. Proper MOSFET selection and circuit design can mitigate many of these disadvantages. 6.3 MOSFETs vs BJTs Bipolar Junction Transistors (BJTs) and MOSFETs are both transistors, but they operate on different principles and have distinct characteristics: CharacteristicMOSFETBJTControl ParameterVoltage-controlled (gate voltage)Current-controlled (base current)Input ImpedanceVery high (1010-1015 Ω)Moderate (1-10 kΩ)Switching SpeedVery fastModerateThermal StabilityGood (positive temperature coefficient)Poor (negative temperature coefficient)Ease of ParallelingExcellentPoorOn-State Voltage DropHigher at high voltages (>200V)Lower at high voltagesESD SensitivityHighLow The choice between MOSFETs and BJTs depends on application requirements: MOSFETs excel in: High-frequency switching, low power applications, parallel operation, digital circuitsBJTs excel in: High-voltage linear amplifiers, cost-sensitive applications with moderate switching speeds, circuits needing low on-state voltage drop 6.4 MOSFETs vs IGBTs Insulated Gate Bipolar Transistors (IGBTs) combine features of both MOSFETs and BJTs: CharacteristicMOSFETIGBTVoltage RangeBetter for <250V applicationsBetter for >600V applicationsSwitching SpeedFaster (nanoseconds to microseconds)Slower (microseconds)On-State Voltage DropResistive (I×RDS(on))Fixed voltage drop + small resistive componentCurrent DensityLowerHigherConduction Losses at High VoltageHigherLowerSwitching LossesLowerHigherParallelingEasyMore difficult Application guidelines for choosing between MOSFETs and IGBTs: Choose MOSFETs for: Lower voltage applications (<600V), high-frequency switching (>20kHz), lower current requirementsChoose IGBTs for: Higher voltage applications (>1000V), lower frequency operation (<20kHz), higher current requirementsConsider both in: The 600-1000V range, where the choice depends on specific requirements for switching speed versus conduction lossesPro Tip: In the midrange (600-1000V) at moderate currents, the latest generations of wide bandgap semiconductors like Silicon Carbide (SiC) MOSFETs are challenging IGBTs by offering both low conduction losses and fast switching speeds, though at a premium price. 7. Latest Advancements in MOSFET Technology The field of MOSFET technology continues to evolve rapidly, with several significant innovations expanding their capabilities and applications: Wide Bandgap Semiconductors Silicon Carbide (SiC) MOSFETs and Gallium Nitride (GaN) MOSFETs represent major advancements over traditional silicon devices: Higher breakdown voltage capabilities (up to 1700V for commercial SiC devices)Lower on-resistance for a given voltage ratingFaster switching speeds with reduced lossesBetter thermal conductivity allowing operation at higher temperaturesSmaller die size for the same power handling capability These wide bandgap devices are enabling more efficient power conversion in electric vehicles, solar inverters, and industrial motor drives, with efficiency improvements of 2-5% compared to silicon-based solutions. Superjunction Technology Superjunction MOSFETs use a unique charge-balanced structure to overcome the traditional silicon MOSFET limitations: Dramatically reduced RDS(on) for a given breakdown voltageBetter figure of merit (RDS(on) × gate charge) for improved efficiencyEnhanced switching performance in the 500-900V rangeImproved ruggedness and reliability in hard-switching applications Advanced Packaging Technologies Innovations in MOSFET packaging are addressing thermal and parasitic challenges: Clip-bond technology: Replaces traditional wire bonds with metal clips for lower resistance and inductanceDouble-sided cooling: Allows heat extraction from both sides of the dieCopper clip technology: Improves current handling and thermal performanceIntegrated packages: Combining multiple MOSFETs or drivers with MOSFETs in a single package Specialized MOSFET Types New MOSFET designs address specific application challenges: Radiation-hardened MOSFETs: For space and nuclear applicationsUltra-low RDS(on) MOSFETs: For battery-powered and automotive applicationsFast-recovery body diode MOSFETs: For synchronous rectification applicationsIntegrated protection features: MOSFETs with built-in temperature, current, and voltage protection"The development of wide bandgap semiconductors represents the most significant advancement in power MOSFET technology in the past two decades, enabling power conversion efficiency levels that were previously unattainable with silicon devices." 8. Frequently Asked Questions Q1: How can I test if a MOSFET is working properly? To test a MOSFET's functionality, you can use a digital multimeter with diode test mode. For N-channel MOSFETs: For P-channel MOSFETs, reverse the probe polarities in the above procedure. Q2: What's the difference between a logic-level and standard MOSFET? Logic-level MOSFETs are designed to be fully turned on at lower gate voltages (typically 3.3-5V) compatible with digital logic outputs. Standard MOSFETs generally require higher gate voltages (8-10V or more) to achieve their rated performance. The key differences include: Logic-level MOSFETs have a lower threshold voltage (VGS(th)), usually below 2VThey achieve their specified RDS(on) at gate voltages of 4.5-5VThey're ideal for microcontroller-driven applicationsHowever, they typically have higher RDS(on) than standard MOSFETs of the same size when both are fully enhancedQ3: Why do MOSFETs get hot, and how can I prevent this? MOSFETs generate heat primarily due to three factors: Conduction losses: I2R losses from current flowing through RDS(on)Switching losses: Energy lost during transitions between on and off statesLinear operation losses: High power dissipation when operating in the linear region To prevent overheating: Select MOSFETs with lower RDS(on) for high-current applicationsUse appropriate heatsinking and thermal designAvoid operating MOSFETs in the linear region for extended periodsOptimize gate drive for faster switching transitionsUse snubber circuits to minimize switching lossesConsider parallel MOSFETs to distribute current and heatQ4: Can I use N-channel and P-channel MOSFETs interchangeably? N-channel and P-channel MOSFETs cannot be used interchangeably without circuit modifications, as they: Respond to opposite gate voltage polaritiesHave current flowing in different directionsTypically have different performance characteristics (N-channel usually has lower RDS(on)) When replacing one with the other, you'll need to: Invert the gate drive signalReconfigure the circuit topologyAdjust component values to accommodate different characteristicsConsider that N-channel devices are typically more efficient for low-side switching, while P-channel devices simplify high-side switching in some applicationsQ5: What causes MOSFET failure, and how can I protect against it? Common causes of MOSFET failure include: Overvoltage: Exceeding the maximum drain-source or gate-source voltage ratingsOvercurrent: Exceeding safe current limits or operating outside the Safe Operating Area (SOA)Overtemperature: Operating beyond the maximum junction temperaturedv/dt failure: Excessive voltage change rates triggering parasitic structuresESD damage: Electrostatic discharge damaging the gate oxideGate oxide breakdown: Excessive gate voltage stressing the thin oxide layer Protection strategies include: 9. Conclusion and Future Outlook MOSFETs have transformed electronics since their introduction, enabling the miniaturization, efficiency improvements, and performance enhancements that define modern electronic systems. From tiny signal-level applications to high-power industrial drives, these versatile components continue to evolve and expand their capabilities. The key strengths of MOSFETs include: Exceptional switching performance and efficiencyHigh input impedance and minimal drive requirementsWide range of available specifications to suit diverse applicationsContinuing technological advances expanding their capabilitiesExcellent integration capability in both discrete and IC forms Looking ahead, several trends will shape the future of MOSFET technology: Wide Bandgap Adoption: SiC and GaN MOSFETs will continue to penetrate high-performance power applications, offering unprecedented efficiency in electric vehicles, renewable energy systems, and industrial drives.Integration: More integrated solutions combining MOSFETs with drivers, protection, and control circuitry will simplify design and improve reliability.Miniaturization: Continued advancements in manufacturing will enable smaller MOSFETs with improved performance, supporting the trend toward more compact electronic devices.Specialization: Application-specific MOSFETs tailored for particular use cases will proliferate, with optimizations for automotive, renewable energy, data centers, and consumer electronics.Intelligent Power Devices: MOSFETs with embedded sensing and protection features will enable smarter power systems with enhanced reliability and diagnostic capabilities. Understanding MOSFET technology is increasingly valuable for anyone working in electronics, from hobbyists and students to professional engineers. By mastering the principles, types, and selection criteria presented in this guide, you'll be well-equipped to harness the full potential of these remarkable devices in your own projects and designs. Final Recommendation: When working with MOSFETs, always refer to manufacturer datasheets for specific parameters and recommended operating conditions. Begin your design process by clearly defining your application requirements, then select MOSFETs that provide adequate performance margins for voltage, current, and thermal considerations to ensure reliability under all operating conditions. Further Reading Difference and Relation Between IGBTs and MOSFETsThe Best Tutorial for P-Channel MOSFET External Resources MOSFET - WikipediaList of MOSFET Applications - WikipediaMOSFET Types, Working, Structure, and Applications - ElectronicsForuPower MOSFET Basics - Infineon TechnologiesLast Updated: May 2025 body { font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif; line-height: 1.6; color: #333; background-color: #f9fafb; } .container { max-width: 1200px; margin: 0 auto; padding: 20px; } h1, h2, h3, h4, h5 { font-weight: 700; margin-top: 1.5em; margin-bottom: 0.75em; color: #2563eb; } h1 { font-size: 2.5rem; margin-top: 0.5em; color: #1e40af; } h2 { font-size: 2rem; border-bottom: 2px solid #ddd; padding-bottom: 0.3em; } h3 { font-size: 1.5rem; color: #3b82f6; } p { margin-bottom: 1.2em; font-size: 1.1rem; } .quote-block { background-color: #e0f2fe; border-left: 4px solid #3b82f6; padding: 15px; margin: 20px 0; font-style: italic; } .pro-tip { background-color: #d1fae5; border-left: 4px solid #059669; padding: 15px; margin: 20px 0; } .important-note { background-color: #fee2e2; border-left: 4px solid #ef4444; padding: 15px; margin: 20px 0; } .image-container { margin: 20px 0; text-align: center; } .image-container img { max-width: 100%; height: auto; border-radius: 5px; box-shadow: 0 4px 6px -1px rgba(0, 0, 0, 0.1), 0 2px 4px -1px rgba(0, 0, 0, 0.06); } .image-caption { text-align: center; font-style: italic; color: #6b7280; margin-top: 8px; } table { width: 100%; border-collapse: collapse; margin: 20px 0; } th, td { border: 1px solid #ddd; padding: 12px; text-align: left; } th { background-color: #2563eb; color: white; } tr:nth-child(even) { background-color: #f2f2f2; } .table-container { overflow-x: auto; margin: 20px 0; } .toc { background-color: #f1f5f9; border-radius: 5px; padding: 20px; margin: 20px 0; } .toc-title { font-size: 1.5rem; margin-bottom: 15px; color: #1e40af; } .toc ol { list-style-type: decimal; margin-left: 20px; } .toc ol ol { list-style-type: lower-alpha; margin-left: 25px; } .toc li { margin-bottom: 8px; } .toc a { color: #2563eb; text-decoration: none; } .toc a:hover { text-decoration: underline; } .external-link { color: #2563eb; text-decoration: none; font-weight: bold; border-bottom: 1px dotted #2563eb; } .external-link:hover { color: #1e40af; } .internal-link { color: #059669; text-decoration: none; font-weight: bold; border-bottom: 1px dotted #059669; } .internal-link:hover { color: #047857; } .rating { display: flex; align-items: center; margin: 20px 0; } .star { color: #fbbf24; font-size: 1.5rem; margin-right: 3px; } .author-info { display: flex; align-items: center; margin-top: 30px; margin-bottom: 30px; background-color: #f1f5f9; padding: 15px; border-radius: 5px; } .author-avatar { width: 60px; height: 60px; border-radius: 50%; margin-right: 15px; } .last-updated { font-style: italic; color: #6b7280; margin-top: 40px; } .faq-item { margin-bottom: 20px; } .faq-question { font-weight: 700; color: #1e40af; margin-bottom: 10px; } .highlight { background-color: #fef3c7; padding: 0 3px; border-radius: 3px; } .pros-cons-container { display: flex; flex-wrap: wrap; gap: 20px; margin: 20px 0; } .pros-container, .cons-container { flex: 1; min-width: 300px; border-radius: 5px; padding: 20px; } .pros-container { background-color: #f0fdf4; border: 1px solid #86efac; } .cons-container { background-color: #fef2f2; border: 1px solid #fecaca; } .pros-cons-title { font-weight: 700; margin-bottom: 15px; color: #333; font-size: 1.2rem; } .pros-cons-list { list-style-type: none; padding-left: 10px; } .pros-cons-list li { margin-bottom: 8px; position: relative; padding-left: 25px; } .pros-cons-list li:before { position: absolute; left: 0; font-family: "Font Awesome 5 Free"; font-weight: 900; } .pros-list li:before { content: "\f00c"; color: #059669; } .cons-list li:before { content: "\f00d"; color: #dc2626; }

Introduction to SMD ResistorsSurface Mount Device (SMD) resistors are electronic components designed to be mounted directly onto the surface of printed circuit boards (PCBs). Unlike traditional through-hole resistors with wire leads that pass through the PCB, SMD resistors are soldered onto pads on the circuit board's surface.SMD resistor construction showing layers and terminalsIn today's electronics industry, SMD resistors have become the standard due to their compact size, ease of automated assembly, and excellent electrical properties. They're found in virtually all modern electronic devices, from smartphones and laptops to automotive systems and medical devices.As an electronics engineer or hobbyist, understanding SMD resistors is crucial for:PCB design and component selectionTroubleshooting and repair of electronic circuitsCircuit optimization for space, performance, and costChoosing appropriate components for specific applicationsThis comprehensive guide will walk you through everything you need to know about SMD resistors, from basic types and construction to reading markings and selecting the right component for your project.Types of SMD ResistorsSMD resistors come in various types, differentiated by their construction, material composition, and electrical characteristics. Understanding these types is essential for selecting the right component for your specific application.Classification by Construction MaterialTypeConstructionCharacteristicsApplicationsThick FilmResistive paste deposited on ceramic substrateCost-effective, good power handling, ±1% to ±5% toleranceGeneral-purpose applications, consumer electronicsThin FilmMetal alloy sputtered on ceramic substrateHigh precision (±0.1% to ±1%), low noise, low TCRPrecision instrumentation, medical equipment, test equipmentMetal FoilEtched metal foil on substrateHighest precision, excellent stability, lowest TCRPrecision measurement, aerospace, military applicationsMetal OxideMetal oxide film on ceramic substrateGood stability, high-temperature performanceHigh-temperature environments, automotive applicationsMetal FilmNichrome or similar metal on ceramicExcellent stability, low noiseAudio equipment, instrumentationClassification by Package SizeSMD resistors are commonly identified by their package size, which follows industry-standard naming conventions.Common SMD resistor package sizes comparisonPackage CodeImperial Size (inches)Metric Size (mm)Typical Power Rating010050.0039" × 0.0020"0.1mm × 0.05mm1/32W (0.031W)02010.024" × 0.012"0.6mm × 0.3mm1/20W (0.05W)04020.039" × 0.020"1.0mm × 0.5mm1/16W (0.062W)06030.063" × 0.031"1.6mm × 0.8mm1/10W (0.1W)08050.079" × 0.049"2.0mm × 1.25mm1/8W (0.125W)12060.126" × 0.063"3.2mm × 1.6mm1/4W (0.25W)12100.126" × 0.098"3.2mm × 2.5mm1/2W (0.5W)25120.25" × 0.12"6.4mm × 3.2mm1WNote: The package size notation typically represents the length and width in imperial measurements. For example, an 0805 package is approximately 0.08 inches long and 0.05 inches wide.Classification by ToleranceSMD resistors are available in different tolerance ranges, indicating how closely the actual resistance value matches the nominal value:Ultra-Precision: ±0.01% to ±0.1% (often thin film or metal foil)Precision: ±0.1% to ±0.5% (typically thin film)Semi-Precision: ±1% (thin film or thick film)General Purpose: ±2% to ±5% (typically thick film)Low Precision: ±10% to ±20% (rarely used in modern electronics)Special Types of SMD ResistorsBeyond the standard SMD resistors, several specialized types exist for specific applications:Current Sensing Resistors: Very low resistance values designed to measure current flowHigh-Power Resistors: Special designs for power applicationsHigh-Voltage Resistors: Designed to withstand elevated voltagesArray Resistors: Multiple resistors in a single packageFusible Resistors: Combine resistor and fuse functionalityAnti-Surge Resistors: Designed to withstand pulse loadsHow to Read SMD Resistor MarkingsReading the markings on SMD resistors is one of the most challenging aspects of working with these components. Unlike through-hole resistors with their color bands, SMD resistors use numerical codes to indicate resistance values due to their small size.SMD resistor code markings examplesThree-Digit Marking SystemThe most common marking system for SMD resistors with ±5% tolerance is the three-digit code:Format: First two digits represent significant figures, third digit is the multiplier (number of zeros)Example: "473" = 47 × 10³ = 47,000Ω = 47kΩMarkingCalculationResistance Value10010 × 10⁰10Ω22222 × 10²2,200Ω (2.2kΩ)47447 × 10⁴470,000Ω (470kΩ)10510 × 10⁵1,000,000Ω (1MΩ)Four-Digit Marking SystemFor precision resistors (typically ±1% tolerance), a four-digit code is often used:Format: First three digits represent significant figures, fourth digit is the multiplierExample: "4992" = 499 × 10² = 49,900Ω = 49.9kΩMarkingCalculationResistance Value1001100 × 10¹1,000Ω (1kΩ)4993499 × 10³499,000Ω (499kΩ)1000100 × 10⁰100ΩUsing "R" to Indicate Decimal PointFor resistors with values less than 10Ω, the letter "R" is used to represent a decimal point:Format: "R" indicates decimal point positionExample: "4R7" = 4.7Ω, "R33" = 0.33ΩMarkingResistance ValueR100.10Ω1R01.0Ω4R74.7ΩR010.01ΩEIA-96 Code SystemFor high-precision resistors (±1% or better), especially in 0603 or smaller packages, the EIA-96 code system is often used due to space constraints:Format: First two digits represent a code from the EIA-96 table, third character (letter) indicates multiplierExample: "01D" = Code 01 (100) × 10³ = 100kΩEIA-96 resistor coding chartCommon multiplier letters in the EIA-96 system:Z = ×0.001 (multiply by 0.001)Y = ×0.01X = ×0.1A = ×1B = ×10C = ×100D = ×1,000E = ×10,000F = ×100,000Special Case: Zero Ohm ResistorsZero ohm resistors (jumpers) are typically marked with a single "0" or "000" or "0000":Markings: "0", "000", "0000"Value: 0Ω (functions as a jumper wire)Tips for Reading SMD Resistor CodesUse a magnifying glass or digital microscope to see small markingsEnsure good lighting when inspecting componentsWhen in doubt, use a multimeter to measure the resistanceUnmarked SMD resistors (especially small ones like 0201) require a multimeter to determine valueRemember that sometimes markings may be worn off or unclearPro Tip: Several online calculators and smartphone apps can help you decode SMD resistor markings by simply entering the code.SMD Resistor Construction and StructureUnderstanding the physical construction of SMD resistors helps in appreciating their performance characteristics and limitations.Cross-section view of a typical SMD resistorBasic Structure of an SMD ResistorA typical SMD resistor consists of the following components:Ceramic Substrate: Usually alumina (Al₂O₃) that provides mechanical support and heat dissipationResistive Layer: Thick or thin film resistive material deposited on the substrateTerminations: Metal-plated ends for electrical connection to the circuit boardProtective Coating: Usually glass or epoxy that protects the resistive element from environmental factorsMarking: Code printed on top to indicate resistance valueManufacturing ProcessThe manufacturing process for thick film SMD resistors typically involves:Preparation of ceramic substrateScreen printing of resistive paste onto substrateHigh-temperature firing to cure the resistive elementLaser trimming to achieve precise resistance valueApplication of terminations (usually nickel and tin)Application of protective coatingMarking with resistance valueTesting and quality controlPackaging for automated assemblyFor thin film resistors, the resistive layer is applied through sputtering or vacuum deposition rather than screen printing.Interesting Fact: Laser trimming, where a laser removes small portions of the resistive material, allows manufacturers to achieve very precise resistance values. This process is automated and controlled by measuring the resistance in real-time during trimming.Advantages and Disadvantages of SMD ResistorsLike any electronic component, SMD resistors come with both benefits and limitations. Understanding these can help you make informed decisions when designing circuits.Advantages of SMD ResistorsAdvantageDescriptionSpace EfficiencySignificantly smaller than through-hole components, allowing for much higher component density on PCBsAutomated AssemblyDesigned for pick-and-place machines, allowing automated, high-speed assemblyBetter High-Frequency PerformanceLower parasitic inductance and capacitance compared to through-hole resistorsCost-EffectiveGenerally less expensive in mass production due to automated assembly and smaller sizeMechanical StabilityLess susceptible to vibration issues as they have no leads to bend or breakDouble-Sided AssemblyEnable double-sided PCB assembly without leads protruding through the boardWeight ReductionLighter than equivalent through-hole components, important for mobile devicesPrecisionModern SMD resistors offer excellent tolerance levels, even down to ±0.1% or betterDisadvantages of SMD ResistorsDisadvantageDescriptionHeat Dissipation LimitationsSmaller size limits power handling capability compared to similarly rated through-hole resistorsManual Assembly DifficultyChallenging to place and solder by hand, especially smaller packages like 0402 and belowRepair ChallengesMore difficult to replace in field repairs compared to through-hole componentsThermal StressMore susceptible to thermal stress during soldering due to smaller massMarking LimitationsLimited space for marking makes value identification challenging, especially on smaller packagesMechanical StressCan be affected by PCB flexing or mechanical shock, potentially causing cracksTombstoningSusceptible to "tombstoning" during reflow soldering where one end lifts off the padLimited Voltage HandlingSmaller package size reduces maximum voltage rating compared to through-hole equivalentsNote: The advantages of SMD resistors typically outweigh the disadvantages in most modern electronic designs, which is why they've become the predominant resistor type in production electronics. Through-hole resistors are still preferred in some high-power applications, hobbyist projects, prototyping, and where manual assembly is required.Common Applications of SMD ResistorsSMD resistors are versatile components used in virtually all modern electronic devices. Here are some common applications and how they're implemented:General Circuit ApplicationsCurrent Limiting: Protecting LEDs, ICs, and other components from excessive currentVoltage Division: Creating specific voltage levels from a higher supply voltagePull-up/Pull-down: Defining logic states for digital inputsFeedback Networks: Setting gain in amplifier circuitsBiasing: Establishing operating points for transistors and other active componentsTermination: Matching impedance in high-frequency signal pathsFiltering: Creating RC filters when paired with capacitorsCurrent Sensing: Measuring current flow in a circuitIndustry-Specific ApplicationsIndustry/DeviceApplicationTypical RequirementsSmartphones and TabletsPower management, signal conditioning, sensor interfacesUltra-small size (0201, 01005), low power, high precisionAutomotive ElectronicsEngine control, safety systems, infotainmentHigh reliability, wide temperature range, vibration resistanceMedical DevicesPatient monitoring, diagnostic equipmentHigh precision, high reliability, long-term stabilityIndustrial ControlsProcess control, motor drives, power conversionRuggedness, surge tolerance, high reliabilityAerospaceFlight controls, navigation, communicationMIL-spec compliance, extreme temperature capabilityNetworking EquipmentSignal termination, Ethernet interfacesHigh-frequency performance, tight toleranceConsumer ElectronicsTVs, gaming consoles, appliancesCost-effective, general purpose parametersSpecialized ApplicationsHigh-Frequency Circuits: Thin film SMD resistors with low parasitic capacitance and inductance are preferred for RF applicationsPrecision Measurement: Ultra-precise (±0.1% or better) SMD resistors are used in instrumentation and metrologyPower Electronics: Special high-power SMD resistors handle power conversion and motor controlBattery Management: Current sense resistors monitor charging and discharging currentsLED Lighting: Current limiting resistors ensure proper LED operationApplication Example: In a typical smartphone, hundreds of SMD resistors are used for functions ranging from power management to audio processing. The trend toward smaller packages (0201 and 01005) has been driven by the need to pack more functionality into increasingly compact devices.SMD Resistor Selection GuideSelecting the right SMD resistor for your application involves considering several factors beyond just the resistance value.Key Selection CriteriaParameterConsiderationsResistance ValueSelect the calculated value based on your circuit design needs, then choose the nearest standard valueToleranceConsider how precise the resistance needs to be for your application (±1% is standard for most applications)Power RatingCalculate maximum power dissipation (P = V²/R or P = I²R) and select a resistor with adequate margin (typically 2×)Package SizeBalance space constraints with power handling and assembly methodTemperature Coefficient (TCR)How much resistance changes with temperature, critical for precision applicationsVoltage RatingEnsure the resistor can handle the maximum voltage in the circuitFrequency ResponseConsider parasitic effects in high-frequency applicationsEnvironmental ConditionsTemperature range, humidity, vibration, and other environmental factorsPower DeratingRemember that the rated power of SMD resistors assumes ideal conditions. In practice, you should derate the power handling capacity based on:Ambient temperature (higher temperatures reduce power handling)PCB design (thermal dissipation capability)Air flow around the componentProximity to heat-sensitive componentsRule of Thumb: A common practice is to select resistors with at least twice the required power handling capacity to ensure reliability and long life.Package Size Selection GuideHere's a general guide for package selection based on common applications:PackageTypical ApplicationsNotes01005, 0201Smartphones, wearables, ultra-compact devicesRequires specialized assembly equipment0402Portable electronics, consumer devicesGood balance of size and handling for modern electronics0603General-purpose electronics, hobbyist projectsSmallest size that can be reasonably hand-soldered0805General-purpose, power applicationsGood for hand soldering, higher power handling1206, 1210Power electronics, current sensingBetter power handling, easier to handle manually2512High-power applicationsMaximum power handling in SMD formatSelection ProcessDetermine the required resistance value based on your circuit calculationsCalculate the maximum power dissipation in the resistorSelect a package size that can handle the power requirementsConsider tolerance requirements for your applicationCheck voltage rating (especially for high-resistance values)Consider special requirements (temperature coefficient, noise, etc.)Select the appropriate resistor type (thick film, thin film, etc.)Verify availability and cost for productionTop SMD Resistor ProductsHere are some of the most popular SMD resistors widely used in the electronics industry:Panasonic ERJ-3EKF1002VSpecifications: 10kΩ, 1%, 0603 SizeFeatures: Excellent stability, anti-surge capability, high reliabilityApplications: Consumer electronics, telecommunication equipment, automotive electronicsView Product DetailsVishay CRCW060310K0FKEASpecifications: 10kΩ, 1%, 0603 SizeFeatures: Thick film technology, excellent stability, good moisture resistanceApplications: General purpose applications, consumer electronics, industrial controlsView Product DetailsYageo RC0402FR-0710KLSpecifications: 10kΩ, 1%, 0402 SizeFeatures: Small size, high reliability, moisture resistantApplications: Mobile devices, tablets, wearables, compact electronicsView Product DetailsROHM MCR03EZPJ102Specifications: 1kΩ, 5%, 0603 SizeFeatures: Anti-surge design, excellent heat resistance, good reliabilityApplications: Power supply circuits, consumer electronics, automotive applicationsView Product DetailsVishay CRCW06036K81FKEASpecifications: 6.81kΩ, 1%, 0603 Size, Thick FilmFeatures: High stability, excellent moisture resistance, reliable performanceApplications: Precision circuits, industrial applications, general electronicsView Product DetailsNote: When selecting components for your project, always verify the latest specifications, availability, and pricing from the manufacturer or authorized distributors.Frequently Asked QuestionsHow do I identify an SMD resistor that doesn't have markings?For unmarked SMD resistors (common in very small packages like 0201 and 01005), the only reliable way to determine the resistance value is to use a multimeter with fine probe tips or dedicated SMD test tweezers. Alternatively, check the PCB design files or BOM (Bill of Materials) if available.Can I replace an SMD resistor with a through-hole resistor in an emergency?Yes, but it's not ideal. In a pinch, you can solder a through-hole resistor to the SMD pads, but ensure the resistance value and power rating are appropriate. This is generally only suitable as a temporary fix for prototype or repair situations, not for production.What causes SMD resistors to fail?Common causes of SMD resistor failure include:Exceeding the power rating (thermal stress)Voltage spikes beyond rated voltageMechanical stress from PCB flexingPoor soldering (cold joints or overheating)Environmental factors (extreme temperature, humidity, corrosive environments)Manufacturing defectsHow do I hand-solder SMD resistors?For hand-soldering SMD resistors:Apply a small amount of solder paste or tin one padUse tweezers to place the resistor on the padTouch the soldering iron to the pad/component junction to melt the solderOnce the first side is secure, solder the other sideFor small packages (0402 and smaller), consider using hot air or a reflow methodWhat's the difference between thick film and thin film SMD resistors?The main differences are:Manufacturing process: Thick film uses screen printing of resistive paste; thin film uses sputtering or vacuum depositionPrecision: Thin film typically offers better tolerance (down to ±0.01%) compared to thick film (typically ±1% or ±5%)Temperature coefficient: Thin film has better temperature stability (lower TCR)Noise: Thin film has lower current noiseCost: Thick film is generally less expensiveRelated ResourcesHow to Read the Value of SMD ResistorComparisons of Resistors in Series and in ParallelPull-Up and Pull-Down Resistor Use ExplainedExternal ReferencesEEPower - Resistor SMD CodeDigiKey SMD Resistor Code CalculatorSurface Mount Resistor Selection GuideElectronics Notes - SMD Resistor GuideLast Updated: 30th April 2025 body { font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif; color: #333; line-height: 1.6; } .container { max-width: 1200px; margin: 0 auto; padding: 0 20px; } h2, h3, h4 { font-weight: 700; margin-top: 1.5em; margin-bottom: 0.5em; } h2 { font-size: 1.8rem; color: #2b4c7e; border-bottom: 2px solid #e2e8f0; padding-bottom: 0.3em; } h3 { font-size: 1.4rem; color: #3c5a99; } p { margin-bottom: 1.2em; } .citation { background-color: #f8fafc; border-left: 4px solid #4299e1; padding: 1rem; margin: 1.5rem 0; } .comparison-table { width: 100%; border-collapse: collapse; margin: 1.5rem 0; } .comparison-table th { background-color: #e6f0ff; padding: 12px; text-align: left; } .comparison-table td { padding: 10px; border-bottom: 1px solid #e2e8f0; } .comparison-table tr:nth-child(even) { background-color: #f8fafc; } .key-point { font-weight: 700; color: #2c5282; } .emphasis { font-style: italic; } .image-container { margin: 2rem 0; text-align: center; } .image-container img { max-width: 100%; height: auto; border-radius: 8px; box-shadow: 0 4px 6px rgba(0, 0, 0, 0.1); } .image-caption { font-size: 0.9rem; color: #4a5568; margin-top: 0.5rem; } .faq-item { margin-bottom: 1.5rem; } .faq-question { font-weight: 600; color: #2c5282; margin-bottom: 0.5rem; } .toc { background-color: #f8fafc; padding: 1.5rem; border-radius: 8px; margin-bottom: 2rem; } .toc-title { font-weight: 700; margin-bottom: 1rem; font-size: 1.2rem; } .toc ul { list-style-type: none; padding-left: 0; } .toc li { margin-bottom: 0.5rem; } .toc a { color: #2b6cb0; text-decoration: none; } .toc a:hover { text-decoration: underline; } .product-card { border: 1px solid #e2e8f0; border-radius: 8px; padding: 1.5rem; margin-bottom: 1.5rem; transition: transform 0.3s ease, box-shadow 0.3s ease; } .product-card:hover { transform: translateY(-5px); box-shadow: 0 10px 15px rgba(0, 0, 0, 0.1); } .header-bg { background: linear-gradient(135deg, #2b6cb0 0%, #1a365d 100%); color: white; padding: 3rem 0; margin-bottom: 2rem; } .section-divider { height: 4px; background: linear-gradient(90deg, #3182ce 0%, #63b3ed 100%); margin: 3rem 0; border-radius: 2px; } @media print { body { font-size: 12pt; } .no-print { display: none; } }

Article SummaryIn this comprehensive guide, we explore ceramic capacitors from basic principles to advanced applications. Discover the different types of ceramic capacitors, their advantages and limitations, and how to select the right component for your electronic projects. Whether you're a hobbyist, engineer, or electronics student, this article provides essential knowledge about one of the most widely used passive components in modern electronics.Introduction to Ceramic CapacitorsIn the world of electronic components, ceramic capacitors stand as silent workhorses, essential yet often overlooked. These compact devices, particularly multilayer ceramic capacitors (MLCCs), are fundamental building blocks in virtually every electronic device you own—from smartphones and laptops to automotive systems and industrial equipment.With the electronics industry producing an astonishing one trillion ceramic capacitors annually, they represent the most manufactured electronic component on the planet. Despite their ubiquity, many engineers and hobbyists lack a comprehensive understanding of these components' capabilities, limitations, and optimal applications."Ceramic capacitors, especially multilayer ceramic capacitors (MLCCs), are the most produced and used capacitors in electronic equipment, with approximately one trillion pieces manufactured yearly."Whether you're troubleshooting circuit issues, designing new electronics, or simply curious about the components that make modern technology possible, understanding ceramic capacitors is essential. This guide addresses common challenges engineers face when selecting and implementing ceramic capacitors, including:Confusion about different ceramic capacitor types and their application areasUnexpected behavior of capacitors under varying operating conditionsReliability concerns in harsh environmentsSelection difficulties among thousands of available optionsUnderstanding technical specifications and their real-world implicationsHave you ever wondered why your electronic circuit behaves differently under various temperature conditions or why some capacitors mysteriously fail while others last for decades? The answers often lie in understanding the properties of ceramic capacitors.Ceramic Capacitor FundamentalsWhat Is a Ceramic Capacitor?A ceramic capacitor is a fixed-value capacitor where ceramic material acts as the dielectric (insulating material). It consists of two or more alternating layers of ceramic and metal electrodes. The composition of the ceramic material defines the electrical behavior and therefore determines suitable applications.Cross-section of a multilayer ceramic capacitor (MLCC) showing alternating electrode layersWorking PrincipleCeramic capacitors store energy in an electric field formed between conductive plates (electrodes). When voltage is applied, electrons accumulate on one plate, creating a potential difference. The ceramic dielectric prevents current flow while allowing the electric field to pass through, creating capacitance.The capacitance value (measured in farads) depends on three key factors:The surface area of the electrodesThe distance between the electrodesThe permittivity of the ceramic dielectric materialModern manufacturing techniques allow for stacking many thin ceramic and metal layers to create multilayer ceramic capacitors (MLCCs) with much higher capacitance values in smaller packages.Key Point: The type of ceramic material used significantly impacts a capacitor's properties. Class 1 ceramics (like NP0/C0G) offer high stability but lower capacitance, while Class 2 ceramics (like X7R, X5R) provide higher capacitance but with greater variability under different conditions.Samsung CL10A106KP8NNNCCap Ceramic 10uF 10V X5R 10% SMD 0603 85C Paper T/RManufacturer: Samsung Electro-MechanicsCategory: Ceramic CapacitorsPackage: 0603 (1608 Metric)Stock: 8000Get a Quote View Details .quote-card { border: 1px solid #e0e0e0; border-radius: 8px; overflow: hidden; max-width: 350px; font-family: Arial, sans-serif; box-shadow: 0 2px 5px rgba(0,0,0,0.1); } .quote-card-header { text-align: center; padding: 15px; background-color: #f9f9f9; } .product-image { max-width: 100%; height: auto; max-height: 150px; } .quote-card-body { padding: 15px; } .product-title { margin: 0 0 10px 0; color: #333; font-size: 18px; } .product-description { color: #666; margin-bottom: 15px; font-size: 14px; } .product-specs { list-style: none; padding: 0; margin: 0 0 20px 0; font-size: 13px; } .product-specs li { margin-bottom: 5px; color: #555; } .product-specs li span { font-weight: bold; color: #333; } .quote-button { display: block; background-color: #1e88e5; color: white; text-align: center; padding: 10px; text-decoration: none; border-radius: 4px; font-weight: bold; margin-bottom: 10px; transition: background-color 0.3s; } .quote-button:hover { background-color: #1565c0; } .details-link { display: block; text-align: center; color: #1e88e5; text-decoration: none; font-size: 13px; } .details-link:hover { text-decoration: underline; } Types of Ceramic CapacitorsCeramic capacitors are divided into different classes based on their dielectric properties and performance characteristics. Understanding these classifications is crucial for selecting the right component for your application.Class 1 Ceramic CapacitorsClass 1 ceramic capacitors are characterized by their exceptional stability and predictable performance. They're built using paraelectric materials, typically based on titanium dioxide (TiO₂) with various additives.Key characteristics:High stability across temperature rangesVery low losses (high Q factor)Linear temperature coefficientNegligible aging effectsCapacitance value largely unaffected by voltage, frequency, and timeLower dielectric constant (6-200), resulting in lower capacitance valuesCommon types: NP0/C0G, N750, N1500Typical applications: Precision timing circuits, resonant circuits, filters, and other applications requiring high stabilityClass 2 Ceramic CapacitorsClass 2 ceramic capacitors use ferroelectric materials, primarily barium titanate (BaTiO₃) with various additives. These materials offer much higher permittivity, allowing for greater capacitance values in compact sizes.Key characteristics:Higher volumetric efficiency (more capacitance in smaller packages)Moderate to significant variation with temperature, voltage, and timeNon-linear performance characteristicsNoticeable aging effectsHigher dielectric constant (200-14,000)Prone to microphonic effectsCommon types: X7R, X5R, Y5V, Z5UTypical applications: Coupling, decoupling, bypassing, and filtering where precise capacitance values are less criticalTemperature characteristics of different Class 2 ceramic capacitors showing typical tolerance rangesClass 3 Ceramic CapacitorsClass 3 ceramic capacitors (also known as barrier layer capacitors) offer very high capacitance values but with significant limitations. These capacitors are largely obsolete and have been replaced by improved Class 2 capacitors or other technologies.Note: Class 3 ceramic capacitors are now considered obsolete and are no longer standardized by the IEC.Physical Construction TypesBeyond dielectric classification, ceramic capacitors come in various physical forms:Multilayer Ceramic Chip Capacitors (MLCC): Rectangular blocks for surface mounting, the most common type in modern electronicsCeramic Disc Capacitors: Single-layer disc, resin-coated with through-hole leadsFeedthrough Ceramic Capacitors: Designed for high-frequency bypass applicationsCeramic Power Capacitors: Larger ceramic bodies for high-voltage applicationsMultilayer ceramic chip capacitors (MLCCs) in various package sizesMLCC Structure and ManufacturingThe multilayer ceramic chip capacitor (MLCC) represents the pinnacle of ceramic capacitor technology, offering exceptional performance in an extremely compact package. Understanding how these components are manufactured helps explain their capabilities and limitations.MLCC ConstructionMLCCs consist of alternating layers of ceramic dielectric material and metal electrodes, carefully engineered to maximize capacitance while maintaining reliability:Schematic illustration of the internal structure of an MLCCThe key components include:Ceramic Dielectric: Provides insulation between electrodes while allowing electric field to formInternal Electrodes: Alternating metal layers that store chargeExternal Terminations: Metal end caps that connect internal electrodes to circuit padsProtective Coating: Ceramic or epoxy layer protecting the componentManufacturing ProcessThe manufacturing of MLCCs involves several sophisticated steps:Slurry Preparation: Ceramic powders are mixed with binders and solvents to create a homogeneous slurryTape Casting: The slurry is precisely cast into thin sheets (2-20 microns) and driedElectrode Printing: Conductive metal ink (silver/palladium or nickel) is screen-printed onto the ceramic sheetsStacking: Hundreds of printed ceramic sheets are stacked in alternating patternsLamination: The stack is compressed under pressure to form a solid blockCutting: The laminated block is cut into thousands of individual chipsFiring: Chips are fired at high temperatures (1200-1400°C) to densify the ceramic and sinter the electrodesTermination: External terminations are applied to connect internal electrodesPlating: Nickel and tin layers are applied to prevent oxidation and ensure solderabilityTesting: Each capacitor undergoes electrical testing to ensure it meets specificationsVideo: KEMET's manufacturing process for multilayer ceramic capacitorsThis complex manufacturing process enables the production of incredibly small capacitors with capacitance values that would have been impossible just decades ago. Modern MLCCs can pack capacitance values up to 100μF in tiny 0603 or 0805 packages.Electrical Characteristics and Performance FactorsCeramic capacitors possess unique electrical characteristics that must be thoroughly understood for proper application. Their behavior can vary significantly based on operating conditions, especially for Class 2 types.Temperature DependenceThe capacitance of ceramic capacitors changes with temperature, with the degree of change varying by dielectric type:Class 1 (NP0/C0G): Extremely stable, with capacitance change less than ±30 ppm/°C across the operating temperature rangeClass 2 (X7R): Moderately stable, with capacitance changing ±15% from -55°C to +125°CClass 2 (Y5V): Highly variable, with capacitance changing up to +22% to -82% over the temperature rangeVoltage Coefficient of Capacitance (VCC)Particularly in Class 2 ceramic capacitors, the applied DC voltage can significantly reduce the effective capacitance—a critical factor often overlooked in design:Important Design Consideration: X5R and X7R capacitors can lose 20-80% of their rated capacitance when operated at full rated voltage. This "DC bias effect" means a 10μF capacitor might only provide 2-4μF in actual operation.AgingClass 2 ceramic capacitors exhibit a logarithmic loss of capacitance over time, even without power applied. This is due to the gradual realignment of ferroelectric domains in the dielectric material:X7R typically loses about 2.5% of its capacitance per decade hourY5V can lose 7% or more per decade hourThis aging can be reset by heating the capacitor above its Curie temperatureFrequency ResponseCeramic capacitors generally offer excellent high-frequency performance, with low ESR (Equivalent Series Resistance) and ESL (Equivalent Series Inductance). However, the actual performance varies by type:Class 1 capacitors maintain stable capacitance and low losses across a wide frequency rangeClass 2 capacitors show more significant variations in capacitance and higher losses at high frequenciesMicrophonic EffectClass 2 ceramic capacitors exhibit piezoelectric properties—they can convert mechanical stress to electrical signals and vice versa. This can cause:Generation of electrical noise when subjected to vibrationPhysical movement or vibration when AC voltage is appliedAudible sound in some applications (known as "singing capacitors")Have you ever heard a high-pitched whine coming from electronic equipment? This could be the result of ceramic capacitors vibrating due to the piezoelectric effect when exposed to certain voltage waveforms.Strengths and Weaknesses of Ceramic CapacitorsStrengthsSize Efficiency: Exceptional capacitance-to-volume ratio, especially in MLCCsNon-Polarized: Can be used with AC signals and in any orientationLow ESR/ESL: Excellent high-frequency performanceWide Temperature Range: From -55°C to +125°C or higherLong Lifespan: Typically 100,000+ hours when properly appliedWeaknessesDC Bias Effect: Capacitance drops significantly with applied voltage (Class 2)Aging: Capacitance decreases over time, even without power (Class 2)Mechanical Fragility: Susceptible to cracking from thermal or mechanical stressAreas for ImprovementDespite their widespread use, ceramic capacitors have several areas where technology continues to evolve:Reducing DC Bias Sensitivity: Manufacturers are developing advanced materials to minimize capacitance loss under DC voltageImproving Mechanical Robustness: Flexible termination designs help prevent cracking during thermal cycling and mechanical stressEnhancing Capacitance Stability: New dielectric formulations aim to combine the high capacitance of Class 2 with stability closer to Class 1Ceramic Capacitors vs. Other Capacitor TypesFeatureCeramicElectrolyticFilmTantalumSize EfficiencyExcellentGoodPoorVery GoodStabilityVaries by classPoorExcellentGoodPolarityNon-polarizedPolarizedNon-polarizedPolarizedESRVery LowHighMediumMediumLifespanVery LongLimitedLongLongCostLowLowMediumHighApplications and Use CasesCeramic capacitors find applications across virtually every electronic device and system due to their versatility, reliability, and excellent performance-to-size ratio.Common Applications by Capacitor ClassClass 1 (NP0/C0G) Applications:Resonant Circuits: Oscillators, filters, and tuned circuits where stability is criticalTiming Applications: Precision timing circuits requiring minimal driftHigh-Frequency Applications: RF circuits and microwave applicationsPrecision Analog Circuits: Measurement equipment and instrumentationReference Designs: Circuits requiring consistent performance over time and temperatureClass 2 (X7R, X5R) Applications:Decoupling/Bypass: Power supply noise suppression and local energy storageCoupling/DC Blocking: Transferring AC signals between circuits while blocking DCFiltering: Removing unwanted frequencies from signalsEnergy Storage: Smoothing power delivery in switching circuitsSnubber Circuits: Suppressing voltage spikes in switching applicationsMLCCs used as decoupling capacitors around a microprocessorIndustry-Specific ApplicationsConsumer Electronics:Smartphones, tablets, laptops, and other portable devices heavily rely on MLCCs for their small size and high performance. A typical smartphone contains hundreds to thousands of ceramic capacitors.Automotive:Modern vehicles use ceramic capacitors in engine control units, infotainment systems, advanced driver assistance systems (ADAS), and increasingly in electric vehicle power management. Automotive-grade ceramic capacitors are designed to withstand harsh conditions and meet AEC-Q200 qualification requirements.Industrial:Factory automation, process control systems, power supplies, and motor drives all benefit from the reliability and performance of ceramic capacitors, especially in noisy electrical environments.Medical:Medical devices demand high reliability and often require the precision of Class 1 ceramic capacitors, particularly in diagnostic and monitoring equipment.Telecommunications:Base stations, routers, and networking equipment use ceramic capacitors for high-frequency signal processing and power management.Did you know that the transition to 5G technology has increased the demand for high-quality ceramic capacitors? The higher frequencies used in 5G require components with excellent high-frequency performance—a strength of ceramic capacitors.Selection Guide: Choosing the Right Ceramic CapacitorSelecting the appropriate ceramic capacitor for your application involves considering multiple factors beyond just the capacitance value. This systematic approach will help you make the optimal choice:Ceramic Capacitor Selection Checklist✓ Capacitance requirements: Determine the nominal capacitance needed✓ Tolerance: How precise must the capacitance value be?✓ Voltage rating: Maximum voltage the capacitor will experience (with safety margin)✓ Stability requirements: How stable must the capacitance remain across temperature, voltage, and time?✓ Temperature range: Expected operating temperature extremes✓ Frequency characteristics: Operating frequency range and impedance requirements✓ Package size: Physical space constraints✓ Mounting method: Surface mount or through-hole✓ Environmental conditions: Humidity, vibration, shock✓ Reliability level: Consumer, industrial, automotive, or military gradeDecision Tree for Ceramic Capacitor SelectionStep 1: Determine Stability RequirementsIf high stability is crucial (timing, tuning, precision filtering) → Class 1 (C0G/NP0)If moderate stability is acceptable (general coupling, bypassing) → Class 2 (X7R, X5R)If stability is less important than size and cost → Class 2 (Y5V, Z5U)Step 2: Consider Temperature RangeFor -55°C to +125°C → X7R or C0G/NP0For -55°C to +85°C → X5R or C0G/NP0For narrower ranges → Consider Y5V or Z5U for cost savingsStep 3: Evaluate Voltage RequirementsSelect a rated voltage at least 2x the maximum operating voltageFor Class 2 capacitors, consider the DC bias effect—you may need a higher nominal capacitanceFor AC applications, ensure the capacitor can handle peak-to-peak voltageStep 4: Address Physical ConstraintsDetermine available space and select appropriate package size (0402, 0603, 0805, etc.)Consider mechanical stress factors and potentially select flex-termination optionsFor high-vibration environments, consider leaded ceramic capacitors instead of MLCCsPro Tip: When designing with Class 2 ceramic capacitors, it's good practice to calculate with only 20-50% of the nominal capacitance value to account for DC bias effects, temperature variations, and aging.User Experiences and Real-World ApplicationsCase Study: Automotive ECU Design Challenge"When designing engine control units for a major automotive manufacturer, we initially used X7R MLCCs for decoupling throughout the design. However, we encountered unexpected resets during extreme temperature testing. Investigation revealed that the actual capacitance under full DC bias at -40°C was less than 20% of the nominal value. Switching to larger case sizes with higher voltage ratings solved the issue by reducing the DC bias effect."- James Chen, Senior Electronics EngineerIndustrial Control System Reliability"Our industrial control systems operate in environments with significant vibration. We discovered that standard MLCCs were cracking after a few months in the field. Switching to flex-termination MLCCs reduced failure rates by over 90%. The slightly higher component cost was insignificant compared to the field service savings."- Maria Rodriguez, Reliability EngineerRF Design Insights"For precision RF filters, we exclusively use C0G/NP0 ceramic capacitors despite their higher cost and larger size. The stability and predictability they provide are essential for maintaining calibrated performance across temperature ranges and over the product lifetime. Attempting to use X7R capacitors in these circuits resulted in significant drift that made field calibration impossible."- David Patel, RF Design EngineerWhat challenges have you encountered when working with ceramic capacitors in your designs? Share your experiences in the comments section below!Common Misconceptions About Ceramic CapacitorsMisconception #1: Capacitance Value Is Fixed and ReliableReality: For Class 2 ceramic capacitors, the actual capacitance in-circuit can be dramatically lower than the labeled value due to DC bias effects, temperature conditions, and aging. A 10μF X7R capacitor might effectively provide only 2-4μF in operation.Misconception #2: Ceramic Capacitors Are Mechanically RobustReality: MLCCs are actually quite brittle and susceptible to cracking from thermal and mechanical stress. Flex cracking is a common failure mode when PCBs undergo bending during assembly or use.Misconception #3: Higher Voltage Rating Only Matters for SafetyReality: Higher voltage ratings in ceramic capacitors often provide better stability even at lower operating voltages. A 50V rated capacitor will typically show less capacitance loss under DC bias than a 16V rated capacitor of the same nominal value.Misconception #4: All Ceramic Capacitors Perform SimilarlyReality: There are significant performance differences between Class 1 and Class 2 capacitors, and even between different manufacturers. Quality and performance can vary widely despite similar specifications.Misconception #5: Ceramic Capacitors Don't AgeReality: Class 2 ceramic capacitors experience predictable aging with capacitance decreasing logarithmically over time (typically 2-7% per decade hour), even when sitting on a shelf unpowered.Market Trends and Future DevelopmentsThe ceramic capacitor market continues to evolve rapidly, driven by changing technologies and application demands:Current Market StateThe global ceramic capacitor market was valued at approximately $14.57 billion in 2024 and is projected to reach $30.1 billion by 2033. MLCCs represent the largest segment of this market, with automotive and consumer electronics being the primary growth drivers.Technology TrendsMiniaturization: Continuous development of smaller case sizes (01005, 008004) for ever-more compact electronicsHigher Capacitance: New dielectric formulations enabling higher capacitance values in given case sizesImproved Stability: Development of Class 2 materials with better stability characteristicsFlexible Terminations: Increasingly standard to prevent mechanical crackingHigher Temperature Ratings: Expansion of operating temperature ranges for automotive and industrial applicationsIndustry ChallengesRaw Material Supply: Periodic shortages of key materials like barium titanate and precious metalsManufacturing Capacity: Cyclical supply constraints due to capacity limitationsPrice Volatility: Significant price fluctuations based on market demand and raw material costsCounterfeit Products: Increasing prevalence of counterfeit components in the supply chainFuture OutlookThe future of ceramic capacitors is likely to include:Development of new dielectric materials with better performance characteristicsIntegration of ceramic capacitors directly into semiconductor packagesIncreased use of ceramic capacitors in high-power applications, including electric vehiclesGrowth in automotive-grade ceramic capacitors for advanced driver assistance systems (ADAS) and autonomous vehiclesExpansion of high-reliability ceramic capacitors for medical implantable devicesHow might future developments in ceramic capacitor technology impact your industry or projects? What improvements would most benefit your applications?Purchasing RecommendationsWhen sourcing ceramic capacitors for your projects or production, consider these key recommendations:Supplier SelectionEstablished Manufacturers: For critical applications, stick with tier-one manufacturers like Murata, KEMET (now part of YAGEO), TDK, Samsung Electro-Mechanics, and AVXAuthorized Distributors: Purchase through authorized channels to minimize counterfeit riskTraceability: Ensure lot traceability for quality-critical applicationsDocumentation: Request manufacturer certificates for critical componentsCost Optimization StrategiesStandardize Values: Consolidate on standard capacitance values across designsCase Size Standardization: Standardize on fewer case sizes to improve purchasing leverageVolume Agreements: Consider long-term agreements for better pricing and supply securityValue Engineering: For non-critical applications, evaluate if cheaper dielectric types can meet requirementsInventory ManagementStorage Conditions: Store ceramic capacitors in controlled humidity environmentsShelf Life: Be aware of aging effects, especially for Class 2 typesMoisture Sensitivity: Follow manufacturer guidelines for moisture-sensitive componentsSupply Chain Risk: Maintain alternative sources for critical componentsPurchasing Tip: During industry-wide shortages, consider working with your design team to qualify alternative case sizes or voltage ratings. For example, an 0805 25V capacitor might be substituted for an unavailable 0603 16V part in many applications.Frequently Asked QuestionsQ: Are ceramic capacitors polarized like electrolytic capacitors?No, ceramic capacitors are non-polarized components, meaning they can be installed in either orientation in a circuit. This makes them suitable for AC applications and simplifies circuit design and assembly.Q: How can I identify the value of an unlabeled ceramic capacitor?Unlabeled ceramic capacitors, especially small MLCCs, can be difficult to identify. The most reliable method is to use a capacitance meter. For larger through-hole ceramic disc capacitors, there may be a three-digit code where the first two digits represent the significant figures and the third digit is the multiplier in powers of 10 (in picofarads).Q: Why do ceramic capacitors sometimes make audible noise?Class 2 ceramic capacitors exhibit piezoelectric properties, meaning they can convert electrical energy to mechanical movement and vice versa. When exposed to varying voltages, especially at audio frequencies, they can physically vibrate and produce audible sound—a phenomenon known as "singing capacitors" or microphonics.Q: Can I replace an electrolytic capacitor with a ceramic capacitor?In some cases, yes, but there are important considerations. Ceramic capacitors are non-polarized and generally have lower ESR than electrolytics, which can cause stability issues in some circuits. Additionally, the effective capacitance of Class 2 ceramic capacitors varies with applied voltage, so you may need a higher nominal value. For power supply filtering, the low ESR of ceramics might trigger oscillations in some voltage regulator designs.Q: What causes ceramic capacitors to fail?Common failure modes include: - Mechanical cracking due to PCB flexure, thermal stress, or physical impact - Dielectric breakdown due to overvoltage conditions - Thermal cracking from rapid temperature changes - Degradation from exposure to excessive humidity - Internal electrode discontinuities from manufacturing defects The most frequent failure mode is cracking, which typically manifests as a short circuit or significant loss of capacitance.Conclusion and RatingCeramic capacitors, especially MLCCs, represent a remarkable achievement in electronic component technology, packing impressive performance into increasingly tiny packages. Their dominance in modern electronics is well-deserved, given their combination of reliability, performance, and cost-effectiveness.For engineers and designers, understanding the nuances of ceramic capacitor behavior—particularly the characteristics of different dielectric classes—is essential for creating reliable and high-performance electronic systems. The distinctions between Class 1 and Class 2 capacitors, and their respective strengths and limitations, should guide application-specific selections.As technology continues to evolve, ceramic capacitors will remain central to electronics design, with ongoing improvements in materials and manufacturing processes enabling even better performance and reliability. From consumer electronics to automotive systems, from medical devices to industrial equipment, these seemingly simple components play a critical role in enabling the functionality we rely on daily.What has been your experience with ceramic capacitors? Do you have any tips or insights to share with other readers? Join the conversation in the comments section below!References and Further ReadingExternal ResourcesElectronics Notes: Understanding Ceramic CapacitorsMurata: Ceramic Capacitor Technical GuideKEMET: Ceramic Capacitor FAQ and Application GuideWikipedia: Ceramic CapacitorRelated Articles on Our SiteHow Do Capacitors Work?Ceramic Capacitors: A Comprehensive OverviewTantalum Capacitors: Comprehensive GuideUnderstanding Feedthrough Capacitors for Noise SuppressionHow Do Capacitors Work?VideosKEMET Ceramic Capacitor ManufacturingHow We Make Capacitors | CeramicPublished: April 29, 2025 | Last Updated: April 29, 2025 .container { max-width: 1200px; margin: 0 auto; padding: 20px; background-color: white; box-shadow: 0 0 20px rgba(0,0,0,0.05); } h2, h3, h4 { color: #2c3e50; margin-top: 1.5em; margin-bottom: 0.5em; } h2 { font-size: 2rem; border-bottom: 2px solid #e5e7eb; padding-bottom: 5px; } h3 { font-size: 1.5rem; padding-bottom: 5px; } p { margin-bottom: 1.2em; font-size: 1.1rem; } .quote-box { background-color: #f8f9fa; border-left: 4px solid #3498db; padding: 15px; margin: 20px 0; font-style: italic; } .info-box { background-color: #e3f2fd; border: 1px solid #bbdefb; border-radius: 4px; padding: 15px; margin: 20px 0; } .warning-box { background-color: #fff8e1; border: 1px solid #ffe082; border-radius: 4px; padding: 15px; margin: 20px 0; } .image-caption { text-align: center; font-size: 0.9rem; margin-top: 5px; color: #666; } .comparison-table { width: 100%; border-collapse: collapse; margin: 20px 0; } .comparison-table th { background-color: #3498db; color: white; padding: 10px; text-align: left; } .comparison-table tr:nth-child(even) { background-color: #f2f2f2; } .comparison-table td { padding: 10px; border: 1px solid #ddd; } .faq-item { margin-bottom: 20px; } .faq-question { font-weight: bold; margin-bottom: 8px; color: #2c3e50; } .user-experience { background-color: #f5f5f5; padding: 15px; border-radius: 5px; margin: 20px 0; } .checklist li { margin-bottom: 10px; } .pros-cons { display: flex; gap: 20px; margin: 20px 0; } .pros, .cons { flex: 1; padding: 15px; border-radius: 5px; } .pros { background-color: #e8f5e9; border: 1px solid #c8e6c9; } .cons { background-color: #ffebee; border: 1px solid #ffcdd2; } .interactive-question { background-color: #e1f5fe; padding: 15px; border-radius: 5px; margin: 20px 0; font-style: italic; } .rating { display: flex; align-items: center; margin: 20px 0; } .stars { color: #ffc107; font-size: 1.5rem; margin-right: 10px; } figcaption { text-align: center; margin-top: 5px; color: #666; } figure { margin: 20px 0; }
