The Complete Guide to Selecting Solid State Relays in 2025

Author: Kynix

Published: 2025-07-17 | Last Updated: 2025-07-17

Contents

Choosing the right solid state relays for your project depends on matching output current, voltage, load type, and SSR type to your needs. When you focus on relay specifications, you improve safety precautions and reliability. Market trends show PCB mount SSRs lead due to easy installation and compact size. AC solid state relays handle most applications in energy, automotive, and consumer electronics. Use this guide to check all selection steps and avoid common mistakes.

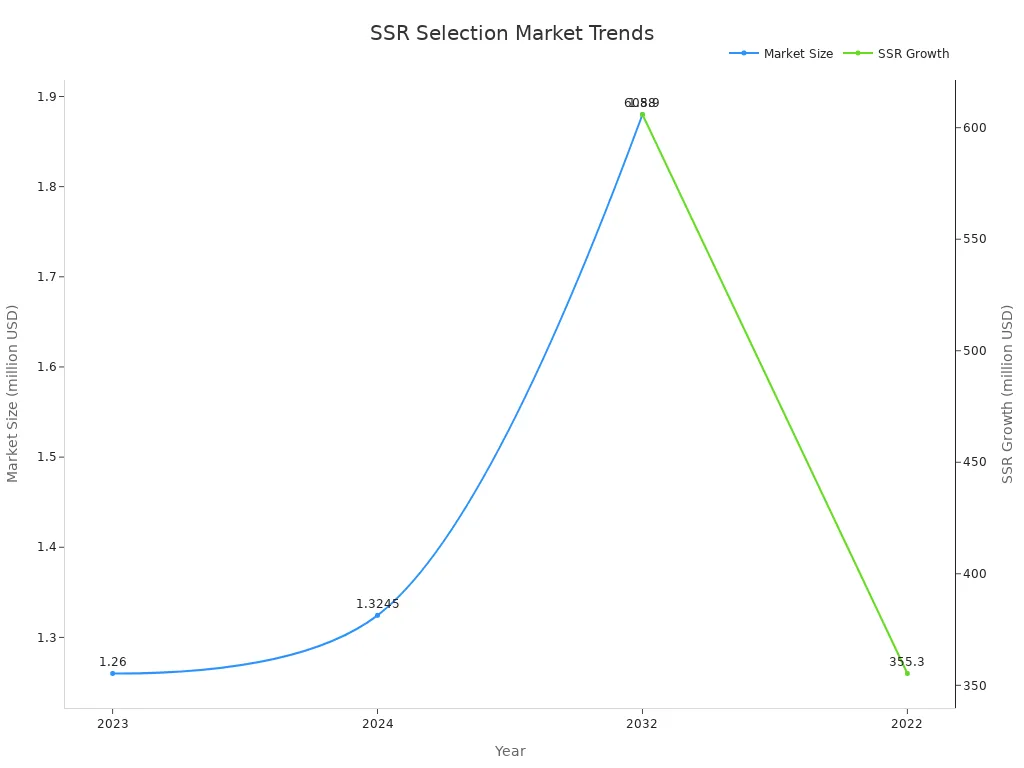

Line chart showing market size and SSR growth over time

Always review both technical requirements and installation details before making your selection.

Segment	Trend/Detail
Leading SSR Type	AC solid state relays (efficiency for AC loads)
Top Mounting Type	PCB mount SSRs (compact and easy to install)
Key Drivers	Industrial automation, energy, automotive, consumer electronics
Market Growth	Projected CAGR over 5.3% from 2025 to 2037

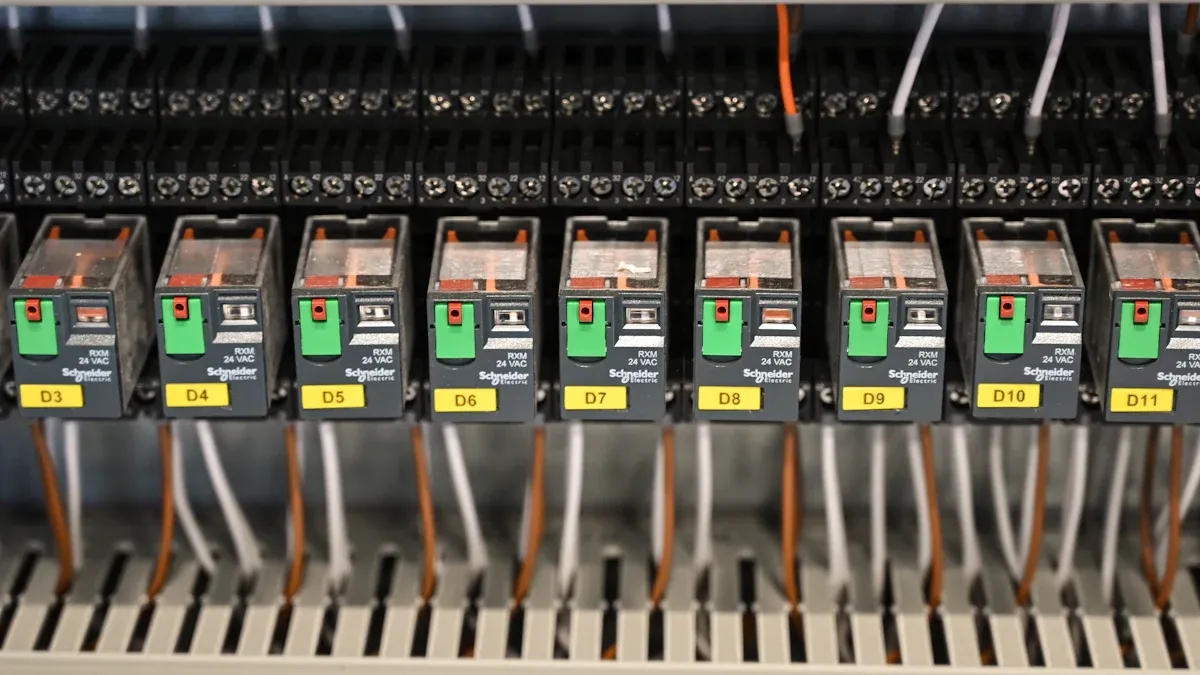

What Are Solid State Relays

Solid state relays, or SSRs, are advanced switches that use solid state components instead of moving parts. You use SSRs to control electrical circuits without physical contacts. This makes them reliable and fast. SSRs have become popular in many industries, including automation, automotive, and renewable energy. You can find SSRs in smart grids and even in consumer electronics.

How SSRs Work

You might wonder how ssrs work. SSRs use solid state components like transistors, thyristors, or triacs to turn circuits on or off. When you apply a small control signal, the SSR acts as an electronic switch. It lets current flow to the load without any moving parts. This design means SSRs switch much faster than mechanical relays. Some SSRs can switch in less than one millisecond. You also get less wear and tear, so SSRs last longer.

Here is a quick look at the main technical specifications for solid state relays:

Specification Aspect	Details / Examples
Types	DC to AC, DC to DC, AC to DC, AC/DC to AC
Mounting	Panel, PCB, Din rail
Output Voltage	DC SSRs (constant/resistive), AC SSRs (single/three-phase)
Current Rating	Low (0-20A), Medium (20-50A), High (50A+)
Switching Speed	<1 millisecond; some <1 microsecond
Voltage Rating	Up to 600V or more
Current Handling	Up to 100A and beyond
Material Innovations	GaN, SiC for high efficiency and temperature

Tip: SSRs with GaN or SiC solid state components handle higher temperatures and work better in tough environments.

SSR vs Mechanical Relays

You may ask why you should choose SSRs over mechanical relays. SSRs use solid state components, so they do not have moving contacts. This means you get silent operation and no sparks. SSRs switch faster and last longer because there is no physical wear. Mechanical relays, on the other hand, use metal contacts that open and close. These contacts can wear out over time. SSRs also handle high-speed switching and work well in dusty or humid places. You often see SSRs in modern automation systems where reliability matters most.

Choosing an SSR: Key Steps

Selecting the right SSR for your project starts with a clear process. You need to focus on output current, output voltage, and load type. This guide will help you avoid mistakes and make sure your SSR works safely and reliably.

Tip: Always check your equipment’s relay specifications before making a decision. This helps you match the SSR to your project and avoid costly errors.

Output Current

When choosing an SSR, you must first identify your current. The rated current tells you how much load the SSR can handle without overheating or failing. If you pick an SSR with a rated current too low, you risk damaging your system. Always select an SSR with a rated current higher than your maximum load current.

Here is a table to help you understand some important current values and thresholds:

Parameter	Value/Threshold	Explanation
Opto-triac maximum peak current	1 ampere peak	Maximum current the opto-triac can safely handle
Series resistance (minimum)	~180 Ω	Protects opto-coupler triac and gate of main triac on 120VAC supply
Gate drive current required	50 mA	Current needed to trigger the main triac
Input LED forward current range	10 to 30 mA	Current range for proper LED operation in opto-isolator
Load current example	5 amperes	Calculated for 600W load at 120VAC
Main triac rating example	6 amps (IT(RMS))	Suitable triac rating for controlling the load

You should always check the current requirements for both the control side and the load side. For example, if your load draws 5 amperes, choose an SSR with a rated current of at least 6 amperes. This extra margin keeps your SSR safe and extends its life.

Note: Never underrate the current. Always allow a safety margin above your maximum load.

Output Voltage

Next, you need to identify your voltage. The output voltage rating of the SSR must be higher than the highest voltage your project will use. This prevents relay failure and keeps your system stable.

Keep your voltage within ±5% of the rated value. This helps avoid damage and ensures stable operation.
For AC systems, follow standards like IEEE C37.010 to maintain safe voltage and power levels.
If you use a 120VAC load, select an SSR rated for at least 140VAC to allow for voltage spikes.

Always check the voltage rating on the SSR and compare it to your system’s needs. This step is critical for safe operation.

Load Type

The load type is another key factor in SSR selection. Different SSRs work best with different loads, such as resistive, inductive, or capacitive. Matching the SSR to your load type improves performance and reliability.

Here is a chart showing how matching SSR load types to applications can impact performance:

Bar — Image Source: statics.mylandingpages.co

Application Type	Data Trend / Metric	Impact of Matching SSR Load Type with Application Requirements
E-commerce Websites	15% increase in organic traffic, 7% boost in conversion rates	SSR enhances product page load times and SEO, critical for sales and promotions, emphasizing the need to tailor SSR for commercial sites.
Content-Heavy Platforms	40% reduction in bounce rates	Faster content delivery and SEO indexing improve engagement, demonstrating SSR's value for news and blogs.
Social Media Platforms	30% improvement in user engagement	SSR balances dynamic content updates with fast initial loads, crucial for interactive social media feeds.
User Experience	Up to 20% increase in conversion rates	Faster load times and accessibility improvements reduce bounce rates, showing SSR's role in enhancing UX tailored to application goals.

You should always check your load type before making a selection. For example, resistive loads like heaters need a different SSR than inductive loads like motors. The relay selection guide recommends matching the SSR to your load for the best results.

Tip: If you are unsure about your load type, consult the relay selection guide or ask your supplier for help.

Step-by-Step Process for Choosing an SSR

You can follow these steps to make the right choice:

Match the coil voltage of the SSR to your circuit voltage.
Select an SSR with a load voltage rating higher than your maximum system voltage.
Verify the SSR meets your current requirements for both control and load sides.
Consider special project needs, such as multi-pole relays or status indicators.
Look for extra features like dry run protection or automatic reset for added safety.
Read and understand relay specifications, focusing on voltage, current, and operating times.
Choose the SSR type that fits your application, such as AC, DC, or universal SSRs.

By following this guide, you can make sure your SSR selection matches your project needs. Always check the rated current, output voltage, and load type before you decide. This approach will help you avoid common mistakes and keep your system running smoothly.

SSR Types and Applications

AC, DC, and Universal SSRs

You will find three main types of SSRs: AC, DC, and universal. Each type works best in different situations. AC SSRs control alternating current loads, such as heaters, lamps, or industrial machines. You use these when your project needs to switch AC power. DC SSRs handle direct current loads, like motors, solenoids, or LED lighting. These work well in battery-powered systems or electronics that use DC voltage.

Universal SSRs give you more flexibility. They can switch both AC and DC loads. If you are unsure about your load type or expect to change it in the future, a universal SSR can save you time and effort. You should always check the datasheet to see if the SSR supports your voltage and current needs.

Tip: Always match the SSR type to your load’s power source. This helps you avoid damage and keeps your system safe.

Here is a quick comparison:

SSR Type	Typical Application	Power Source
AC SSR	Industrial heaters, pumps	AC
DC SSR	Motors, LED strips	DC
Universal SSR	Mixed or changing systems	AC or DC

Load Matching

You need to match the SSR to your load for the best results. If you use the wrong SSR, your project may not work or could even fail. For example, resistive loads like heating elements need a different SSR than inductive loads such as motors or transformers.

Follow these steps to match your SSR to your load:

Identify your load type: resistive, inductive, or capacitive.
Check the SSR’s datasheet for supported load types.
Choose an SSR with a current rating higher than your load’s maximum draw.
Make sure the SSR can handle any inrush current, especially for motors.

Note: Inductive loads often cause voltage spikes. Pick an SSR with built-in protection if you use these loads.

Correct load matching helps your SSR last longer and keeps your project running smoothly. You will also reduce the risk of overheating or failure.

Switching Methods

When you select a solid state relay, you need to understand how it switches power. The switching method affects how your system handles noise, efficiency, and speed. Two main switching methods exist: zero crossing and random turn-on. Each method works best for different types of loads and applications.

Zero Crossing

Zero crossing SSRs switch the load only when the AC voltage waveform crosses zero. This means the relay waits for the voltage to reach zero before turning on or off. By switching at this point, you reduce electrical interference and lower inrush current. You also get less noise and fewer harmonics in your system. This method improves power quality and reduces switching losses.

You will find that zero crossing SSRs work well for resistive loads like heaters or lamps. They help keep your system quiet and efficient. However, these SSRs cannot turn off immediately. They must wait for the next zero crossing. This can be a problem if you use highly inductive loads, such as motors, because you may need faster switching.

Tip: Use zero crossing SSRs when you want to minimize electromagnetic interference (EMI) and keep your power quality high.

Random Turn-On

Random turn-on SSRs switch the load as soon as they receive a control signal. They do not wait for the AC waveform to reach zero. This allows for instant switching, which is useful when you need fast response times. You might use random turn-on SSRs for inductive or non-linear loads that require immediate action.

However, this method can create more noise, harmonics, and transient interference. Random switching can also cause energy loss and may damage electronic switches or connected loads. You should choose this method only when speed is more important than efficiency or noise reduction.

Use random turn-on SSRs for applications that need quick switching.
Always check your load type before choosing the switching method.

By understanding these switching methods, you can select the right SSR for your project and balance efficiency, speed, and power quality.

Protection and Reliability

Surge and Overload

You need to protect your solid state relay from surges and overloads. Surges can happen when you switch large loads or when there are spikes in the power line. Overloads occur if the current goes above the rated value for your SSR. Both problems can damage your relay or even your whole system.

Many SSRs now include features for ac ssr protection and dc ssr protection. These features help your relay survive tough conditions. For example, some SSRs have built-in heat sinks or special circuits that limit current and voltage. This makes your system safer and more reliable.

Here is a table showing how different SSR products handle surges and overloads:

SSR Product	Surge/Overload Protection Features	Surge Current Rating	Application Examples
Omron G3PB SSR	Integrated heat sink for heat dissipation; high surge current tolerance	Up to 600A	Power distribution, electrical panels, HVAC control
Schneider Electric Zelio SSR	Built-in overcurrent and overvoltage protection	Up to 100A	Industrial machinery, harsh environment load switching

You can see that ac ssr protection and dc ssr protection features help these relays handle high surge currents. Advanced switching circuits and current limiting assemblies also boost reliability. If you want your SSR to last longer, always choose one with strong surge and overload protection.

Tip: Always check the datasheet for surge and overload ratings before you buy an SSR.

Isolation

Isolation keeps you and your equipment safe. It separates the control side from the load side, so dangerous voltages cannot pass through. Good isolation is important for both ac ssr protection and dc ssr protection.

Modern SSRs use strong insulation materials and advanced designs. These features help prevent electric shocks and protect sensitive electronics. You should look for SSRs with high isolation voltage ratings and strong dielectric strength.

Here is a table with key isolation metrics for SSRs:

Isolation Metric	Validated Performance / Specification
Dielectric Strength of Insulation	Polyimide: 300 VRMS/μm; Silicon Dioxide: 500 VRMS/μm
Isolation Voltage Ratings	Basic isolation: 3.75 kVRMS (TPSI2140-Q1); Reinforced isolation: 5 kVRMS (TPSI3050-Q1)
Time-Dependent Dielectric Breakdown	Reliability >4X higher than solid-state photorelays
Avalanche Current Withstand	>300% higher than traditional photorelays
Insulation Monitoring Capabilities	Symmetrical/asymmetrical leakage current measurement; insulation resistance monitoring without external power on hot side
Integration Features	Integrated isolated power supply, digital isolator, gate driver; enables microsecond-level switching and enhanced reliability
Application Validation	Reference designs tested for zero-cross switching, overtemperature, and overcurrent protection

You should always choose an SSR with strong isolation if you work with high voltages or sensitive equipment. This will help prevent accidents and keep your system running smoothly.

Note: Isolation is not just about safety. It also improves the performance and reliability of your SSR.

Installation and Sizing

Heat Dissipation

You need to manage heat when you install a solid state relay. SSRs generate heat during operation. If you do not control this heat, the relay can fail. You should always check the datasheet for the maximum case temperature and the recommended heat sink size.

Here are some steps to help you manage heat:

Measure the load current and check the SSR’s power dissipation.
Select a heat sink that matches or exceeds the SSR’s requirements.
Use thermal paste between the SSR and the heat sink to improve heat transfer.
Place the SSR in a location with good airflow.

Tip: If your SSR feels hot to the touch, you may need a larger heat sink or better ventilation.

You can use this table to estimate the heat sink size:

Load Current (A)	Typical Heat Sink Size (cm2)
5	50
10	100
20	200

Always check the manufacturer’s guidelines for your specific model.

Mounting

Proper mounting keeps your SSR safe and reliable. You should mount the relay on a flat, metal surface. This helps with heat dissipation and prevents vibration damage.

Follow these mounting tips:

Use screws or DIN rail clips for secure attachment.
Avoid placing SSRs near heat sources or in direct sunlight.
Leave space between SSRs for airflow.
Keep wires short and neat to reduce electrical noise.

Note: Some SSRs have special mounting holes or slots. Always use the recommended hardware for your relay.

Correct installation and sizing help your SSR last longer and work better. Take time to plan your setup before you start wiring.

Selecting the Right Relay for Your Project

Control Input Compatibility

You need to make sure your solid state relay matches your control system. The control input is the signal that tells the relay when to turn on or off. Some SSRs work with simple digital signals, while others need a variable voltage for more precise control.

Digital on/off SSRs are easy to use. You send a basic signal, and the relay switches right away.
Proportional control SSRs let you adjust the output. You can use a variable voltage to control how much power goes to your load.

Check the voltage and current your control circuit can provide. The SSR’s input must match these values. If your control signal is too weak, the relay will not switch. If it is too strong, you could damage the relay.

Tip: Always read the SSR datasheet. Look for the minimum and maximum control input voltage and current. This helps you avoid wiring mistakes and keeps your project safe.

Environmental Factors

You must consider where you will install your SSR. Temperature, humidity, and dust can affect how well your relay works. High temperatures can cause the SSR to overheat. You should keep the base temperature below 85°C. Use a thermocouple to check the temperature if needed.

If your project faces power surges, add a Metal Oxide Varistor (MOV) across the load terminals. The MOV voltage rating should match the SSR voltage rating. This protects your relay and extends its life.

Here is a checklist to help you with selecting the right relay for tough environments:

Choose an SSR with a maximum load voltage rating equal to or higher than your system voltage.
Make sure the surge current rating meets or exceeds your load’s surge current.
Compare the SSR’s maximum load current without a heatsink to your average load current. Add a heatsink if needed.
Place the relay in a spot with good airflow and away from heat sources.
Use covers to protect the relay from dust and moisture.

Note: SSRs often fail in a closed state. Always plan for safety by using proper circuit placement and protective covers.

By checking control input compatibility and environmental factors, you improve safety and reliability in your project.

SSR Certifications and Quality

Standards

When you select a solid state relay, you need to check for certifications and compliance with international standards. These standards help you know that the SSR meets safety and quality requirements. Many organizations, such as the International Atomic Energy Agency (IAEA) and the Nuclear Regulatory Commission (NRC), set these rules. You can use the table below to see some important standards and what they mean for SSRs:

Aspect	Standard Reference	Requirement/Description
Radiation Level Definition	IAEA SSR-6, NRC §71.4	Defines radiation level as dose equivalent rate (millirem/hour or sievert) for safety in shipments.
Thermal Test Conditions	IAEA SSR-6, NRC §71.73(b)	Includes solar insolation as a test condition to ensure SSRs work in real accident scenarios.
Fissile Material Mass Limits	IAEA SSR-6, NRC §71.15	Sets a limit on fissile material mass for safe transport (NRC: 140g; IAEA: 45g).
Pressure Test Requirements	NRC §71.71(c)(3)	Requires SSR packages to withstand reduced pressure (down to 25 kPa) during transport.
Leaching Test for LSA-III	IAEA SSR-6, NRC §§71.4, 71.77	Removes outdated leaching tests to match new material standards.
Transitional Arrangements	IAEA SSR-6, NRC CoC package IDs	Phases out old package approvals and sets deadlines for new compliance.
Special Form Radioactive Mat.	NRC §71.75, IAEA SSR-6	Sets strict testing and acceptance for special form materials to control hazards.

Tip: Always look for SSRs with certifications like UL, CE, RoHS, or REACH. These marks show that the relay meets global safety and environmental standards.

Manufacturer Reputation

You should also consider the reputation of the SSR manufacturer. Reliable brands often provide better quality, longer lifespan, and improved safety features. Here are some things to look for:

Top manufacturers, such as Crydom (Sensata Technologies), Omron, Carlo Gavazzi, Panasonic, Schneider Electric, and Siemens, hold about 70% of the market share. This shows strong trust in their products.
Leading brands invest in research and development. They focus on features like silent operation, fast switching, and built-in diagnostics for predictive maintenance.
Compliance with safety and environmental rules, such as RoHS and REACH, is common among top brands.
The SSR market grows quickly, with a projected 7.0% CAGR from 2025 to 2033. This growth comes from innovation in miniaturization, smart features, and better thermal management.
Brands like ABB, Vishay, Texas Instruments, and Rockwell Automation are known for reliability and strong market presence.
Manufacturers often offer a wide range of SSRs for different uses, such as industrial automation, power control, and HVAC.

Note: Choosing a trusted manufacturer helps you avoid problems and ensures your SSR will perform well in your project.

Common Mistakes When Choosing an SSR

When you select a solid state relay, you want to avoid common mistakes that can lead to system failure or safety risks. Many people overlook important details during the selection process. Here are two mistakes you should watch out for:

Underrating Current

You might think it is safe to choose an SSR with a current rating that matches your load exactly. This is not true. If you underrate the current, the relay can overheat or fail. Always select an SSR with a current rating higher than your maximum load. For example, if your system draws 8 amps, pick a relay rated for at least 10 amps. This extra margin helps the relay handle short surges and keeps it working longer.

Tip: Check the datasheet for the maximum current and consider the environment. High temperatures can lower the relay’s current capacity.

A simple table can help you remember:

Load Current (A)	Recommended SSR Rating (A)
5	7-10
10	12-15
20	25-30

Ignoring Load Type

You need to match the SSR to your specific load type. Not all relays work with every kind of load. For example, a relay that works well with a heater may not work with a motor. Motors and transformers create high inrush currents. Heaters and lamps are resistive loads. If you ignore the load type, you risk damaging the relay or your equipment.

Always read the relay’s datasheet to see which loads it supports. Ask your supplier if you are unsure.

By avoiding these mistakes, you improve the safety and reliability of your project.

SSR Selection Checklist

Quick Reference

You want to make sure you choose the right solid state relay for your project every time. A clear checklist helps you avoid mistakes and keeps your system safe. Use this quick reference before you buy or install any SSR.

? Tip: Always keep this checklist handy when you use a relay selection guide for your next project.

SSR Selection Quick Reference Table

Checklist Category	What to Check	Why It Matters
Output Current	Rated higher than your maximum load current	Prevents overheating and extends relay life
Output Voltage	Matches or exceeds your system’s highest voltage	Avoids relay failure and keeps your system stable
Load Type	SSR supports your load (resistive, inductive, or capacitive)	Ensures reliable switching and protects equipment
SSR Type	AC, DC, or universal, as required by your application	Matches your power source for safe operation
Switching Method	Zero crossing for resistive loads; random turn-on for fast or inductive loads	Reduces noise and improves efficiency
Protection Features	Surge, overload, and isolation ratings meet your needs	Guards against damage from spikes or faults
Heat Dissipation	Proper heat sink and airflow based on load current	Prevents overheating and failure
Control Input Compatibility	Input voltage and current match your control circuit	Ensures the relay switches reliably
Environmental Suitability	Rated for your temperature, humidity, and dust conditions	Keeps the relay working in tough environments
Certifications and Manufacturer	Meets UL, CE, RoHS, or other standards; trusted brand	Confirms quality and safety

You can see that each step in the relay selection guide matches a key part of SSR performance. Studies show that using a checklist improves accuracy and reduces errors. In one review, no project met all criteria without a checklist, which highlights the value of this approach.

Review each item before you finalize your SSR choice.
Use the relay selection guide and this checklist together for best results.
If you have questions, ask your supplier or check the datasheet.

??? Note: A good checklist helps you avoid missing important details. It also supports better reporting and project outcomes.

You can select the right solid state relays by following each step in this guide. Focus on output current, voltage, and load type to keep your project safe and reliable. Using a structured selection process, like the one in this guide, helps you control errors and improve results. Always use the checklist before installation. Share your questions or experiences with solid state relays to help others learn from this guide.

FAQ

What is the main advantage of using a solid state relay?

You get faster switching and longer life. SSRs have no moving parts, so they do not wear out quickly. You also avoid sparks and noise during operation.

Can you use a solid state relay for both AC and DC loads?

You must choose the correct SSR type. AC SSRs work with AC loads. DC SSRs work with DC loads. Universal SSRs can handle both, but always check the datasheet.

How do you know if your SSR needs a heat sink?

Check the datasheet for power dissipation and load current. If the SSR gets hot during use, you need a heat sink. Good airflow also helps keep it cool.

What happens if you select an SSR with the wrong current rating?

If you pick an SSR with a low current rating, it may overheat or fail. Always select a relay with a higher current rating than your load requires.

Do solid state relays need maintenance?

You do not need regular maintenance for SSRs. They have no moving parts. You should still check for dust, overheating, or loose connections during inspections.
