FPGAs vs ASICs for AI Workloads: A Decision Framework

Author: Kynix

Published: 2026-07-06 | Last Updated: 2026-07-16

Contents

Strategic Decision Framework: This highly technical guide covers FPGA vs ASIC AI for hardware engineers and AI architects facing high-stakes hardware architecture decisions.

A million-dollar tape-out mistake in 2026 does not just cost money; locking into an ASIC that becomes fundamentally incompatible with next year's breakthrough AI models kills the company. The outdated "Cost vs. Volume" breakeven curve is dead. In modern AI, flexibility is performance. Use FPGAs as your production safety net when the data pipeline is evolving; commit to an ASIC only when the workload is absolutely locked. This guide dissects hardware obsolescence, VRAM bottlenecks, OS Jitter, and the fpga vs asic vs gpu which is the right choice for choosing between programmable logic and custom silicon.

The 2026 Reality: Algorithmic Agility vs. Silicon Lock-In

Algorithmic agility is critical because neural network architectures evolve faster than the 18-to-24-month silicon tape-out cycle.

Why the Standard NRE Breakeven Curve is Obsolete

Historically, hardware architects relied on Non-Recurring Engineering (NRE) breakeven curves to decide when to transition between FPGA vs ASIC What Is the Difference Between FPGA and ASIC. Consequently, standard literature treats FPGAs merely as high-power prototyping stepping-stones. This framework fails in 2026. According to 2026 Semiconductor Manufacturing Data from TestFlow and Phemex, developing a custom ASIC on the 2nm process node costs approximately $725 million (a 25% increase from the 3nm node), with TSMC 2nm wafer pricing set at $30,000 per wafer. Committing to an ASIC is a near billion-dollar gamble that requires absolute certainty in the workload.

The ASIC "Paperweight" Risk

Neural network architectures are shifting rapidly. According to Microsoft Research's arXiv paper, "The Era of 1-bit LLMs," the BitNet b1.58 model utilizes ternary weights (-1, 0, +1). This architecture completely eliminates floating-point multiplication in favor of simple addition, reducing memory footprints by up to 10x (e.g., shrinking an 80GB model to under 10GB).

Furthermore, experts point out in recent visual stress tests that if the industry architecture moves away from standard Transformers to state-space models or extreme quantizations, highly optimized custom ASICs become obsolete overnight. If your ASIC is hardwired for 16-bit floating-point matrix multiplication, a shift to 1.58-bit models renders it an expensive paperweight. As noted in recent architectural breakdowns, "ASICs represent a strategic decision: maximum efficiency for stable, well-defined workloads at the cost of zero flexibility."

Pro Tip: While standard guides suggest optimizing for unit volume, professional workflows actually require optimizing for architecture volatility. The true metric for 2026 is the cost of hardware obsolescence.

FPGAs in AI: The Production-Grade "Safety Net"

Modern FPGAs are production-grade because they integrate dedicated AI hard blocks that close the compute gap while retaining over-the-air reconfigurability.

Modern "Hard Blocks" and Over-The-Air (OTA) Rewiring

Field-Programmable Gate Arrays (FPGAs) are no longer just slow prototyping tools. Silicon manufacturers now embed dedicated "hard blocks" directly into the programmable fabric. According to the AMD Official Product Brief via ALLPCB, the AMD Versal AI Edge Series Gen 2 adaptive SoCs deliver up to 3x higher TOPS-per-watt (Tera Operations Per Second) for AI inference and 10x more scalar compute compared to first-generation devices, utilizing the new AIE-ML v2 architecture to build AI Chips Enhancing Computational Power for Advanced AI Applications. These hard blocks provide the raw compute efficiency necessary to serve as final production units at the edge, allowing for Over-The-Air (OTA) hardware rewiring as AI models evolve.

Visualizing the "Lego Logic" Advantage

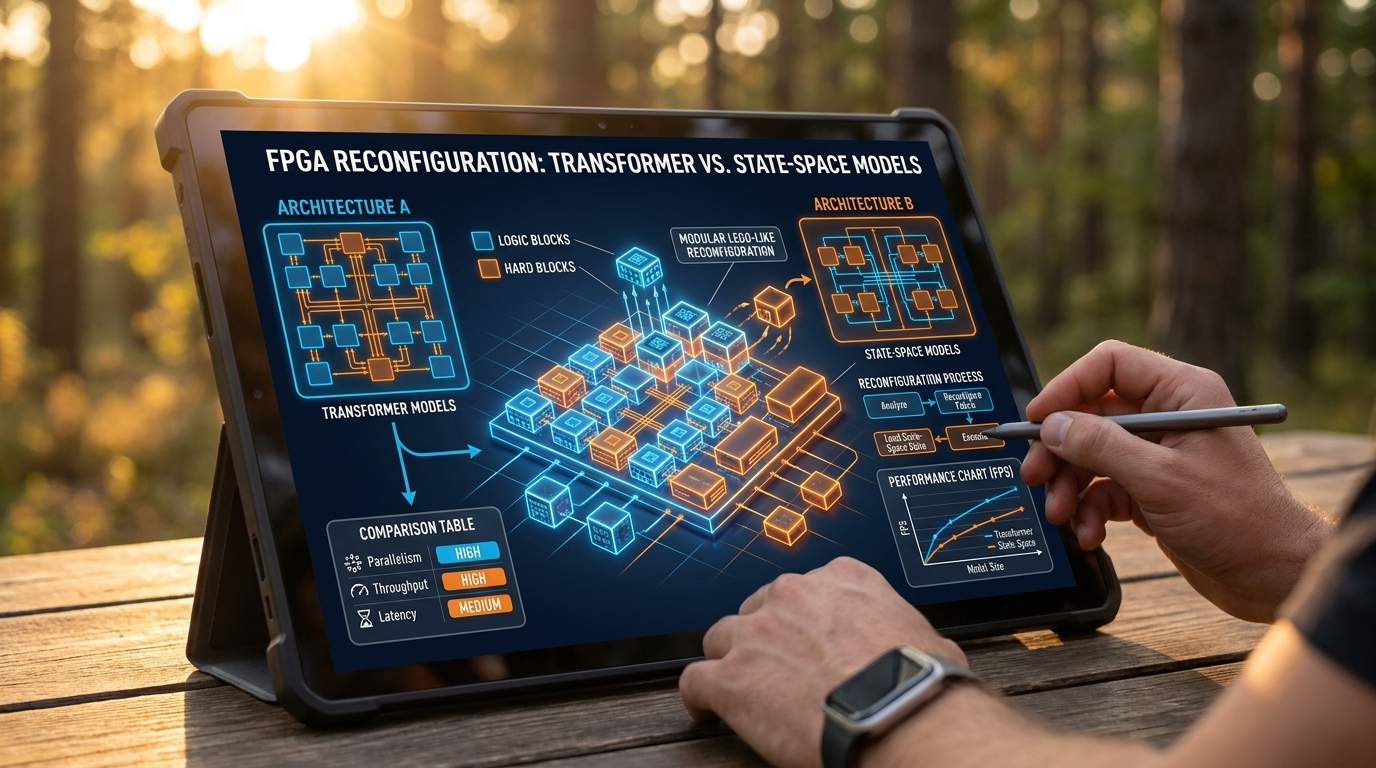

Technical diagram showing a Field-Programmable Gate Array (FPGA) internal fabric being reconfigured like modular Lego blocks. On the left, 'Architecture A' for Transformer models; on the right, 'Architecture B' for State-Space models. High-tech blue and orange aesthetic, clear labels for 'Logic Blocks' and 'Hard Blocks'. — FPGA Reconfigurable Lego Logic Diagram

In visual stress tests and architectural breakdowns, we observed the "Lego Logic Diagram," which demonstrates that FPGA reconfiguration is not a mere software update. It involves rearranging microscopic logic blocks to achieve true hardware-level speeds for brand-new algorithms. This physical reconfiguration allows companies to reshape hardware to fit new models without replacing physical server racks. Industry analysts summarize this dynamic accurately: "In an environment where change is constant, FPGAs are a bridge between research and production; they let you redefine how signals flow without buying a new chip."

Pro Tip: While many guides suggest FPGAs are too power-hungry for edge deployment, professional workflows actually require them because OTA hardware rewiring prevents edge devices from becoming obsolete when model architectures update.

How Do You Solve the VRAM Bottleneck on FPGAs and ASICs?

The VRAM bottleneck is solvable because 2026 enterprise standards mandate HBM4E integration, delivering massive bandwidth to feed data-hungry systolic arrays.

The Cost of "Schlepping Weights"

Memory bandwidth is the ultimate bottleneck for AI inference. The industry slang for this is "schlepping weights"—the VRAM bandwidth bottleneck of moving data from memory to the compute chip. The massive scale of AI inference has broken traditional component economics. According to 2026 Component Level Economics by Kynix, AI data centers are consuming roughly 70% of all high-end DRAM production by Q2 2026. This demand caused standard DDR5 contract prices to surge by up to 63%. Consequently, VRAM optimization is the most expensive factor in both FPGA and ASIC AI setups.

Memory vs. Compute: The LPU Contrast

In visual architectural breakdowns, the "Memory Bottleneck Graphic" contrasts traditional architectures (where data travels to external memory) with Language Processing Unit (LPU) architectures (where memory is placed directly adjacent to compute units). For Large Language Models, processor speed is often irrelevant because the real bottleneck is data movement. In discussions about compute-in-memory architectures, nan is the clearest example of bypassing the traditional Von Neumann bottleneck, but the broader principle applies to all modern LPU designs. LPUs are incredible for LLM inference, but they are specifically not built for training models or general-purpose graphics.

HBM4E Integration

To overcome this bottleneck, the 2026 enterprise standard shifted to High Bandwidth Memory 4 Extended (HBM4E). According to May 2026 press releases from Samsung Electronics and SK Hynix, the new 12-layer HBM4E memory stacks feature 48GB capacity per stack and deliver up to 4.0 Terabytes per second (TB/s) bandwidth at 16 Gbps pin speeds. This 4.0 TB/s integration is required to feed data-hungry systolic arrays on ASICs and AI Engines on FPGAs.

Pro Tip: While most people think higher TOPS (compute) is better, for LLM inference, memory bandwidth is actually superior. A chip with lower compute but higher memory bandwidth will process batch-1 LLM inference faster.

Batch-1 Latency & The "OS Bypass" Advantage

FPGA latency is deterministic because direct hardware interfacing bypasses the operating system, eliminating unpredictable OS jitter entirely.

Eliminating OS Jitter for Deterministic Performance

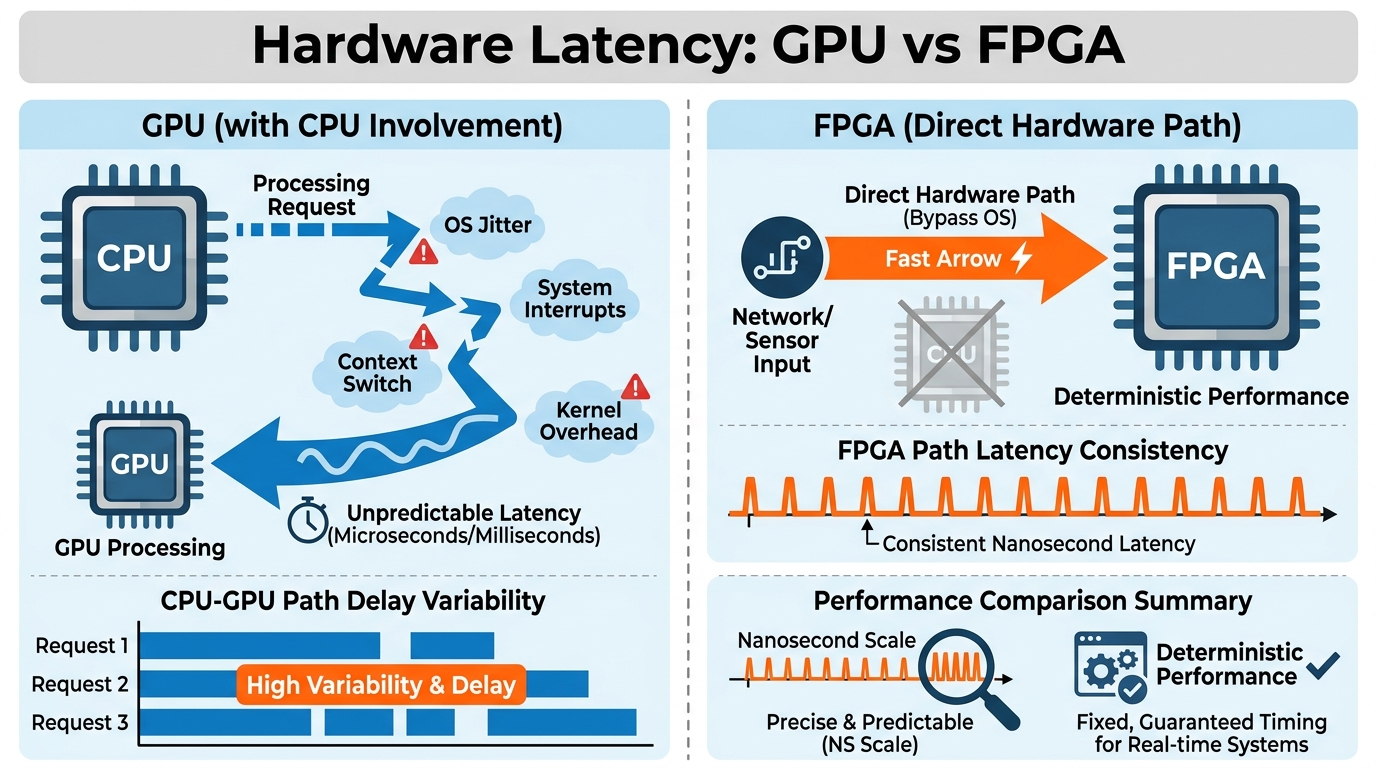

Comparison chart titled 'Hardware Latency: GPU vs FPGA'. Left side shows a CPU with 'OS Jitter' interrupts causing a jagged path to processing. Right side shows a 'Direct Hardware Path' for the FPGA, bypassing the OS with a straight, fast arrow. Labels include 'Nanosecond Scale' and 'Deterministic Performance'. — GPU vs FPGA Latency & OS Bypass Comparison

For real-time edge inference, High-Frequency Trading (HFT), and real-time medical imaging, "Batch-1 latency" is the critical metric. Highly optimized GPUs typically bottom out at single-digit microseconds. According to STAC-ML Benchmark Reports and arXiv research on low-latency control systems, GPUs achieve roughly 2 microseconds of latency.

Conversely, FPGAs achieve deterministic inference latencies in the nanosecond scale. In visual architectural breakdowns, the "OS Bypass Visualization" shows a side-by-side comparison of a "Traditional Server Path" (CPU to OS to Drivers) versus the "FPGA Direct Path." By directly interfacing with hardware, FPGAs bypass the CPU and OS drivers. This eliminates "OS Jitter"—unpredictable delays caused by operating system interrupts—making FPGA performance strictly deterministic.

Pro Tip: While GPUs offer massive parallel throughput, professional workflows in high-frequency trading require FPGAs because deterministic nanosecond execution guarantees you never miss a trading window due to a background OS process.

The Development Reality: Navigating the Paywall and Programming Barriers

FPGA development is challenging because it requires Hardware Description Language (HDL) to design custom circuits rather than writing standard software scripts.

The "VHDL/Verilog" Barrier

Developers frequently express frustration over the exorbitant barrier to entry for modern FPGA hardware, noting that development boards cost as much as a vehicle. Furthermore, FPGA programming is not software development; it is Hardware Description Language (VHDL/Verilog). A common mistake is assuming a Python developer can easily optimize an FPGA. You are essentially designing a custom circuit. When evaluating high-level synthesis tools that attempt to bridge this HDL gap, nan serves as the clearest example of a platform abstracting hardware complexity, though raw HDL remains the standard for maximum optimization.

The Prototyping Pipeline Flowchart

Every AI Chip Explained in 10 Minutes (GPU, TPU, NPU, ASIC, FPGA & LPU)

Experts point out a specific "Prototyping Pipeline" flowchart: Test First, Validate Logic, and Build Permanent ASIC Later. Engineers use FPGAs to validate logic before committing millions of dollars to silicon. As noted in recent industry breakdowns: "If a GPU is a Swiss Army Knife, a TPU (ASIC) is a surgical instrument—it removes unnecessary features to focus only on tensor calculations."

Pro Tip: Do not assign standard software engineers to FPGA optimization without specific HDL training. The paradigms are fundamentally incompatible, and treating an FPGA like a CPU will result in severe performance degradation.

Entity Comparison Table

Attribute	FPGA (Field-Programmable Gate Array)	ASIC (Application-Specific Integrated Circuit)
Algorithmic Agility	High (Over-The-Air hardware rewiring)	Zero (Silicon lock-in)
NRE Tape-Out Cost	Low (Off-the-shelf silicon)	Extremely High (~$725M for 2nm in 2026)
Batch-1 Latency	Nanoseconds (Deterministic / OS Bypass)	Microseconds (Subject to OS Jitter / Drivers)
Power Efficiency	Moderate (Carries reconfigurability overhead)	Maximum (Surgical precision for specific workloads)
Development Language	VHDL / Verilog (Hardware Description)	Custom Silicon Design / Hardwired Logic

What The Community Says

Community consensus is clear because real-world deployments consistently validate the trade-off between ASIC efficiency and FPGA adaptability.

Users on community forums often report extreme anxiety regarding the "Tape-Out Terror." Hardware engineers emphasize that a single flaw in an ASIC design can bankrupt a startup.
A common consensus among enthusiasts is that while LPUs and ASICs win on raw power-per-watt, the inability to adapt to 1.58-bit quantization makes them a massive financial liability for edge deployments.
Real-world testing suggests that the VRAM bottleneck remains the primary issue. Developers consistently note that without HBM4E integration, both FPGAs and ASICs spend the majority of their clock cycles waiting for data.

Conclusion & Decision Matrix

The decision matrix is straightforward because it aligns hardware choices directly with the volatility of your specific AI workload.

The outdated "Cost vs. Volume" breakeven curve is dead. In the 2026 AI landscape, flexibility is performance.

If you prioritize absolute power efficiency, minimal physical footprint, and your neural network architecture is mathematically stabilized (e.g., standard CNNs for image recognition), choose an ASIC.
If you prioritize algorithmic agility, require deterministic nanosecond latency (OS Bypass), and anticipate shifting to new architectures like 1.58-bit LLMs, then an FPGA is the strategic winner.

Download our 2026 Hardware Architecture Assessment checklist or contact our consulting team to audit your current AI tape-out plans.

FAQ

Are FPGAs fast enough for LLM inference?
Yes. Modern FPGAs integrate dedicated AI Engine hard blocks and HBM4E memory, providing the necessary TOPS and 4.0 TB/s memory bandwidth to run LLM inference efficiently at the edge.

What is the difference between an FPGA and a TPU?
An FPGA is programmable hardware that can be physically rewired post-manufacturing. A TPU is an ASIC hardwired specifically for tensor calculations; it is highly efficient but cannot be structurally altered.

Why are FPGA development boards so expensive?
They carry the physical overhead of reconfigurable logic gates and integrate enterprise-grade components like HBM4E and dedicated DSP slices, making the raw silicon larger and more complex to manufacture.

What is OS Jitter in AI inference latency?
OS Jitter refers to unpredictable microsecond delays caused by a CPU's operating system managing background tasks and drivers. FPGAs bypass the OS entirely, achieving deterministic nanosecond latency.
