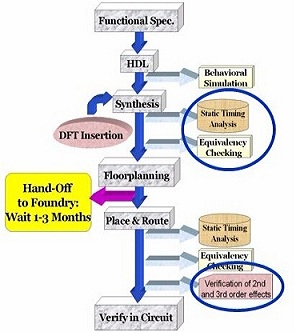

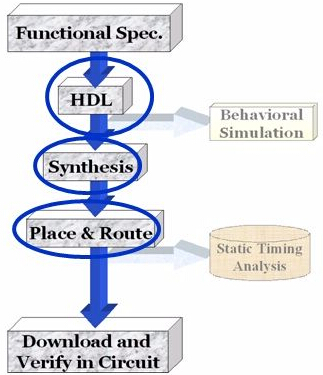

FPGA vs ASIC: What Is the Difference Between FPGA and ASIC?

IntroductionIn the rapidly evolving landscape of high-performance computing and embedded systems, Field-Programmable Gate Arrays (FPGAs) have emerged as a cornerstone technology, offering unparalleled flexibility and acceleration capabilities. Among the titans of this industry, Intel FPGA (formerly Altera) stands out, providing a robust portfolio of programmable logic devices that power everything from data centers to cutting-edge AI applications. Have you ever wondered how these versatile chips are shaping the future of technology, or perhaps felt overwhelmed by the sheer complexity of getting started with FPGA development? You’re not alone. The world of FPGAs can seem daunting, but understanding Intel’s offerings, especially since its acquisition of Altera, is crucial for anyone looking to leverage hardware acceleration.Did you know that the global FPGA market is projected to reach over $12 billion by 2027, driven by the increasing demand for AI, 5G, and IoT applications? This growth underscores the critical role FPGAs play in modern technological advancements. This comprehensive guide will demystify Intel FPGA (Altera), walking you through its core technologies, development tools, product lines, and ecosystem. We’ll explore everything from fundamental concepts to advanced applications, providing a clear roadmap for both beginners and experienced engineers. By the end of this article, you’ll have a solid understanding of Intel FPGA’s capabilities and how to navigate its powerful ecosystem to accelerate your next project.Figure 1: An Intel FPGA development board, showcasing various components and interfaces.Source: The Samtec BlogIntel FPGA vs Xilinx (AMD): Architecture, Performance, and Ecosystem ShowdownWhen diving into the world of FPGAs, the perennial debate between Intel FPGA and Xilinx (now AMD) is unavoidable. Both companies offer powerful, albeit distinct, approaches to programmable logic. While Intel FPGAs, with their roots in Altera, are often lauded for their strong emphasis on embedded processors and system-on-chip (SoC) designs, Xilinx has historically focused on high-performance logic and advanced DSP capabilities. This rivalry has driven innovation, providing developers with a rich choice of architectures tailored for diverse applications.Figure 2: An Intel FPGA chip, highlighting its compact design and processing power.Source: WebWireLet’s break down some key comparisons across their product lines:Intel FPGA Cyclone vs Xilinx Spartan ComparisonFor cost-sensitive and low-power applications, both Intel and Xilinx offer entry-level FPGA families. Intel’s Cyclone series, such as the Intel FPGA Cyclone V and Cyclone 10 LP, are popular choices for their balance of logic, memory, and I/O capabilities, often found in industrial, automotive, and consumer electronics. On the other hand, Xilinx’s Spartan series, including the Spartan-7, provides a compelling alternative with a focus on general-purpose logic and connectivity. While both aim for economic viability, subtle differences in their fabric and toolchain can influence design choices.FeatureIntel FPGA Cyclone SeriesXilinx Spartan SeriesTarget Use CasesIndustrial, Automotive, Consumer, Low-Power EmbeddedGeneral-Purpose Logic, Connectivity, Cost-OptimizedKey StrengthsIntegrated hard IP, SoC capabilities (Cyclone V SoC)DSP slices, flexible I/O, broad ecosystemPower EfficiencyGood for low-power applicationsCompetitive, especially for general logicFigure 3: A comparative overview of significant FPGA product families from Intel, Xilinx, and Lattice Semiconductor.Source: JAK ElectronicsIntel FPGA Arria vs Xilinx Artix/Kintex ComparisonMoving up the performance ladder, Intel’s Arria series and Xilinx’s Artix/Kintex families compete in the mid-range to high-performance segments. Intel FPGA Arria devices, like the Arria 10, are designed for high-bandwidth applications, featuring high-speed transceivers and DSP blocks, making them suitable for communications, broadcast, and military applications. Xilinx’s Artix-7 and Kintex-7 (and their Ultrascale counterparts) offer a strong proposition with their emphasis on DSP performance and high-speed serial connectivity, often preferred in medical imaging, test & measurement, and aerospace.Intel FPGA Stratix vs Xilinx Virtex/Versal ComparisonAt the pinnacle of FPGA performance, Intel’s Stratix series and Xilinx’s Virtex/Versal families battle for dominance in the most demanding applications. Intel FPGA Stratix devices, such as the Stratix 10 and the newer Agilex series, push the boundaries of performance with advanced process technologies, high-density logic, and integrated features like HBM (High Bandwidth Memory) and advanced transceivers. These are deployed in data centers, high-performance computing (HPC), and 5G infrastructure. Xilinx’s Virtex UltraScale+ and the adaptive compute acceleration platform (ACAP) Versal series offer formidable competition, integrating powerful processing systems, AI engines, and advanced connectivity for next-generation systems. The choice here often hinges on specific workload requirements, power budgets, and the intricacies of their respective development ecosystems.Figure 4: The user interface of Intel Quartus Prime Software, showing project creation options.Source: Intel.comPro Tip: When comparing FPGAs, always look beyond raw logic element counts. Consider the number and type of DSP blocks, embedded memory, transceiver speeds, and the availability of hard IP blocks relevant to your application. The true performance lies in how these resources are integrated and optimized for your specific design.Intel FPGA Software & Toolchain: Quartus Prime Core GuideDeveloping with FPGAs requires a robust and intuitive software suite, and for Intel FPGAs, that suite is primarily the Quartus Prime Software. This comprehensive multiplatform environment provides everything you need to design, synthesize, simulate, and program FPGAs, SoC FPGAs, and CPLDs. It’s the central hub for your FPGA development journey, offering a rich set of features that streamline the design flow from concept to silicon.Quartus Prime comes in different editions (Lite, Standard, and Pro), catering to various design complexities and device families. Key features include an advanced synthesis engine, timing analysis tools, power analysis, and the Qsys system integration tool, which significantly accelerates the process of connecting IP blocks and creating complex systems-on-chip. For instance, Qsys allows you to visually assemble your system, automatically generating the interconnect logic, saving countless hours of manual HDL coding.Intel Nios II Embedded Processor Introduction and PracticeOne of the significant advantages of the Intel FPGA ecosystem is the Intel Nios II embedded processor. This is a highly configurable, royalty-free 32-bit embedded soft-core processor that you can implement within your FPGA. It allows you to integrate a microcontroller-like functionality directly into your hardware design, enabling hybrid hardware-software solutions on a single chip. This is particularly useful for control logic, data processing, and managing peripherals that don’t require the extreme parallelism of the FPGA fabric.Figure 5: A block diagram illustrating the configurable components of the Intel Nios II Processor.Source: FPGA loverGetting started with Nios II typically involves:Hardware Design: Using Qsys to instantiate the Nios II processor and connect it to various peripherals (GPIO, UART, timers, custom IP).Software Development: Writing C/C++ code using the Nios II Embedded Design Suite (EDS), which is based on the Eclipse IDE. This allows you to develop firmware that runs on the Nios II processor.Debugging: Utilizing the integrated debugging tools within EDS to test and verify your software on the FPGA.The Nios II processor significantly simplifies the development of complex embedded systems by allowing a portion of the design to be handled in software, leveraging familiar programming paradigms while still benefiting from the hardware acceleration capabilities of the FPGA.Accelerating Development with Intel FPGA HLS CompilerTraditional FPGA development often involves writing hardware description languages (HDLs) like Verilog or VHDL, which can be time-consuming and complex for high-level algorithms. This is where the Intel FPGA HLS (High-Level Synthesis) Compiler comes into play. HLS allows designers to describe their algorithms in C++ and then automatically synthesize that C++ code into optimized RTL (Register Transfer Level) for implementation on an FPGA.Figure 6: An Altera MAX 10 FPGA Development Board, ideal for beginners and cost-effective projects.Source: Amazon.comBenefits of using the Intel FPGA HLS Compiler include:Increased Productivity: Develop at a higher level of abstraction, significantly reducing design and verification time.Faster Exploration: Quickly iterate on architectural choices and explore different implementations to find the optimal balance of performance, area, and power.Software-Hardware Co-design: Bridge the gap between software and hardware development teams, enabling software engineers to contribute directly to FPGA designs.IP Reuse: Easily reuse C++ intellectual property (IP) across different projects and platforms.While HLS offers tremendous advantages, it’s important to understand the nuances of writing synthesizable C++ code to achieve efficient hardware. It’s a powerful tool for accelerating complex algorithm implementation on FPGAs, especially for applications like digital signal processing and machine learning.Verilog for Intel FPGA Best PracticesEven with the advent of HLS, Verilog (and VHDL) remains fundamental to FPGA design. Adhering to best practices when writing Verilog for Intel FPGAs ensures efficient resource utilization, better timing closure, and easier debugging. Here are some key considerations:Synchronous Design: Prioritize synchronous design principles, using a single clock domain for most logic and carefully managing clock domain crossings (CDCs).Reset Strategy: Implement proper reset synchronization to avoid metastability issues.Blocking vs. Non-Blocking Assignments: Understand and correctly use blocking (=) and non-blocking (<=) assignments. Non-blocking assignments are generally preferred for sequential logic to avoid race conditions.Finite State Machines (FSMs): Use clear and concise coding styles for FSMs, separating combinational and sequential logic for readability and synthesis.Parameterization: Utilize parameters to create flexible and reusable modules.Avoid Latches: Be mindful of inferring latches, as they can lead to unpredictable behavior and are generally discouraged in synchronous designs.Testbenches: Develop comprehensive testbenches to thoroughly verify your Verilog modules before hardware implementation.Important Note: While the Quartus Prime software provides powerful synthesis capabilities, well-written and optimized HDL code will always yield better results. Familiarize yourself with the Intel FPGA design guidelines and coding styles for optimal performance and resource usage.Intel FPGA Development Board Selection and Procurement GuideChoosing the right Intel FPGA development board is a critical step in your design journey. These boards provide a ready-to-use hardware platform, allowing you to quickly prototype, test, and validate your FPGA designs without the need for custom PCB fabrication. Intel and its partners offer a wide array of development kits, ranging from low-cost options for beginners to high-performance platforms for complex applications.Figure 7: An Intel MAX 10 FPGA Development Kit, showcasing its compact design and integrated features.Source: Intel.comWhen selecting a development board, consider the following factors:FPGA Family: Match the board’s FPGA (e.g., Cyclone, Arria, Stratix, MAX 10) to your project’s performance, power, and cost requirements.On-board Peripherals: Look for peripherals relevant to your application, such as DDR memory, Ethernet, USB, HDMI, cameras, or specialized connectors.Connectivity: Ensure the board offers the necessary I/O interfaces and expansion options (e.g., FMC, PMOD, Arduino headers).Development Tools Support: Verify compatibility with Intel Quartus Prime Software and other necessary tools.Community and Documentation: A strong community and comprehensive documentation can significantly ease the learning curve and debugging process.For beginners, boards based on the Intel MAX 10 or Cyclone series are often recommended due to their lower cost and simpler architecture. For more advanced projects, Arria or Stratix-based boards provide higher logic density, faster transceivers, and more integrated features.Intel FPGA Pricing Strategy and Cost AnalysisUnderstanding the pricing of Intel FPGAs can be complex, as it varies significantly based on device family, logic density, features, and volume. Generally, FPGAs are priced higher than ASICs (Application-Specific Integrated Circuits) for high-volume production due to their reconfigurability and flexibility. However, for low-to-medium volume production, rapid prototyping, or applications requiring field upgrades, FPGAs offer a compelling cost advantage.Intel employs a tiered pricing strategy, with entry-level devices like the MAX 10 and Cyclone series being the most budget-friendly, while high-end Stratix and Agilex devices command premium prices due to their cutting-edge performance and advanced features. It’s important to consider not just the chip cost, but also the total cost of ownership, which includes development board expenses, software licenses (though Quartus Prime Lite is free), and engineering time.Recent trends indicate potential price adjustments in the FPGA market. For instance, some reports suggest Intel Altera may implement price increases in certain product categories in early 2025. When procuring FPGAs or development boards, it’s often beneficial to work with authorized distributors who can provide competitive pricing, volume discounts, and technical support.Official and Third-Party Intel FPGA Distributor DirectoryProcuring genuine Intel FPGA products and development boards from authorized sources is crucial to ensure authenticity, quality, and access to technical support. Intel maintains a network of official distributors globally. These distributors not only supply the hardware but also often provide valuable pre-sales and post-sales support, training, and design services.Some of the major authorized distributors for Intel (and formerly Altera) FPGAs include:Arrow Electronics: A global provider of electronic components and enterprise computing solutions. Arrow.comMouser Electronics: Specializes in the rapid introduction of new products and technologies for design engineers. Mouser.comDigi-Key Electronics: Offers a vast selection of electronic components for immediate shipment. DigiKey.comAvnet: A global technology distributor and solutions provider. Avnet.comAdditionally, many third-party vendors and academic partners offer specialized development boards and kits that integrate Intel FPGAs. While these can be excellent for specific use cases or educational purposes, always verify the vendor’s reputation and support before purchase.Intel FPGA Power Management Solutions ExplainedPower management is a critical aspect of FPGA design, especially for high-performance devices and battery-powered applications. Intel FPGA devices incorporate advanced power management features and require careful consideration of power delivery networks (PDN) to ensure stable operation and optimal performance. Efficient power management can significantly reduce operating costs and extend battery life in portable devices.Key aspects of Intel FPGA power management solutions include:Power Rails: FPGAs typically require multiple voltage rails for core logic, I/O, transceivers, and memory interfaces. Each rail needs a stable and clean power supply.Power Estimation Tools: Intel provides tools like the Power and Thermal Calculator (PTC) to estimate power consumption early in the design cycle, allowing engineers to optimize their designs for power efficiency.Dynamic Power Management: Modern Intel FPGAs, such as the Agilex series, feature advanced power-optimization capabilities like SmartVID, which dynamically adjusts core voltage to reduce power consumption while maintaining performance.Power Delivery Network (PDN) Design: Proper PDN design, including decoupling capacitors and PCB layout, is essential to minimize voltage droop and noise, ensuring reliable operation of the FPGA.External Power Management ICs (PMICs): Often, external PMICs from companies like Infineon or Monolithic Power Systems (MPS) are used in conjunction with FPGAs to provide efficient and regulated power delivery.Designing for low power is more important than ever, and Intel provides extensive documentation and support resources to help designers implement robust power management solutions for their FPGA-based systems.How to Start Learning Intel FPGA from Scratch: A RoadmapEmbarking on the journey of learning Intel FPGAs can be both exciting and challenging. With a solid roadmap, however, you can navigate the learning curve and build a strong foundation in FPGA development. Whether you’re a student, a hobbyist, or a professional looking to expand your skillset, here’s a step-by-step guide to get you started.Master the Fundamentals: Before diving into FPGAs, ensure you have a good grasp of digital logic concepts, including Boolean algebra, logic gates, flip-flops, and state machines. A solid understanding of these fundamentals is crucial for successful FPGA design.Learn an HDL: Choose a Hardware Description Language (HDL) to learn. Verilog and VHDL are the two most common HDLs. While both are powerful, Verilog is often considered to have a syntax that is more familiar to C programmers.Get a Development Board: As mentioned earlier, a development board is essential for hands-on learning. The Terasic DE10-Lite or DE10-Nano are excellent and affordable choices for beginners, featuring Intel MAX 10 and Cyclone V FPGAs, respectively.Install Quartus Prime: Download and install the free Intel Quartus Prime Lite Edition software. This will be your primary tool for designing, synthesizing, and programming your FPGA.Start with Simple Projects: Begin with classic “Hello, World!” projects for FPGAs, such as blinking an LED or controlling a seven-segment display. These simple projects will help you get familiar with the Quartus Prime workflow.Explore Tutorials and Resources: Leverage the vast amount of online resources available. Intel provides extensive documentation, tutorials, and training materials. Additionally, websites like FPGA developer and communities on Reddit (r/FPGA) are great places to learn and ask questions.What is Altera FPGA? A Brief History and Current StatusTo understand Intel FPGA, it’s essential to know its history with Altera. Founded in 1983, Altera was a pioneer in the programmable logic industry, introducing the world’s first reprogrammable logic device in 1984. For over three decades, Altera was a major player in the FPGA market, competing fiercely with Xilinx.In 2015, Intel acquired Altera for $16.7 billion, a landmark deal that integrated Altera’s leading FPGA technology with Intel’s processor and manufacturing prowess. Initially, the Altera brand was phased out in favor of “Intel FPGA.” However, in a strategic move in early 2024, Intel announced that it would operate its FPGA division as a standalone company named Altera, an Intel Company. This rebranding aims to provide the FPGA business with more autonomy and focus, allowing it to better serve its customers and accelerate innovation in the programmable solutions market.“By separating our FPGA business, we can create a more focused and agile organization that is better positioned to capitalize on the significant growth opportunities in the FPGA market.” - Sandra Rivera, CEO of AlteraOfficial and Community Tutorial Resources for Intel FPGAThere is a wealth of tutorial resources available for learning Intel FPGA. Here are some of the best places to find them:Intel FPGA Academic Program: Intel offers a dedicated program for students and educators, providing access to development boards, software, and course materials. Intel FPGA Academic ProgramIntel FPGA YouTube Channel: The official Intel FPGA YouTube channel features numerous tutorials, webinars, and product demonstrations.Terasic Website: Terasic, a major manufacturer of Intel FPGA development boards, provides excellent tutorials and resources for their products.Online Learning Platforms: Websites like Coursera, Udemy, and edX offer courses on FPGA design and Verilog/VHDL programming.OpenVINO on Intel FPGA: Deploying AI Inference ApplicationsOne of the most exciting applications of modern FPGAs is in the field of Artificial Intelligence (AI). OpenVINO (Open Visual Inference & Neural Network Optimization) toolkit is a comprehensive suite of tools from Intel that helps developers optimize and deploy AI inference workloads across a range of Intel hardware, including FPGAs. By leveraging OpenVINO, you can accelerate deep learning models on Intel FPGAs, achieving high performance and low latency for applications like computer vision, natural language processing, and robotics.The workflow for deploying AI on an Intel FPGA with OpenVINO typically involves:Training a Model: Train a deep learning model using a popular framework like TensorFlow or PyTorch.Optimizing with Model Optimizer: Use the OpenVINO Model Optimizer to convert the trained model into an Intermediate Representation (IR) that is optimized for Intel hardware.Deploying with Inference Engine: Use the Inference Engine to run the optimized model on the FPGA, taking advantage of its parallel architecture for high-throughput inference.Detailed Explanation of Intel MAX 10 Series CPLD/FPGAThe Intel MAX 10 series deserves a special mention as it blurs the line between CPLDs (Complex Programmable Logic Devices) and FPGAs. These devices offer the non-volatile, instant-on benefits of a CPLD with the density and features of a low-cost FPGA. This unique combination makes them ideal for a wide range of applications, including system control, I/O expansion, and power management.Key features of the Intel MAX 10 series include:Dual-Configuration Flash: Allows for dynamic switching between two different FPGA configurations.Analog Blocks: Integrated ADCs (Analog-to-Digital Converters) and temperature sensors.Nios II Soft-Core Processor Support: Enables the implementation of a soft-core processor for embedded control.Single-Chip Solution: The non-volatile nature of the MAX 10 eliminates the need for an external configuration device, saving board space and cost.These features make the Intel MAX 10 a versatile and cost-effective choice for many designs, and a great starting point for those new to the world of FPGAs.ConclusionNavigating the world of Intel FPGA (Altera) reveals a rich and powerful ecosystem that is integral to modern technology. From the cost-effective MAX 10 and Cyclone series to the high-performance Stratix and Agilex families, Intel offers a comprehensive portfolio of programmable logic devices to meet the demands of a wide range of applications. The acquisition of Altera has solidified Intel’s position in the FPGA market, blending its processor expertise with Altera’s programmable logic leadership. As we’ve explored, the journey into FPGA development is made accessible through powerful tools like Quartus Prime Software, the flexibility of the Nios II embedded processor, and the productivity gains of the Intel FPGA HLS Compiler.As the demand for AI, 5G, and high-performance computing continues to grow, the role of FPGAs will only become more critical. Intel’s strategic focus on this area, highlighted by the re-emergence of the Altera brand, signals a renewed commitment to innovation and customer success. Whether you are a seasoned engineer looking to accelerate your next design or a newcomer eager to dive into the world of programmable logic, the resources and technologies within the Intel FPGA ecosystem provide a clear path forward. The future of hardware is flexible, and with Intel FPGAs, you have the tools to build it.Ready to start your FPGA journey? Explore the official Intel FPGA website for the latest product information, download the Quartus Prime Lite Edition for free, and check out our wide selection of Intel FPGA development boards to find the perfect platform for your next project.Further ReadingXilinx vs. Intel: A Deep Dive into the FPGA GiantsGetting Started with Verilog: A Beginner’s GuideThe Role of FPGAs in Accelerating AI WorkloadsHave you ever found yourself at a crossroads, unsure which FPGA path to take for your project?Choosing the right FPGA can be a daunting task, especially with the myriad of options available from Intel and other vendors. Many engineers, like Sarah, a hardware startup founder, initially struggled with optimizing their designs for both performance and cost. “We spent weeks trying to port our algorithm to an ASIC, only to realize an FPGA could give us the flexibility we needed for rapid iteration,” she recounts. “The learning curve was steep, but with Intel’s Quartus Prime and their extensive documentation, we were able to get our prototype up and running much faster than anticipated.”Another common challenge is power management. John, an embedded systems developer, shared his experience: “Our initial design was consuming too much power, and we were hitting thermal limits. It wasn’t until we delved into Intel’s power estimation tools and applied their SmartVID features that we managed to significantly reduce our power footprint without compromising performance. It was a game-changer for our battery-powered device.”Common Pitfalls When Buying Intel FPGAsWhile Intel FPGAs offer immense potential, there are several common traps to avoid during the procurement and design process:Underestimating Software Costs: While Quartus Prime Lite is free, the Pro Edition and certain IP cores can incur significant licensing fees. Always factor these into your budget.Ignoring Power Management: Neglecting proper power delivery network (PDN) design and power optimization techniques can lead to unstable operation, thermal issues, and reduced device lifespan.Overlooking Development Board Compatibility: Ensure the development board you choose is fully compatible with your target FPGA device and offers the necessary peripherals and expansion options for your project.Skipping Community Resources: The FPGA community is a treasure trove of knowledge. Failing to leverage forums, online tutorials, and open-source projects can lead to unnecessary delays and frustration.Not Considering Long-Term Support: Verify the availability of long-term support, errata, and updates for your chosen FPGA family, especially for products with extended lifecycles.How to Choose the Best Intel FPGA for You: A Buying ChecklistTo simplify your decision-making process, consider this checklist:Define Your Requirements: What are your project’s performance, power, and cost targets? What kind of logic density, memory, and I/O are needed?Evaluate FPGA Families: Research Intel’s Cyclone, Arria, Stratix, and MAX 10 series to find the best fit for your application.Assess Development Tools: Ensure you are comfortable with the Quartus Prime software and its features, including HLS and Nios II if applicable.Check Ecosystem Support: Look for available IP cores, reference designs, and community support for your chosen device.Consider Power Budget: Use Intel’s power estimation tools to ensure your design meets power consumption goals.Review Pricing and Availability: Compare prices from authorized distributors and consider lead times.Editor’s ReviewFrom my personal experience working with various FPGA platforms, Intel FPGAs (and their Altera heritage) consistently deliver on performance and reliability. The integration of hard IP blocks, particularly in their SoC FPGAs, significantly simplifies complex designs. While the learning curve for Quartus Prime can be steep for newcomers, the depth of its features and optimization capabilities is truly impressive. The Nios II processor is a fantastic addition, allowing for flexible hardware-software co-design. For anyone serious about hardware acceleration, especially in areas like AI inference or high-bandwidth data processing, investing time in the Intel FPGA ecosystem is highly rewarding. The recent re-emphasis on the Altera brand also signals a positive direction, promising more focused innovation and support for the FPGA community.Frequently Asked Questions (FAQ)Is Intel FPGA the same as Altera?Yes, Intel FPGA is the same as Altera. Intel acquired Altera in 2015. While initially rebranded as “Intel FPGA,” the company recently announced it would operate its FPGA division as a standalone entity named Altera, an Intel Company, signaling a return to the well-known brand.What software is used for Intel FPGAs?The primary software used for Intel FPGAs is the Intel Quartus Prime Software. It provides a complete design environment for FPGAs, SoC FPGAs, and CPLDs, including design entry, synthesis, simulation, and programming.Which Intel FPGA is best for beginners?For beginners, the Intel MAX 10 series FPGAs are highly recommended. Development boards featuring MAX 10 devices, such as the Terasic DE10-Lite, are cost-effective and offer a good balance of features for learning the fundamentals of FPGA design.Can I use Verilog with Intel FPGAs?Yes, you can absolutely use Verilog (and VHDL) with Intel FPGAs. These Hardware Description Languages (HDLs) are fundamental to FPGA design, and the Intel Quartus Prime Software fully supports them for design entry and synthesis.How does OpenVINO relate to Intel FPGAs?OpenVINO is Intel’s toolkit for optimizing and deploying AI inference workloads across various Intel hardware, including FPGAs. It allows developers to accelerate deep learning models on Intel FPGAs, making them suitable for AI applications requiring high performance and low latency.

In today's digital era, the innovation and development of hardware technology is driving change in every industry at an unprecedented rate. FPGA (Field Programmable Gate Array), as a revolutionary reconfigurable hardware technology, is becoming a key bridge between traditional hardware and future smart applications. Whether it's communications infrastructure, artificial intelligence acceleration, industrial automation, or medical devices and automotive electronics, FPGAs are showing their unique technical appeal and application value. </p For engineers, technology decision makers, and electronics enthusiasts, an in-depth understanding of the working principles, application scenarios, and programming methods of FPGAs has become a necessary ability to grasp the trend of digital technology. However, in the face of complex technical details and rapidly evolving application scenarios, many people are still skeptical about FPGAs: what is the difference between it and traditional ASICs? How to choose the right FPGA programming language? In the field of artificial intelligence and high-performance computing, can FPGA really play its unique advantages? </p This article will unveil the mystery of FPGA technology, from basic concepts to in-depth applications, from the working principle to programming practice, an all-round analysis of the core value of this reconfigurable hardware technology and development prospects. Whether you are new to FPGAs or a senior engineer looking for a breakthrough, this in-depth guide will provide you with a clear technical path and practical application references. </p Let's explore the wonderful world of FPGAs and unlock the infinite possibilities of digital hardware design! What is an FPGA?Definition and Core Features of FPGAsFPGAs (Field Programmable Gate Array) are integrated circuits that can be programmed and reprogrammed by the user after fabrication to implement specific digital logic functions. As a semi-customized circuit, FPGAs combine the high performance of an application-specific integrated circuit (ASIC) with the flexibility of a general-purpose processor, providing a unique technology path for digital system design. The name FPGA directly reflects its three core characteristics: Field: This means that the FPGA can be programmed in the actual application environment without having to remove the chip and return it to the manufacturer. This "on-the-fly" programmability makes system design more flexible, allowing for quick adjustments and optimizations as needed.Programmable: The internal structure of FPGA can be configured by software tools to realize different logic functions. More importantly, this configuration can be modified multiple times, allowing the same FPGA chip to be adapted to different application requirements.Gate Array: Inside the FPGA consists of a large number of programmable logic units that are connected by programmable interconnect resources to form complex digital circuits.Historical Development of FPGAsThe evolution of FPGA technology can be traced back to the 1980s. in 1984, Xilinx introduced the world's first commercial FPGA chip, the XC2064, which opened a new era of programmable logic devices. Early FPGAs were mainly used for simple logic substitution and prototyping, but as technology continues to advance, modern FPGAs have evolved into complex system-on-chips containing millions of logic units, high-speed transceivers, embedded processors, and specialized hardware gas pedals. From simple programmable logic to today's heterogeneous computing platforms, the development of FPGAs has witnessed a revolutionary change in digital electronics technology. Today, FPGAs have become a key technology connecting traditional hardware design with emerging application areas, playing an increasingly important role in artificial intelligence, high-performance computing, communication networks, and other fields.Basic Architecture for FPGAsThe basic architecture of a modern FPGA consists of the following key components: This highly configurable architecture enables FPGAs to adapt to a wide range of application requirements from simple control logic to complex system-level designs, providing unprecedented flexibility and possibilities for digital system design.FPGAs vs. ASICsThe essential difference between the two technology pathsIn the field of digital integrated circuits, FPGAs (Field Programmable Gate Arrays) and ASICs (Application Specific Integrated Circuits) represent two distinct technology paths. represent two very different technology paths. While they both enable complex digital logic functions, there are significant differences in design concepts, performance characteristics, and application scenarios. ASICs are integrated circuits that are customized for a specific application, and once designed and manufactured, their internal logic functions cannot be changed. FPGAs, on the other hand, utilize a reconfigurable hardware architecture that allows users to modify their internal logic functions multiple times after deployment. This fundamental difference determines the unique strengths and limitations of both technologies in their respective fields.Strengths and Limitations of FPGAsCore Benefits of FPGAsFlexibility and Reconfigurability: The most significant advantage of FPGAs is their programmability, which allows designers to modify the hardware logic after deployment in response to changes in requirements or functionality upgrades without replacing the physical chip. This flexibility is especially important during the prototyping, technology iteration, and functional verification phases of a product.Fast Time to Market: FPGA development cycles are significantly shorter than those of ASICs, typically taking only a few weeks to a few months, whereas ASIC development can take a year or more. This enables organizations to get to market faster and grab a head start.Low Risk and Low Upfront Cost: FPGAs eliminate the need for expensive mask fabrication and fab production processes, greatly reducing the risk of upfront investment. Design errors can be fixed by reprogramming rather than remanufacturing an entire batch of chips.Adaptable: In areas where standards and protocols are frequently updated (e.g., communications and networking), FPGAs are able to adapt to new standards through firmware updates, extending the product lifecycle.Major Limitations of FPGAsHigher unit cost: Compared to mass-produced ASICs, FPGAs typically have a higher unit cost, which can be a constraint in mass-produced consumer electronics.Larger power consumption: Due to the overhead of general-purpose architectures and programmable interconnects, FPGAs typically consume more power than ASICs performing the same function, which is a significant disadvantage in portable devices and low-power applications.Performance cap: Despite the power of modern FPGAs, custom ASICs can still deliver higher processing speeds and lower latency in applications with extreme performance requirements.Less efficient resource utilization: The general-purpose architecture of FPGAs means that implementing specific functions may consume more hardware resources.Strengths and Limitations of ASICsCore Benefits of ASICsExcellent performance: ASICs are optimized for the highest processing speeds and lowest latency through application-specific hardware optimization for performance-critical applications.Low Power Consumption: Custom designs allow ASICs to optimize power consumption at the transistor level, allowing them to consume less energy than FPGAs for the same functionality, making them suitable for battery-powered and thermally sensitive applications.Low cost for mass production: Although the upfront development cost is high, the unit cost of ASIC in mass production is significantly lower than FPGA, making it suitable for large-scale markets such as consumer electronics.High Integration: ASICs can integrate more functionality, including analog circuits, RF circuits, and special interfaces, to achieve a true system-on-chip (SoC).Major limitations of ASICsHigh upfront costs: ASIC development requires huge investments in design, verification, mask making, etc., which can only be amortized in high-volume production.Long development cycle: From design to mass production, ASICs typically take 12-18 months and are not suited to rapidly changing market demands.High design risk: Once an ASIC is in production, any design error will result in the entire batch of chips being scrapped and cannot be repaired through software updates.Lack of Flexibility: ASICs are unable to adapt to late-stage standard changes or feature upgrade requirements, which can lead to premature product obsolescence.Selection criteria: when to choose FPGAs and when to choose ASICs?In practical applications, the choice of FPGA or ASIC should be based on a combination of factors: FPGA Applicable Scenarios:Product prototyping and proof-of-concept phasesProduction of limited quantities of specialized equipmentApplications that require frequent updates to hardware featuresAreas of rapid standards and protocol evolutionTime-sensitive market opportunitiesASIC Applicable Scenarios:Massive Consumer ElectronicsApplications with extremely high power and performance requirementsAreas of functional stability and mature standardsRequires a highly integrated system-on-chipLong life cycle products In many real-world projects, FPGAs and ASICs are not opposing choices, but complementary technologies. For example, many products will first use FPGAs for prototyping and low-volume production, and then move to ASICs for large-scale mass production after successful market validation and design stabilization. This "FPGA to ASIC" path reduces development risk and optimizes the cost-effectiveness of mass production. As technology evolves, the lines between FPGAs and ASICs are blurring. Modern FPGAs integrate more and more hard-core resources and are constantly optimized for performance and power consumption; while ASIC designs have adopted a more modular and configurable approach. In the future, these two technologies may further converge to provide more possibilities for digital system design.Applications for FPGAsDiversified application areasWith its unique reconfigurability and parallel computing capabilities, FPGAs (Field Programmable Gate Arrays) have demonstrated strong application value in a wide range of industry sectors. From traditional communications infrastructure to cutting-edge AI acceleration, from industrial automation to medical devices, FPGAs are reshaping the way digital systems are designed and implemented with their flexibility and high performance features.Communication and network infrastructureThe communications industry is one of the most important application areas for FPGAs, especially in 5G and future 6G network construction, FPGAs play an irreplaceable role.Base stations and network equipmentIn mobile communication base stations, FPGAs are widely used in core components such as RRUs (Remote Radio Units), AAUs (Active Antenna Units), and BBUs (Baseband Processing Units), etc. The high parallel processing capability of FPGAs enables them to efficiently implement signal processing algorithms such as FFT (Fast Fourier Transform), channel coding and decoding, and digital pre-distortion. In the wired networking space, FPGAs are used to implement data plane processing in high-speed switches and routers, supporting 100G/400G Ethernet interfaces and complex packet processing functions. the programmable nature of FPGAs also enables network devices to adapt to evolving network protocols and security requirements.Software Defined RadioFPGAs are an ideal platform for software-defined radios (SDRs), enabling different wireless communication standards and waveforms to be implemented through software configuration. This flexibility allows the same set of hardware to support a wide range of communication protocols, from traditional 2G/3G/4G/5G cellular networks to various wireless technologies such as Wi-Fi, Bluetooth, LoRa, and more. A real-world application example: A leading communications equipment manufacturer developed an upgradable base station platform utilizing FPGAs, which was initially deployed for a 4G network, and then successfully upgraded to support the 5G NR standard through an FPGA firmware update, avoiding the significant cost of hardware replacement.Artificial Intelligence and High Performance ComputingWith the rapid development of AI technology, FPGAs are increasingly used in AI inference and accelerated computing.Deep Learning AccelerationThe parallel computing architecture of FPGAs is well suited to accelerate the inference process of deep learning models. Compared to GPUs, FPGAs can provide lower latency and higher energy-efficiency ratio on specific AI tasks. Especially in edge computing scenarios, FPGAs enable real-time inference of complex neural networks under power constraints. Mainstream FPGA vendors have developed specialized AI acceleration IP and development toolchains, such as Intel's OpenVINO and Xilinx's Vitis AI, which greatly simplify the process of deploying AI models to FPGAs.High Performance Computing AccelerationIn the field of high-performance computing, FPGAs are used as dedicated gas pedals to accelerate specific computationally intensive tasks, such as genome analysis, financial risk calculations, and scientific simulations. Cloud service providers such as Amazon AWS and AliCloud also offer FPGA cloud services that enable users to deploy customized hardware gas pedals in the cloud.Industrial automation and control systemsThe high demand for real-time, reliability and long-term availability in the industrial sector makes FPGAs the ideal technology choice.Industrial Vision and RoboticsIn industrial vision systems, FPGAs are capable of realizing image preprocessing, feature extraction and target recognition to support real-time quality inspection on high-speed production lines. In robot control systems, the deterministic delay characteristics of FPGAs enable them to accurately control servo motors and realize complex motion control algorithms.Industrial Internet of ThingsFPGAs play the role of edge computing nodes in the Industrial Internet of Things (IIoT), enabling the processing of large amounts of sensor data in the field, performing real-time analysis and control decisions, reducing reliance on centralized systems, and improving system responsiveness and reliability.Automotive Electronics and Autonomous DrivingWith the improvement of automotive electronics and the development of autonomous driving technology, the application of FPGAs in the automotive field has become increasingly widespread.Advanced Driver Assistance Systems (ADAS)In ADAS, FPGAs are used to process data from sensors such as cameras, radar, and LIDAR to perform algorithms such as target detection, lane recognition, and obstacle tracking.The parallel processing capabilities and low-latency nature of FPGAs allow them to meet the real-time requirements of these safety-critical applications.In-car infotainment systemFPGAs are used in in-vehicle infotainment systems to implement high-definition video processing, audio processing, and a variety of communication interfaces to support increasingly rich in-vehicle entertainment and information services.Medical electronics and life sciencesThe high demand for device reliability and data processing capabilities in the medical field has made FPGAs a core component of many medical devices.Medical imaging equipmentIn CT, MRI, ultrasound, and other medical imaging devices, FPGAs are used to implement image reconstruction algorithms and signal processing functions to improve imaging speed and quality.The scalable nature of FPGAs also enables medical device manufacturers to provide new imaging features through firmware updates, extending the life of the device.Gene Sequencing and BioinformaticsIn gene sequencing devices, FPGAs are used to accelerate computationally intensive tasks such as base identification and sequence alignment, dramatically increasing sequencing speed and reducing costs. This application is important for advancing precision medicine.Aerospace and defenseThe aerospace and defense sectors demand the highest levels of reliability, performance, and security from their devices, and the reconfigurable nature and high performance of FPGAs make them ideal.Radar and electronic warfare systemsIn modern radar and electronic warfare systems, FPGAs are used to implement complex signal processing algorithms such as beam forming, target tracking, and jamming suppression, etc. The reprogrammable nature of FPGAs allows radar systems to adapt to the ever-changing electronic countermeasure environment.AvionicsIn avionics, FPGAs are used to implement key functions such as flight control systems, navigation systems, and communication systems.The high reliability and radiation resistance of FPGAs enable them to work stably in harsh environments.Emerging Applications and Future TrendsAs technology continues to evolve, FPGAs are expanding into more emerging application areas.Quantum Computing Assist SystemIn quantum computing research, FPGAs are used to build quantum bit control systems and quantum signal processing units to support the practical implementation of quantum computing.Edge AI and the Smart Internet of ThingsWith the development of edge computing and IoT, FPGAs have a promising application in low-power, high-performance edge AI processors that can implement complex AI algorithms in resource-constrained environments.6G Communications and Next Generation NetworksFPGAs will continue to play an important role in future 6G communication systems, supporting higher data rates, lower latency, and more complex signal processing algorithms. The continuous progress of FPGA technology and the continuous expansion of application areas are reshaping the way digital systems are designed and realized, providing powerful technical support for innovation in various industries. With the convergence and development of technologies such as AI, IoT, and high-performance computing, the application value of FPGAs will be further enhanced, playing an even more important role in the wave of digital transformation.How do FPGAs work?Overview of How FPGAs WorkFPGAs (Field Programmable Gate Arrays) work based on their unique reconfigurable hardware architecture. Unlike traditional processors that execute sequences of instructions, FPGAs directly implement specific digital circuit functions by configuring their internal hardware resources. This "hardware-level programming" approach allows FPGAs to process data in parallel, enabling high-performance, low-latency computing. To understand how FPGAs work, we need to explore three aspects of their basic building blocks, the configuration process, and the data processing flow.Basic Building Blocks of FPGAs and Data FlowMechanism of working of logical unitsThe heart of an FPGA is the Configurable Logic Block (CLB), each of which consists primarily of a look-up table (LUT) and flip-flops: Lookup Tables (LUT): A LUT is essentially a small memory storing predefined truth tables that can implement any combinatorial logic function. For example, a 4-input LUT can implement any 4-input, 1-output Boolean function. When input signals arrive at the LUT, these signals are used as addresses to read the corresponding predefined output values from the LUT.Flip-Flop: Flip-Flops are used to store state information, capture and hold data under the control of a clock signal, and realize timing logic functions. Flip-flops enable FPGAs to build complex state machines and timing circuits.Multiplexers and Feed Chains: These auxiliary components are used to enhance the functionality of logic units, such as enabling efficient arithmetic operations and signal selection.Interconnection Resources and Signal RoutingThe various functional units within the FPGA are connected by a complex network of programmable interconnects: Switching Matrix: Located at the intersection between the CLBs, different signal lines can be connected depending on the configuration.Wiring channels: Horizontal and vertical signaling harnesses for long distance signaling.Global Clock Network: A dedicated low-skew clock distribution network ensures that clock signals are synchronized to all parts of the chip. The flow of data within the FPGA is parallel, unlike the sequential execution mode of a processor. This parallel processing capability is the key to the FPGA's performance advantage. Technology In-Depth: The parallel processing capability of FPGAs stems from their "spatial computing" characteristics - different computational tasks are mapped to physically separated hardware resources that can be executed simultaneously. This contrasts with the CPU's "time-multiplexing" model, where the same hardware resource performs different tasks at different times.Configuration process for FPGAsThe work of an FPGA begins with the configuration process, where the digital circuit description created by the designer is loaded into the FPGA chip.Configuration data generationDesign Input: The designer describes the target digital circuit using a hardware description language (e.g. VHDL or Verilog) or a graphical tool.Synthesis: EDA tools convert hardware descriptions into logical netlists that represent the logical functions of a circuit.Realization: three steps including mapping, layout and wiring:Mapping: mapping logical netlists to FPGA specific resources (e.g. LUTs, DSPs, etc.)Layout: determining the physical location of each logic element on the FPGA chipWiring: determining the paths that signals connect between elementsBitstream Generation: Generates a configuration data file (bitstream) containing all LUT contents, interconnect switch status and other configuration information.Configuration MethodConfiguration of FPGAs can be accomplished in a number of ways: JTAG Configuration: Directly configure the FPGA through the standard JTAG interface, commonly used in the development and debugging phases.Active Serial Configuration: The FPGA reads configuration data from an external flash chip.Active Parallel Configuration: Loads configuration data at high speed over a parallel bus.Slave Mode Configuration: An external processor controls the configuration process.Configuring Storage TechnologyBased on how the configuration data is stored, FPGAs can be categorized as: SRAM-type FPGA: uses static random access memory to store configuration data, configuration is lost after power down, and external configuration memory is required. This is currently the most mainstream type of FPGA, characterized by high density and high performance.Flash-based FPGA: Uses non-volatile flash memory to store configuration data and maintains the configuration after power down, eliminating the need for external configuration memory, but integration and performance are typically lower than that of SRAM-based FPGAs.Anti-fuse FPGA: Configure once and don't change, for applications that require high security.Data Processing Flow in FPGAThe way FPGAs process data is fundamentally different from traditional processors:Data stream processing modelFPGAs typically use a data stream processing model, where data flows through a series of hardware processing units, each performing a specific operation. This pipelined processing enables high throughput data processing. For example, in image processing applications, pixel data can be passed through a series of hardware modules such as filters, feature extractors, and classifiers to enable real-time image analysis.Clock Domains and SynchronizationFPGA designs often contain multiple clock domains, where different parts of the circuitry can operate at different clock frequencies. Data transfer between clock domains requires special synchronization circuits, such as asynchronous FIFOs, to ensure that data is passed correctly.Resource sharing and schedulingIn complex FPGA designs, limited hardware resources may need to be shared for use at different times. This requires the designer to implement appropriate resource scheduling mechanisms, such as time-division multiplexing or state machine control.FPGA Design Flow and ToolchainTo make the FPGA work as the designer intended, a specific design flow needs to be followed and a specialized toolchain used:Design ProcessRequirements Analysis and Systems PlanningArchitectural DesignRTL DesignFunctional SimulationSynthesis and realizationTiming analysisBoard-level validationDevelopment ToolchainMainstream FPGA vendors offer a complete development tool chain, such as: Intel (formerly Altera) Quartus PrimeXilinx Vivado Design SuiteLattice Radiant These tool chains typically include components such as integrated development environments, synthesizers, layout routing tools, timing analyzers, emulators, and debugging tools.Performance optimization techniques for FPGAsIn order to realize the full performance potential of FPGAs, designers typically employ a variety of optimization techniques:An assembly line designBy inserting registers into the data processing path, complex operations are broken down into multiple phases, each of which is completed in a single clock cycle. This technique increases the clock frequency and throughput of the system and is one of the most common optimization methods used in FPGA design.Parallel ProcessingTake advantage of the parallel nature of FPGAs to perform multiple independent operations simultaneously. For example, in image processing, multiple pixels or blocks of images can be processed at the same time, dramatically increasing processing speed.Memory OptimizationRationally use different types of storage resources (e.g., distributed RAM, block RAM) and external memories within the FPGA to optimize data access patterns and reduce access bottlenecks.Clock Domain ManagementSet appropriate clock frequencies for different functional modules to balance performance and power consumption. In cross-clock domain designs, use appropriate synchronization circuits to ensure data integrity. With an in-depth understanding of how FPGAs work and mastery of related design techniques, engineers can fully utilize the performance potential of FPGAs to achieve efficient and flexible digital system design.FPGA Programming LanguageUnique Features of FPGA ProgrammingProgramming FPGAs (field-programmable gate arrays) is fundamentally different from traditional software development. In software programming, developers write code that is compiled into sequences of instructions executable by the processor; in FPGA programming, developers are actually "designing the hardware" -- describing the structure and behavior of digital circuits, which are ultimately converted into the physical configuration of the FPGA. s physical configuration. The specific nature of this hardware description dictates that FPGA programming requires the use of a specialized hardware description language (HDL) rather than a conventional software programming language. Mainstream FPGA programming languages mainly include VHDL, Verilog, and SystemVerilog, in addition to a number of high-level synthesis (HLS) tools and emerging specialized languages.Comparison of Mainstream FPGA Programming LanguagesVHDL: The Rigorous Military StandardVHDL (VHSIC Hardware Description Language) was originally developed by the U.S. Department of Defense in the 1980s to standardize electronic design documentation and promote design reuse. Core Features of VHDLStrongly typed language: VHDL requires strict data type matching, and the compiler catches most type errors before synthesizing. This rigor, while making it more difficult for beginners to learn, helps create more reliable designs.Structured Design: VHDL separates Entity and Architecture, where Entity defines the interface and Architecture describes the functional implementation. This separation makes the design more modular and maintainable.Rich data types: VHDL supports a wide range of data types, including standard types (e.g. integer, boolean) and user-defined types, which makes the design more flexible.Package and Library Mechanism: VHDL supports code reuse and organization through packages and libraries, making it easy to manage large projects.VHDL Code Examples -- Simple 2-input with gate implementationlibrary IEEE.use IEEE.STD_LOGIC_1164.ALL.entity AND_Gate is Port ( A : in STD_LOGIC. B : in STD_LOGIC. Y : out STD_LOGIC).end AND_Gate.architecture Behavioral of AND_Gate isbegin Y <= A and B.end Behavioral;Verilog: a clean and flexible industry alternativeVerilog HDL was developed by Gateway Design Automation in the 1980s, and later became an IEEE standard. Verilog's syntax is influenced by C, which makes it easier for engineers with a background in software development to get started. It is easier for engineers with a background in software development to get started. </p Core Features of VerilogWeakly typed language: Verilog's type-checking is not as strict as VHDL's, allowing for a more flexible coding style, but it can also lead to some errors that are not caught until the synthesis stage.Concise syntax: Compared to VHDL, Verilog typically requires less code to implement the same functionality, increasing development efficiency.Modular design: Verilog uses a Module as the design unit, containing the input and output port definitions and function implementation.Gate-level modeling capabilities: Verilog has an advantage in low-level circuit description, supporting direct gate-level and switch-level modeling.Verilog Code Example // Simple 2-input with gate implementationmodule AND_Gate( input A. input B. output Y); assign Y = A & B;endmoduleSystemVerilog: the fusion of modern verification and designSystemVerilog is an extension of Verilog that adds many verification-oriented features and high-level design constructs, and has become the current mainstream language for FPGA and ASIC design verification. Core Characteristics of SystemVerilogEnhanced data types: including object-oriented features such as classes, interfaces, enumerations, etc.Constrained random validation: support for random incentive generation and constraintsAssertions and Coverage: Built-in Assertion and Coverage Collection MechanismInterprocess communication: providing mechanisms such as mailboxes, semaphores, etc.SystemVerilog Code Examples // Counter Design Using SystemVerilog Interfaceinterface counter_if. logic clk. logic rst_n. logic enable. logic [7:0] count.endinterfacemodule counter(counter_if cif). always_ff @(posedge cif.clk or negedge cif.rst_n) begin if (!cif.rst_n) cif.count <= 8'h00; else if (cif.enable) cif.count <= cif.count + 1; endendmoduleComparative Analysis of VHDL and VerilogVHDL and Verilog, the two most dominant HDL languages, have their own advantages and disadvantages, and the choice of which language to use often depends on project requirements, team experience, and industry practice. The VHDL AdvantageStrongly typed system with early error detectionDetailed Design Documentation FeaturesSuitable for the design of large, complex systemsPopular in Europe and in the military/aerospace sectorGood code reuse mechanismsVerilog AdvantageConcise grammar with a gentle learning curveSimilar to C, easy for software engineers to get startedGate-level modeling capabilities are strongWidely used in the electronics industry in North America and AsiaSimulation is typically faster than VHDLSyntax versus readabilityVHDL has a more verbose but self-documenting syntax, suitable for large projects that require detailed documentation; Verilog has a concise syntax and less code, but can lead to maintainability challenges in large projects.Design Reuse and PortabilityVHDL provides strong code reuse capabilities through package and library mechanisms; Verilog supports design reuse through parameterized modules, but has a relatively weak ability to organize large code bases.Industry Application TrendsThere are significant geographic and industry differences: Europe and the military/aerospace sector tend to use VHDL; the commercial electronics industry in North America and Asia uses Verilog and SystemVerilog more often. in recent years, SystemVerilog has been increasingly used in verification.High Level Synthesis (HLS) ToolAs the complexity of FPGA designs increases, developing directly in HDL becomes increasingly challenging. High-level synthesis tools allow designers to describe algorithms using a high-level programming language such as C/C++ and then automatically convert them to HDL code.Mainstream HLS ToolsIntel HLS CompilerCerynth Vitis HLSMentor Catapult HLSStrengths and Limitations of HLSAdvantages: Increased design abstraction levels and shorter development cycles; ease of engagement for algorithm engineers; support for rapid design space exploration. Limitations: Generated RTL code may not be as efficient as handwritten HDL; limited control over hardware architecture; still need to understand hardware concepts.Emerging FPGA Programming MethodologyAs FPGA application areas expand, especially in the areas of artificial intelligence and high-performance computing, new programming methods continue to emerge.Domain Specific Language (DSL)Chisel (based on Scala)SpinalHDL (Scala-based)PyRTL (Python based)Frameworks and LibrariesOpenCLDeep learning frameworks (TensorFlow, PyTorch, etc.)OneAPIHow to choose the right FPGA programming language?The following factors should be considered when choosing an FPGA programming language: Project Requirements (Complexity, Performance, Time)Team Experience and Learning CurveIndustry Standards and PracticesTool SupportLong-term maintenance requirementsExpert Advice: For FPGA beginners, it is recommended to master one of the mainstream HDLs (Verilog or VHDL) to understand the basic concepts of hardware design before exploring high-level synthesis tools and emerging programming methods. In real-world projects, it is often necessary to use a combination of languages and tools to take advantage of their respective strengths.Future Trends in FPGA ProgrammingFPGA programming methods are undergoing a rapid evolution and future trends include: Abstraction Level ElevationAI-assisted designUnified Programming ModelOpen Source Ecosystems No matter how much FPGA programming languages and tools evolve, understanding the fundamentals of digital design and the hardware mindset remains the key to mastering FPGA technology. Choosing the right programming language and tools will help designers fully utilize the performance potential of FPGAs to achieve innovative digital system designs.Interaction and reflectionThought-provoking questions Have you considered how FPGAs could change the technology path for your industry? In the wave of digital transformation, the reconfigurable nature of FPGAs provides unprecedented flexibility across industries. Whether it's rapid iteration of communication devices or hardware acceleration of AI algorithms, FPGAs are reshaping the traditional hardware development model. Think about it: has your field begun to explore the potential of FPGA applications? What are the most important factors you look for when choosing an FPGA or ASIC? Technology selection is often a multi-dimensional decision-making process. In addition to the obvious factors of performance and cost, factors such as time pressure, team experience, and market uncertainty can influence the final choice. How do you weigh these factors in your projects? What do you think is the future of FPGAs in AI and edge computing? As AI algorithms migrate to edge devices, low-latency, energy-efficient computing platforms are becoming increasingly important. FPGAs are becoming a strong contender for edge AI due to their parallel computing capabilities and reconfigurability. How do you see FPGAs competing with GPUs and specialized AI chips in this space? User Experience StoriesFrom Prototyping to Mass Production: A Communications Equipment Manufacturer's Journey to FPGA AdoptionEngineer Li's communications equipment company was facing a key challenge: developing a new generation of base station equipment for the upcoming 5G network, but market standards were not yet fully defined. The team decided to use FPGAs as the core processing platform, a decision that brought unexpected rewards. "Initially we were just using FPGAs as a verification platform, with plans to move to ASIC design once the standard was finalized," recalls Engineer Li, "but as the project progressed, we found that the flexibility of FPGAs gave us a huge advantage. When there is an update to the 3GPP standard, it only takes us a few weeks to adapt to the new specification, whereas competitors using ASICs may need to redesign the entire chip, which can take nearly a year." </p What's even more surprising is that with the advancement of FPGA technology and the team's experience in optimization, their FPGA solution is approaching the ASIC level in terms of performance and power consumption, while maintaining the flexibility advantage. Ultimately, the company decided to bring the FPGA solution directly to market, not only to seize the opportunity, but also to continue to provide new features through firmware updates. "This has changed our product strategy," concludes Engineer Lee, "Now our devices can support new algorithms and protocols via remote updates, providing our customers with unprecedented flexibility." </pFrequently Asked Questions (FAQ) 1. What are the advantages of FPGAs over traditional processors (e.g., CPUs, GPUs)? The main advantage of FPGAs is their hardware-level parallel processing capability and customizability. Unlike the sequential execution mode of CPUs, FPGAs enable truly parallel computing, providing significant performance gains for specific algorithms. Compared to GPUs, FPGAs are more advantageous when dealing with non-regular computational modes and low-latency applications, while typically offering a better energy-efficiency ratio. In addition, the reconfigurable nature of FPGAs allows the hardware to adapt as requirements change, something that is not possible with traditional processors. 2. What are the basics needed to learn FPGA development? Mastering FPGA development requires a multidisciplinary knowledge background: digital logic design fundamentals, hardware description language (VHDL or Verilog), computer architecture concepts, basic circuit theory, and signal processing principles (for some applications). It is recommended to learn the fundamentals of digital logic first, and then choose an HDL language to study in depth and gain experience through real-world projects. 3. What are the main challenges in FPGA development? The main challenges include steep learning curves and shifts in hardware mindset, debugging complexity, timing constraints and resource management, toolchain complexity and vendor dependencies, and optimizing the design to balance performance, resource utilization, and power consumption. 4. Is FPGA technology appropriate for small projects or startups? Yes. Modern FPGA development boards are affordable, and open source toolchains and community support are increasingly sophisticated. the rapid prototyping capabilities and flexibility of FPGAs are particularly well suited for startups to quickly validate concepts and iterate on products. Cloud FPGA services also lower the hardware investment barrier. 5. What are the future trends in FPGA technology? Future trends include convergence with other compute architectures, simplification of the programming model, widespread adoption in edge AI and IoT, increase in dedicated hard cores, growth of the open-source FPGA ecosystem, new architectures with higher performance and lower power, and expansion of applications as dedicated gas pedals in data centers and clouds. .container { max-width: 800px; margin: 20px auto; padding: 20px; background-color: #fff; box-shadow: 0 0 0 10px rgba(0,0,0,0.05); border-radius: 8px; } h3 { font-size: 1.4em; color: #3498db; margin-top: 1.2em; margin-bottom: 0.6em; } h4 { font-size: 1.1em; color: #555; margin-top: 1em; margin-bottom: 0.4em; } p { margin-bottom: 1em; text-align: justify; } strong { color: #e74c3c; font-weight: bold; } em { font-style: italic; color: #8e44ad; } ul, ol { margin-bottom: 1em; padding-left: 20px; } li { margin-bottom: 0.5em; } pre { background-color: #ecf0f1; padding: 15px; border-radius: 5px; overflow-x: auto; font-family: 'Courier New', Courier, monospace; font-size. 0.9em; margin-bottom: 1em; } code { font-family: 'Courier New', Courier, monospace; } .blockquote { background-color: #f8f9fa; padding: 15px; border-left: 4px solid #4285f4; margin: 20px 0; font-style: italic; color: #555; } .blockquote-alt { background-color: #f8f9fa; padding: 15px; border-left: 4px solid #ea4335; margin: 20px 0; font-style: italic; color: #555; } .blockquote-tech { background-color: #f5f5f5; padding: 15px; border-left: 4px solid #34a853; margin: 20px 0; color: #555; } .blockquote-case { background-color: #e8f4fe; padding: 15px; border-radius: 5px; margin: 20px 0; border: 1px solid #d1e7fd; } .blockquote-expert { background-color: #f0f7fb; padding: 15px; border-left: 5px solid #3498db; margin: 20px 0; color: #555; } .comparison-box { display: flex; margin: 20px 0; flex-wrap: wrap; } .comparison-box > div { flex: 1; min-width: 250px; padding: 15px; margin: 5px; border-radius: 5px; } .vhdl-box { background-color: #e6f7ff; border: 1px solid #b3e0ff; } .verilog-box { background-color: #fff2e6; border: 1px solid #ffddb3; } .vhdl-box h4 { color: #0066cc; margin-top: 0; } .verilog-box h4 { color: #cc5500; margin-top: 0; } .faq-question { font-weight: bold; margin-top: 1em; color: #2980b9; } .faq-answer { margin-left: 1em; margin-bottom: 1em; }

Image Source: unsplashProgramming an Altera FPGA involves creating a design for an FPGA that configures its logic blocks to perform specific tasks. You use tools like Quartus Prime software to write code, simulate, and load it onto the FPGA. Mastering effective programming techniques is crucial. It helps you optimize performance, reduce resource usage, and troubleshoot efficiently during FPGA development. This tutorial aims to guide you through actionable methods for programming Altera devices, ensuring you gain confidence in the process.Tools and Resources for Altera FPGA ProgrammingWhen working with Altera FPGA devices, having the right tools and resources is essential. These tools simplify the design process and help you achieve optimal performance. Below, you’ll find an overview of the key resources you need to get started.Quartus Prime Software SetupQuartus Prime software is the cornerstone of Altera FPGA programming. It provides a comprehensive suite of tools for designing, simulating, and optimizing your FPGA projects. Whether you’re a beginner or an experienced developer, this software offers features tailored to your needs.FeatureDescriptionDesign ToolsA complete set of tools for FPGA design, from concept to production.User GuidesDetailed documentation for both Pro and Standard editions.Design OptimizationTools to enhance design efficiency in terms of area and timing.Synthesis OverviewConverts your RTL code into a netlist for further processing.Quartus Prime comes in two editions: Pro and Standard. The Pro edition is ideal for advanced users who need cutting-edge optimization and synthesis capabilities. The Standard edition, on the other hand, is perfect for simpler projects and those just starting out.EditionKey FeaturesProAdvanced optimization and synthesis capabilities.StandardBasic design tools for simpler projects.The FPGA industry has shown steady growth with a market prediction value of USD 9 billion by 2023, indicating the increasing relevance of FPGAs in communications, computing, and other sectors.To set up Quartus Prime software, download the appropriate edition from Intel’s website. Follow the installation guide to configure the software on your system. Once installed, you can start creating and simulating your FPGA designs.Altera FPGA Boards and Programming CablesAltera FPGA boards and programming cables are essential hardware components for testing and deploying your designs. These boards provide a physical platform to implement and verify your FPGA projects. Popular options include the Agilex?, Stratix?, and Arria? families, which cater to a wide range of applications.CategoryDetailsFailure Analysis ServiceComplimentary Failure Analysis on select FPGA products under specific conditions.Eligibility RequirementsAgilex? 9, 7, 5, 3, Stratix? 10, and Arria? 10 product families.Product QualificationBased on Industry Standards, with reports available for download.Reliability Monitoring DataAvailable upon logging into Intel's Resource & Documentation Center.When selecting an Altera FPGA board, consider factors such as the number of logic elements, memory capacity, and I/O pins. Pair your board with a compatible programming cable to load your design onto the FPGA. These cables ensure reliable communication between your computer and the FPGA board.FPGAs offer unparalleled flexibility and performance potential, but they also present challenges such as power consumption and cost considerations compared to ASICs when scaled for mass production.Datasheets and User GuidesDatasheets and user guides are invaluable resources for understanding the capabilities and limitations of Altera FPGA devices. They provide detailed specifications, compatibility information, and design insights that help you make informed decisions.Evidence TypeDescriptionProduct SpecificationsDetailed features, specifications, and compatibility information that clarify product offerings.Safety and Performance ReportsDocumentation that demonstrates compliance with safety standards and the effectiveness of the product.Risk Management DocumentationEvidence of risk assessments and management strategies to ensure product safety and reliability.Before starting a project, review the datasheet for your FPGA device. It will outline the device’s features, such as the number of logic blocks, clock speeds, and power requirements. User guides, on the other hand, provide step-by-step instructions for setting up and using your FPGA board and software.The tailored FPGA features make them a better choice for a growing number of applications, with FPGA technology minimizing the performance gap with ASICs, leading to increased attractiveness for various sectors.By leveraging these tools and resources, you can streamline your Altera FPGA programming workflow and achieve better results.Understanding FPGA Design and ArchitectureFPGA Architecture OverviewTo program an FPGA effectively, you need to understand its architecture. An FPGA consists of several key components that work together to execute your design. These include logic blocks, interconnects, and I/O blocks. Logic blocks, often built with Look-Up Tables (LUTs) and flip-flops, perform the core computational tasks. Interconnects link these blocks, enabling data flow across the FPGA. I/O blocks handle communication between the FPGA and external devices.ComponentDescriptionLUTsFundamental building blocks that can implement various logic functions.Flip-flopsUsed for storage and state retention in FPGA designs.Carry ChainsEnable efficient programmable arithmetic operations.DSP BlocksDedicated hardware for efficient integer multiplication.Block RAMsLarger memory resources available for storage beyond small LUTs.By understanding these components, you can optimize your design for performance and resource utilization.Modules, Ports, and Logic BlocksModules, ports, and logic blocks form the foundation of FPGA design. A module represents a functional unit in your design, such as an arithmetic operation or a control system. Ports act as the input and output interfaces for these modules, allowing data to flow in and out. Logic blocks, made up of LUTs and flip-flops, execute the logic defined in your module.ComponentDescriptionP-tile PCIe SubsystemPart of the FPGA Interface Manager architecture.E-Tile Ethernet SubsystemAnother key component of the architecture.Memory SubsystemManages memory interactions within the FPGA.Reset ControllerControls the reset functionality of the FPGA.FPGA Management EngineManages the overall FPGA operations.When designing with Altera FPGAs, you should carefully plan how modules and ports interact. This ensures efficient use of logic blocks and minimizes resource conflicts.Interconnections and Hierarchical DesignInterconnections and hierarchical design are critical for creating scalable FPGA designs. Interconnections link logic blocks, enabling data transfer and communication. A hierarchical design approach organizes your FPGA project into smaller, manageable sections. This improves readability and simplifies debugging.System Specification: Define the system requirements and specifications. This step lays the foundation for your hierarchical design.Design Entry: Create a high-level description of your design's functionality. Structured design ensures clarity and efficiency.Synthesis: Translate your high-level design into a gate-level netlist. This process highlights the importance of interconnections between logic elements.Place and Route: Assign logic elements to specific locations and determine interconnect routing. Proper routing optimizes performance.Verification: Verify that your design meets the specifications. This step reinforces the importance of a structured approach.By mastering interconnections and hierarchical design, you can create efficient and reliable FPGA projects.Programming Techniques for Altera FPGAsUsing Verilog and VHDLVerilog and VHDL are the two most popular FPGA programming languages. They allow you to describe the behavior and structure of your FPGA design. Each language has unique strengths, making them suitable for different industries and applications.Verilog is widely used in consumer electronics and automotive industries. It is known for its simplicity and flexibility. For example, the RISC-V open-source processor architecture was designed using Verilog. This language is also used in advanced driver-assistance systems (ADAS) for autonomous vehicles. On the other hand, VHDL is preferred in aerospace, defense, and industrial automation. It is valued for its reliability in safety-critical systems. The LEON processor, used in space missions, is a prime example of VHDL's capabilities.IndustryLanguage UsedApplication DescriptionConsumer ElectronicsVerilogUsed in the design of smartphones, tablets, and gaming consoles for custom ICs and FPGAs.Automotive IndustryVerilogEmployed in designing digital systems for ADAS and autonomous vehicles, including sensor processing.Aerospace and DefenseVHDLExtensively used for safety-critical systems like avionics and missile guidance, ensuring reliability.Machine Learning and AIVHDLFPGAs are utilized for parallel processing in AI applications, enhancing performance and efficiency.Industrial AutomationVHDLUsed for designing systems responsible for process control and monitoring in industrial settings.When choosing between Verilog and VHDL, consider your project requirements. Verilog is ideal for projects requiring quick prototyping and flexibility. VHDL is better suited for applications demanding high reliability and precision.Assignments, If Statements, and Case StatementsAssignments, if statements, and case statements are fundamental tools in FPGA programming. They help you define the behavior of your design and control how data flows through the FPGA.Assignments allow you to set values to signals or variables. In Verilog, you can use continuous assignments for combinational logic. For example, you might assign a signal based on the output of a logic gate. Always include default values in your assignments to prevent undefined behavior.If statements are used to make decisions in your design. They are implemented in hardware using multiplexers. For instance, you can use an if statement to select between two inputs based on a condition. Case statements, on the other hand, are better for handling multiple branches. They provide a clear and concise way to describe complex decision-making processes.If statements are implemented in hardware using multiplexers, allowing selection between two inputs based on a condition.A default value in an always block ensures that signals are assigned a value, preventing undefined behavior.Case statements provide a clearer syntax for handling multiple branches based on a single expression.In SystemVerilog, the always_comb construct simplifies combinational logic. It automatically manages sensitivity lists, preventing latch inference. This ensures your design behaves as expected.Loops and State Machines in FPGA DevelopmentLoops and state machines are powerful tools for creating complex FPGA designs. Loops allow you to repeat a set of instructions, making your code more efficient. However, you must use them carefully in FPGA programming. Unlike software, FPGAs execute loops in parallel, not sequentially. This means you need to ensure your loops do not create unintended hardware behavior.State machines are essential for controlling sequential processes in your FPGA design. They consist of states, transitions, and outputs. For example, you can use a state machine to control an LED blinking pattern. Each state represents a specific LED behavior, such as on or off. Transitions define how the design moves from one state to another based on input conditions.Sequential logic is defined using always processes sensitive to clock edges. In SystemVerilog, the always_ff construct provides clarity for sequential logic. It ensures your design responds correctly to clock signals.By mastering loops and state machines, you can create efficient and reliable FPGA designs. These techniques are especially useful in applications like signal processing and control systems.Sequential Logic and Flip-Flops in FPGA ProgrammingImage Source: unsplashBasics of Sequential LogicSequential logic is a fundamental concept in FPGA programming. Unlike combinational logic, which depends only on current inputs, sequential logic relies on both current inputs and past states. This makes it essential for creating designs that require memory or state retention, such as counters or registers.To implement sequential logic in an FPGA, you use a clock signal. The clock synchronizes changes in the circuit, ensuring predictable behavior. In many cases, you may need multiple clock signals operating at different frequencies or phases. Phase-Locked Loop (PLL) modules in Altera FPGAs help you generate these clock signals efficiently. They can create multiples or submultiples of an input frequency, giving you precise control over timing.When programming sequential logic, you use hardware description languages (HDLs) like Verilog. These languages feel different from traditional software programming because hardware operates in parallel. You must write concurrent statements to reflect this parallel nature, which can be challenging if you're new to HDL coding.HDLs like Verilog are used to design circuits in FPGAs.Sequential logic requires a clock signal to synchronize operations.PLL modules manage clock signals by generating different frequencies and phases.D-Type Flip-Flops and Their RoleD-type flip-flops are the building blocks of sequential logic in FPGA designs. They store a single bit of data and update their output based on the clock signal. This makes them ideal for creating registers, counters, and state machines.In an Altera FPGA, you can use D-type flip-flops to hold intermediate values or synchronize signals. For example, you might use a flip-flop to delay a signal by one clock cycle, ensuring proper timing in your design. Flip-flops also play a crucial role in implementing state machines, where each state corresponds to a specific configuration of flip-flops.To define a D-type flip-flop in Verilog, you use an always block triggered by the clock edge. Here's a simple example:always @(posedge clk) begin q <= d;endThis code snippet shows how the flip-flop updates its output (q) with the input (d) on the rising edge of the clock (clk). By mastering D-type flip-flops, you can create robust and efficient FPGA designs.Timing and Clock Domain ConsiderationsTiming is critical in FPGA designs. Proper timing ensures that your circuit meets its performance requirements and operates reliably. Timing constraints guide the placement and routing of logic elements, helping you achieve the desired clock speeds.When working with multiple clock domains, you must manage clock domain crossings carefully. Data moving between different clock domains can cause issues like metastability, where signals become unpredictable. To prevent this, you can use synchronization circuits or dual-clocked FIFOs. These techniques ensure data integrity and maintain reliable communication between clock domains.For example, synchronization circuits align signals to the receiving clock domain, while dual-clocked FIFOs buffer data between domains. Both methods are essential for handling clock domain crossings in complex FPGA designs.By understanding timing and clock domain considerations, you can optimize your Altera FPGA projects for performance and reliability.Practical Example: Blinking an LED on an Altera FPGAImage Source: unsplashSetting Up the Project in Quartus Prime SoftwareTo start, you need to set up your project in Quartus Prime Software. This tool is essential for FPGA development, allowing you to design, simulate, and program your Altera FPGA. Begin by creating a new project and selecting the appropriate FPGA device, such as the MAX 10 series. Configure the project settings to match your hardware specifications, including the clock frequency and I/O pin assignments.For guidance, you can refer to example projects like the "Blinking LED" project for the MAX 10 FPGA 10M50 EVAL KIT. This project demonstrates the setup process and provides a clear starting point for beginners.Project NameDescriptionLinkBlinking LEDExample project for blinking an LED on MAX 10 FPGALinkHello WorldBasic project setup for MAX 10 kitLinkOnce your project is set up, you can proceed to write and simulate the Verilog code.Writing and Simulating Verilog CodeWriting Verilog code for an LED blinking project is straightforward. You define a module that toggles an output pin at regular intervals. Use a clock divider to generate a slower clock signal for the LED. Here’s an example:module led_blink ( input clk, // Input clock output reg led // Output LED signal); reg [23:0] counter; // 24-bit counter always @(posedge clk) begin counter <= counter + 1; led <= counter[23]; // Toggle LED at a slower rate endendmoduleSimulate the code using tools like ModelSim to verify its correctness. The simulation should show the LED signal toggling at the expected rate. A video tutorial on implementing and simulating this example in Quartus Prime Lite edition can provide additional insights.The video demonstrates the Verilog implementation for LED blinking.It includes simulation details using ModelSim for verification.The synthesis process in Quartus Prime Software is also covered.Programming the FPGA Board and TestingAfter verifying your design, program the FPGA board using a compatible programming cable. Load the compiled design onto the board through Quartus Prime Software. Ensure the LED is connected to the correct output pin as defined in your design.Testing involves observing the LED behavior on the board. Hardware-In-The-Loop testing can validate the functionality at full speed. Automated test vector generation simplifies the process, ensuring efficient testing. Tools like the DO-254/CTS toolset provide a structured environment for verifying FPGA functionality, ensuring compliance with industry standards.By following these steps, you can successfully implement and test an LED blinking project on an Altera FPGA. This hands-on example builds your confidence in FPGA development and prepares you for more complex designs.Troubleshooting and Optimizing FPGA DesignsDebugging with SignalTap IIDebugging FPGA designs can be challenging, but SignalTap II simplifies the process. This embedded logic analyzer lets you monitor internal signals without using external pins. You access it through JTAG, making it ideal for pin-constrained designs. SignalTap II provides triggering and storage capabilities, helping you identify issues in real-time.SignalTap II uses internal FPGA resources, which minimizes hardware requirements.It supports a maximum sample depth of 128 Kb, suitable for most debugging tasks.External tools like mixed-signal oscilloscopes and logic analyzers offer deeper memory depths, capturing up to 40M and 256M samples, respectively.When using SignalTap II, keep resource usage under 5% of available FPGA logic resources. This ensures your design remains efficient while debugging. By leveraging this tool, you can streamline troubleshooting and improve performance.Resource Utilization and OptimizationEfficient resource utilization is key to achieving performance optimization in FPGA designs. Balancing power consumption and performance requires a holistic approach. Advanced techniques like synthesis optimization and hierarchical design help you maximize resource efficiency.The report 'ResBench: Benchmarking LLM-Generated FPGA Designs with Resource Awareness' highlights how GPT-o1-mini excels in generating Verilog code with optimized resource usage. This demonstrates the importance of adopting resource-aware design practices.To optimize your Altera FPGA design:Continuously evaluate resource usage during development.Use tools like Quartus Prime to analyze and refine your design.Implement best practices, such as minimizing redundant logic and optimizing memory usage.These strategies ensure your design achieves high performance while maintaining energy efficiency.Power and Performance Best PracticesManaging power and performance in FPGA programming requires careful planning. Applications like bioinformatics, video processing, and financial computing benefit from FPGA acceleration, but each domain presents unique challenges.Application DomainKey FindingsBioinformaticsNo performance penalties when adopting IaaS acceleration for data-intensive applications.Video ApplicationsAcceleration can be scaled to offset IO performance loss at the application level.Financial ComputingHigh throughput potential of accelerators can be limited by low IO throughput at the system level.To optimize power and performance:Use clock gating to reduce power consumption during idle states.Implement pipelining to enhance throughput without increasing clock frequency.Monitor thermal performance to prevent overheating and ensure reliability.By following these design best practices, you can create FPGA designs that deliver exceptional performance while minimizing power usage.Mastering Altera FPGA programming requires a solid understanding of tools, techniques, and iterative learning. Key resources like Quartus Prime software simplify design, synthesis, and optimization. IP cores accelerate development by providing pre-built logic blocks, while programming languages like Verilog and VHDL enable custom configurations. Adopting best practices ensures efficient and reliable implementations.Practice and refinement are essential for success. Hands-on experience with deep learning accelerators, edge AI, and custom AI hardware demonstrates how iterative learning improves performance and design quality.To deepen your expertise, explore advanced resources:TitleDescriptionFPGA Design Verification in a Nutshell (Part 2) Advanced Testbench ImplementationLearn advanced simulation-based verification techniques.FPGA Design Verification in a Nutshell (Part 3) Advanced Verification MethodsDiscover solutions for complex design properties.FPGA Design Architecture OptimizationOptimize FPGA design architecture for efficiency and quality.FPGA Design: A Comprehensive Guide to Mastering Field-Programmable Gate ArraysExplore FPGA applications in AI and ML.By combining practice with advanced learning, you can unlock the full potential of Altera FPGA technology.FAQWhat is the best programming language for Altera FPGAs?Verilog and VHDL are the most popular choices. Verilog is simpler and better for quick prototyping. VHDL offers more precision and reliability, making it ideal for safety-critical applications. Choose based on your project needs and industry requirements.How do you debug an Altera FPGA design?Use SignalTap II, an embedded logic analyzer in Quartus Prime. It monitors internal signals in real-time without external pins. Set up triggers to capture specific events and analyze the data to identify issues.Tip: Keep SignalTap II resource usage below 5% for optimal performance.Can you program Altera FPGAs without Quartus Prime?No, Quartus Prime is essential for Altera FPGA programming. It provides tools for design, simulation, and optimization. You can use third-party simulators for testing, but Quartus Prime is required for synthesis and programming.How do you optimize resource usage in FPGA designs?Minimize redundant logic and use hierarchical design. Evaluate resource usage regularly with Quartus Prime tools. Implement pipelining and clock gating to improve efficiency and reduce power consumption.What is the role of PLLs in Altera FPGAs?Phase-Locked Loops (PLLs) generate clock signals with different frequencies or phases. They synchronize operations and ensure proper timing in sequential logic. Use PLLs to manage multiple clock domains effectively.Note: Proper clock domain management prevents metastability and ensures reliable data transfer.

Summary: This comprehensive guide explores the critical differences between FPGAs and CPLDs, detailing their unique architectures, performance metrics, and ideal application scenarios. By comparing logic capacity, power consumption, and timing characteristics, it provides engineers with a practical framework for selecting the right programmable logic device for 2026 hardware designs.What is the Difference Between FPGA and CPLD?The primary difference between an FPGA (Field-Programmable Gate Array) and a CPLD (Complex Programmable Logic Device) lies in their architecture: FPGAs use a complex, look-up table (LUT) based structure ideal for high-capacity, parallel processing, while CPLDs rely on a simpler, macrocell-based architecture that provides deterministic timing and instant-on capabilities. In the field of digital electronic design, PLDs (Programmable Logic Devices) are becoming increasingly important due to their flexibility and rapid development capabilities. Among other things, the FPGAs and CPLDs are the two most prominent high-capacity programmable logic devices.While both devices provide programmable digital logic capabilities, they have significant differences in architecture, performance characteristics and application scenarios. It is critical for engineers and designers to understand these differences, as selecting the right device can significantly impact the cost, performance and development time of a project.In today's electronic designs, many functions that were traditionally implemented using multiple SPLD (Simple Programmable Logic Device) chips can now be integrated into a single CPLD; and complex functions that used to require custom ASICs (Application Specific Integrated Circuits) can now be realised through FPGAs. With the growth of the Internet of Things (IoT), artificial intelligence, and high-performance computing, the demand for these programmable devices is surging. In fact, the global FPGA market is projected to reach USD 15.2 billion in 2026, while the CPLD market is expected to grow to USD 0.68 billion in the same year.🔍 ‘Choosing an FPGA or a CPLD is not just a matter of capacity, it's a strategic decision for specific application needs.’This article will comprehensively analyse the technical differences between FPGAs and CPLDs, application scenarios, and provide a detailed selection guide to help you choose the most appropriate programmable logic solution for your project. Whether you are an experienced engineer, a student just entering the field, or a project manager seeking to optimise your product design, this guide will provide you with a valuable reference.How Do FPGA and CPLD Architectures Differ?FPGA and CPLD architectures differ fundamentally in their logic blocks, interconnects, and storage mechanisms. Although both FPGAs and CPLDs are programmable logic devices, their internal architectures and operating principles are fundamentally different. Understanding these differences is critical to the proper selection and application of these devices.Figure 1: Comparison of FPGA and CPLD architectures and functionsWhat is the Internal Architecture of an FPGA?The internal architecture of an FPGA consists of a vast array of Configurable Logic Blocks (CLBs), programmable interconnects, and Input/Output Blocks (IOBs).Logical block structure：Logic blocks in FPGAs are usually implemented based on look-up tables (LUTs), each of which is essentially a small memory cell that can implement arbitrary combinatorial logic functions.Interconnection resource：FPGAs use distributed, hierarchical interconnection networks that allow flexible routing but also increase cabling complexity.Storage Technology：Mainstream FPGAs use SRAM technology to store configuration data, the configuration is lost after power down, and external memory is needed to save the configuration; there are also FPGAs based on Antifuse (Antifuse) technology, which is programmed once and cannot be changed.Special resources：Modern FPGAs integrate a wealth of hardcore resources such as DSP blocks, embedded RAM, high-speed transceivers, and even complete processor cores.Figure 2: Schematic of FPGA internal architecture and componentsWhat is the Internal Architecture of a CPLD?A CPLD architecture is built around multiple macrocells connected by a central, predictable interconnect matrix.Macrocellular structure：Each macro cell contains a programmable AND-OR Array, optional registers, and output logic, enabling relatively complex combinational and timing logic.Interconnection method：CPLDs use a centralised fully-connected or nearly fully-connected interconnection matrix to make signal delays more deterministic and predictable.Storage Technology：CPLDs usually use non-volatile storage technology (e.g. EEPROM, Flash), where the configuration is maintained after power down and is ready for use on power up.Pin Assignment：CPLDs have more fixed pin assignments, usually each macrocell corresponds to a specific output pin.Figure 3: Basic CPLD architecture and organisationWhat Are the Key Technological Differences?FPGAs and CPLDs are fundamentally different in several key technology areas, particularly regarding logic implementation and configuration storage:CharacterisationFPGACPLDBasic building blocksLook-up table (LUT)-basedMacrocells (PAL-like structures)Logical implementation approachFine granularity, spreading resourcesWide with or array, centralised resourcesInterconnection ArchitectureDistributed, Multi-Level InterconnectionCentralised interconnection matrixConfiguration storageMainly SRAM (volatile)Mainly EEPROM/Flash (non-volatile)Timing CharacteristicsDelay is highly influenced by cabling and is highly variableDelays are fixed and predictableResource utilisationRelatively low due to wiring complexityHigher, almost all logic availableLogic DensityVery high (up to millions of gates)Medium (typically no more than 10,000 gates)Power consumption characteristicsRelatively high, with significant static power consumptionLow, especially static power consumptionThese architectural differences directly contribute to the differences in performance, application scenarios, and types of applicable projects between FPGAs and CPLDs. Next, we will analyse the performance characteristics, advantages and disadvantages of these two devices in detail.How Do FPGA and CPLD Performances Compare?Selecting the right programmable logic device requires a thorough understanding of the respective strengths and limitations of FPGAs and CPLDs. This section provides an in-depth analysis of the performance characteristics of both devices to help you make an informed choice in your project.What Are the Main Advantages of FPGAs?FPGAs offer unparalleled advantages in logic capacity and hardware-level parallel processing, making them ideal for complex digital systems.Key Advantages of FPGAsUltra-high logic capacity - Modern FPGAs can integrate millions of logic gates to support extremely complex designsParallel processing capability - Thanks to their array structure, FPGAs can enable true hardware parallel computingFlexible resource allocation - Flexible allocation of logic, storage and DSP resources on demandIntegration of special functions - Contains dedicated hard cores: DSP block, memory block, high-speed interface and processor coreHighly customisable - Can implement almost any digital circuit function, similar to a custom ASICThe FPGA architecture is particularly well suited for applications that require a lot of parallel processing, such as image/video processing, high performance computing and network packet processing. Its flexibility makes it ideal for prototyping and low-volume production applications as an alternative to expensive ASIC development. Modern FPGAs often integrate a variety of hard-core resources, such as ARM processor cores, Ethernet MACs, PCIe interfaces, etc., greatly simplifying system design.What Are the Limitations of FPGAs?Despite their power, FPGAs are limited by higher power consumption, complex timing convergence, and the need for external configuration memory.The main limitations of FPGAsRelatively high power consumption - Particularly static power consumption, not suitable for applications with strict power constraintsHigher costs - Higher cost per unit logic capacity than CPLDs and microcontrollersLonger start-up time - SRAM-based FPGAs require configuration time and do not work immediatelyHigh development complexity - Steep learning curve, requiring specialised HDL programming and complex toolchainDifficulty in timing analysis - Signal delay uncertainty is high and timing convergence can be a challengeThe complexity of FPGAs is a double-edged sword. On the one hand, it provides extreme flexibility, but on the other hand, it makes development more difficult. For simple control logic or applications that require instant startup, FPGAs may not be the best choice. In addition, the power consumption of FPGAs can be a serious obstacle in battery-powered applications.What Are the Main Advantages of CPLDs?CPLDs excel in providing deterministic timing, instant-on capabilities, and ultra-low static power consumption.Key Benefits of CPLDsDeterministic time series - Centralised interconnect structure provides stable and predictable signal delayInstant start-up capability - Non-volatile configuration, power-on ready to operate, no loading time requiredLow power consumption - Particularly good static power consumption for battery applicationsHigh I/O ratio - Provides more I/O pins relative to logic resourcesEasy to develop - Simple and clear architecture, easy to use development toolsCPLDs are particularly well suited for interface logic and control applications because of their simplicity and predictability. Their good timing characteristics make them ideal for high-speed interfaces and timing-critical applications. For systems requiring fast start-up, the immediate availability of CPLDs is an irreplaceable advantage.What Are the Limitations of CPLDs?The primary limitations of CPLDs include restricted logic capacity and a lack of dedicated hard-core resources like DSPs or embedded RAM.Major limitations of CPLDsLimited logical capacity - Typically no more than 10,000 equivalent logic gatesLimited memory resources - Lack of significant internal RAM resourcesLack of dedicated functionality - No specialised hardcore such as DSP blocks, high-speed interfaces, etc.Structural rigidity - With or array structure is not efficient enough for some algorithmsPoor scalability - Vulnerable to resource bottlenecks when adding functionalityThe biggest limitation of a CPLD is its capacity. As design complexity increases, it is easy to exceed the resource limitations of CPLDs. In addition, CPLDs are not suitable for applications that require large amounts of storage or complex mathematical operations because they lack the dedicated function blocks commonly found in FPGAs.By comparing the performance characteristics of FPGAs and CPLDs, it can be seen that they are each suitable for different types of application scenarios. In the next section, we will specifically analyse the best application areas for these two devices.What Are the Best Application Scenarios for FPGA vs CPLD?Because of their distinct architectural differences, FPGAs and CPLDs are suited for entirely different application scenarios in modern electronics.When Should You Use an FPGA?You should use an FPGA when your project requires high logic capacity, parallel data processing, or the integration of complex algorithms.High Performance Computing Acceleration - Accelerating computationally intensive tasks such as AI algorithms, scientific computing, and financial analysisImage and video processing - Real-time image filtering, computer vision, video codecs and enhancementData centre and network equipment - High-speed packet processing, network security, software-defined networkingCommunication system - Base station processing, software-defined radio, modemASIC Prototype Validation - Validating complex chip designs before mass productionAerospace and military - Mission-critical systems requiring high reliability and reconfigurabilityIndustrial control and automation - Real-time control and monitoring of complex industrial systemsFPGAs are particularly well suited for applications that require the processing of a large number of parallel data streams, and their hardware-level parallel processing capabilities can significantly improve performance. For example, in image processing, FPGAs can process multiple image regions at the same time, greatly speeding up processing.✨ "In data centres, FPGA accelerators can increase the performance of certain computing workloads by 5-10 times while reducing energy consumption by about 70%, making them ideal for green computing."Figure 4: Typical application scenarios of FPGAs in different industriesWhen Should You Use a CPLD?You should use a CPLD for system boot sequencing, interface bridging, and applications requiring strict deterministic timing.System boot and configuration control - Includes FPGA configuration managementInterface and Protocol Bridging - Connecting system components with different voltage standards or protocolsBus control and arbitration - Manage data flow between multiple devicesAddress decoding - Implement complex memory mapping and address translationState machine control - Implementing deterministic timing control logicLow-power portable devices - Applications with stringent requirements for power consumption and start-up timeOld design replacement and integration - Integration of multiple discrete logic devices into a single CPLDCPLDs excel in applications that require deterministic timing and high reliability. For example, during system startup, the CPLD can provide the necessary control signals before other components are ready, or manage the FPGA configuration process.💡 "CPLDs are often used as the ‘glue logic’ of a system, connecting components of different speeds, voltages or protocols to ensure that the whole system works in harmony. This role, although unassuming, is critical to system functionality."What Are Some Practical Application Case Studies?In real-world designs, FPGAs and CPLDs frequently operate alongside one another to maximize system efficiency and reliability.Case 1: Data Acquisition SystemIn a typical industrial data acquisition system:CPLD：Interface Control, Signal Conditioning, Address Decoding, Bus ManagementFPGA：High-speed data acquisition, real-time signal processing, data compression and pre-processingCase 2: Communications equipmentDivision of labour in modern communication equipment:CPLD：Power Management, Configuration Control, Interface Conversion, Basic Status MonitoringFPGA：Signal processing, complex protocol implementation, encryption/decryption, data flow managementCase 3: Embedded control systemIn Embedded Control Systems:CPLD：Simple timing control, status monitoring, safety shutdown logicFPGA：Complex control algorithms, sensor fusion, high-speed feedback controlIn practice, FPGAs and CPLDs are often not mutually exclusive choices, but rather work together in the same system, each playing to its strengths. For example, CPLDs can handle key control and interface functions of the system, while FPGAs are responsible for data-intensive processing tasks.In the next section, we provide a detailed selection guide to help you choose the most appropriate programmable logic device for your specific project.How to Choose Between an FPGA and a CPLD?Choosing between an FPGA and a CPLD requires a systematic evaluation of your project's logic scale, power constraints, and timing requirements.What Are the Key Decision Factors?The most critical decision factors include logic scale, startup requirements, power consumption, and cost sensitivity.Decision-making factorsPreference for FPGAsPreferences for CPLDsLogical ScaleLarge scale design (>10K gates)Small to medium scale design (<10K gates)Startup RequirementsAllow configuration delayRequires instant power-up to workPower Consumption RequirementsPower consumption is not a major considerationLow power consumption is criticalSignal TimingComplicated timing analysis acceptableDeterministic timing requiredStorage RequirementsLarge internal storage requirementsLow storage requirementsSpecialised FunctionsRequires DSP, high-speed interfaces, etc.Mainly general purpose logicDevelopment CycleLonger development cycle acceptableRapid development requiredCost SensitivityPerformance takes precedence over costCost is the key factorWhat is the Recommended Selection Process?To systematically select the appropriate device, follow this step-by-step evaluation process:Requirements Analysis: Clearly define the functional requirements and performance metrics of the projectResource Estimation: Evaluate the required number of logic gates, storage needs, and I/O quantityPerformance Constraints Definition: Determine timing requirements, power consumption limitations, and startup time requirementsScalability Considerations: Assess possibilities for future functional expansionDevelopment Resource Assessment: Consider the team's expertise and available development toolsCost Analysis: Consider development costs, unit costs, and lifecycle costsRisk Assessment: Evaluate technical risks and supply chain risks of different optionsDecision Making and Validation: Make decisions based on the above analysis, consider small-scale validationDecision Support Tool: FPGA vs CPLD Selection MatrixFor your project, score each factor (1-5 points), then use the formula below for weighted calculation:FPGA Suitability = Logic Scale×0.25 + Specialized Function Requirements×0.2 + Parallel Processing Requirements×0.2 + Memory Requirements×0.15 + Scalability Requirements×0.2CPLD Suitability = Deterministic Timing×0.25 + Quick Startup×0.2 + Low Power Consumption×0.2 + Development Simplicity×0.15 + Cost Sensitivity×0.2Compare the two scores and choose the technology route with the higher score.What Are Common Selection Misconceptions?Designers frequently make selection errors by focusing solely on gate count while ignoring timing, power, and long-term lifecycle costs.Common Misconceptions and CorrectionsMisconception 1: Selecting Based Only on Logic CapacityYou should consider architectural characteristics and application requirements comprehensively, not just the "gate count".Misconception 2: Over-specification DesignChoosing devices far exceeding requirements will increase cost, power consumption, and development complexity.Misconception 3: Ignoring Timing FactorsFPGA and CPLD have significant differences in timing characteristics, which directly affects design reliability.Misconception 4: Underestimating Development ComplexityFPGA projects typically require more expertise and development time; this factor should not be underestimated.Misconception 5: Ignoring Long-term CostsConsider the sum of development costs, unit costs, power consumption costs, and maintenance costs.In actual projects, many situations may require considering hybrid solutions, such as using CPLD for critical control logic and interfaces while using FPGA for complex data processing tasks in the same system.🔍 "Choosing the right programmable logic device is not just a technical decision, but also a strategic decision balancing cost, performance, power consumption, and development resources."What Are the Most Popular FPGA and CPLD Products in 2026?Based on different application scenarios and requirements, several FPGA and CPLD product families remain industry staples for both cutting-edge and legacy designs.Which FPGA Products Are Recommended?For high-performance and cost-optimized designs, the following FPGA families are highly recommended:Xilinx Artix-7: XC7A35T-1CPG236CKey Parameters: 33,208 Logic Cells, 1V Supply Voltage, Surface Mount 236-Pin LFBGA PackageKey Features: Cost-optimised FPGAs for small to medium-sized designs with low power consumption and good price/performance ratioApplicable Scenarios: Embedded vision, industrial control, automotive electronics, consumer electronicsReference price range: Medium-lowView DetailsIntel (Altera) Cyclone V: 5CGXFC7C6F23C7Key Parameters: 149,500 Logic Cells, 1.1V Supply Voltage, 484-BGA PackageKey Features: Highly integrated, built-in hardware floating-point DSP with PCIe Gen2 and high-speed transceiver supportApplicable Scenarios: Industrial Networking, Video Processing, Software Defined Radio, High Performance ComputingReference price range: Medium-highView DetailsLattice iCE40HX8K-BG121Key Parameters: 8,000 Logic Cells, Ultra Low Power, Small BGA PackageKey Features: One of the industry's lowest power FPGAs, instant startup and ease of useApplicable Scenarios: Portable Devices, Wearables, IoT Applications, Sensor HubsReference price range: lowView DetailsWhich CPLD Products Are Recommended?For low-power, instant-on control logic, these CPLD families continue to dominate the market:Xilinx CoolRunner-II: XC2C64A-7VQ44CKey Parameters: 64 Macrocells, 1.8V Supply Voltage, 44-TQFP PackageKey Features: Ultra-low power CPLD with fast start-up and good jitter controlApplicable Scenarios: Portable Device Control, Bus Interface, Protocol ConversionReference price range: lowView DetailsIntel (Altera) MAX II: EPM240T100C5NKey Parameters: 240 Logic Cells, 3.3V Operating Voltage, 100-Pin TQFP PackageKey Features: User flash technology, instant boot, rich I/O optionsApplicable Scenarios: System Control, Interface Bridging, Configuration ManagementReference price range: lowView DetailsLattice MachXO2: LCMXO2-1200HC-4TG100CKey Parameters: 1,200LUT, internal flash memory, 100-pin TQFP packageKey Features: Hybrid FPGA/CPLD Architecture, Instant Start, Flexible I/OApplicable Scenarios: Embedded control, interface management, real-time controlReference price range: mediumView DetailsWhen shopping for a product, it is recommended to consider the following factors:Development tool compatibility：Ensure your team is familiar with the relevant vendor's development environmentSupply chain stability：Assessing the long-term security of supply and life cycle of productsTechnical Support：Consider the quality of support and documentation provided by the manufacturerCommunity Resources：An active user community can provide a valuable development resourceUpgrade Path：Consider compatibility for future upgrades to higher performance productsConclusionIn this paper, we provide an in-depth analysis of the characteristics, strengths and weaknesses, and application scenarios of two important programmable logic devices, FPGAs and CPLDs. While both devices offer programmable logic capabilities, there are significant differences in architecture, performance, and areas of application.Summary of the selection guideSelecting an FPGA：When high logical capacity, complex functional implementations, large amounts of internal storage, dedicated hard-core resources, and scalability are requiredSelecting a CPLD：When deterministic timing, instant startup, low power consumption, simple development process and stable and reliable interface logic are requiredImportantly, FPGAs and CPLDs are not simply competing, but complementary technology solutions. In many complex systems, the two tend to work in tandem: CPLDs handle critical control and interface logic, while FPGAs are responsible for data-intensive processing tasks.With the growth of the Internet of Things, artificial intelligence, and edge computing, the demand for high-performance, low-power programmable logic will continue to grow. Understanding the characteristics of FPGAs and CPLDs and their optimal application scenarios will help engineers and designers make informed technology choices, optimise system performance, and reduce development risk.Ultimately, the choice of FPGA or CPLD should be based on the specific needs and constraints of the project, rather than simply going for the latest or most complex technology. Hopefully, the analysis and guidance provided in this article will help you make the best choice for your future projects.🔍 "In the field of digital design, understanding the differences in programmable logic devices and choosing the right technology path is often one of the key factors in the success of a project."Frequently Asked QuestionsWhich is faster, an FPGA or a CPLD?While FPGAs offer superior overall processing power and high-speed parallel execution for complex algorithms, CPLDs provide faster, more predictable pin-to-pin routing delays. For simple, timing-critical combinational logic, a CPLD often guarantees stricter deterministic timing, whereas an FPGA excels in high-throughput data processing tasks.Can a CPLD completely replace an FPGA?A CPLD cannot replace an FPGA for complex, data-intensive applications requiring thousands of logic gates, embedded memory, or DSP blocks. However, for simple glue logic, voltage translation, or system boot sequencing, a CPLD is often a more cost-effective, power-efficient, and reliable alternative to an over-specified FPGA.Why are FPGAs generally more expensive than CPLDs?FPGAs are more expensive because they feature significantly higher logic density, complex distributed interconnect architectures, and advanced integrated hard cores like DSPs and memory blocks. Manufacturing these high-capacity, SRAM-based chips requires advanced semiconductor nodes, whereas CPLDs use simpler, mature EEPROM or Flash-based macrocell architectures.Do CPLDs require external configuration memory?No, CPLDs do not require external configuration memory. They utilize non-volatile storage technologies, such as EEPROM or Flash memory, to retain their logic configuration even when powered down. This allows CPLDs to function instantly upon power-up, making them ideal for managing system boot sequences.FPGA vs CPLD Knowledge Cardbody {font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif;line-height: 1.6;color: #333;background-color: #f8f9fa;}.container {max-width: 1200px;margin: 0 auto;padding: 20px;}h1, h2, h3, h4 {font-weight: 700;margin-top: 1.5em;margin-bottom: 0.8em;color: #2c3e50;}h1 {font-size: 2.5rem;margin-top: 1em;}h2 {font-size: 2rem;border-bottom: 2px solid #eaecef;padding-bottom: 0.3em;}h3 {font-size: 1.5rem;}h4 {font-size: 1.25rem;}p {margin-bottom: 1.2em;font-size: 1.05rem;}ul, ol {margin-left: 1.5em;margin-bottom: 1.2em;}li {margin-bottom: 0.5em;}.quote-box {background-color: #f1f8ff;border-left: 4px solid #2b6cb0;padding: 1em;margin: 1.5em 0;border-radius: 0 4px 4px 0;}.highlight-box {background-color: #fdf2e9;border-radius: 4px;padding: 1.5em;margin: 1.5em 0;box-shadow: 0 2px 5px rgba(0,0,0,0.1);}.comparison-table {width: 100%;border-collapse: collapse;margin: 1.5em 0;}.comparison-table th, .comparison-table td {border: 1px solid #ddd;padding: 12px;text-align: left;}.comparison-table th {background-color: #2b6cb0;color: white;}.comparison-table tr:nth-child(even) {background-color: #f2f2f2;}.image-container {display: flex;justify-content: center;margin: 2em 0;}.image-container img {max-width: 100%;height: auto;border-radius: 4px;box-shadow: 0 3px 6px rgba(0,0,0,0.16);}.caption {text-align: center;color: #666;font-size: 0.9rem;margin-top: 0.5em;}.faq-item {margin-bottom: 1.5em;border-bottom: 1px solid #eaecef;padding-bottom: 1em;}.faq-question {font-weight: 600;color: #2c3e50;font-size: 1.1rem;margin-bottom: 0.5em;}.faq-answer {padding-left: 1em;border-left: 3px solid #e5e7eb;}.product-card {border: 1px solid #e5e7eb;border-radius: 8px;overflow: hidden;margin-bottom: 1.5em;background-color: white;box-shadow: 0 2px 5px rgba(0,0,0,0.05);transition: transform 0.3s, box-shadow 0.3s;}.product-card:hover {transform: translateY(-5px);box-shadow: 0 5px 15px rgba(0,0,0,0.1);}.card-header {padding: 1em;background-color: #2b6cb0;color: white;font-weight: bold;}.card-body {padding: 1em;}.card-footer {padding: 1em;background-color: #f9fafb;border-top: 1px solid #e5e7eb;}.btn {display: inline-block;padding: 0.5em 1em;background-color: #2b6cb0;color: white;text-decoration: none;border-radius: 4px;font-weight: 500;transition: background-color 0.3s;}.btn:hover {background-color: #1e4e8c;}.tip-box {background-color: #e6fffa;border-left: 4px solid #38b2ac;padding: 1em;margin: 1.5em 0;border-radius: 0 4px 4px 0;}.warning-box {background-color: #fff5f5;border-left: 4px solid #e53e3e;padding: 1em;margin: 1.5em 0;border-radius: 0 4px 4px 0;}.video-container {position: relative;overflow: hidden;width: 100%;padding-top: 56.25%; /* 16:9 Aspect Ratio */margin: 2em 0;}.video-container iframe {position: absolute;top: 0;left: 0;bottom: 0;right: 0;width: 100%;height: 100%;border: none;}.toc {background-color: #f8f9fa;border: 1px solid #eaecef;border-radius: 4px;padding: 1.5em;margin: 1.5em 0;}.toc-title {font-weight: 600;margin-bottom: 1em;font-size: 1.2rem;}.toc-list {list-style-type: none;margin-left: 0;}.toc-list li {margin-bottom: 0.5em;}.toc-list a {color: #3182ce;text-decoration: none;}.toc-list a:hover {text-decoration: underline;}.sublist {margin-left: 1.5em;margin-top: 0.5em;}{ "@context": "https://schema.org", "@type": "Article", "headline": "FPGA vs CPLD: Comprehensive Architecture, Performance, and Selection Guide", "datePublished": "2025-05-07", "dateModified": "2026-03-31", "author": { "@type": "Organization", "name": "Kynix" }, "publisher": { "@type": "Organization", "name": "Kynix" }}{ "@context": "https://schema.org", "@type": "FAQPage", "mainEntity":[ { "@type": "Question", "name": "Which is faster, an FPGA or a CPLD?", "acceptedAnswer": { "@type": "Answer", "text": "While FPGAs offer superior overall processing power and high-speed parallel execution for complex algorithms, CPLDs provide faster, more predictable pin-to-pin routing delays. For simple, timing-critical combinational logic, a CPLD often guarantees stricter deterministic timing, whereas an FPGA excels in high-throughput data processing tasks." } }, { "@type": "Question", "name": "Can a CPLD completely replace an FPGA?", "acceptedAnswer": { "@type": "Answer", "text": "A CPLD cannot replace an FPGA for complex, data-intensive applications requiring thousands of logic gates, embedded memory, or DSP blocks. However, for simple glue logic, voltage translation, or system boot sequencing, a CPLD is often a more cost-effective, power-efficient, and reliable alternative to an over-specified FPGA." } }, { "@type": "Question", "name": "Why are FPGAs generally more expensive than CPLDs?", "acceptedAnswer": { "@type": "Answer", "text": "FPGAs are more expensive because they feature significantly higher logic density, complex distributed interconnect architectures, and advanced integrated hard cores like DSPs and memory blocks. Manufacturing these high-capacity, SRAM-based chips requires advanced semiconductor nodes, whereas CPLDs use simpler, mature EEPROM or Flash-based macrocell architectures." } }, { "@type": "Question", "name": "Do CPLDs require external configuration memory?", "acceptedAnswer": { "@type": "Answer", "text": "No, CPLDs do not require external configuration memory. They utilize non-volatile storage technologies, such as EEPROM or Flash memory, to retain their logic configuration even when powered down. This allows CPLDs to function instantly upon power-up, making them ideal for managing system boot sequences." } } ]}{ "@context": "https://schema.org", "@type": "ItemList", "name": "Popular FPGA and CPLD Products in 2026", "itemListElement":[ { "@type": "Product", "position": 1, "name": "Xilinx Artix-7: XC7A35T-1CPG236C", "description": "Cost-optimised FPGAs for small to medium-sized designs with low power consumption and good price/performance ratio." }, { "@type": "Product", "position": 2, "name": "Intel (Altera) Cyclone V: 5CGXFC7C6F23C7", "description": "Highly integrated, built-in hardware floating-point DSP with PCIe Gen2 and high-speed transceiver support." }, { "@type": "Product", "position": 3, "name": "Lattice iCE40HX8K-BG121", "description": "One of the industry's lowest power FPGAs, instant startup and ease of use." }, { "@type": "Product", "position": 4, "name": "Xilinx CoolRunner-II: XC2C64A-7VQ44C", "description": "Ultra-low power CPLD with fast start-up and good jitter control." }, { "@type": "Product", "position": 5, "name": "Intel (Altera) MAX II: EPM240T100C5N", "description": "User flash technology, instant boot, rich I/O options." }, { "@type": "Product", "position": 6, "name": "Lattice MachXO2: LCMXO2-1200HC-4TG100C", "description": "Hybrid FPGA/CPLD Architecture, Instant Start, Flexible I/O." } ]}

Definition and Principle of FPGA ModuleFPGA module (Field Programmable Gate Array) is a reconfigurable hardware gas pedal that contains a large number of programmable logic units and interconnect circuits. According to Intel's official website, FPGA modules are reprogrammable computing components that can be configured for different purposes after manufacturing, and are often used as gas pedals for AI reasoning and data processing, and are widely deployed in cloud, data center, and edge computing environments to eliminate memory buffers and I/O bottlenecks, and accelerate the entire data processing process.Compared to traditional CPUs and GPUs, FPGAs offer higher flexibility and performance, allowing for software-defined hardware acceleration functions without incurring the high cost and complexity of customized ASICs. In addition, market research reports show that the global embedded FPGA market size is growing rapidly: it is projected to grow from $11.09 billion in 2024 to 12.77 billion, at a CAGR of more than 15%, underscoring the importance of FPGAs in the wave of 5G, AI and automation.The figure above shows the Xilinx Spartan-7 evaluation board, which is a typical FPGA module development platform.FPGA modules are internally composed of thousands of Configurable Logic Blocks (CLBs), which are connected through a programmable interconnect network. Each CLB usually contains a lookup table (Lookup Table, LUT), flip-flop (Flip-Flop) and other basic circuit units, which can be combined to form a variety of custom logic functions. Users design the functional logic through hardware description languages such as Verilog, VHDL, etc. The toolchain synthesizes these designs into bitstreams and downloads them to the FPGA module to complete the configuration. During the design process, timing constraints are also specified to ensure that the logic operates stably at the expected clock frequency to complete the full timing closure. Because of this programmable logic architecture, the FPGA module can be repeatedly updated with new functionality from the factory, allowing a single hardware board to be adapted to multiple applications.FPGA vs. ASICFPGA modules are significantly different from ASICs (Application Specific Integrated Circuits) in terms of design and application. Unlike the reprogrammable nature of FPGAs, ASICs fix the hardware functionality at design time and cannot be changed after manufacturing. Therefore, FPGAs are suitable for rapid iteration and validation phases, as well as for scenarios that require frequent algorithm updates, while ASICs are more suitable for optimizing performance, power consumption and cost during large-scale mass production. According to market research, FPGAs typically have higher cost per chip and power consumption than ASICs, and are slightly slower; however, FPGAs do not require expensive lithography mask expense (NRE) investment and have a short overall development cycle. In addition, FPGAs are often used for ASIC prototyping, and functional evolution can be maintained over time through software updates at later stages of product design.Enterprise ScenariosFPGA modules play an important role in several enterprise scenarios due to their flexible programmability and hardware-level parallelism:Data center acceleration and AI inferenceIn cloud and enterprise servers, FPGA modules are used as hardware gas pedals to accelerate workloads such as database retrieval, genome sequencing, data analysis and AI inference. For example, AI inference tasks such as large-scale language modeling (LLM), real-time recommender systems, and financial risk control can benefit from customized acceleration from FPGAs, which are energy-efficient and can also help reduce energy and cooling costs in high-performance data centers.Edge Computing and Industrial AutomationFPGA modules provide low-latency, low-power real-time computing capabilities in the areas of Industry 4.0, smart manufacturing and IoT edge devices. They are commonly used in scenarios such as machine vision, smart cameras, robot control, and perceptual decision-making for self-driving vehicles, where data from multi-sensor inputs (e.g., cameras, radar, sensors) are processed in parallel. In addition, FPGA chips are industrially validated and have a long-term lifecycle, making them ideal for scenarios such as medical equipment, communication base stations, and defense systems that require long-term reliable operation.Networking and 5GFPGA modules are widely used in networking equipment and communication infrastructure to enable high-throughput packet processing and flexible protocol acceleration. With the deployment of 5G networks, FPGAs are used in applications such as wireless baseband processing, data center SmartNICs, and protocol acceleration due to their high-bandwidth I/O and low-latency advantages. Market research indicates that the demand for FPGAs for 5G networks continues to grow, with operators utilizing FPGAs to implement complex signal processing and network functions to address the high-speed, low-latency requirements of next-generation networks.Automation and Professional ApplicationsFPGA modules are also often employed in automated testing, video encoding, and embedded devices. For example, FPGAs can be used for tasks such as real-time video coding and decoding, high-speed data acquisition, and specialized cryptographic processing to improve system efficiency by customizing data paths at the hardware level. There are also a large number of FPGA solutions for image processing, signal processing and control systems in the broadcast, security and aerospace sectors.The above applications show that FPGA modules are playing an increasingly important role in enterprise scenarios such as AI acceleration, industrial control, and communication infrastructure by virtue of the advantage of "programmable logic".Advantages and ChallengesAdvantagesHighly flexible programmability and parallel computing capabilitiesReconfigurable logic circuits as neededLower hardware costs compared to fixed-function ASICsSupport for long iterations of upgradesParallel architecture for simultaneous processing of multiplexed tasksDeterministically low processing latencyFine resource division for specific applicationsReduced power consumption and improved energy efficiencyLife cycle of several years, suitable for medical, defense, automotive systemsExcellent balance of performance and flexibilityChallengesDifficulty of development and programmingRequires hardware description languages (Verilog/VHDL)Needs in-depth understanding of digital circuit timing, layout and wiringSteep learning curve for engineering teamsRequires hardware design experienceConsiderations for manpower trainingSoftware support needs when implementing FPGA solutionsTo reduce these difficulties, the industry has introduced tools such as High-Level Synthesis (HLS) and OpenCL, allowing development in C/C++ or familiar AI frameworks like TensorFlow/Caffe.As the hardware and software development ecosystem becomes more mature, the difficulty of FPGA development is gradually decreasing, but enterprises still need to consider factors such as manpower training and software support when promoting FPGA solutions.Frequently Asked Questions (FAQ)What is FPGA module and how is it different from ASIC?An FPGA module is a "programmable logic" chip that can be shipped from the factory with a bitstream loaded to change its hardware functionality. Unlike ASICs, where the functionality of the circuit is fixed at the time of manufacture and cannot be subsequently modified, FPGAs offer flexibility: companies can quickly update algorithms or iterate on a product without having to remanufacture the chip, and FPGAs have a short development cycle and low up-front investment, but the cost and power consumption of a single chip is usually higher than that of an ASIC; an ASIC is suitable for large-scale mass-production scenarios in pursuit of the highest performance and lowest cost per unit.Which solution is more suitable for AI inference, FPGA module or GPU?FPGAs and GPUs each have their own strengths; GPUs are suitable for general-purpose matrix operations and massive parallelism with a rich software ecosystem, while FPGAs are known for their low latency, customizable hardware paths, and high energy efficiency. When stringent latency requirements are needed (e.g., real-time video or financial transactions) or special network structure optimization, FPGAs can integrate network layers or preprocessors into the hardware to significantly improve processing efficiency. On the other hand, GPUs tend to be more efficient for the training phase or for models with intensive standard convolutional operations. Enterprises can weigh their choices according to the application scenario: some modern accelerator cards also come with both GPUs and FPGAs to take advantage of their respective strengths.What are the main enterprise scenarios that FPGA modules are used in?FPGA modules are widely used in data center acceleration, edge intelligence, network communication and industrial automation. In data centers, FPGAs are used for database acceleration, search engines, machine learning inference (e.g., large-scale recommendation, dialog systems), etc.; in edge computing and industrial fields, FPGAs can provide low-latency AI inference and control functions for smart cameras, robots, and self-driving sensors, etc.; in the field of communications, FPGAs are used for high-speed protocol processing and customized network in 5G base stations and network equipment Functions. In short, any enterprise application scenario that requires high-performance customized acceleration and has stringent requirements for latency and power consumption is likely to use FPGA modules to improve performance and efficiency.What technologies and tools are required to develop FPGA modules?Traditionally, FPGA development has been done using hardware description languages such as Verilog or VHDL, and integrated tools such as Vivado and Quartus to accomplish RTL design to bitstream generation. This requires engineers to have digital circuit design and timing analysis capabilities. In recent years, high-level development platforms including Xilinx Vitis, Intel oneAPI, and OpenCL have emerged, enabling software engineers to also develop FPGA gas pedals using C/C++ or AI frameworks such as TensorFlow and PyTorch. These tools can automatically optimize design details such as parallelism and timing, lowering the FPGA development threshold. For enterprise users, when introducing FPGA solutions, it is recommended to choose mature development kits and third-party support to speed up development and ensure maintainability.ReferenceFPGAs for Artificial Intelligence (AI) – Intel https://www.intel.com/content/www/us/en/learn/fpga-for-ai.htmlFPGA Market Size, Share, and Growth Analysis, By Configuration (Low-end FPGA, Mid-range FPGA), By Node Size (<=16 nm, 20-90 nm), By Technology, By Size, By Vertical, By Region - Industry Forecast 2025-2032 https://www.giiresearch.com/report/sky1666101-fpga-market-size-share-growth-analysis-by.htmlEmbedded FPGA Market Report 2025 - Forecast, Market Size, Demand https://www.thebusinessresearchcompany.com/report/embedded-field-programmable-gate-array-fpga-global-market-reportWhat is FPGA? FPGA Basics, Applications and Uses | Arrow.com https://www.arrow.com/en/research-and-events/articles/fpga-basics-architecture-applications-and-uses /* Base styles */ body { font-family: 'Segoe UI', Tahoma, Geneva, Verdana, sans-serif; line-height: 1.6; color: #333; background-color: #f9fafb; margin: 0; padding: 0; } .container { max-width: 1100px; margin: 0 auto; padding: 20px; } /* Typography */ h2 { font-size: 2rem; color: #1e40af; margin-top: 2rem; margin-bottom: 1.2rem; border-bottom: 2px solid #ddd; padding-bottom: 0.5rem; } h3 { font-size: 1.4rem; color: #1e3a8a; margin-top: 1.5rem; margin-bottom: 1rem; } p { margin-bottom: 1.2rem; font-size: 1rem; line-height: 1.7; } /* Sections */ section { margin-bottom: 3rem; } /* Cards and boxes */ .card { background-color: #fff; border-radius: 8px; box-shadow: 0 4px 6px rgba(0,0,0,0.1); padding: 1.5rem; margin-bottom: 1.5rem; transition: transform 0.2s ease-in-out; } .card:hover { transform: translateY(-5px); } .card h3 { color: #2563eb; margin-top: 0; } /* Grid system */ .grid-container { display: grid; grid-template-columns: 1fr; gap: 1.5rem; margin: 1.5rem 0; } @media (min-width: 768px) { .grid-container { grid-template-columns: 1fr 1fr; } } /* Special boxes */ .info-box { background-color: #e0f2fe; padding: 1rem; border-left: 4px solid #38bdf8; border-radius: 4px; margin: 1.5rem 0; } .highlight-box { background-color: #f0fdf4; padding: 1.5rem; border-radius: 8px; border: 1px solid #86efac; margin: 1.5rem 0; } /* Features boxes */ .advantages-box { background-color: #ecfdf5; border-radius: 8px; padding: 1.5rem; box-shadow: 0 2px 4px rgba(0,0,0,0.05); } .advantages-box h3 { color: #059669; } .challenges-box { background-color: #fef2f2; border-radius: 8px; padding: 1.5rem; box-shadow: 0 2px 4px rgba(0,0,0,0.05); } .challenges-box h3 { color: #dc2626; } /* Lists */ ul { padding-left: 1.2rem; } ul li { margin-bottom: 0.5rem; } /* FAQ section */ .faq-item { background-color: #f8fafc; border-radius: 8px; padding: 1.5rem; margin-bottom: 1rem; box-shadow: 0 2px 4px rgba(0,0,0,0.05); } .faq-item h3 { color: #334155; margin-top: 0; font-size: 1.3rem; } /* Utility classes */ .flex-container { display: flex; flex-direction: column; } @media (min-width: 768px) { .flex-container { flex-direction: row; gap: 1.5rem; } .flex-item { flex: 1; } } .text-caption { font-style: italic; color: #6b7280; font-size: 0.9rem; }

Field Programmable Gate Arrays (FPGAs) help create custom hardware. They are very flexible and perform tasks quickly. FPGAs are used in telecommunications, cars, and artificial intelligence. They can make algorithms like RankBoost run 31.8× faster. They also use up to 30% less power than regular CPUs. MATLAB and Simulink make FPGA programming easier for beginners. You can run complex tasks, like motor control, on FPGAs. This requires little programming knowledge. Simulink uses models to create and send code automatically. This helps combine hardware and software easily. These tools let you focus on new ideas instead of coding details. Understanding FPGA Basics What is an FPGA, and how does it work? An FPGA is a special type of hardware you can program. Unlike regular processors, FPGAs let you design custom circuits. These circuits are made using programmable blocks and connections. You can use them to run complex tasks or control systems. FPGAs process data all at once, not step by step. This makes them faster than CPUs for some tasks. They are great for things like image processing and machine learning. Because they are fast and flexible, industries like cars and space use them. The FPGA market is growing and could reach $13.5 billion by 2032. Key building blocks of FPGA logic circuits FPGAs have important parts that make them work well. These include logic elements, flip-flops, multiplexers, and lookup tables (LUTs). Logic elements help create circuits for specific tasks. Flip-flops store data and keep it in sync with the clock. Multiplexers move signals around inside the FPGA. LUTs handle tricky logic tasks quickly. These parts need to stay reliable over time. Problems like BTI and HCI can make them slower. But tools like Ring Oscillators (ROs) check for issues and help fix them. This keeps FPGAs working well for a long time. Problem TypeWhat HappensHow It Affects FPGAsBias Temperature Instability (BTI)Positive ions build up, raising voltage.Slows down switching speed.Hot-Carrier Injection (HCI)Damage to the interface raises voltage.Hurts switching speed permanently.Ring Oscillators (ROs)Sensors watch for circuit problems.Finds issues early. Differences between FPGA programming and traditional software programming FPGA programming is very different from regular software programming. In software, you write instructions for a processor to follow one by one. With FPGAs, you design circuits that work all at the same time. This lets FPGAs handle lots of data very quickly. The tools and languages are also different. Software uses languages like Python or C++. FPGA programming uses HDLs like VHDL and Verilog. These HDLs describe how circuits behave instead of giving step-by-step commands. FPGA programming also needs you to know hardware basics. You’ll learn about timing, delays, and how to use resources. It might seem hard, but tools like MATLAB and Simulink make it easier for beginners. Introduction to MATLAB and Simulink for FPGA Programming Overview of MATLAB and Simulink features for FPGA design MATLAB and Simulink are helpful tools for FPGA projects. Simulink uses visuals to show how hardware and data move. This makes it simple to see how your design works. You can also use MATLAB code inside Simulink with special blocks. This saves time and keeps your work consistent. Another useful feature is testing your Simulink design with MATLAB. A test script checks if your design matches the MATLAB reference. This ensures your FPGA design is correct before using it. These tools make hard tasks easier, even for beginners. Benefits of using MATLAB and Simulink for beginners Starting FPGA programming can feel tricky, but these tools help. Their easy-to-use interfaces let you focus on designs, not coding. Simulink lets you drag and drop to build models. MATLAB has built-in functions to help create algorithms. These tools can also make HDL code automatically. For example, HDL Coder turns Simulink models into VHDL or Verilog code. This saves time spent on coding and fixing errors. Beginners can quickly turn ideas into working designs and feel more confident. Integration of MATLAB and Simulink with FPGA hardware MATLAB and Simulink work well with FPGA hardware. They help design, test, and check systems easily. You can connect them to devices like cameras and processors. This works for school projects and big industries like cars and planes. For example, tutorials show how to use MATLAB or Simulink with LabVIEW FPGA. They explain how to make VHDL code with HDL Coder and test it on hardware. Companies like Siglead use these tools for signal processing. Automatic code generation saves time, letting engineers focus on new ideas. Essential Steps in FPGA Programming Designing hardware architecture The first step in FPGA programming is planning the hardware. You decide how the FPGA will handle data and connect to parts. This includes setting up logic blocks, data paths, and control signals. A good plan helps the FPGA work faster and use resources wisely. You can use benchmarks to guide your design. Benchmarks test different parts of FPGA programming, like code creation and accuracy. The table below shows some common benchmarks: BenchmarkSizePLTypeFeaturesVerilogEval1561 (Verilog)Verilog code generation tasksDiverse tasks from simple circuits to finite state machines; automatic testing.HDLEval100MultipleLanguage-agnostic HDLEvaluates multiple HDLs using standardized test benches and formal verification.PyHDL-Eval168Python-embedded DSLsSpecification-to-RTL tasksFocuses on Python-based hardware design; includes Verilog reference solutions.RTLLM50Verilog, VHDL, ChiselDesign RTL generationCovers various HDL formats and complexities; includes automated evaluation.VHDL-Eval202VHDLVHDL code generation tasksAggregates Verilog and VHDL problems; uses self-verifying testbenches.GenBen351VerilogHardware design tasksEvaluates synthesizability, power, area, and timing for real-world applicability. Writing and simulating HDL code After planning, write the HDL code to describe the FPGA's behavior. Use languages like VHDL or Verilog to define the logic. Tools like MATLAB and Simulink can help by creating HDL code from models automatically. Testing your design with simulation is very important. It lets you check your design in a virtual setup before using real hardware. Simulink gives a visual way to test, while MATLAB runs scripts to confirm everything works. This step reduces mistakes and ensures your design is ready. Synthesis and implementation of FPGA designs Synthesis and implementation turn your HDL code into a working FPGA design. Synthesis changes the code into a gate-level netlist. This step makes the design faster and more efficient. Implementation places the netlist onto the FPGA's physical parts, finishing with routing and bitstream creation. Some methods make synthesis and implementation better: Pipelining splits tasks into steps for faster processing.Loop unrolling makes loops shorter, so tasks run together.Memory partitioning breaks memory into smaller parts for better use. The table below explains these methods: TechniqueDescriptionSynthesisTurns RTL code into a gate-level netlist, improving performance.ImplementationMaps the netlist to FPGA parts, including routing.PipeliningSplits tasks into steps for faster parallel processing.Loop UnrollingReduces loop steps to increase speed and parallelism.Memory PartitioningBreaks memory into smaller parts for better processing. These techniques make FPGA designs fast and dependable. Verification and debugging techniques. Checking and fixing are key steps in FPGA programming. They make sure your design works well before using it. If you skip these steps, mistakes can cause big problems later. Begin with testing through simulations. Use tools like MATLAB and Simulink to test designs virtually. Simulations let you see how your design acts in different situations. For example, you can test clock signals or input data to check outputs. This helps find mistakes early, saving time later. Then, try hardware-in-the-loop (HIL) testing. This connects your FPGA design to real hardware parts. HIL testing checks how your design works with devices like sensors or motors. It helps you see how your design performs in real life. Debugging tools are also very helpful. Many FPGA tools have built-in debugging features. For example, signal analyzers watch signals inside the FPGA. Logic analyzers help find timing problems by tracing signal paths. These tools make fixing issues easier. Lastly, follow a step-by-step debugging plan. First, find the problem by checking small parts of your design. Once you know the issue, change the HDL code or hardware setup. Test again to make sure the problem is fixed. Learning these methods helps you build strong FPGA designs. Checking and fixing improve your skills and make your projects successful. Practical Example: Blinking LED Project Setting up the project in MATLAB and Simulink To start the blinking LED project, set up MATLAB and Simulink. First, make a new Simulink model. Use the drag-and-drop feature to add blocks for hardware and logic. This visual method is easy for beginners. You can also write MATLAB scripts to set parameters or test your design. Simulink has a user-friendly interface to pick FPGA components. This makes creating HDL code simple. Tools like CASPER help move from simulation to real hardware smoothly. This setup teaches how software and hardware work together, which is important for FPGA projects. Designing the blinking LED logic The blinking LED logic controls when the LED turns on and off. A counter is a simple way to do this. The counter increases with a divided clock signal, setting the blink speed. For advanced designs, use multiple counters to create different blinking patterns. Here’s an example of basic counter logic in Verilog: always @(posedge clk) begin if (counter == MAX_COUNT) begin counter <= 0; led <= ~led; // Change LED state end else begin counter <= counter + 1; endend This code makes the LED blink at a steady speed. The clock frequency and counter value decide how fast it blinks. Simulating and testing the design Testing your design with simulation is very important. It helps find and fix problems before using real hardware. Use Simulink to test your blinking LED logic. Simulations check how your design works in different situations, even tricky ones. For example, during simulation, you can see how the LED behaves: Time Interval (ms)Frequency (Hz)LED Signal Behavior0 - 200100LED blinks very fast200 - 40050LED blinks slower400 - 60010LED blinks at a slow speed600 - 8001LED blinks very slowly Simulations make debugging easier than testing on hardware. Once the simulation works as expected, you can program the FPGA confidently. Deploying the design to FPGA hardware. After your design passes tests, it's time to put it on the FPGA hardware. This means programming the FPGA with a special file called a bitstream. Follow these simple steps to finish the process: Create the Bitstream FileUse your FPGA tools to make the bitstream file. This file tells the FPGA how to work. Tools like MATLAB HDL Coder or Simulink can make this file for you after the design is ready. Connect the FPGA BoardAttach your FPGA board to your computer using a USB or JTAG cable. Make sure the board is turned on and your computer recognizes it. Most boards come with software to help with this step. Load the BitstreamOpen the programming software for your FPGA, like Xilinx Vivado or Intel Quartus. Choose your FPGA device and load the bitstream file. Click "Program" to send the design to the FPGA. Test the HardwareCheck if the design works correctly on the FPGA. For example, in the blinking LED project, see if the LED blinks at the right speed. If there are problems, go back and check your tests and fixes. Tip: Always check the FPGA board's pin setup before programming. Wrong pin settings can damage the hardware. Here’s an example of a MATLAB command to program an FPGA: fpga = hdlcoder.FPGAProgrammingInterface('Xilinx');fpga.ProgramFPGA('bitstream.bit'); Putting your design on hardware lets you see it in action. It’s exciting to watch your ideas turn into real projects! Advanced Concepts for Beginners Introduction to sequential logic and D flip-flops (DFFs) Sequential logic is a circuit type where outputs depend on inputs and past states. This differs from combinational logic, which only uses current inputs. Sequential circuits are important for counting, storing data, and controlling FPGA processes. A key part of sequential logic is the flip-flop. So, what is a flip-flop? It’s a small circuit that holds one bit of data. The D flip-flop (DFF) is the most common type. It saves the input value (D) when the clock signal rises and keeps it until the next clock cycle. This makes it great for registers, counters, and memory. For instance, a D flip-flop can store the state of a blinking LED. It ensures the LED changes only at set clock times, preventing errors. Understanding timing, propagation delay, and clock domains Timing is very important in FPGA design. Propagation delay is the time a signal takes to move through a circuit. If delays are too long, the circuit might fail. Clock domains are parts of a design using different clock signals. Managing these prevents data errors or loss. Engineers use reports to check timing and clock domains. These reports find problems and improve designs: Report TypeWhat It DoesClock Networks ReportShows how clocks move through the design and their connections.Clock Interaction ReportFinds problems like data loss between different clock domains.Timing Summary ReportGives a full view of the design's timing for final checks.Datasheet ReportLists timing details and system requirements for integration. Knowing these ideas helps your FPGA work well, even in tough tasks. Best practices for coding in VHDL and Verilog Using good habits in VHDL or Verilog makes your code clear and easy to manage. Here are some tips: Write comments to explain signals and tricky code parts. This helps if you review the code later.Describe inputs and outputs clearly at the interface level. This makes reuse easier.Skip obvious comments. Use comments to explain hard-to-understand sections. Beginners should also know the difference between VHDL and Verilog. VHDL is detailed and good for big, complex projects. Verilog is simpler and popular in industries. Pick the one that fits your project and learning needs. By following these tips, you can write neat and effective designs. This is key for anyone learning hardware programming. Tips for Troubleshooting and Debugging Common problems in FPGA programming and how to fix them FPGA programming can be tricky, but knowing common problems helps. Here are some issues and ways to solve them: Asynchronous Logic: Timing errors happen with asynchronous logic. Use synchronous logic and clock all signals to avoid this.Underused DSP Slices: Beginners often use LUTs instead of DSP slices. This makes designs less efficient. Use DSP slices for math tasks to improve performance.Ignoring Device Primitives: Skipping built-in primitives can lead to poor designs. Learn about your FPGA's primitives to make better circuits. Sometimes, board designers and FPGA developers face teamwork issues. Working together and debugging as a team can fix these problems. For example, both teams should check timing errors in asynchronous logic. The table below shows error counts in FPGA programming: CategoryError CountDDR Rx CRC-132,616,455Ingress Drop Stats1,750UcH Fr Np-1115,685UcL Fr Np-131,852,547,525UcH ErrToNp-2129UcL ErrToNp-290,359 Fixing these problems early saves time and makes debugging easier. Tools and methods for debugging FPGA designs Debugging is important in FPGA design. Using the right tools helps you meet your goals. Here are some useful methods: Simulation Tools: Test your design with tools like MATLAB or Simulink. Simulations let you find bugs before using real hardware.Hardware Debugging Tools: Use signal probes and logic analyzers to check signals inside the FPGA. These tools help find errors and fix timing issues.Hardware-in-the-Loop (HIL) Testing: Connect your FPGA to real devices. HIL testing checks if your design works in real-world situations. The table below lists key debugging and optimization metrics: MetricDescriptionCorrectnessCheck if the design works as planned.Timing ComplianceMake sure the design meets timing rules to avoid errors.RobustnessTest the design in tough situations to ensure it’s reliable.Debugging and OptimizationFind and fix bugs while improving performance. These methods and tools help you build strong FPGA designs. Learning them makes solving hard debugging problems easier. Resources for Further Learning Suggested tutorials and books for FPGA programming Books and tutorials are great for learning more about FPGAs. A popular book is The FPGA Programming Handbook by Frank Bruno and Guy Eschemann. It starts with simple ideas and moves to harder topics. The book includes hands-on projects like making a calculator or connecting sensors. The authors have over 50 years of combined experience. They’ve worked with big companies like SpaceX and Analog Devices, so the book is trustworthy and helpful. AspectDetailsBook TitleThe FPGA Programming HandbookAuthorsFrank Bruno, Guy EschemannTarget AudienceHobbyists, students, and people curious about FPGA technologyContent OverviewCovers basics to advanced topics, includes hands-on projectsRecommended ForBeginners and those with some technical knowledgePractical ExamplesProjects like making a calculator and connecting sensorsAuthor's ExperienceWorked with companies like SpaceX and Analog Devices This book is perfect for beginners or anyone with basic technical skills. It gives a strong start for designing FPGA systems. Online courses and beginner communities Online courses and groups are great for learning FPGA programming. Websites like Coursera and Udemy have beginner-friendly FPGA courses. These courses include videos, quizzes, and projects. Some teach how to use MATLAB and Simulink for FPGA tasks. You can learn at your own speed, which is great for new learners. Communities like Reddit’s FPGA subreddit and forums like Stack Overflow are also helpful. You can ask questions, share ideas, and learn from experts. Joining these groups helps you solve problems and learn about new trends. Trying advanced projects and real-world uses After learning the basics, try harder FPGA projects. For example, you can work on image processing, robotics, or machine learning systems. These projects improve your skills and prepare you for real-world jobs. Industries like cars and space use FPGAs for tasks like signal processing and control systems. You can also use MATLAB and Simulink in your designs. These tools make hard tasks easier, like creating hardware for AI. Working on advanced projects gives you hands-on experience and boosts your problem-solving skills. Reference If you're learning FPGA programming with MATLAB and Simulink, having good resources is important. Here’s a list of books, websites, and tools to help you: Books 📚 "Digital Design and Computer Architecture" by David Harris and Sarah HarrisThis book teaches digital logic and hardware languages like VHDL and Verilog. It’s easy to follow and has real-world examples."FPGA Prototyping by VHDL Examples" by Pong P. ChuA beginner-friendly guide for learning VHDL. It includes projects like making LED controllers and counters. Online Resources 🌐 MATLAB DocumentationCheck MATLAB's official documentation for step-by-step guides on using MATLAB and Simulink for FPGA tasks.Intel FPGA TrainingIntel offers free courses to learn FPGA basics. Visit Intel FPGA Training.Xilinx Learning CenterXilinx has tutorials and webinars for beginners. Find them at Xilinx Learning Center. Tools and Simulators 🛠️ Tool NameWhat It DoesWebsite LinkHDL CoderTurns MATLAB/Simulink into HDL codeHDL CoderVivado Design SuiteHelps design and debug FPGAsVivadoQuartus PrimeIntel's software for FPGA designQuartus Prime Tip: Save these links for quick use. They’ll help you solve problems faster. Using these resources will give you a solid start in FPGA programming. You’ll feel ready to take on harder projects with confidence. You now know the basics of FPGA programming using MATLAB and Simulink. Begin with easy projects, like making LEDs blink. These simple tasks help you learn and gain confidence. Practice writing HDL code, fixing errors, and testing designs. Tools like Simulink make hard designs easier to handle. As you improve, try harder projects to grow your skills. Keep practicing regularly to become great at FPGA programming and create cool designs. FAQ What is digital design, and why does it matter in FPGA programming? Digital design means making circuits that handle binary data. It’s important in FPGA programming because it helps create parts like counters and controllers. These parts are the building blocks for making useful and efficient FPGA designs. How does MATLAB make FPGA programming easier? MATLAB makes FPGA programming easier with tools like HDL Coder. These tools turn your designs into HDL code automatically. You can also test and check your designs in MATLAB before using them on hardware. This saves time and avoids mistakes. Can Simulink be used for real-time FPGA tasks? Yes, Simulink works for real-time FPGA tasks. It lets you create and test designs visually. Simulink also connects to hardware to check how your design works in real life. This helps ensure your design performs well in real situations. What is a module in FPGA programming? A module is a small, reusable part of FPGA programming. It does one job, like counting or processing data. You can combine modules to make bigger designs. Using modules also makes your work easier to fix and understand. Do I need to know HDL languages to start FPGA programming? Knowing HDL languages like VHDL or Verilog is helpful but not required. Tools like MATLAB and Simulink can create HDL code for you. This lets you focus on designing and testing without writing HDL code yourself.
