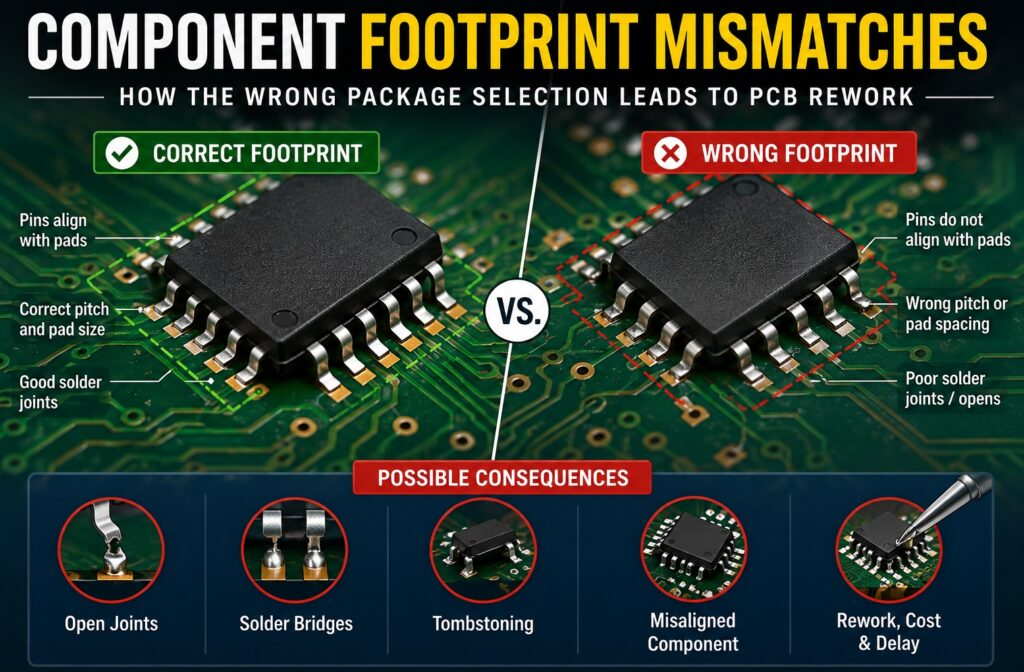

Component Footprint Mismatches — How the Wrong Package Selection Leads to PCB Rework

  • Contents

Printed circuit board design has features for electrical correction and can affect the assembly process since components are used for connection, not according to the board footprint. This error is also called a board assembly footprint mismatch. A common cause for this error is the selection of a general footprint from a CAD library without knowing about different parameters such as pin configuration, package drawing, body dimensions, terminal pitch, and also the thermal pad defined by manufacturers.

This type of error becomes important for surface mount components. Different types of packages like TSSOP, SOP, SOIC, and SOT QFT look the same but come with different assembly and also dimensions and values. Since minor dimension values affect component terminals' alignment with board pads.

So getting an understanding of component packages and PCB footprints is important for preventing extra PCB reworking assembly faults as well as manufacturing delays.

Difference Between  Component Package and PCB Footprint

Through component packages, we can get details on component dimensions and construction. It helps identify different features, such as the number of terminals, terminal configuration, pitch, and package body.

Printed circuit board footprint pattern designed on board for component connection. These footprints come with copper pads and the required design. Footprint made based on component terminals and dimensions.

These differences are important since the package title does not give complete details for selection of the footprint.

Such as two components of the same package coming with different dimensions.  If the board footprint is for the wrong types of components, pins may not be accurately connected on copper pads.

For analog device design, consider packages, boards, and assembly factors. That is helpful for making differences between solder mask and non-solder pads, which also suggests following package-based land-pattern documentation.

The best technique is to follow the required manufacturer part numbers, get the datasheet, and make a comparison of the package drawing to the footprint used for board design

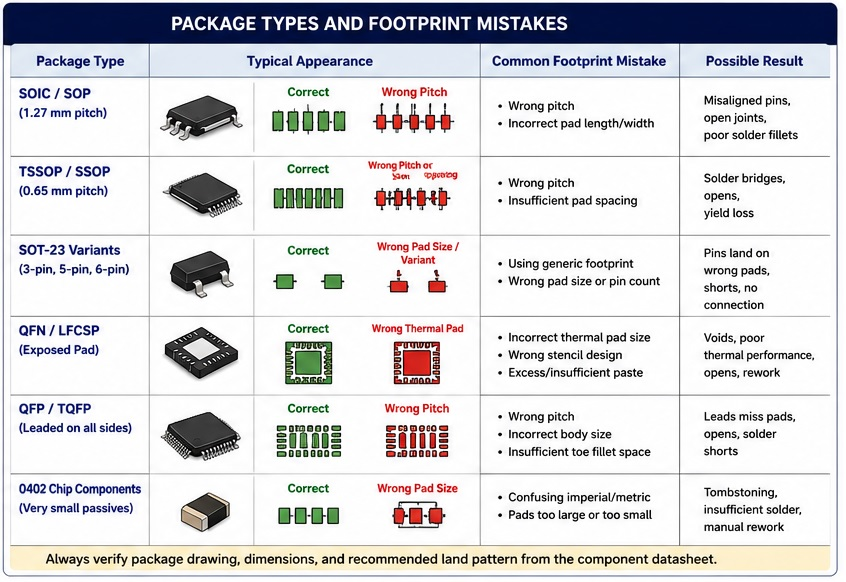

Different Package Types & Footprint Mistakes



SOIC and SOP

  • These package types come with leads extended from the package sides, making a gull-wing-like design. Leads are connected with board pads when it is assembled.
  • Terminal pitch is considered a main feature for these packages. The distance between neighboring terminals measured from the center is called pitch. If the wrong pitch is used, the component pin will not be properly aligned to PCB pads.
  • Dimensions of the body are also important factors; footprints are left based on SOIC packages, not followed by the correct packages used.  Solder joints are badly affected due to differences in lead dimensions, terminal structure, and body width.
  • Using an SOP or SOIC footprint without getting details of manufacturers' package codes and terminal pitch. causes ineffective solder connection, leads misalignment, or rework

TSSOP

  • This package is also confusing due to design resemblance with other packages. So correct package dimensions and terminal pitch must be confirmed.
  • Proper care is needed for fine-pitch packages in between adjacent pads. If pads are close to each other, there is an incorrect pitch and a footprint; it causes solder bridges to also open connections during construction.
  • For SME design, one board footprint also supports many packages. But a dual footprint is needed, specifically configured. So the dimensions and terminals of both packages should support the board land pattern; with that design, it should follow the board manufacturing parameters.
  • Do not create a dual footprint by just putting two unrelated footprints over one another.
  • So using a TSSOP footprint based on packages without considering terminal pitch and package dimensions results in open joints, bad solder fillets, and solder bridges

SOT-23

  • SOT-23 comes in different varieties in SOT packages. that come with different terminal numbers, spacing between terminals, thickness, body dimensions, and board area
  • Small package types are made that are configured in a footprint for different compatible packages. This is flexible for designing and used to support different package options. This compatibility only occurs when terminal dimensions, pitch, and PCB layout are configured for it. It is not expected that all packages in similar families use the same footprint.

Common mistakes are:

  • Using a generic SOT-23 footprint
  • Not considering the exact package variant
  • Wrong terminal count
  • Using the wrong terminal pitch
  • Not checking the package drawing
  • Incorrect pin-1 orientation

All these errors cause faulty electrical connections, erroneous pad configuration, and short circuits

QFN

  • QFN packages do not come with external leads, so they need more attention. underside of packages has electrical connections through terminals, whereas exposed pads on different QFN devices are
  • exposed and helpful for thermal and electrical operations. So a relevant PCB footprint is needed for an accurate thermal pad.
  • Analogue devices need thermal vias below the thermal pad on multilayer boards for heat flow towards other copper layers.
  • Just applying exposed pad dimensions over the PCB design is not important. Different factors such as board production, thermal features, stencil design, solder paste applications, and via construction must be considered
  • Stencil design is best to use, since the stencil defines the quantity of paste that reaches the board PCB pads. With the help of stencil thickness and aperture dimensions, solder paste is deposited on the land pattern defined for analogue devices
  • In the case of exposed QFN pads, analogue devices use many stencilled openings compared to a single larger opening. That is helpful for handling solder voiding during reflow.
  • A thermal pad having too much solder paste causes assembly errors, and improper paste causes faulty solder connections and poor thermal performance.

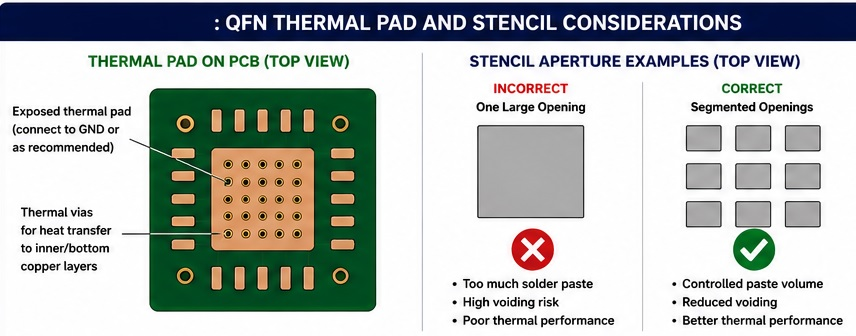

 QFN packages

Common mistakes are

  • Incorrect thermal-pad dimensions
  • Incorrect thermal-via configuration
  • Extra solder-paste coverage
  • One large stencil opening rather than multiple openings
  • Incorrect stencil thickness
  • Poor aperture geometry
  • Insufficient consideration of package and board tolerances

these error results of bad solder joints, improper heat transfer, and voiding

0402 Components

  • Capacitors and small chip resistors also cause footprint errors. Imperial and metric package sizes are used for chip component identification. Any errors in this system cause the selection of footprint-different features

For example:

Imperial designation

Metric designation

0201

0603

0402

1005

0603

1608

0805

2012

Numbers in two naming systems are not interchangeable.  Imperial 0402 components belong to the 1005 metric package.

If the measurement is not clear, checking 0402 in the component description is not enough. Real component dimensions must be checked before footprint selection.

With that, also consider the assembly process, footprint used for automated solder paste printing, and reflow required for correct pad design and solder paste transfer features. Inspection and manual reworking for small components is difficult

Common mistakes are

  • Confusing imperial and metric package designations
  • Using the wrong chip-component footprint
  • Making pads that are too large or too small
  • Failing to consider the assembly process
  • Footprint selection without checking the component's actual dimensions

These errors result in tombstoning, faulty soldering, and difficulty with manual reworking

Why a Footprint Error Becomes PCB Board Rework

Footprint mismatch was not easily seen before starting PCB assembly. The pick-and-place machine during the automated assembly process connects components according to the board design. If the footprint does not match the component terminals, the machine places the component accurately based on the CAD data, but the terminals do not align with the PCB pads.

According to packages and error-occurring results come with

  • Open solder joints
  • Solder bridges
  • Short circuits
  • Poor thermal connections
  • Misaligned terminals
  • Insufficient solder coverage
  • Components that cannot be reliably soldered

QFN packages are sensitive since terminals are connected to the package underside, which makes inspection difficult compared to gull-wing packages. Analog Devices refers to considering package, board, and assembly tolerance as part of the footprint design process.

After manufacturing boards, error correction may require manual soldering, component replacement, and board reworking. During the manufacturing process, footprint errors result in high time and manufacturing costs

How to Control Component Footprint Mismatches

For prevention, footprint recording makes verification of the footprint possible before board construction. Follow these steps.

Exact Part Number

  • Not choose a footprint just because the component is defined as SOIC, QFN, SOT-23, or 0402. Follow the complete and correct manufacturer part number.

Manufacturer's Package Drawing checking

  • Check the package drawing that gives details of physical dimensions required for footprint verification.

Verify Terminal Pitch

  • Get details of the center-to-center distance of terminals that is the best option for SOIC, TSSOP, QFP and also for fine-pitch packages.
  • Make a comparison of the recommended board land pattern of manufacturers with the footprint in the CAD library.
  • Analog Devices asks the designer for package-code-specific land-pattern documentation.

Pin Numbering and Orientation Checking

  • The footprint comes with accurate dimensions and becomes erroneous if the pin number or pin direction is not correct

Thermal Pads and Vias Verification

  • Inspection of thermal vias, thermal land, and solder paste pattern separately for QFN and exposed pad packages

Stencil inspection

  • PCB and Copper footprints and stencils are relevant to each other but not the same. Stencil thickness and aperture design help find solder-paste transfer

Conclusion

Component footprint mismatches result from considering the package name for that showing the complete PCB footprint. But in reality, different parameters such as thermal parameters, package dimensions, pin configuration, land pattern, and assembly process are also considered.

There can be an error that occurs when the wrong pitch or package dimensions are selected for SOIC and SOP packages. TSSOP footprints needed proper requirements for fine-pitch geometry.

SOT-23 defines the importance of package suffixes and exact dimensions matching. QFN packages needed more care for exposing thermal pads, stencil design, and vias. Small 0402 components cause errors when imperial and metric conventions are not clear.

The best way is to choose the correct component, get details of the manufacturer's package drawing, make a comparison with the CAD footprint, and confirm the stencil and assembly details before manufacturing.

Spending some time checking the footprint saves time for PCB troubleshooting and manual reworking later. During design creation, footprint verification should be considered as the main component of board design.
