ReConfigure a Buck Converter for Multiple Outputs

  • Contents





This article shows how to use the buck converter for inverting or non-inverting voltage rails, and use it as an inverting buck-boost converter.






Catalog

I. Brief Introduction

II. Buck Converter

III. Three DC/DC Converter Topologies

3.1 Isolated Buck Topology

3.2 Inverting Buck-boost (step-up and step-down)   Topology4

3.3 Isolated   Buck-boost Topology: +/- output5

FAQ




I. Brief Introduction



As we all known,power supply circuits come in the form of voltage step-up or step-down DC/DC converter. Nowadays,more and more applications require multiple voltage rails to drive ICs.The rails may be inverting,or non-inverting,with or without isolation.



While designers typically use multiple buck converters with single filter inductors, they add cost, footprint, and height. A simpler alternative is to use a single buck converter with coupled inductors or transformers configured in isolated converter topologies. Designers can use the buck converter for inverting or non-inverting voltage rails, and they can configure it for use as an inverting buck-boost converter.



Coupled inductors or transformers can also be used with a buck-boost converter to generate multiple inverting or non-inverting outputs with voltage step-up/down function. However, do you know what is isolated non-isolate DC/DC converter topologies? How they can be implemented using a single synchronous buck converter?




II. Buck Converter



A step-down transformer is a transformer that converts the higher voltage of the input end to the ideal voltage with relatively low output to achieve the purpose of reducing the pressure. A step-down transformer is a very important piece of equipment in the power transmission and transformation system.



Its normal operation is related to not only its own safety, but also the reliable power supply of users, and directly affects the stability of the power system. The protection configuration of the step-down transformer should satisfy in any case, the transformer can not be burned, the accident is enlarged, and the stability of the power system is affected. The principle of its work, the principle of relay protection, operation conditions, operation and requirements, and the abnormal operation and processing methods are introduced in detail.

III. Three DC/DC Converter Topologies



Three DC/DC converter topologies

The beauty of generating various converter topologies based on a single buck converter is that an optocoupler and its related circuitry are not required. This provides the benefit of a smaller footprint, lower component count, reduced complexity, and cost savings. Besides generating multiple outputs, the buck converter is configurable to operate as an inverting buck-boost converter, essentially providing a voltage step-up function. In addition, designers can create an isolated buck-boost converter using a similar concept.



3.1 Isolated Buck Topology

  • A. +/- Step-down output: circuit operation1

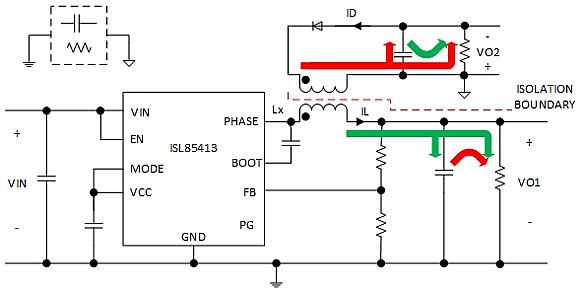

An inverting and non-inverting step-down output can be generated with an isolated buck topology. Fig1 shows how it delivers a +/- output rail to any application that requires a positive and a negative supply.

Synchronous buck regulator uses isolated buck topology to generate ± Vout rail1

Fig1 Synchronous buck regulator uses isolated buck topology to generate ± Vout rail1



With reference to Fig1, the primary and secondary outputs are given by the following equations, assuming the leakage inductance of the coupled inductor or transformer and the DC resistance of the windings is negligible:

where VIN is the input voltage, VO1 and VO2 are the primary and secondary outputs, respectively, D is the duty cycle, N is the turns ratio of the transformer, and Vdiode is the forward voltage drop across the diode.



During the cycle when the high side switch is on (current flow indicated by the green arrow in Fig1), the primary current ramps up and stores the energy in the magnetizing inductance of the transformer and the primary output capacitor. The diode on the secondary side is reverse biased and the load current on the secondary side is supplied by the output capacitor.



During the cycle when the low side switch is on (current flow indicated by the red arrow in Fig1), the primary current ramps down and releases the stored energy in the magnetizing inductance of the transformer, and the load current on the primary side is supplied by the output capacitor.



The diode on the secondary side is forward biased and the current flows from the transformer to supply current to the load, and charges up the secondary output capacitor. At steady state, the voltage at the secondary output is proportionally inverted compared to the voltage at the primary output, assuming the diode voltage drop, transformer winding resistance, and leakage inductances are negligible. Fig2 shows the operating waveforms for this architecture.

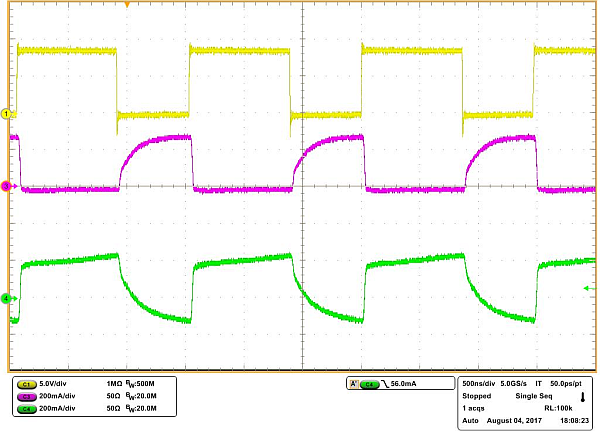

Operating waveforms for a +/- step-down design1

Fig2 Operating waveforms for a +/- step-down design1



  • B. +/+ step-down output2

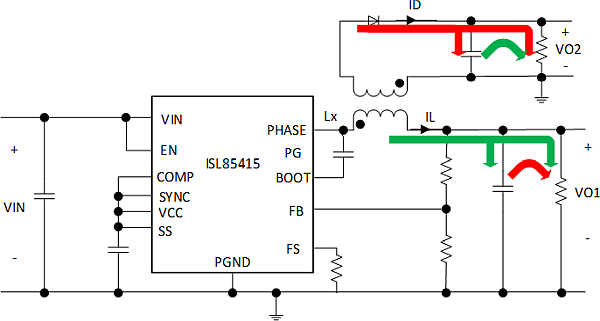

Employing the same concept of generating secondary outputs using a coupled inductor or transformer, the secondary side can be configured differently to generate positive or negative secondary voltages. To generate a positive secondary output, the polarities of the transformer/coupled inductor as well as the secondary side diode are reversed. Fig3 shows an isolated buck topology to generate a dual +VOUT rail.

Isolated buck topology to generate a dual + VOUT rail2 C. +/+/- step-down output3

Fig3 Isolated buck topology to generate a dual + VOUT rail2 C. +/+/- step-down output3

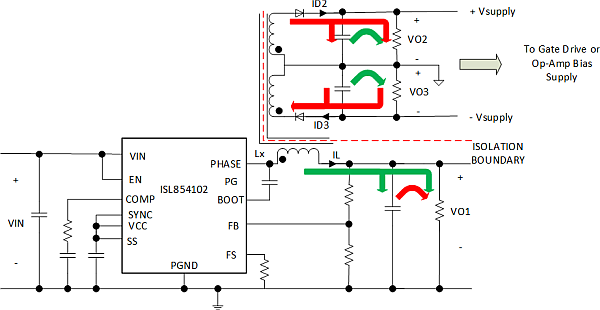

Fig4 shows an isolated buck topology to generate three outputs (dual +VOUT and single –VOUT rail). For a multiple output configuration, the total current of the various outputs reflected to the primary side must accounted for to make sure the IC is able to handle the resultant current.

Isolated buck topology to generate three outputs, dual +VOUT and single –VOUT rail3

Fig4 Isolated buck topology to generate three outputs, dual +VOUT and single –VOUT rail3

The equations for the above circuit are as given below:

Where VO1 is the primary output and VO2 and VO3 are the positive and negative secondary outputs, respectively, D is the duty cycle, N1 and N2 are the turns ratio of the transformer for VO2 and VO3, respectively. Vdiode is the forward voltage drop across the diode. IOUT1, IOUT2, and IOUT3 are the output current drawn from VO1, VO2, and VO3, respectively, IDS_pk is the peak current through the top switch and Δi is the triangular portion of the primary inductor ripple current.



3.2 Inverting Buck-boost (step-up and step-down) Topology4

An inverting buck-boost converter can be derived from the synchronous buck converter by connecting its GND terminal as the negative output of the buck-boost converter and the VOUT terminal of the buck converter as the GND of the buck-boost converter. Fig5 shows the circuit diagram of configuring the ISL85415 buck switcher as an inverting buck-boost converter.

Configuring a buck converter into an inverting buck-boost converter4

FigConfiguring a buck converter into an inverting buck-boost converter4

The equation for output voltage and output current are as follows:

where VIN is the input voltage, VO1 is the output voltage, D is the duty cycle, IOUT is the output current, and IL is the inductor current.



During the cycle when the high side switch is on (current flow indicated by the green arrow in Fig5), the inductor current ramps up and stores energy in the inductor, and the output capacitor provides current to the load.



During the cycle when the low side switch is on (current flow indicated by the red arrow in Fig5), the inductor current ramps down and provides current to the load as well as charges the output capacitor. Operating waveforms for the inverting buck-boost design are shown in Fig6.

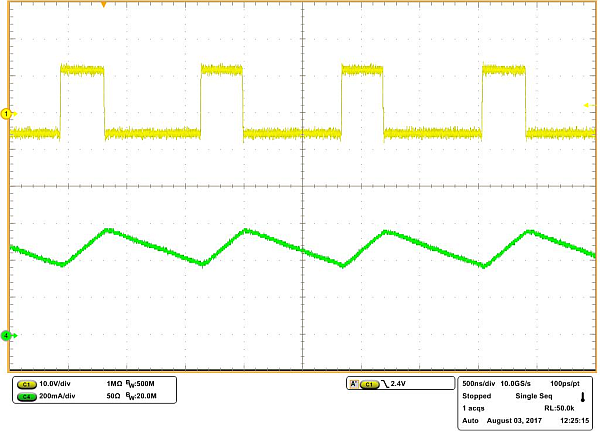

Operating waveforms for an inverting buck-boost design4

Fig6 Operating waveforms for an inverting buck-boost design4



3.3 Isolated Buck-boost Topology: +/- output5

A ± step-up/down output voltage can be realized using the isolated buck-boost topology. The filter inductor can be replaced with a transformer (or coupled inductor) to obtain a positive secondary output. Fig7 shows an isolated buck-boost topology to generate a ± step-up/down VOUT rail. Fig8 shows the operating waveforms for the isolated buck-boost design.



Isolated buck-boost topology to generate a ± VOUT rail5

Fig7 Isolated buck-boost topology to generate a ± VOUT rail5

The voltage and current equations for the above circuit are given below:

where VIN is the input voltage, VO2 is the secondary output voltage, Vdiode is the forward voltage drop across the diode, D is the duty cycle, N is the turns ratio of the transformer, IDS_pk is the peak current through the top switch, Δi is the triangular portion of the primary inductor ripple current, and IOUT1 and IOUT2 are the output current drawn from VO1 and VO2, respectively.

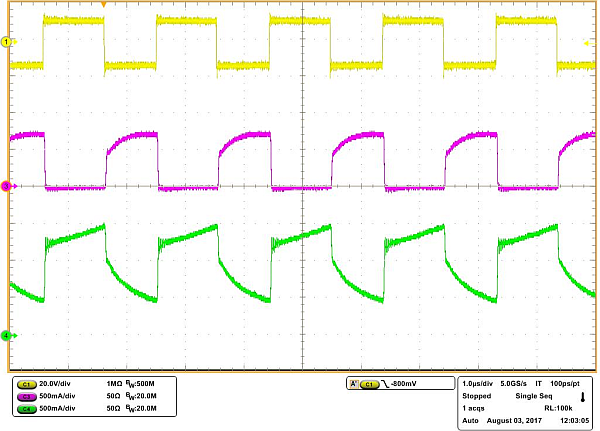

Operating waveforms for an Isolated buck-boost Topology: +/- output5

Fig8 Operating waveforms for an Isolated buck-boost Topology: +/- output5


FAQ



1. What does a buck converter do?

The buck converter is a very simple type of DC-DC converter that produces an output voltage that is less than its input. The buck converter is so named because the inductor always “bucks” or acts against the input voltage. The output voltage of an ideal buck converter is equal to the product of the switching duty cycle and the supply voltage.

Like many power supply topologies, the buck converter operates on the principal of storing energy in an inductor. The voltage drop across an inductor is proportional to changes in electric current flowing through the device.

2. What is principle of Buck-boost converter?

A Buck-Boost converter transforms a positive DC voltage at the input to a negative DC voltage at the output. The circuit operation depends on the conduction state of the MOSFET: On-state: The current through the inductor increases and the diode is in blocking state.

3. Are buck converters safe?

A buck converter is probably no less reliable than most other topologies. It usually comes down to the reliability of the solder joints. The thing to remember about buck regulators is; if the series switch transistor fails SC - it dumps the full unregulated voltage into the load.

4. Are buck converters efficient?

Buck converters can be highly efficient (often higher than 90%), making them useful for tasks such as converting a computer's main (bulk) supply voltage (often 12 V) down to lower voltages needed by USB, DRAM and the CPU (5V, 3.3V or 1.8V, see PSU).

5. How do buck converters work?

The buck Converter circuit consists of the switching transistor, together with the flywheel circuit (Dl, L1 and C1). While the transistor is on, current is flowing through the load via the inductor L1. The action of any inductor opposes changes in current flow and also acts as a store of energy.

6. Do buck converters waste power?

In a buck or boost converter, some energy is transferred directly from the source to the load as well, but the same principle applies. You can also look at a buck converter as an L-C filter on a square wave from the source. Again, all components are lossless, so there's no waste.

7. Does a buck converter limit current?

The buck converter must operate at a very small duty cycle to keep the inductor current below the peak current limit threshold. ... Valley Current Limiting: Provides an additional level of protection. You can implement valley current limiting by sensing the inductor current when the low-side switch is on.

8. How do you adjust the current in a buck converter?

You don't "adjust" output current. Loads draw whatever amount of current they need, provided the power supply can deliver it. If your total load exceeds the buck converter's rating of 3A, then you will be overloading it. If your total load is less than 3A, then you need not adjust anything.

9. How do you control a buck converter?

A Buck converter consists of a transistor and diode that applies the supply voltage on an inductor capacitor, LC, circuit. The output voltage is the voltage across the capacitor. The input voltage u on the LC circuit is controlled by pulse width modulation, PWM.

10. What is the difference between buck and boost converter?

In PV applications, generally, a Buck converter is used to charge the battery (since the output from a Buck converter is supposed to be less than its input), while a Boost converter is used to "match the load voltage" from the (supposedly) low voltage PV input.
